Federal Aviation Administration (FAA), DOT.
Final rule; request for comments.
We are adopting a new airworthiness directive (AD) for The Boeing Company Model 787-8 and 787-9 airplanes powered by Rolls-Royce plc (RR) Trent 1000-A2, Trent 1000-AE2, Trent 1000-C2, Trent 1000-CE2, Trent 1000-D2, Trent 1000-E2, Trent 1000-G2, Trent 1000-H2, Trent 1000-J2, Trent 1000-K2, and Trent 1000-L2 turbofan engines. This AD requires revising the airplane flight manual (AFM) to limit extended operations (ETOPS). This AD was prompted by a report from the engine manufacturer indicating that after an engine failure, prolonged operation at high thrust settings on the remaining engine during an ETOPS diversion may result in failure of the remaining engine before the diversion can be safely completed. We have determined that updated AFM limitations are needed to minimize the potential for intermediate pressure compressor (IPC) blade failures under certain conditions. We are issuing this AD to address the unsafe condition on these products.
This AD is effective April 26, 2018.
We must receive comments on this AD by June 11, 2018.
You may send comments, using the procedures found in 14 CFR 11.43 and 11.45, by any of the following methods:
Federal eRulemaking Portal: Go to http://www.regulations.gov. Follow the instructions for submitting comments.
Mail: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue SE, Washington, DC 20590.
Hand Delivery: Deliver to Mail address above between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays.Start Printed Page 18209
Examining the AD Docket
You may examine the AD docket on the internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2018-0304; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this final rule, the regulatory evaluation, any comments received, and other information. The street address for Docket Operations (phone: 800-647-5527) is in the ADDRESSES section. Comments will be available in the AD docket shortly after receipt.
Start Further Info
FOR FURTHER INFORMATION CONTACT:
Tak Kobayashi, Aerospace Engineer, Propulsion Section, FAA, Seattle ACO Branch, 2200 South 216th St., Des Moines, WA 98198; phone and fax: 206-231-3553; email: Takahisa.Kobayashi@faa.gov.
End Further Info
Start Supplemental Information
Over the past year, we have been aware of several engine failures of Trent 1000 Package C engines due to failed compressor and turbine blades and seals. Package C engines are RR Trent 1000-A2, Trent 1000-AE2, Trent 1000-C2, Trent 1000-CE2, Trent 1000-D2, Trent 1000-E2, Trent 1000-G2, Trent 1000-H2, Trent 1000-J2, Trent 1000-K2, and Trent 1000-L2 turbofan engines. During that same period, under the management programs for those engine issues, we have been aware of numerous reports of engine inspection findings of cracked blades resulting in unscheduled engine removals. Boeing reported to the FAA that the engine manufacturer recently determined that IPC stage 2 blades have a resonant frequency that is excited by the airflow conditions existing in the engine during operation at high thrust settings under certain temperature and altitude conditions. The resultant blade vibration can result in cumulative fatigue damage that can cause blade failure and consequent engine in-flight shutdown. In the event of a single engine in-flight shutdown during the cruise phase of flight, thrust on the remaining engine is normally increased to maximum continuous thrust (MCT). During a diversion following a single engine shutdown under an ETOPS flight, the remaining engine may operate at MCT for a prolonged period, during which the IPC stage 2 blades would be exposed to the resonant frequency condition. Therefore, an ETOPS diversion will put the remaining engine at an operating condition that would significantly increase the likelihood of failure of the remaining engine. In addition, if the remaining engine already had cracked IPC stage 2 blades, the likelihood of the remaining engine failing before a diversion can be safely completed will further increase.
AD 2018-08-03, Amendment 39-19256 (83 FR 16768, April 17, 2018) (“AD 2018-08-03”), also requires revising the AFM to limit ETOPS on Boeing Model 787-8 and 787-9 airplanes powered by RR Trent 1000-A2, Trent 1000-AE2, Trent 1000-C2, Trent 1000-CE2, Trent 1000-D2, Trent 1000-E2, Trent 1000-G2, Trent 1000-H2, Trent 1000-J2, Trent 1000-K2, and Trent 1000-L2 turbofan engines.
Actions Since AD 2018-08-03 Was Issued
Based on further review of the AFM limitations, Boeing has updated the information reflected within the figures of AD 2018-08-03. The FAA has determined it is necessary to update the AFM limitations accordingly to minimize the potential for IPC blade failures under certain conditions.
The FAA has determined that operation under AD 2018-08-03 is acceptable for safe operation until the new AD limitations are mandated.
We are issuing this AD because we evaluated all the relevant information and determined the unsafe condition described previously is likely to exist or develop in other products of the same type design.
This AD requires revising the AFM to limit ETOPS, using the updated information referenced in figure 1 to paragraph (g) of this AD and figure 2 to paragraph (h) of this AD. Accomplishment of the AFM revisions required by this AD terminates all requirements of AD 2018-08-03.
This AD is interim action. The manufacturer is currently developing a modification that will address the unsafe condition identified in this AD. Once this modification is developed, approved, and available, we might consider additional rulemaking.
FAA's Justification and Determination of the Effective Date
An unsafe condition exists that requires the immediate adoption of this AD without providing an opportunity for public comments prior to adoption. The FAA has found that the risk to the flying public justifies waiving notice and comment prior to adoption of this rule because unrecoverable thrust loss on both engines could lead to a forced landing. Therefore, we find good cause that notice and opportunity for prior public comment are impracticable. In addition, for the reasons stated above, we find that good cause exists for making this amendment effective in less than 30 days.
This AD is a final rule that involves requirements affecting flight safety and was not preceded by notice and an opportunity for public comment. However, we invite you to send any written data, views, or arguments about this final rule. Send your comments to an address listed under the ADDRESSES section. Include the docket number FAA-2018-0304 and Product Identifier 2018-NM-065-AD at the beginning of your comments. We specifically invite comments on the overall regulatory, economic, environmental, and energy aspects of this final rule. We will consider all comments received by the closing date and may amend this final rule because of those comments.
We will post all comments we receive, without change, to http://www.regulations.gov, including any personal information you provide. We will also post a report summarizing each substantive verbal contact we receive about this final rule.
Costs of Compliance
We estimate that this AD affects 14 airplanes of U.S. registry. We estimate the following costs to comply with this AD:
Start Printed Page 18210
|Action||Labor cost||Parts cost||Cost per product||Cost on U.S. registered airplanes|
|AFM revisions||1 work-hour × $85 per hour = $85||$0||$85||$1,190|
Authority for This Rulemaking
Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, section 106, describes the authority of the FAA Administrator. “Subtitle VII: Aviation Programs” describes in more detail the scope of the Agency's authority.
We are issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701: “General requirements.” Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.
This AD is issued in accordance with authority delegated by the Executive Director, Aircraft Certification Service, as authorized by FAA Order 8000.51C. In accordance with that order, issuance of ADs is normally a function of the Compliance and Airworthiness Division, but during this transition period, the Executive Director has delegated the authority to issue ADs applicable to transport category airplanes to the Director of the System Oversight Division.
This AD will not have federalism implications under Executive Order 13132. This AD will not have a substantial direct effect on the States, on the relationship between the national government and the States, or on the distribution of power and responsibilities among the various levels of government.
For the reasons discussed above, I certify that this AD:
(1) Is not a “significant regulatory action” under Executive Order 12866,
(2) Is not a “significant rule” under DOT Regulatory Policies and Procedures (44 FR 11034, February 26, 1979),
(3) Will not affect intrastate aviation in Alaska, and
(4) Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.
Start List of Subjects
End List of Subjects
- Air transportation
- Aviation safety
- Incorporation by reference
Adoption of the Amendment
Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR part 39 as follows:
PART 39—AIRWORTHINESS DIRECTIVES
Start Amendment Part
1. The authority citation for part 39 continues to read as follows: End Amendment Part
Start Amendment Part
2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD): End Amendment Part
2018-09-05 The Boeing Company: Amendment 39-19261; Docket No. FAA-2018-0304; Product Identifier 2018-NM-065-AD.
(a) Effective Date
This AD is effective April 26, 2018.
(b) Affected ADs
This AD affects AD 2018-08-03, Amendment 39-19256 (83 FR 16768, April 17, 2018) (“AD 2018-08-03”).
This AD applies to The Boeing Company Model 787-8 and 787-9 airplanes, certificated in any category, powered by Rolls-Royce plc (RR) Trent 1000-A2, Trent 1000-AE2, Trent 1000-C2, Trent 1000-CE2, Trent 1000-D2, Trent 1000-E2, Trent 1000-G2, Trent 1000-H2, Trent 1000-J2, Trent 1000-K2, and Trent 1000-L2 turbofan engines.
Air Transport Association (ATA) of America Code 71, Power plant.
(e) Unsafe Condition
This AD was prompted by a report from the engine manufacturer indicating that after an engine failure, prolonged operation at high thrust settings on the remaining engine during an extended-operation (ETOPS) diversion may result in failure of the remaining engine before the diversion can be safely completed. We are issuing this AD to address unrecoverable thrust loss on both engines, which could lead to a forced landing.
Comply with this AD within the compliance times specified, unless already done.
(g) Revision of Limitations Chapter in Airplane Flight Manual (AFM)

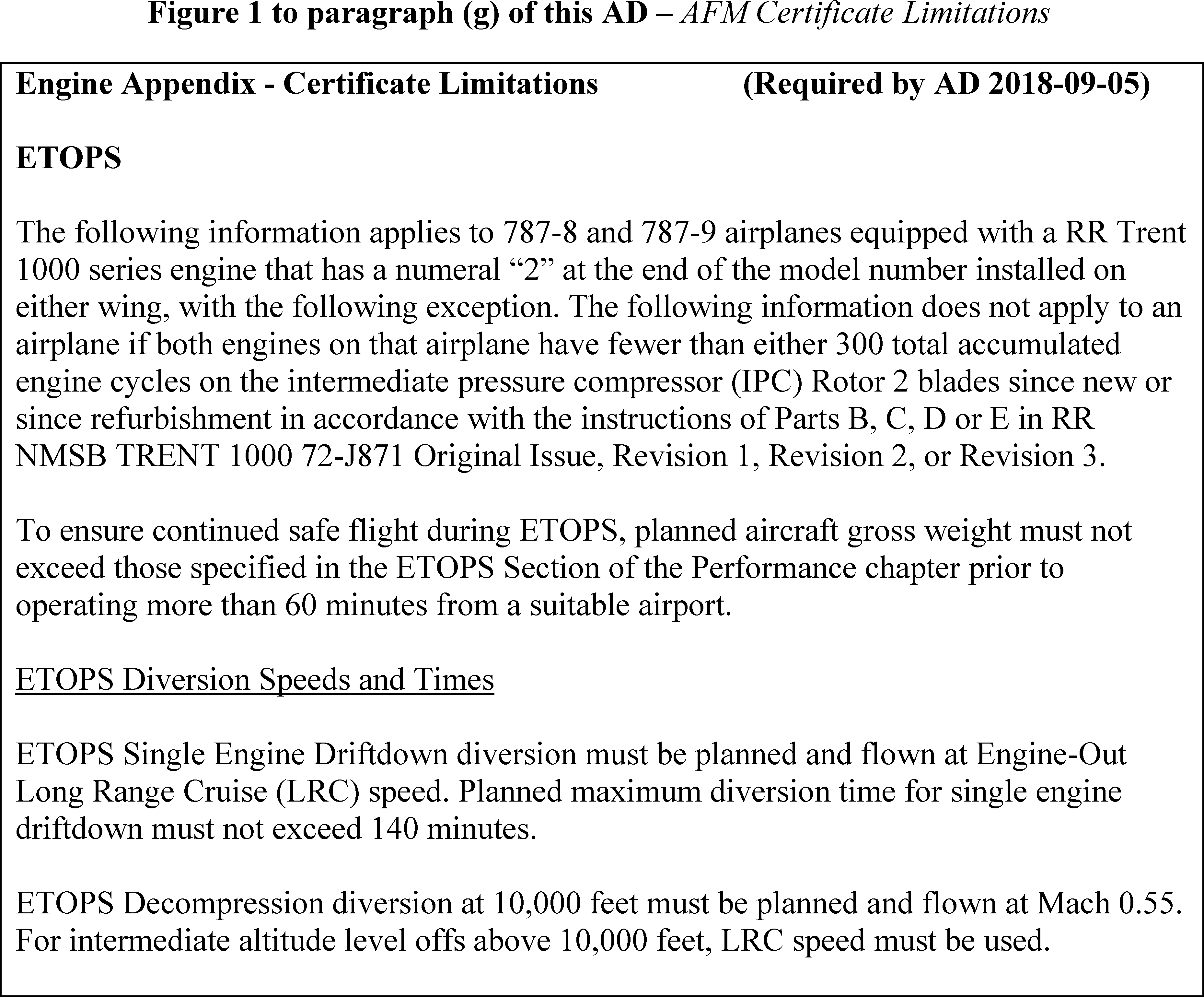

Within 4 days after the effective date of this AD, revise the Certificate Limitations chapter of the applicable Boeing AFM Engine Appendix by incorporating the information in figure 1 to paragraph (g) of this AD. This may be accomplished by inserting a copy of this AD into the AFM. When information identical to that in figure 1 to paragraph (g) of this AD has been included in the Certificate Limitations chapter of the general revisions of the AFM, the general revisions may be inserted into the AFM, and the copy of this AD may be removed from the AFM.
Start Printed Page 18211
(h) Revision of Performance Chapter of AFM

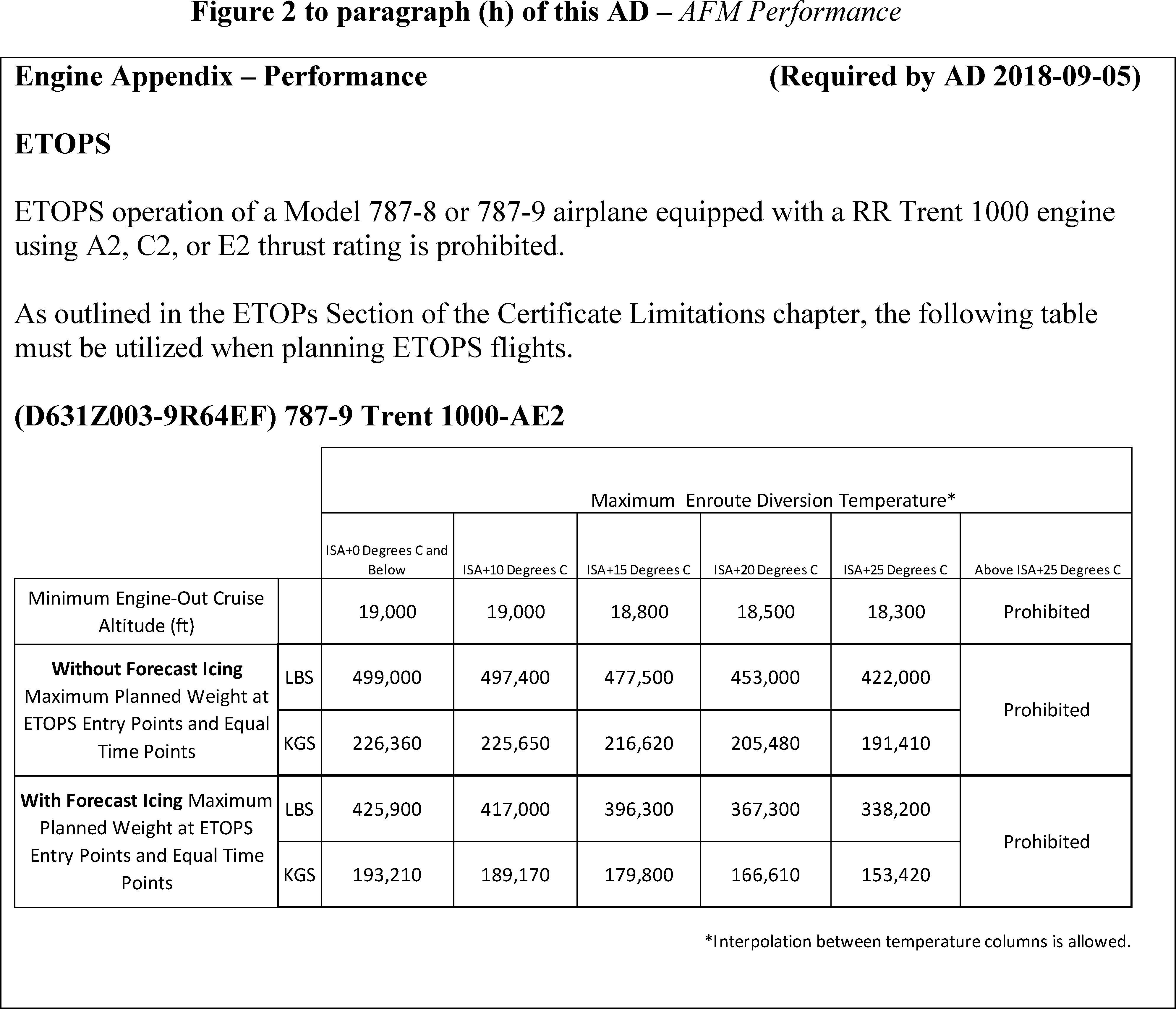

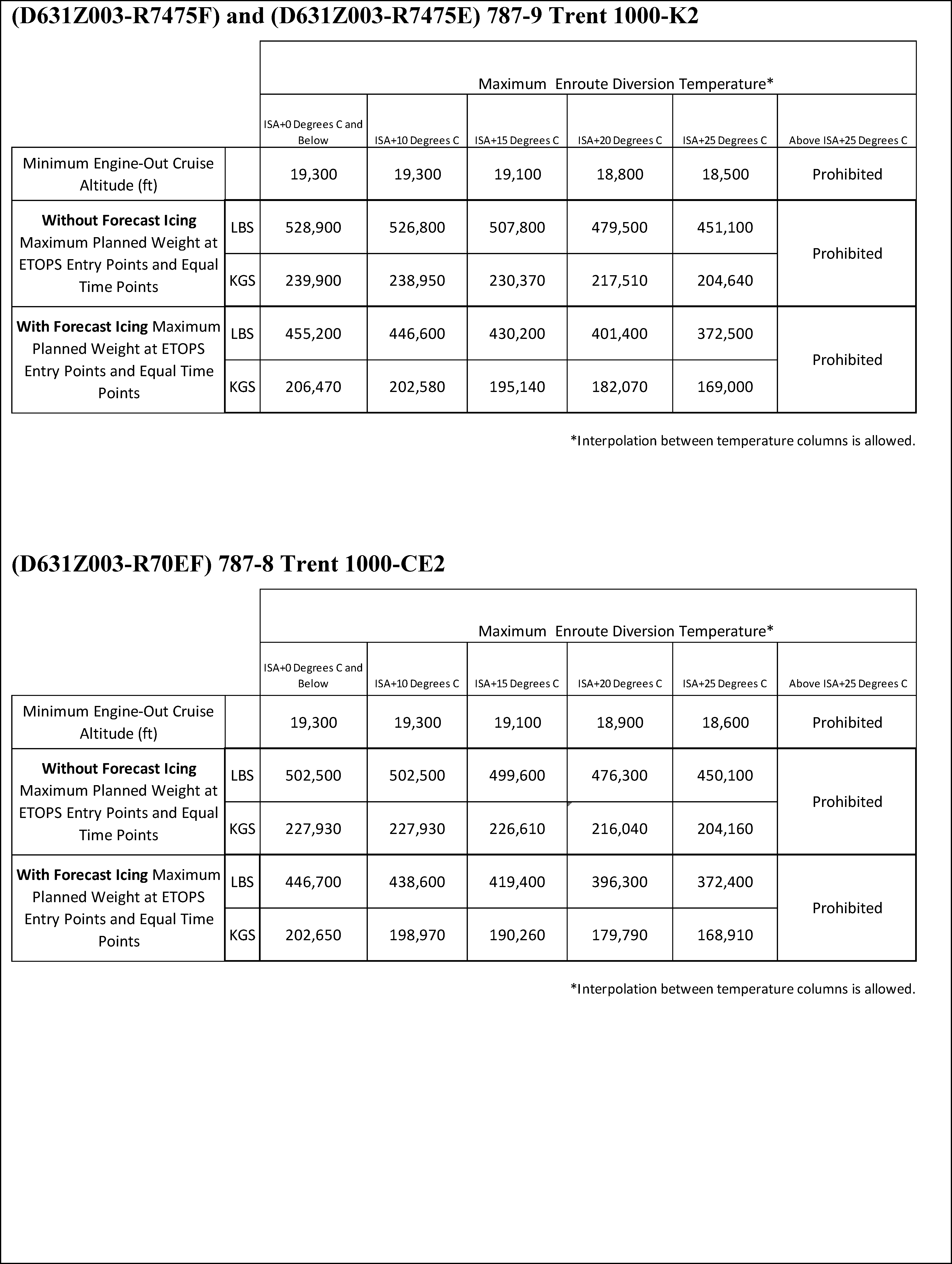

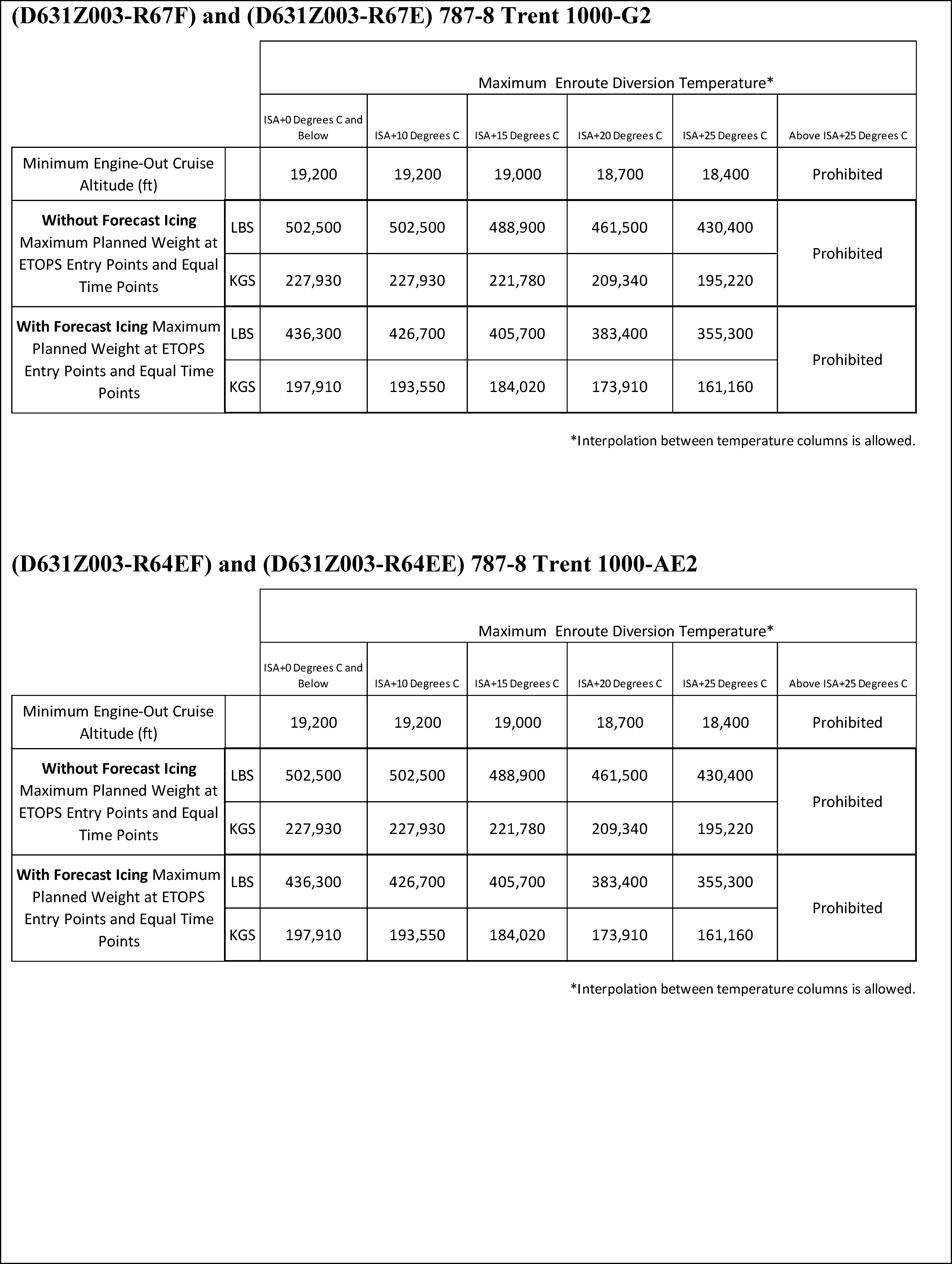

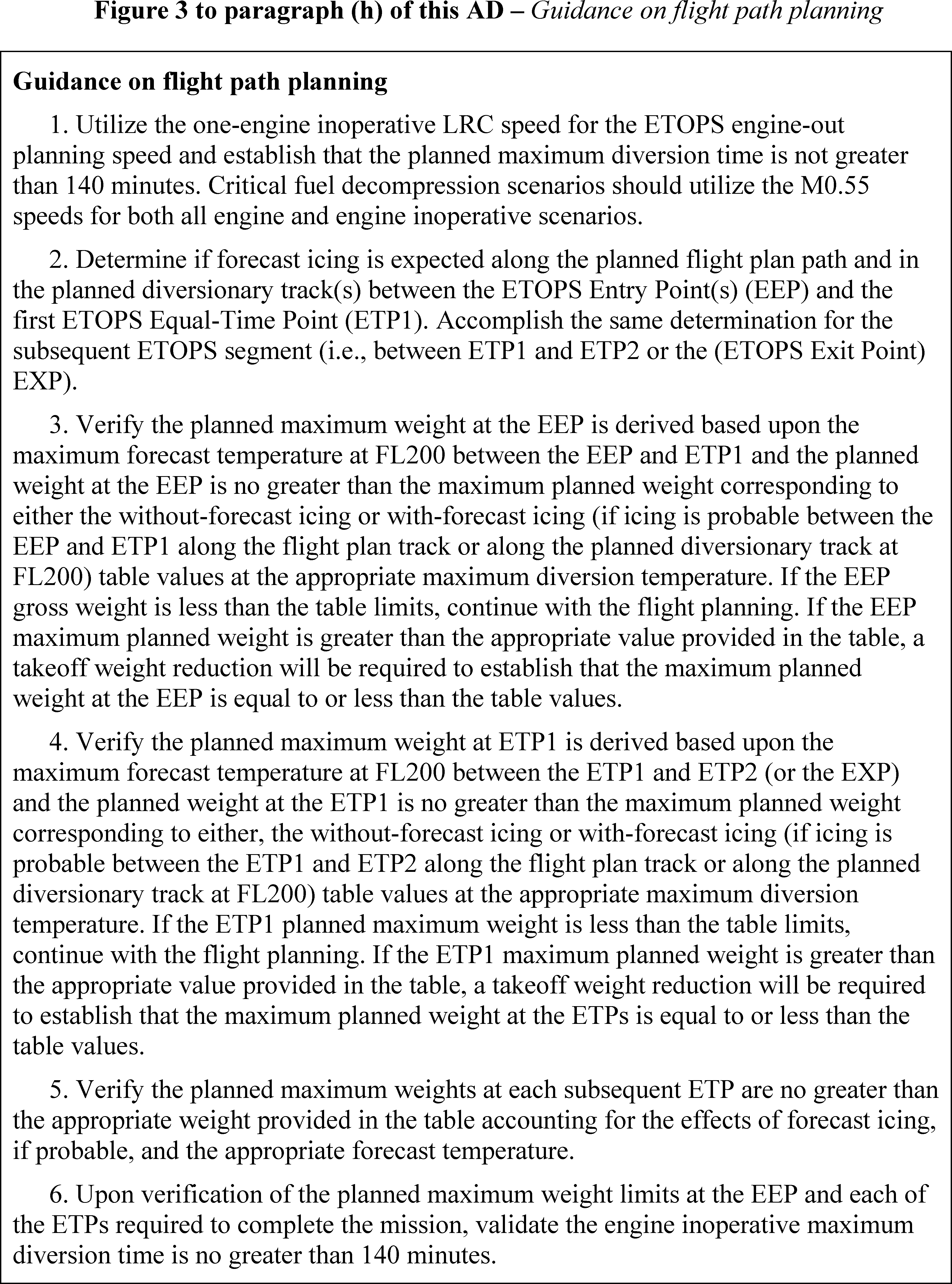

Concurrently with accomplishment of the requirements of paragraph (g) of this AD, revise the Performance chapter of the applicable Boeing AFM Engine Appendix by incorporating the information in figure 2 to paragraph (h) of this AD. This may be accomplished by inserting a copy of this AD into the AFM. When information identical to that in figure 2 to paragraph (h) of this AD has been included in the Performance chapter of the general revisions of the AFM, the general revisions may be inserted into the AFM, and the copy of this AD may be removed from the AFM. Guidance on flight path planning can be found in figure 3 to paragraph (h) of this AD.
Start Printed Page 18212
Start Printed Page 18213
Start Printed Page 18214
Start Printed Page 18215
Start Printed Page 18216
Start Printed Page 18217
Start Printed Page 18218
Start Printed Page 18219
(i) Terminating Action for AD 2018-08-03
Accomplishment of the actions required by paragraphs (g) and (h) of this AD terminates all requirements of AD 2018-08-03.
(j) Alternative Methods of Compliance (AMOCs)
(1) The Manager, Seattle ACO Branch, FAA, has the authority to approve AMOCs for this AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send your request to your principal inspector or local Flight Standards District Office, as appropriate. If sending information directly to the manager of the certification office, send it to the attention of the person identified in paragraph (k) of this AD. Information may be emailed to: 9-ANM-Seattle-ACO-AMOC-Requests@faa.gov.
(2) Before using any approved AMOC, notify your appropriate principal inspector, or lacking a principal inspector, the manager of the local flight standards district office/certificate holding district office.
(3) An AMOC that provides an acceptable level of safety may be used for any repair, modification, or alteration required by this AD if it is approved by the Boeing Commercial Airplanes Organization Designation Authorization (ODA) that has been authorized by the Manager, Seattle ACO Branch, to make those findings. To be approved, the repair method, modification deviation, or alteration deviation must meet the certification basis of the airplane, and the approval must specifically refer to this AD.
(k) Related Information
For more information about this AD, contact Tak Kobayashi, Aerospace Engineer, Propulsion Section, FAA, Seattle ACO Branch, 2200 South 216th St., Des Moines, WA 98198; phone and fax: 206-231-3553; email: Takahisa.Kobayashi@faa.gov.
(l) Material Incorporated by Reference
End Supplemental Information
Issued in Des Moines, Washington, on April 24, 2018.
Jeffrey E. Duven,
Director, System Oversight Division, Aircraft Certification Service.
