Federal Aviation Administration (FAA), DOT.
Notice of proposed rulemaking (NPRM).
We propose to adopt a new airworthiness directive (AD) for all 328 Support Services GmbH Model 328-100 airplanes. This proposed AD was prompted by a report indicating that undetected cracks may develop at the roll spoiler bearing arms. This proposed AD would require a one-time non-destructive test (NDT) inspection for cracks in the roll spoiler bearing arms and, if necessary, corrective actions. We are proposing this AD to address the unsafe condition on these products.Start Printed Page 8483
We must receive comments on this proposed AD by April 22, 2019.
You may send comments, using the procedures found in 14 CFR 11.43 and 11.45, by any of the following methods:
- Federal eRulemaking Portal: Go to http://www.regulations.gov. Follow the instructions for submitting comments.
- Fax: 202-493-2251.
- Mail: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue SE, Washington, DC 20590.
- Hand Delivery: Deliver to Mail address above between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays.
For service information identified in this NPRM, contact 328 Support Services GmbH, Global Support Center, P.O. Box 1252, D-82231 Wessling, Federal Republic of Germany; telephone +49 8153 88111 6666; fax +49 8153 88111 6565; email email@example.com; internet http://www.328support.de. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.
Examining the AD Docket
You may examine the AD docket on the internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2019-0117; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this NPRM, the regulatory evaluation, any comments received, and other information. The street address for Docket Operations (phone: 800-647-5527) is in the ADDRESSES section. Comments will be available in the AD docket shortly after receipt.Start Further Info
FOR FURTHER INFORMATION CONTACT:
Todd Thompson, Aerospace Engineer, International Section, Transport Standards Branch, FAA, 2200 South 216th St., Des Moines, WA 98198; telephone and fax 206-231-3228.End Further Info End Preamble Start Supplemental Information
We invite you to send any written relevant data, views, or arguments about this proposal. Send your comments to an address listed under the ADDRESSES section. Include “Docket No. FAA-2019-0117; Product Identifier 2018-NM-169-AD” at the beginning of your comments. We specifically invite comments on the overall regulatory, economic, environmental, and energy aspects of this NPRM. We will consider all comments received by the closing date and may amend this NPRM because of those comments.
We will post all comments we receive, without change, to http://www.regulations.gov, including any personal information you provide. We will also post a report summarizing each substantive verbal contact we receive about this NPRM.
The European Aviation Safety Agency (EASA), which is the Technical Agent for the Member States of the European Union, has issued EASA Airworthiness Directive 2018-0254, dated November 23, 2018 (referred to after this as the Mandatory Continuing Airworthiness Information, or “the MCAI”), to correct an unsafe condition for all 328 Support Services GmbH Model 328-100 airplanes. The MCAI states:
Dornier 328 Maintenance Review Board Report provides instructions for a detailed inspection for the roll spoilers, including the bearing arms, by eddy current [EC] method. It was reported that whilst performing Maintenance Planning Document Task 57-71-03-02-01, referring to Non-Destructive Test (NDT) Manual task 57-71-03-318-000-AA0, the stacking of 6 parts at the bearing arm No. 3 prevents detection of cracks with the given EC test settings. The NDT results are distorted by geometric features such as part edges and fastener installations. Furthermore, the access to certain areas is limited for the suggested NDT probe for geometrical reasons. The result of the technical investigation identified that undetected cracks may develop at the roll spoiler bearing arms, leading to a broken (disconnected) bearing arm No. 3, where the actuator is connected.
This condition, if not detected and corrected, could lead to a roll spoiler becoming unresponsive to flight crew control inputs, possibly resulting in loss of control of the aeroplane.
To address this potential unsafe condition, 328 SSG published the ASB [328 Support Services Alert Service Bulletin ASB-328-57-043, dated September 21, 2018] to provide appropriate inspection instructions.
For the reasons described above, this [EASA] AD requires a one-time NDT inspection of the affected parts and, depending on findings, accomplishment of applicable corrective action(s) [repair of cracked parts].
You may examine the MCAI in the AD docket on the internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2019-0117.
Related Service Information Under 1 CFR Part 51
328 Support Services has issued Alert Service Bulletin ASB-328-57-043, dated September 21, 2018. This service information describes procedures for a one-time NDT inspection for cracks in the roll spoiler bearing arms. This service information is reasonably available because the interested parties have access to it through their normal course of business or by the means identified in the ADDRESSES section.
This product has been approved by the aviation authority of another country, and is approved for operation in the United States. Pursuant to our bilateral agreement with the State of Design Authority, we have been notified of the unsafe condition described in the MCAI and service information referenced above. We are proposing this AD because we evaluated all the relevant information and determined the unsafe condition described previously is likely to exist or develop on other products of the same type design.
Proposed Requirements of This NPRM
This proposed AD would require accomplishing the actions specified in the service information described previously.
Differences Between This Proposed AD and the MCAI or Service Information
Although the MCAI and 328 Support Services Alert Service Bulletin ASB-328-57-043, dated September 21, 2018, specify to submit certain information to the manufacturer, this AD does not include that requirement.
Costs of Compliance
We estimate that this proposed AD affects 27 airplanes of U.S. registry. We estimate the following costs to comply with this proposed AD:
|Labor cost||Parts cost||Cost per product||Cost on U.S. operators|
|8 work-hours × $85 per hour = $680||$0||$680||$18,360|
We have received no definitive data that would enable us to provide cost estimates for the on-condition actions specified in this proposed AD.
Authority for This Rulemaking
Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation Programs, describes in more detail the scope of the Agency's authority.
We are issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701: “General requirements.” Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.
This proposed AD is issued in accordance with authority delegated by the Executive Director, Aircraft Certification Service, as authorized by FAA Order 8000.51C. In accordance with that order, issuance of ADs is normally a function of the Compliance and Airworthiness Division, but during this transition period, the Executive Director has delegated the authority to issue ADs applicable to transport category airplanes to the Director of the System Oversight Division.
We determined that this proposed AD would not have federalism implications under Executive Order 13132. This proposed AD would not have a substantial direct effect on the States, on the relationship between the national Government and the States, or on the distribution of power and responsibilities among the various levels of government.
For the reasons discussed above, I certify this proposed regulation:
1. Is not a “significant regulatory action” under Executive Order 12866;
2. Is not a “significant rule” under the DOT Regulatory Policies and Procedures (44 FR 11034, February 26, 1979);
3. Will not affect intrastate aviation in Alaska; and
4. Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.Start List of Subjects
List of Subjects in 14 CFR Part 39
- Air transportation
- Aviation safety
- Incorporation by reference
The Proposed Amendment
Accordingly, under the authority delegated to me by the Administrator, the FAA proposes to amend 14 CFR part 39 as follows:Start Part
PART 39—AIRWORTHINESS DIRECTIVESEnd Part Start Amendment Part
1. The authority citation for part 39 continues to read as follows:End Amendment Part
2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD):End Amendment Part
328 Support Services GmbH (Type Certificate Previously Held by AvCraft Aerospace GmbH; Fairchild Dornier GmbH; Dornier Luftfahrt GmbH): Docket No. FAA-2019-0117; Product Identifier 2018-NM-169-AD.
(a) Comments Due Date
We must receive comments by April 22, 2019.
(b) Affected ADs
This AD applies to 328 Support Services GmbH (Type Certificate previously held by AvCraft Aerospace GmbH; Fairchild Dornier GmbH; Dornier Luftfahrt GmbH) Model 328-100 airplanes, certificated in any category, all serial numbers.
Air Transport Association (ATA) of America Code 57, Wings.
This AD was prompted by a report indicating that undetected cracks may develop at the roll spoiler bearing arms. We are issuing this AD to address cracks at the roll spoiler bearing arms, which, if not detected and corrected, could lead to a roll spoiler becoming unresponsive to flight crew control inputs, possibly resulting in loss of control of the airplane.
Comply with this AD within the compliance times specified, unless already done.
(g) Definition of Affected Parts
For the purposes of this AD, an affected part is the bearing arm of roll spoilers having part number (P/N) 001B577A1200000, 001B577A1200001, 001B577A1200002, 001B577A1200003, 001B577A1200004, or 001B577A1200005.

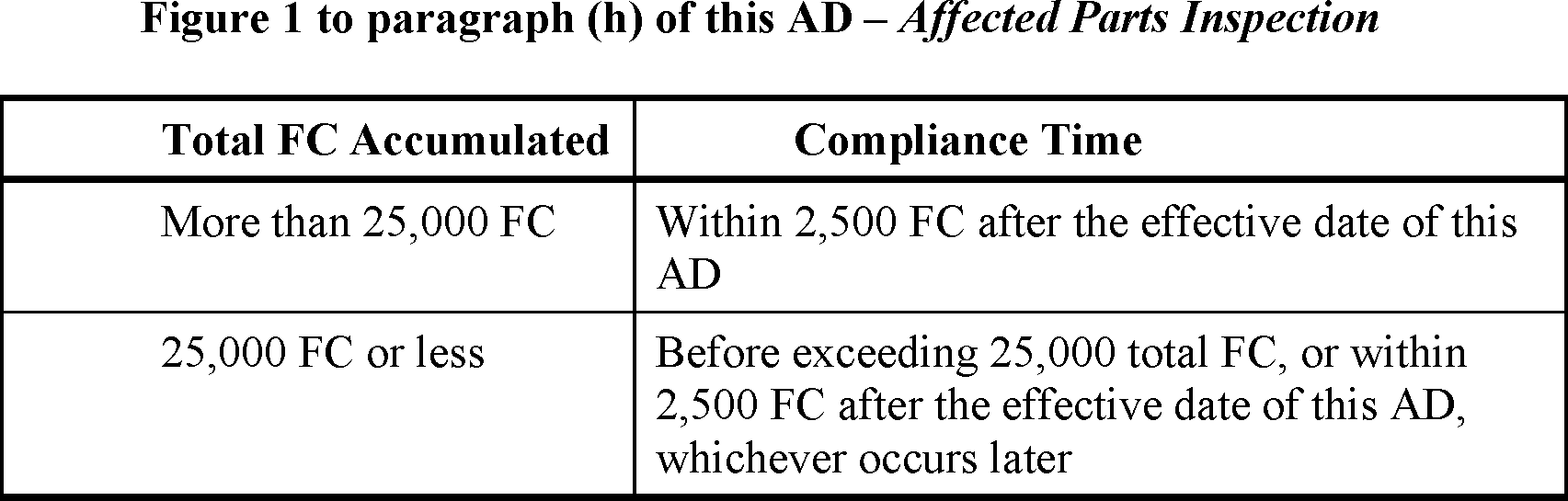

Within the compliance time specified in Figure 1 to paragraph (h) of this AD, as applicable, do a non-destructive test (NDT) inspection of each affected part in accordance with the Accomplishment Instructions of 328 Support Services Alert Service Bulletin ASB-328-57-043, dated September 21, 2018. The flight cycles (FC) specified in Figure 1 to paragraph (h) of this AD are the FC accumulated on the airplane since first flight of the airplane, unless otherwise specified.Start Printed Page 8485
(i) Corrective Action
If any crack is found during any inspection required by paragraph (h) of this AD: Before further flight, obtain corrective actions approved by the Manager, International Section, Transport Standards Branch, FAA; or the European Aviation Safety Agency (EASA); or 328 Support Services GmbH's EASA Design Organization Approval (DOA); and accomplish the corrective actions within the compliance time specified therein. If approved by the DOA, the approval must include the DOA-authorized signature.
(j) No Reporting Requirement
Although 328 Support Services Alert Service Bulletin ASB-328-57-043, dated September 21, 2018, specifies to submit certain information to the manufacturer, this AD does not include that requirement.
(k) Other FAA AD Provisions
The following provisions also apply to this AD:
(1) Alternative Methods of Compliance (AMOCs): The Manager, International Section, Transport Standards Branch, FAA, has the authority to approve AMOCs for this AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send your request to your principal inspector or local Flight Standards District Office, as appropriate. If sending information directly to the International Section, send it to the attention of the person identified in paragraph (l)(2) of this AD. Information may be emailed to: 9-ANM-116-AMOC-REQUESTS@faa.gov. Before using any approved AMOC, notify your appropriate principal inspector, or lacking a principal inspector, the manager of the local flight standards district office/certificate holding district office.
(2) Contacting the Manufacturer: For any requirement in this AD to obtain corrective actions from a manufacturer, the action must be accomplished using a method approved by the Manager, International Section, Transport Standards Branch, FAA; or EASA; or 328 Support Services GmbH's EASA DOA. If approved by the DOA, the approval must include the DOA-authorized signature.
(l) Related Information
(1) Refer to Mandatory Continuing Airworthiness Information (MCAI) EASA Airworthiness Directive 2018-0254, dated November 23, 2018, for related information. This MCAI may be found in the AD docket on the internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2019-0117.
(2) For more information about this AD, contact Todd Thompson, Aerospace Engineer, International Section, Transport Standards Branch, FAA, 2200 South 216th St., Des Moines, WA 98198; telephone and fax 206-231-3228.
(3) For service information identified in this AD, contact 328 Support Services GmbH, Global Support Center, P.O. Box 1252, D-82231 Wessling, Federal Republic of Germany; telephone +49 8153 88111 6666; fax +49 8153 88111 6565; email firstname.lastname@example.org; internet http://www.328support.de. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.Start Signature
Issued in Des Moines, Washington, on February 28, 2019.
Acting Director, System Oversight Division, Aircraft Certification Service.
[FR Doc. 2019-04144 Filed 3-7-19; 8:45 am]
BILLING CODE 4910-13-P
