Start Preamble Start Printed Page 37442

AGENCY:

National Marine Fisheries Service (NMFS), National Oceanic and Atmospheric Administration (NOAA), Commerce.

ACTION:

Final rule; issuance of Letters of Authorization (LOA).

SUMMARY:

NMFS, upon request from Hilcorp Alaska LLC (Hilcorp), hereby issues regulations to govern the unintentional taking of marine mammals incidental to oil and gas activities in Cook Inlet, Alaska, over the course of five years (2019-2024). These regulations, which allow for the issuance of Letters of Authorization (LOA) for the incidental take of marine mammals during the described activities and specified timeframes, prescribe the permissible methods of taking and other means of effecting the least practicable adverse impact on marine mammal species or stocks and their habitat, as well as requirements pertaining to the monitoring and reporting of such taking. In accordance with the Marine Mammal Protection Act (MMPA), as amended, and implementing regulations, notification is hereby additionally given that a LOA has been issued to Hilcorp to take marine mammals incidental to oil and gas activities.

DATES:

Effective from July 30, 2019, to July 30, 2024.

Start Further Info

FOR FURTHER INFORMATION CONTACT:

Sara Young, Office of Protected Resources, NMFS, (301) 427-8401.

End Further Info End Preamble Start Supplemental Information

SUPPLEMENTARY INFORMATION:

Availability

A copy of Hilcorp's application and any supporting documents, as well as a list of the references cited in this document, may be obtained online at: www.fisheries.noaa.gov/​permit/​incidental-take-authorizations-under-marine-mammal-protection-act. In case of problems accessing these documents, please call the contact listed above (see FOR FURTHER INFORMATION CONTACT).

Purpose and Need for Regulatory Action

These regulations establish a framework under the authority of the MMPA (16 U.S.C. 1361 et seq.) to allow for the authorization of take of marine mammals incidental to Hilcorp's oil and gas activities in Cook Inlet, Alaska.

We received an application from Hilcorp requesting five-year regulations and authorization to take multiple species of marine mammals. Take will occur by Level A and Level B harassment incidental to a variety of sources including: Two-dimensional (2D) and three-dimensional (3D) seismic surveys, geohazard surveys, vibratory sheet pile driving, and drilling of exploratory wells. Please see “Background” below for definitions of harassment.

Legal Authority for the Action

Section 101(a)(5)(A) of the MMPA (16 U.S.C. 1371(a)(5)(A)) directs the Secretary of Commerce to allow, upon request, the incidental, but not intentional taking of small numbers of marine mammals by U.S. citizens who engage in a specified activity (other than commercial fishing) within a specified geographical region for up to five years if, after notice and public comment, the agency makes certain findings and issues regulations that set forth permissible methods of taking pursuant to that activity and other means of effecting the least practicable adverse impact on the affected species or stocks and their habitat (see the discussion below in the “Mitigation” section), as well as monitoring and reporting requirements. Section 101(a)(5)(A) of the MMPA and the implementing regulations at 50 CFR part 216, subpart I provide the legal basis for issuing this rule containing five-year regulations, and for any subsequent LOAs. As directed by this legal authority, this rule contains mitigation, monitoring, and reporting requirements.

Summary of Major Provisions Within the Rule

Following is a summary of the major provisions of this rule regarding Hilcorp's activities. These measures include:

  • Required monitoring of the ensonified areas to detect the presence of marine mammals before beginning activities;
  • Required aerial surveys to search for Cook Inlet beluga whales before beginning seismic surveys;
  • Shutdown of activities under certain circumstances to minimize injury of marine mammals;
  • Ramp up at the beginning of seismic surveying to allow marine mammals the opportunity to leave the area prior to beginning the survey at full power, and vessel strike avoidance;
  • Ramp up of impact hammering of the drive pipe for the conductor pipe driven from the drill rig; and
  • Ceasing noise producing activities within 10 miles (16 km) of the mean higher high water (MHHW) line of the Susitna Delta (Beluga River to the Little Susitna River) between April 15 and October 15, as well as ceasing seismic activity within the Level B harassment isopleth distance of the mouth of the Kasilof River between January 1 and May 31.

Background

The MMPA prohibits the “take” of marine mammals, with certain exceptions. Sections 101(a)(5)(A) and (D) of the MMPA (16 U.S.C. 1361 et seq.) direct the Secretary of Commerce (as delegated to NMFS) to allow, upon request, the incidental, but not intentional, taking of small numbers of marine mammals by U.S. citizens who engage in a specified activity (other than commercial fishing) within a specified geographical region if certain findings are made and either regulations are issued or, if the taking is limited to harassment, a notice of a proposed incidental take authorization may be provided to the public for review.

Authorization for incidental takings shall be granted if NMFS finds that the taking will have a negligible impact on the species or stock(s) and will not have an unmitigable adverse impact on the availability of the species or stock(s) for taking for subsistence uses (where relevant). Further, NMFS must prescribe the permissible methods of taking and other means of effecting the least practicable adverse impact on the affected species or stocks and their habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance, and on the availability of such species or stocks for taking for certain subsistence uses (referred to in shorthand as “mitigation”); and requirements pertaining to the mitigation, monitoring and reporting of such takings must be set forth.

NMFS has defined “negligible impact” in 50 CFR 216.103 as an impact resulting from the specified activity that cannot be reasonably expected to, and is not reasonably likely to, adversely affect the species or stock through effects on annual rates of recruitment or survival.

The MMPA states that the term “take” means to harass, hunt, capture, kill or attempt to harass, hunt, capture, or kill Start Printed Page 37443any marine mammal. Except with respect to certain activities not pertinent here, the MMPA defines “harassment” as any act of pursuit, torment, or annoyance which (i) has the potential to injure a marine mammal or marine mammal stock in the wild (Level A harassment); or (ii) has the potential to disturb a marine mammal or marine mammal stock in the wild by causing disruption of behavioral patterns, including, but not limited to, migration, breathing, nursing, breeding, feeding, or sheltering (Level B harassment).

National Environmental Policy Act

To comply with the National Environmental Policy Act of 1969 (NEPA; 42 U.S.C. 4321 et seq.) and NOAA Administrative Order (NAO) 216-6A, NMFS reviewed our proposed action (i.e., the issuance of an incidental harassment authorization) with respect to potential impacts on the human environment.

NMFS prepared an Environmental Assessment (EA) and analyzed the potential impacts to marine mammals that will result from Hilcorp's activities. A Finding of No Significant Impact (FONSI) was signed on July 17, 2019. A copy of the EA and FONSI is available at https://www.fisheries.noaa.gov/​national/​marine-mammal-protection/​incidental-take-authorizations-oil-and-gas.

Summary of Request

On April 17, 2018, NMFS received an application from Hilcorp (or “the applicant”) requesting authorization to incidentally take marine mammals, by Level A and Level B harassment, incidental to noise exposure resulting from oil and gas activities in Cook Inlet, Alaska, from May 2019 to April 2024. These regulations will be valid for a period of five years. On October 8, 2018, NMFS deemed the application adequate and complete.

The use of sound sources such as those described in the application (e.g., seismic airguns) may result in the take of marine mammals through disruption of behavioral patterns or may cause auditory injury of marine mammals. Therefore, incidental take authorization under the MMPA is warranted.

Description of Activity

Overview

The scope of Hilcorp's Incidental Take Regulations (ITR) Petition includes four stages of activity, including exploration, development, production, and decommissioning activities within the applicant's area of operations in and adjacent to Cook Inlet within the Petition's geographic area (Figures 3 and 8 in the application). Table 1 summarizes the planned activities within the geographic scope of this Petition, and the following text describes these activities in more detail. This section is organized into two primary areas within Cook Inlet: Lower Cook Inlet (south of the Forelands to Homer) and middle Cook Inlet (north of the Forelands to Susitna/Point Possession).

Table 1—Summary of Planned Activities Included in Incidental Take Regulations (ITR) Petition

[Updates from Table 1 in the proposed rule are reflected in bold]

Project nameCook Inlet regionYear(s) plannedSeasonal timingAnticipated durationAntiicpated noise sources
Anchor Point 2D seismic surveyLower Cook Inlet, Anchor Point to Kasilof2021 or 2022April-October30 days (10 days seismic)Marine: 1 source vessel with airgun array, 1 node vessel. Onshore/Intertidal: Shot holes, tracked vehicles, helicopters.
OCS 3D seismic surveyLower Cook Inlet OCS2019 or 2020April-October45-60 days1 source vessel with airgun array, 2 support vessels, 1 mitigation vessel.
OCS geohazard surveyLower Cook Inlet OCS2020-2021April-October30 days1 vessel with echosounders and/or sub-bottom profilers.
OCS exploratory wellsLower Cook Inlet OCS2020-2022February-November40-60 days per well, 2-4 wells per year1 jack-up rig, drive pipe installation, vertical seismic profiling, 2-3 tugs for towing rig, support vessels, helicopters.
Iniskin Peninsula exploration and development (causeway construction)Lower Cook Inlet, west side2020-2022April-October180 days each yearConstruction of causeway, vibratory sheet pile driving, dredging, vessels.
Platform & pipeline maintenanceMiddle Cook Inlet2019-2024April-October180 days (each year)Vessels, water jets, hydraulic grinders, pingers, helicopters, and/or sub-bottom profilers No change.
North Cook Inlet Unit subsea well geohazard surveyMiddle Cook Inlet2020April-October14 days1 vessel with echosounders and/or sub-bottom profilers No change.
North Cook Inlet Unit well abandonment activityMiddle Cook Inlet2020April-October90 days1 jack-up rig, tugs towing rig, support vessel, helicopters.
Trading Bay area geohazard surveyMiddle Cook Inlet2020April-October30 days1 vessel with echosounders and/or sub-bottom profilers.
Start Printed Page 37444
Trading Bay area exploratory wellsMiddle Cook Inlet2020April-October120-150 days1 jack-up rig, drive pipe installation, vertical seismic profiling, tugs towing rig, support vessel, helicopters.
Granite Point production drilling and geohazard survey *Middle Cook Inlet2019June-October120-150 days1 jack-up rig, tugs towing rig, support vessel, helicopters, 1 vessel with echosounders.
Drift River terminal decommissioningLower Cook Inlet, west side2020-2023April-October120 daysVessels.
* While these activities were added after the proposed rule, they do not involve technologies that NMFS believes are likely to result in take and therefore do not change the number of takes authorized.
Bold text indicates changes from Table 1 in the Proposed Rule.

Dates and Duration

The scope of the Petition includes exploration, development, production, and decommissioning activities within the applicant's area of operations in and adjacent to Cook Inlet within the Petition's geographic area (Figures 3 and 8 in the application) for the period of five years beginning May 1, 2019, extending through April 30, 2024.

Specific Geographic Region

The geographic area of activity covers a total of approximately 2.7 million acres (10,926 km2) in Cook Inlet. It includes land and adjacent waters in Cook Inlet including both State of Alaska and Federal OCS waters (Figure 3 and 8 in the application). The area extends from the north at the Susitna Delta on the west side (61°10′48 N, 151°0′55 W) and Point Possession on the east side (61°2′11 N, 150°23′30 W) to the south at Ursus Cove on the west side (59°26′20 N, 153°45′5 W) and Nanwalek on the east side (59°24′5 N, 151°56′30 W). The area is depicted in Figures 3 and 8 of the application.

Detailed Description of Specific Activity

It is difficult to characterize each year accurately because many of the activities are progressive (i.e., they depend on results and/or completion of the previous activity). This results in some uncertainty in the timing, duration, and complete scope of work for each year. The applicant will submit an application for a LOA with the specific details of the planned work for that year and with estimated take numbers using the same assumptions as in the ITR Petition.

Activities in Lower Cook Inlet

Based on potential future lease sales in both State and Federal waters, operators collect two-dimensional (2D) seismic data to determine the location of possible oil and gas prospects. Generally, 2D survey lines are spaced farther apart than three-dimensional (3D) survey lines, and 2D surveys are conducted in a regional pattern that provides less detailed geological information. 2D surveys are used to cover wider areas to map geologic structures on a regional scale. Airgun array sizes used during 2D surveys are similar to those used during 3D surveys.

Activities in Middle Cook Inlet

2D Seismic Survey

During the timeframe of this Petition, the region of interest for the 2D survey is the marine, intertidal, and onshore area on the eastern side of Cook Inlet from Anchor Point to the mouth of the Kasilof River. The area of interest is approximately 8 km (5 miles) offshore of the coastline. The anticipated timing of the planned 2D survey is in the open water season (April through October) in either 2020 or 2021. The actual survey duration is approximately 30 days in either year, but only 10 of the 30 days would be in-water seismic work.

The 2D seismic data are acquired using airguns in the marine zone, airguns in the intertidal zone when the tide is high, drilled shot holes in the intertidal zone when the tide is low, and drilled shot holes in the land zone. The data are recorded using an autonomous nodal system (i.e., no cables) that are deployed in the marine, intertidal, and land zones. The planned source lines (airgun and shot holes) are approximately 16 km (10 mi) in length running perpendicular to the coastline (see Figure 1 in the application). The source lines are spaced every 8 km (5 mi) in between Anchor Point and Kasilof, with approximately 9-10 lines over the area of interest.

In the marine and high tide intertidal zones, data will be acquired using a shallow water airgun towed behind one source vessel. Although the precise volume of the airgun array is unknown at this time, Hilcorp will use an airgun array similar to what has been used for surveys in Cook Inlet by Apache (2011-2013) and SAExploration (2015): Either a 2,400 cubic inch (in3) or 1,760 in3 array. A 2,400 in3 airgun was assumed for analysis in this rule to be conservative in take estimation. In addition, the source vessel will be equipped with a 440 in3 shallow water source which it can deploy at high tide in the intertidal area in less than 1.8 meters (m) (6 feet (ft)) of water. Source lines are oriented along the node line. A single vessel is capable of acquiring a source line in approximately 1-2 hours (hrs). In general, only one source line will be collected in one day to allow for all the node deployments and retrievals, and intertidal and land zone shot holes drilling. There are up to 10 source lines, so if all operations run smoothly, there will only be 2 hrs per day over 10 days of airgun activity. Hilcorp anticipates the entire operation to take approximately 30 days to complete to account for weather and equipment contingencies.

The recording system that will be employed is an autonomous system “nodal” (i.e., no cables), which is expected to be made up of at least two types of nodes; one for the land and one for the intertidal and marine environment. For the intertidal and marine zone, this will be a submersible multi-component system made up of three velocity sensors and a hydrophone. These systems have the ability to record continuous data. Inline Start Printed Page 37445receiver intervals for the node systems are approximately 50 m (165 ft). For 2D seismic surveys, the nodes are deployed along the same line as the seismic source. The deployment length is restricted by battery duration and data storage capacity. The marine nodes will be placed using one node vessel. The vessels required for the 2D seismic survey include just a source vessel and a node vessel that is conducting only passive recording.

In the marine environment, once the nodes are placed on the seafloor, the exact position of each node is required. In very shallow water, the node positions are either surveyed by a land surveyor when the tide is low, or the position is accepted based on the position at which the navigator has laid the unit. In deeper water, a hull or pole mounted pinger to send a signal to the transponder attached to each node will be used. The transponders are coded and the crew knows which transponder goes with which node prior to the layout. The transponders response (once pinged) is added together with several other responses to create a suite of range and bearing between the pinger boat and the node. Those data are then calculated to precisely position the node. In good conditions, the nodes can be interrogated as they are laid out. It is also common for the nodes to be pinged after they have been laid out. Onshore and intertidal locating of source and receivers will be accomplished with Differential Global Positioning System/roving units (DGPS/RTK) equipped with telemetry radios which will be linked to a base station established on the source vessel. Survey crews will have both helicopter and light tracked vehicle support. Offshore source and receivers will be positioned with an integrated navigation system (INS) utilizing DGPS/RTK links to the land base stations. The integrated navigation system will be capable of many features that are critical to efficient safe operations. The system will include a hazard display system that can be loaded with known obstructions, or exclusion zones.

Apache conducted a sound source verification (SSV) for the 440 in3 and 2,400 in3 arrays in 2012 (Austin and Warner 2012; 81 FR 47239). The location of the SSV was in Beshta Bay on the western side of Cook Inlet (between Granite Point and North Forelands). Water depths ranged from 30-70 m (98-229 ft).

For the 440 in3 array, the measured levels for the broadside direction were 217 decibel (dB) re: 1microPa (μPa) peak, 190 dB sound exposure level (SEL), and 201 dB root mean square (rms) at a distance of 50 m. The estimated distance to the 160 dB rms (90th percentile) threshold, assuming the empirically measured transmission loss of 20.4 log R (Austin and Warner, 2012), was 2,500 m. Sound levels near the source were highest between 30 and 300 hertz (Hz) in the endfire direction and between 20 Hz and 300 Hz in the broadside direction.

For the 2,400 in3 array, the measured levels for the endfire direction were 217 dB peak, 185 dB SEL, and 197 dB rms at a distance of 100 m. The estimated distance to the 160 dB rms (90th percentile) thresholds, assuming the empirically measured transmission loss of 16.9 log R, was 7,770 m. Sound levels near the source were highest between 30 and 150 Hz in the endfire direction and between 50 and 200 Hz in the broadside direction. During the process of issuing regulations for Apache Alaska, JASCO provided an updated distance of 7,330 m for a 24-hour survey (81 FR 47239). This updated estimate is considered the best available science for seismic activity of similar array size in Cook Inlet and was used to estimate take in this rulemaking. It is important to note that neither survey by Hilcorp is expected to use an airgun array of 2,400 in3; both surveys will use an airgun array with a lower in3 than this. However, 7,330 m is used in calculations as it is the closest known and measured value for seismic airgun isopleths for arrays of a similar size in middle and lower Cook Inlet. Further, a sound source verification (SSV) will be performed to characterize the actual array and environmental parameters for the area to be surveyed. These measured levels were used to evaluate potential Level A harassment (217 dB peak and 185 dB SEL at 100 m assuming 15 log transmission loss) and Level B harassment (7,330 m distance to 160 dB threshold) isopleths from these sound sources (see Estimated Take section).

3D Seismic Survey

During the timeframe of this Petition, Hilcorp plans to collect 3D seismic data for approximately 45-60 days starting May 1, 2019 over 8 of the 14 OCS lease blocks in lower Cook Inlet. The 3D seismic survey is comprised of an area of approximately 790 km2 (305 mi2) through 8 lease blocks (6357, 6405, 6406, 6407, 6455, 6456, 6457, 6458). Hilcorp submitted an application for an Incidental Harassment Authorization (IHA) in late 2017 for a planned survey in 2018 but withdrew the application, and now plans for the survey to take place in 2019 and cover several years of surveying and development. Hilcorp plans to collect 3D seismic data for approximately 45-60 days in either the fall of 2019 (September-October) or spring of 2020 (April-May). Hilcorp plans to collect the seismic survey data in one season (either fall 2019 or spring 2020). If the seismic vessel is not able to start in September and end by October 31 to comply with BOEM lease stipulations, the survey will be postponed until spring 2020. The length of the survey will depend on weather, equipment, and marine mammal delays (contingencies of 20 percent weather, 10 percent equipment, 10 percent marine mammal were assumed in this analysis, or a 40 percent increase in expected duration to account for the aforementioned delays).

Polarcus is the intended seismic contractor, and the general seismic survey design is provided below. The 3D seismic data will be acquired using a specially designed marine seismic vessel towing between 8 and 12 ~2,400-m (1.5 mi) recording cables with a dual air gun array. The survey will involve one source vessel, one support vessel, one chase vessel, and one mitigation vessel. The anticipated seismic source to be deployed from the source vessel is a 14-airgun array with a total volume of 1,945 in3. Crew changes are expected to occur every four to six weeks using a helicopter or support vessel from shore bases in lower Cook Inlet. The seismic survey will be active 24 hrs per day. The array will be towed at a speed of approximately 7.41 km/hr (4 knots), with seismic data collected continuously. Data acquisition will occur for approximately 5 hrs, followed by a 1.5-hr period to turn and reposition the vessel for another pass. The turn radius on the seismic vessel is approximately 3,200 m (2 mi).

The data acquisition will be shot parallel to the Cook Inlet shorelines in a north/south direction. This operational direction will keep recording equipment/streamers in line with Cook Inlet currents and tides and keep the equipment away from shallow waters on the east and west sides. The program may be modified if the survey cannot be conducted as a result of noise conditions onsite (i.e., ambient noise). The airguns will typically be turned off during the turns. The vessel will turn into the tides to ensure the recording cables/streamers remain in line behind the vessel.

Hilcorp plans to use an array that provides for the lowest possible sound source to collect the target data. The array is a Bolt 1900 LLXT dual gun array. The airguns will be configured as two linear arrays or “strings;” each string will have 7 airguns shooting in a “flip-flop” configuration for a total of 14 airguns. The airguns will range in Start Printed Page 37446volume from 45 to 290 in3 for a total of 1,945 in3. The first and last are spaced approximately 14 m (45.9 ft) apart and the strings are separated by approximately 10 m (32.8 ft). The two airgun strings will be distributed across an approximate area of 30 x 14 m (98.4 x 45.9 ft) behind the source vessel and will be towed 300-400 m (984-1,312 ft) behind the vessel at a depth of 5 m (16.4 ft). The firing pressure of the array is 2,000 pounds per square inch (psi). The airgun will fire every 4.5 to 6 seconds, depending on the exact speed of the vessel. When fired, a brief (25 milliseconds [ms] to 140 ms) pulse of sound is emitted by all airguns nearly simultaneously.

Hilcorp intends to use 8 Sercel-type solid streamers or functionally similar for recording the seismic data (Figure 5 in the application). Each streamer will be approximately 2,400 m (150 mi) in length and will be towed approximately 8-15 m (26.2-49.2 ft) or deeper below the surface of the water. The streamers will be placed approximately 50 m (165 ft) apart to provide a total streamer spread of 400 m (1,148 ft). Hilcorp recognizes solid streamers as best in class for marine data acquisition because of unmatched reliability, signal to noise ratio, low frequency content, and noise immunity.

The survey will involve one source vessel, one support vessel, one or two chase vessels, and one mitigation vessel. The source vessel tows the airgun array and the streamers. The support vessel provides general support for the source vessel, including supplies, crew changes, etc. The chase vessel monitors the in-water equipment and maintains a security perimeter around the streamers. The mitigation vessel provides a viewing platform to augment the marine mammal monitoring program.

The planned volume of the airgun array is 1,945 in3. Hilcorp and their partners will be conducting detailed modeling of the array output, but a detailed SSV has not been conducted for this array in Cook Inlet. Therefore, for the purposes of estimating acoustic harassment, results from previous seismic surveys in Cook Inlet by Apache and SAExploration, particularly the 2,400 in3 array, were used. Apache conducted an SSV for the 440 in3 and 2,400 in3 arrays in 2012 (Austin and Warner 2012; 81 FR 47239). The location of the SSV was in Beshta Bay on the western side of Cook Inlet (between Granite Point and North Forelands). Water depths ranged from 30-70 m (98-229 ft). For the 2,400 in3 array, the measured levels for the endfire direction were 217 dB peak, 185 dB SEL, and 197 dB rms at a distance of 100 m. The estimated distance to the 160 dB rms (90th percentile) thresholds, assuming the empirically measured transmission loss of 16.9 log R, was 7,770 m. Sound levels near the source were highest between 30 and 150 Hz in the endfire direction and between 50 and 200 Hz in the broadside direction.

These measured levels were used to evaluate potential Level A (217 dB peak and 185 dB SEL at 100 m assuming 15 log transmission loss) and Level B (7,330 m distance to 160 dB threshold) acoustic harassment of marine mammals in this Petition.

Geohazard and Geotechnical Surveys

Upon completion of the 3D seismic survey over the lower Cook Inlet OCS leases, Hilcorp plans to conduct a geohazard survey on site-specific regions within the area of interest prior to conducting exploratory drilling. The precise location is not known, as it depends on the results of the 3D seismic survey, but the location will be within the lease blocks. The anticipated timing of the activity is in either the fall of 2019 or the spring of 2020. The actual survey duration will take approximately 30 days.

The suite of equipment used during a typical geohazards survey consists of single beam and multi-beam echosounders, which provide water depths and seafloor morphology; a side scan sonar that provides acoustic images of the seafloor; a sub-bottom profiler which provides 20 to 200 m (66 to 656 ft) sub-seafloor penetration with a 6- to 20-centimeter (cm, 2.4-7.9-inch (in)) resolution. Magnetometers, to detect ferrous items, may also be used. Geotechnical surveys are conducted to collect bottom samples to obtain physical and chemical data on surface and near sub-surface sediments. Sediment samples typically are collected using a gravity/piston corer or grab sampler. The surveys are conducted from a single support vessel.

The echosounders and sub-bottom profilers are generally hull-mounted or towed behind a single vessel. The ship travels at 3-4.5 knots (5.6-8.3 km/hr). Surveys are site specific and can cover less than one lease block in a day, but the survey extent is determined by the number of potential drill sites in an area. BOEM guidelines at NTL-A01 require data to be gathered on a 150 by 300 m (492 by 984 ft) grid within 600 m (1,969 ft) of the surface location of the drill site, a 300 by 600 m (984 by 1,969 ft) grid along the wellbore path out to 1,200 m (3,937 ft) beyond the surface projection of the conductor casing, and extending an additional 1,200 m beyond that limit with a 1,200 by 1,200 m grid out to 2,400 m (7,874 ft) from the well site.

The multibeam echosounder, single beam echosounder, and side scan sonar operate at frequencies of greater than 200 kHz. Based on the frequency ranges of these pieces of equipment and the hearing ranges of the marine mammals that have the potential to occur in the action area, the noise produced by the echosounders and side scan sonar are not likely to result in take of marine mammals and are not considered further in this document.

The geophysical surveys include use of a low resolution and high resolution sub-bottom profiler. The high-resolution sub-bottom profiler operates at source level of 210 dB re 1 μPa RMS at 1 m. The system emits energy in the frequency bands of 2 to 24 kHz. The beam width is 15 to 24 degrees. Typical pulse rate is between 3 and 10 Hz. The secondary low-resolution sub-bottom profiler will be utilized as necessary to increase sub-bottom profile penetration. The system emits energy in the frequency bands of 1 to 4 kHz.

Exploratory Drilling

Operators will drill exploratory wells based on mapping of subsurface structures using 2D and 3D seismic data and historical well information. Hilcorp plans to conduct the exploratory drilling program April to October between 2020 and 2022. The exact start date is currently unknown and is dependent on the results of the seismic survey, geohazard survey, and scheduling availability of the drill rig. It is expected that each well will take approximately 40-60 days to drill and test. Beginning in spring 2020, Hilcorp Alaska plans to possibly drill two and as many as four exploratory wells, pending results of the 3D seismic survey in the lower Cook Inlet OCS leases. After testing, the wells may be plugged and abandoned.

Hilcorp Alaska plans to conduct its exploratory drilling using a rig similar to the Spartan 151 drill rig. The Spartan 151 is a 150 H class independent leg, cantilevered jack-up drill rig with a drilling depth capability of 7,620 m (25,000 ft) that can operate in maximum water depths up to 46 m (150 ft). Depending on the rig selection and location, the drilling rig will be towed on site using up to three ocean-going tugs licensed to operate in Cook Inlet. Rig moves will be conducted in a manner to minimize any potential risk regarding safety as well as cultural or environmental impact. While under tow to the well sites, rig operations will be monitored by Hilcorp and the drilling contractor management. Very High Frequency (VHF) radio, satellite, and Start Printed Page 37447cellular phone communication systems will be used while the rig is under tow. Helicopter transport will also be available.

Similarly to transiting vessels, although some marine mammals could receive sound levels in exceedance of the general acoustic threshold of 120 dB from the tugs towing the drill rig during this project, take is unlikely to occur, primarily because of the predictable movement of vessels and tugs. Additionally, marine mammal population density in the project area is low (see Estimated Take section below), and those that are present are likely habituated to the existing baseline of commercial ship traffic. Further, there are no activity-, location-, or species-specific circumstances or other contextual factors that increase concern and the likelihood of take from towing of the drill rig.

The drilling program for the well will be described in detail in an Exploration Plan to BOEM. The Exploration Plan will present information on the drilling mud program; casing design, formation evaluation program; cementing programs; and other engineering information. After rig up/rig acceptance by Hilcorp Alaska, the wells will be spudded and drilled to bottom-hole depths of approximately 2,100 to 4,900 m (7,000 to 16,000 ft) depending on the well. It is expected that each well will take about 40-60 days to drill and up to 10-21 days of well testing. If two wells are drilled, it will take approximately 80-120 days to complete the full program; if four wells are drilled, it will take approximately 160-240 days to complete the full program.

Primary sources of rig-based acoustic energy were identified as coming from the D399/D398 diesel engines, the PZ-10 mud pump, ventilation fans (and associated exhaust), and electrical generators. The source level of one of the strongest acoustic sources, the diesel engines, was estimated to be 137 dB re 1 μPa rms at 1 m in the 141-178 Hz bandwidth. Based on this measured level, the 120 dB rms acoustic received level isopleth is 50 m (154 ft) away from where the energy enters the water (jack-up leg or drill riser). Drilling and well construction sounds are similar to vessel sounds in that they are relatively low-level and low-frequency. Since the rig is stationary in a location with low marine mammal density, the impact of drilling and well construction sounds produced from the jack up rig is expected to be lower than a typical large vessel. There is open water in all directions from the drilling location. Any marine mammal approaching the rig would be fully aware of its presence long before approaching or entering the zone of influence for behavioral harassment, and we are unaware of any specifically important habitat features (e.g., concentrations of prey or refuge from predators) within the rig's zone of influence that encourages marine mammal use and exposure to higher levels of noise closer to the source. Given the absence of any activity-, location-, or species-specific circumstances or other contextual factors that increase concern, we do not expect routine drilling noise to result in the take of marine mammals.

When planned and permitted operations are completed, the well will be suspended according to Bureau of Safety and Environmental Enforcement (BSEE) regulations. The well casings will be landed in a mudline hanger after each hole section is drilled. When the well is abandoned, the production casing is sealed with mechanical plugging devices and cement to prevent the movement of any reservoir fluids between various strata. Each casing string will be cutoff below the surface and sealed with a cement plug. A final shallow cement plug will be set to approximately 3.05 m (10 ft) below the mudline. At this point, the surface casing, conductor, and drive pipe will be cutoff and the three cutoff casings and the mudline hanger are pulled to the deck of the jack-up rig for final disposal. The plugging and abandonment procedures are part of the Well Plan which is reviewed by BSEE prior to being issued an approved Permit to Drill.

A drive pipe is a relatively short, large-diameter pipe driven into the sediment prior to the drilling of oil wells. The drive pipe serves to support the initial sedimentary part of the well, preventing the looser surface layer from collapsing and obstructing the wellbore. Drive pipes are installed using pile driving techniques. Hilcorp plans to drive approximately 60 m of 76.2-cm pipe at each well site prior to drilling using a Delmar D62-22 impact hammer (or similar). This hammer has an impact weight of 6,200 kg (13,640 lbs). The drive pipe driving event is expected to last one to three days at each well site, although actual pounding of the pipe will only occur intermittently during this period.

Illingworth & Rodkin (2014) measured the hammer noise for hammering the drive pipe operating from the rig Endeavour for Buccaneer in 2013 and reported the source level at 190 dB at 55 m, with underwater levels exceeding 160 dB rms threshold at 1.63 km (1 mi). The measured sound levels for the pipe driving were used to evaluate potential Level A (source level of 221dB @ 1m and assuming 15 logR transmission loss) and Level B (1,630 m distance to the 160 dB threshold) acoustic harassment of marine mammals. Conductors are slightly smaller diameter pipes than the drive pipes used to transport or “conduct” drill cuttings to the surface. For these wells, a 50.8-cm (20-in) conductor pipe may be drilled, not hammered, inside the drive pipe, dependent on the integrity of surface formations. There are no noise concerns associated with the conductor pipe drilling.

Once the well is drilled, accurate follow-up seismic data may be collected by placing a receiver at known depths in the borehole and shooting a seismic airgun at the surface near the borehole, called vertical seismic profiling (VSP). These data provide high-resolution images of the geological layers penetrated by the borehole and can be used to accurately correlate original surface seismic data. The actual size of the airgun array is not determined until the final well depth is known, but typical airgun array volumes are between 600 and 880 in3. VSP typically takes less than two full days at each well site. Illingworth & Rodkin (2014) measured a 720 in3 array for Buccaneer in 2013 and report the source level at 227 dB at 1 m, with underwater levels exceeding 160 dB rms threshold at 2.47 km (1.54 mi). The measured sound levels for the VSP were used to evaluate potential Level A harassment (227 dB rms at 1 m assuming 15 logR transmission loss) and Level B harassment (2,470 m distance to the 160 dB threshold) isopleths.

Iniskin Peninsula Exploration

Hilcorp Alaska initiated baseline exploratory data collection in 2013 for a proposed land-based oil and gas exploration and development project on the Iniskin Peninsula of Alaska, near Chinitna Bay. The project is approximately 97 km (60 mi) west of Homer on the west side of Cook Inlet in the Fitz Creek drainage. New project infrastructure includes material sites, a 6.9 km (4.3 mi) long access road, prefabricated bridges to cross four streams, an air strip, barge landing/staging areas, fuel storage facilities, water wells and extraction sites, an intertidal causeway, a camp/staging area, and a drill pad. Construction is anticipated to start in 2020.

An intertidal rock causeway will be constructed adjacent to the Fitz Creek staging area to improve the accessibility of the barge landing during construction and drilling operations. The causeway will extend seaward from the high tide Start Printed Page 37448line approximately 366 m (1,200 ft) to a landing area 46 m (150 ft) wide. A dock face will be constructed around the rock causeway so that barges will be able to dock along the causeway. Rock placement for the causeway is not known to generate sound at levels expected to disturb marine mammals. The causeway is also not planned at a known pinniped haulout or other biologically significant location for local marine mammals. Therefore, rock laying for the causeway is not considered further in this document.

The causeway will need to be 75 percent built before the construction of the dock face will start. The dock face will be constructed with 18-m (60-ft) tall Z-sheet piles, all installed using a vibratory hammer. It will take approximately 14-25 days, depending on the length of the work shift, assuming approximately 25 percent of the day actual pile driving. The timing of pile driving will be in late summer or early winter, after the causeway has been partially constructed. Illingworth & Rodkin (2007) compiled measured near-source (10 m [32.8 ft]) SPL data from vibratory pile driving for different pile sizes ranging in diameter from 30.5 to 243.8 cm (12 to 96 in). For this Petition, the source level of the 61.0-cm (24-in) AZ steel sheet pile from Illingworth & Rodkin (2007) was used for the sheet pile. The measured sound levels of 160 dB rms at 10 m, assuming 15 logR transmission loss for the vibratory sheet pile driving, was used to evaluate potential Level A and B harassment isopleths. Airborne sound from this construction is only expected to impact pinnipeds that are hauled out in the area where sound levels exceed in-air harassment thresholds. While harbor seals are known to use nearby bays, no major land haulouts exist in the project area and no harassment from airborne sound is expected to result from project activities. Therefore, above-water construction will not be discussed further in this document.

Activities in Middle Cook Inlet

Offshore Production Platforms

Of the 17 production platforms in central Cook Inlet, 15 are owned by Hilcorp.

Hilcorp performs routine construction on their platforms, depending on needs of the operations. Construction activities may take place up to 24 hrs a day. In-water activities include support vessels bringing supplies five days a week up to two trips per day between offshore systems at Kenai (OSK) and the platform. Depending on the needs, there may also be barges towed by tugs with equipment and helicopters for crew and supply changes. Routine supply-related transits from vessels and helicopters are not substantially different from routine vessel and air traffic already occurring in Cook Inlet, and take is not expected to occur from these activities.

Offshore Production Drilling

Hilcorp routinely conducts development drilling activities at offshore platforms on a regular basis to meet the asset's production needs. Development drilling activities occurs from existing platforms within the Cook Inlet through either open well slots or existing wellbores in existing platform legs. Drilling activities from platforms within Cook Inlet are accomplished by using conventional drilling equipment from a variety of rig configurations.

Some other platforms in Cook inlet have permanent drilling rigs installed that operate under power provided by the platform power generation systems, while others do not have drill rigs, and the use of a mobile drill rig is required. Mobile offshore drill rigs may be powered by the platform power generation (if compatible with the platform power system) or self-generate power with the use of diesel fired generators. For the reasons outlined above for the Lower Inlet, noise from routine drilling is not considered further in this document.

Helicopter logistics for development drilling programs operations will include transportation for personnel and supplies. The helicopter support will be managed through existing offshore services based at the OSK Heliport to support rig crew changes and cargo handling. Helicopter flights to and from the platform while drilling is occurring is anticipated to increase (on average) by two flights per day from normal platform operations.

Major supplies will be staged on-shore at the OSK Dock in Nikiski. Required supplies and equipment will be moved from the staging area to the platform in which drilling occurring by existing supply vessels that are currently in use supporting offshore operations within Cook Inlet. Vessel trips to and from the platform while drilling is occurring is anticipated to increase (on average) by two trips per day from normal platform operations. During mobile drill rig mobilization and demobilization, one support vessel is used continuously for approximately 30 days to facilitate moving rig equipment and materials.

Oil and Gas Pipeline Maintenance

Each year, Hilcorp Alaska must verify the structural integrity of their platforms and pipelines located within Cook Inlet. Routine maintenance activities include: Subsea pipeline inspections, stabilizations, and repairs; platform leg inspections and repairs; and anode sled installations and/or replacement. In general, pipeline stabilization and pipeline repair are anticipated to occur in succession for a total of 6-10 weeks. However, if a pipeline stabilization location also requires repair, the divers will repair the pipeline at the same time they are stabilizing it. Pipeline repair activities are only to be conducted on an as-needed basis whereas pipeline stabilization activities will occur annually. During underwater inspections, if the divers identify an area of the pipeline that requires stabilization, they will place Sea-Crete bags at that time rather than waiting until the major pipeline stabilization effort that occurs later in the season.

Natural gas and oil pipelines located on the seafloor of the Cook Inlet are inspected on an annual basis using ultrasonic testing (UT), cathodic protection surveys, multi-beam sonar surveys, and sub-bottom profilers. Deficiencies identified are corrected using pipeline stabilization methods or USDOT-approved pipeline repair techniques. The applicant employs dive teams to conduct physical inspections and evaluate cathodic protection status and thickness of subsea pipelines on an annual basis. If required for accurate measurements, divers may use a water jet to provide visual access to the pipeline. For stabilization, inspection dive teams may place Sea-Crete bags beneath the pipeline to replace any materials removed by the water jet. Results of the inspections are recorded and significant deficiencies are noted for repair.

Multi-beam sonar and sub-bottom profilers may also be used to obtain images of the seabed along and immediately adjacent to all subsea pipelines. Elements of pipeline inspections that could produce underwater noise include: The dive support vessel, water jet, multi-beam sonar/sub-bottom profiler and accompanying vessel.

A water jet is a zero-thrust water compressor that is used for underwater removal of marine growth or rock debris underneath the pipeline. The system operates through a mobile pump which draws water from the location of the work. Water jets likely to be used in Cook Inlet include, but are not limited to, the CaviDyne CaviBlaster® and the Gardner Denver Liqua-Blaster. Noise generated during the use of the water jets is very short in duration (30 minutes Start Printed Page 37449or less at any given time) and intermittent.

Hilcorp Alaska conducted underwater measurements during 13 minutes of CaviBlaster® use in Cook Inlet in April 2017 (Austin 2017). Received sound levels were measured up to 143 dB re 1 μPa rms at 170 m and up to 127 dB re 1 μPa rms at 1,100 m. Sounds from the Caviblaster® were clearly detectable out to the maximum measurement range of 1.1 km. Using the measured transmission loss of 19.5 log R (Austin 2017), the source level for the Caviblaster® was estimated as 176 dB re 1 μPa at 1 m. The sounds were broadband in nature, concentrated above 500 Hz with a dominant tone near 2 kHz.

Specifications for the GR 29 Underwater Hydraulic Grinder state that the SPL at the operator's position is 97 dB in air (Stanley 2014). There are no underwater measurements available for the grinder, so using a rough estimate of converting sound level in dB in air to water by adding 61.5 dB results in an underwater level of approximately 159 dB at 1 meter. The measured sound levels for the water jet were used to evaluate potential Level A and B acoustic harassment isopleths, but the grinder was not included.

If necessary, Hilcorp may use an underwater pipe cutter to replace existing pipeline segments in Cook Inlet. The following tools are likely to be used for pipeline cutting activities:

  • A diamond wire saw used for remote cutting underwater structures such as pipes and I-Beams. These saws use hydraulic power delivered by a dedicated power source. The saw usually uses a method that pushes the spinning wire through the pipe.
  • A hydraulically-powered Guillotine saw which uses an orbital cutting movement similar to traditional power saws.

Generally, sound radiated from the diamond wire cutter is not easily discernible from the background noise during the cutting operation. The Navy measured underwater sound levels when the diamond saw was cutting caissons for replacing piles at an old fuel pier at Naval Base Point Loma (Naval Base Point Loma Naval Facilities Engineering Command Southwest 2017). They reported an average SPL for a single cutter at 136.1-141.4 dB rms at 10 m.

Specifications for the Guillotine saw state that the SPL at the operator's position is 86 dB in air (Wachs 2014). There are no underwater measurements available for the grinder, so using a rough estimate of converting sound level in dB in air to water by adding 61.5 dB results in an underwater level of approximately 148 dB at 1 meter. Because the measured levels for use of underwater saws do not exceed the NMFS criteria, the noise from underwater saws was not considered further in this document.

Scour spans beneath pipelines greater than 23 m (75 ft) have the potential to cause pipeline failures. To be conservative, scour spans of 15 m (50 ft) or greater identified using multi-beam sonar surveys are investigated using dive teams. Divers perform tactile inspections to confirm spans greater than 15 m (50 ft). The pipeline is stabilized along these spans with Sea-Crete concrete bags. While in the area, the divers will also inspect the external coating of the pipeline and take cathodic protection readings if corrosion wrap is found to be absent.

Significant pipeline deficiencies identified during pipeline inspections are repaired as soon as practicable using methods including, but not limited to, USDOT-approved clamps and/or fiber glass wraps, bolt/flange replacements, and manifold replacements. In some cases, a water jet may be required to remove sand and gravel from under or around the pipeline to allow access for assessment and repair. The pipeline surface may also require cleaning using a hydraulic grinder to ensure adequate repair. If pipeline replacement is required, an underwater pipe cutter such as a diamond wire saw or hydraulically-powered Guillotine saw may be used. Water jets are the only equipment in pipeline stabilization activities that could produce underwater noise that have the potential to result in take of marine mammals.

Platform Leg Inspection and Repair

Hilcorp's platforms in Cook Inlet are inspected on a routine basis. Divers and certified rope access technicians visually inspect subsea platform legs. These teams also identify and correct significant structural deficiencies. Platform leg integrity and pipeline-to-platform connections beneath the water surface are evaluated by divers on a routine basis. Platform legs, braces, and pipeline-to-platform connections are evaluated for cathodic protection status, structure thickness, excessive marine growth, damage, and scour. If required, divers may use a water jet to clean or provide access to the structure. If necessary, remedial grinding using a hydraulic underwater grinder may be required to determine the extent of damage and/or to prevent further crack propagation. All inspection results are recorded and significant deficiencies are noted for repair. Elements of subsea platform leg inspection and repair that could produce underwater noise include: Dive support vessel, hydraulic grinder, water jet.

Platform leg integrity along the tidal zone is inspected on a routine basis. Difficult-to-reach areas may be accessed using either commercially-piloted unmanned aerial systems (UAS). Commercially-piloted UASs may be deployed from the top-side of the platform to obtain images of the legs. Generally, the UAS is in the air for 15-20 minutes at a time due to battery capacity, which allows for two legs and part of the underside of the platform to be inspected. The total time to inspect a platform is approximately 1.5 hrs of flight time. The UAS is operated at a distance of up to 30.5 m (100 ft) from the platform at an altitude of 9-15 m (30-50 ft) above sea level. To reduce potential harassment of marine mammals, the area around the platform will be inspected prior to launch of the UAS to ensure there are no flights directly above marine mammals. As no flights will be conducted directly over marine mammals, the effects of drone use for routine maintenance are not considered further in this application.

Anode Sled Installation and Replacement

Galvanic and impressed current anode sleds are used to provide cathodic protection for the pipelines and platforms in Cook Inlet. Galvanic anode sleds do not require a power source and may be installed along the length of the pipelines on the seafloor. Impressed current anode sleds are located on the seafloor at each of the corners of each platform and are powered by rectifiers located on the platform. Anodes are placed at the seafloor using dive vessels and hand tools. If necessary, a water jet may be used to provide access for proper installation. Anodes and/or cables may be stabilized using Sea-Crete bags.

Pingers

Several types of moorings are deployed in support of Hilcorp operations; all require an acoustic pinger for location or release. The pinger is deployed over the side of a vessel, and a short signal is emitted to the mooring device. The mooring device responds with a short signal to indicate that the device is working, to indicate range and bearing data, or to illicit a release of the unit from the anchor. These are used for very short periods of time when needed.

The types of moorings requiring the use of pingers anticipated to be used in the Petition period include acoustic Start Printed Page 37450moorings during the 3D seismic survey (assumed 2-4 moorings), node placement for the 2D survey (used with each node deployment), and potential current profilers deployed each season (assumed 2-4 moorings). The total amount of time per mooring device is less than 10 minutes during deployment and retrieval. To avoid disturbance, the pinger will not be deployed if marine mammals have been observed within 135 m (443 ft) of the vessel. The short duration of the pinger deployment as well as Hilcorp's mitigation suggests take of marine mammals from pinger use is unlikely to occur, and pingers are not considered further in this analysis.

North Cook Inlet Unit Subsea Well Plugging and Abandonment

The discovery well in the North Cook Inlet Unit was drilled over 50 years ago and is planned to be abandoned, so in 2020 Hilcorp Alaska plans to conduct a geohazard survey to locate the well and conduct plugging and abandonment (P&A) activities for a previously drilled subsea exploration well. The geohazard survey location is approximately 402-804 m (1/4-1/2 mi) south of the Tyonek platform and will take place over approximately seven days with a grid spacing of approximately 250 m (820 ft). The suite of equipment used during a typical geohazards survey consists of single beam and multi-beam echosounders, which provide water depths and seafloor morphology; a side scan sonar that provides acoustic images of the seafloor; a sub-bottom profiler which provides 20 to 200 m (66 to 656 ft) sub-seafloor penetration with a 6- to 20-cm (2.4-7.9-in) resolution. The echosounders and sub-bottom profilers are generally hull-mounted or towed behind a single vessel. The vessel travels at 3-4.5 knots (5.6-8.3 km/hr).

After the well has been located, Hilcorp plans to conduct plugging and abandonment activities over a 60-90 day time period from May through July in 2020. The jack-up rig will be similar to what is described above (the Spartan 151 drill rig, or similar). The rig will be towed onsite using up to three ocean-going tugs. Once the jack-up rig is on location, divers working off a boat will assist in preparing the subsea wellhead and mudline hanger for the riser to tie the well to the jack-up. At this point, the well will be entered and well casings will be plugged with mechanical devices and cement and then cutoff and pulled. A shallow cement plug will be set in the surface casing to 3.05 m (10 ft) below the mudline hanger. The remaining well casings will be cutoff and the mudline hanger will be recovered to the deck of the jack-up rig for disposal. The well abandonment will be performed in accordance to Alaska Oil and Gas Conservation Commission (AOGCC) regulations.

Trading Bay Exploratory Drilling

Hilcorp plans to conduct exploratory drilling activities in the Trading Bay area. The specific sites of interest have not yet been identified, but the general area is shown in Figure 3 in the application. Hilcorp will conduct geohazard surveys over the areas of interest to locate potential hazards prior to drilling with the same suite of equipment as described above for exploratory drilling in the lower Inlet. The survey is expected to take place over 30-60 days in 2019 from a single vessel.

The exploratory drilling and well completion activities will take place in site-specific areas based on the geohazard survey. Hilcorp plans to drill 1-2 exploratory wells in this area in the open water season of 2020 with the same equipment and methods as described above for lower Inlet exploratory drilling. The noise of routine drilling is not considered further as explained in the description of activities in the Lower Inlet. However, drive pipe installation and vertical seismic profiling will be considered further in the Estimated Take section.

Required mitigation, monitoring, and reporting measures are described in detail later in this document (please see Mitigation and Monitoring and Reporting).

Public Comments and Responses

A notice of NMFS's proposal to issue regulations to Hilcorp was published in the Federal Register on April 1, 2019 (84 FR 12330). That notice described, in detail, Hilcorp's activity, the marine mammal species that may be affected by the activity, and the anticipated effects on marine mammals. During the 30-day public comment period, NMFS received comments from the Marine Mammal Commission (the Commission), several NGOs, the Cook Inlet Regional Citizens Advisory Council, and private citizens. These comments and our responses are described below.

Comment 1: The Commission recommended that NMFS ensure all applicants include a site-specific stakeholder engagement plan or plan of cooperation that includes the required information on the species or stocks potentially affected by the proposed activities, a list of communities contacted, a summary of input received, a schedule for ongoing community engagement, and measures that would be implemented to mitigate any potential conflicts with subsistence hunting, as part of their LOA requests.

Response: Hilcorp has shared the stakeholder meeting tracking tool with NMFS listing dates, attendees, and discussions specifically on marine mammal subsistence hunting. Hilcorp will continue to update NMFS and USFWS with this tracking tool. Each annual LOA will include a detailed Marine Mammal Mitigation and Monitoring Plan (4MP) for the activities to be conducted in that year. The list of communities and individuals contacted, date and form of contact, and any issues raised, will be posted on the NMFS Incidental Take Program website.

Comment 2: Several commenters recommended that NMFS defer issuance of a final rule to Hilcorpor any other applicant proposing to conduct sound-producing activities in Cook Inlet until NMFS has a reasonable basis for determining that authorizing any incidental harassment takes would not contribute to or exacerbate the decline of Cook Inlet beluga whales.

Response: In accordance with our implementing regulations at 50 CFR 216.104(c), we use the best available scientific evidence to determine whether the taking by the specified activity within the specified geographic region will have a negligible impact on the species or stock and will not have an unmitigable adverse impact on the availability of such species or stock for subsistence uses. Based on the scientific evidence available, NMFS determined that the impacts of the oil and gas program, which are primarily acoustic in nature, would meet the standard of no more than a negligible impact and no unmitigable adverse impact on availability of marine mammals for subsistence uses. Moreover, Hilcorp proposed and NMFS has required in the rule a rigorous mitigation plan to reduce impacts to Cook Inlet beluga whales and other marine mammals to the lowest level practicable. Hilcorp is required to shutdown airguns if any beluga whale is observed within the Level B isopleth (described further in our Ensonified Area section), and activities are further restricted by imposing a shutdown of activities within a 10 mi (16 km) radius of the Susitna Delta from April 15 through October 15, which is an important area for beluga feeding and calving in the spring and summer months. These shutdown measures are more restrictive than the standard shutdown measures typically applied and combined with the Susitna Delta exclusion (minimizing adverse effects to foraging), they are expected to reduce both the scope and severity of potential harassment takes, ensuring that there Start Printed Page 37451are no energetic impacts from the harassment that would adversely affect reproductive rates or survivorship. Additionally, since the proposed rule was published, another mitigation area has been added in an area and time where belugas have been observed congregating, to further minimize impacts. Specifically, no 2D seismic airgun activity will be allowed between January 1 and May 31 within the level B harassment radius (which may be updated based on the SSV results) of the Kasilof River. We are assuming that timing of belugas in the Kasilof is likely similar to the timing of belugas in the nearby Kenai River (sighings peak in spring and fall, with little to no presence in the summer). Belugas may also be present in the Kenai River throughout the year; however, there are peaks of beluga presence in spring (Castellote et al. 2016; NMFS unpublished data) and sightings also in the fall (August through October; NMFS unpublished data). There appears to be a steep decline in beluga presence in the Kenai River area during the summer (June through August); however, historically belugas were seen throughout the summer in the area. Cook Inlet belugas were also historically observed in the nearby Kasilof River during aerial surveys conducted by ADFG in the late 1970s and early 1980s and NMFS starting in 1993 (Shelden et al. 2015b). NMFS' records of opportunistic sightings contain thirteen records of beluga sightings in the Kasilof River between 1978 and 2015, with half of those sightings occurring since 2008 (Shelden et al. 2015b; NMFS unpublished data). In 2018, surveys of local residents in the Kenai/Kasilof area were conducted by NMFS. There were two reports of sightings of belugas in the Kasilof River in April; one of these reports was of a group of around 30 belugas (NMFS unpublished data).

Our analysis indicates that issuance of these regulations will not contribute to or worsen the observed decline of the Cook Inlet beluga whale population. Additionally, the ESA Biological Opinion determined that the issuance of this rule is not likely to jeopardize the continued existence of the Cook Inlet beluga whales or the western distinct population segment of Steller sea lions or to destroy or adversely modify Cook Inlet beluga whale critical habitat. The Biological Opinion also outlined Terms and Conditions and Reasonable and Prudent Measures to reduce impacts, which have been incorporated into the rule, including an additional area closure of the Kasilof River mouth discussed in the Mitigation section below. Therefore, based on the analysis of potential effects, the parameters of the activity, and the rigorous mitigation and monitoring program, NMFS determined that the activity would have a negligible impact on the Cook Inlet beluga whale stock.

Moreover, the oil and gas activity would take only small numbers of marine mammals relative to their population sizes. Further, either these takes represent one annual disturbance event for each of these individuals, or perhaps a few individuals could be disturbed a few times, in which case the number of impacted individual whales is even lower. As described in the proposed rule Federal Register notice, NMFS used a method that incorporates density of marine mammals overlaid with the anticipated ensonified area to calculate an estimated number of takes for belugas, which was estimated to be less than 10% of the stock abundance, which NMFS considers small.

Comment 3: Several commenters recommended that NMFS defer issuance of Hilcorp's final rule until all activities for which incidental take authorizations or regulations have been or are expected to be issued are considered with respect to their anticipated, cumulative take of Cook Inlet beluga whales, as part of a Programmatic Environmental Iimpact Statement under NEPA.

Response: NMFS originally declared its intent to prepare an Environmental Impact Statement (EIS) for oil and gas activities in Cook Inlet, Alaska (79 FR 61616; October 14, 2014). However, in a 2017 Federal Register notice (82 FR 41939; September 5, 2017), NMFS indicated that due to a reduced number of Incidental Take Authorization (ITA) requests in the region, combined with funding constraints at that time, we were postponing any potential preparation of an EIS for oil and gas activities in Cook Inlet. As stated in the 2017 Federal Register notice, should the number of ITA requests, or anticipated requests, noticeably increase, NMFS will re-evaluate whether preparation of an EIS is necessary. Currently, the number of ITA requests for activities that may affect marine mammals in Cook Inlet is at such a level that preparation of an EIS is not yet necessary. Nonetheless, under NEPA, NMFS is required to consider cumulative effects of other potential activities in the same geographic area, and these are discussed in greater detail in the Final Environmental Assessment (EA).

Comment 4: The Commission also recommended that NMFS establish annual limits on the total number and type of takes that are authorized for all sound-producing activities in Cook Inlet before issuing the final rule.

Response: As mentioned above, NMFS is required to make its required determinations at the specified activities level (i.e., the entire project described in the application) under the MMPA. Setting limits on the number and types of takes across individual activity pieces is not necessary, as there are no takes associated with any specific portion of the project that have differential or more severe impacts such that they require individual management or limits. Further, there are few incidental takes of Cook Inlet beluga whales currently authorized in Cook Inlet, and the projects for which takes are authorized are separated spatially and temporally. NMFS explores the effects of potential overlap in projects and the effects of sound sources other than sound sources resulting in incidental take on Cook Inlet beluga whales in the Cumulative Effects section of the Final EA.

Comment 5: The Commission recommended that NMFS address and fix inconsistencies with respect to information provided regarding the referenced sound sources.

Response: NMFS clarified which sound sources were referenced to 1 m. NMFS also clarified that it does not expect that the sounds produced by hydraulic grinders or pipe cutters are likely to result in take. Therefore, NMFS did not analyze those source any further.

Comment 6: The Commission recommended that NMFS require Hilcorp to ensure that the total number of days for each activity is accurate and consistent, and recommended that NMFS revise the number of days used to estimate the number of marine mammal takes for each of the proposed activities based on the number of days each type of activity is scheduled to occur regardless of the duration of those activities on a given day.

Response: The number of days of activity have been updated in the calculations for take estimates, and an updated Table 1 is included in the project description above.

Comment 7: The Commission recommended that NMFS require Hilcorp to revise the geohazard survey durations for each of the well sites (the four lower Cook Inlet OCS sites, the North Cook Inlet Unit site, and the two Trading Bay area sites) and re-estimate the number of marine mammal takes.

Response: Geohazard duration was calculated based on a worst-case scenario, as the precise scope of work will depend on results of other surveys. Therefore, the original estimate is still appropriate: 2,400 m of monitoring Start Printed Page 37452distance in both directions yields 4,800 m total length of transect. This 4,800 m of transect distance, divided by 150 m transect width yields 32 transects. 4,800 m transect length multiplied by 32 transects yields 153.6 km transect length to be surveyed. If the distance is covered at a speed of 7.41 km/hour this results in 0.65 hours (38 minutes) to survey each transect. If surveying can occur for 12 hours per day, this results in 7.77 days to survey one well grid. This duration (7/77 days) multiplied by the number of wells results in durations of: 31 days for OCS wells, eight days for Northern Cook Inlet wells, and 15.5 days for Trading Bay wells.

Comment 8: The Commission recommended that NMFS determine which of the proposed activities will actually occur this year and which will be delayed until 2020, and revise the numbers of marine mammal takes accordingly.

Response: As noted above, these activities are progressive and dependent on results from the previous year, so predicting activities by year is challenging. Hilcorp has provided a “worst case” 5-year scenario of activities. Based on the predicted schedule, we have used June 1 to May 31 as the annual scenario described in the Estimated Take Section below. Therefore, we attempt to use “Year 1 or Season 1” terminology, as these activities are not confined to single calendar years (January to December).

One of the primary challenges with the forecasting annual activities is how to break up and analyze components associated with the OCS exploratory drilling (i.e., VSP, conductor pipe driving, geohazard). Hilcorp has clarified that the plan is to drill all 4 wells between June 1 2020-2021 (Year 2), as long as everything goes well. So, we have included a shallow hazard survey in April-May 2020 (Year 1) over 2 of the 4 wells, and then a suite of drilling activities (VSP, conductor pipe driving) over all 4 wells in June 2020-2021 (Year 2), with the other 2 wells surveyed for shallow hazards (shallow hazard survey must be conducted within a few months of the planned drilling, so we would do shallow hazard in between the wells). To be conservative, we have included drilling activities (VSP, conductor pipe, and shallow hazard) for 1 of 4 wells in Years 3 and 4, in the event OCS activities take longer than the planned 1 year. Tables 11 through 18 have been updated accordingly.

Comment 9: The Commission noted several inconsistencies regarding source levels presented in either the application or the proposed rule which did not result in the correct outputs for Level A harassment isopleths. The Commission did not agree with several pulse durations used in the proposed rule, including the chosen pulse duration for the profiler (boomer), which the Commission suggests is too long at 90 msec for a repetition rate of 30 msec, as well as VSP and impact pile driving, for which the Commission suggests the pulse durations were too short at 20 msec. The Commission recommended that NMFS recalculate all of the Level A harassment zones and revise the numbers of marine mammal takes and mitigation measures accordingly.

Response: The exposure estimates have been updated using the NMFS 2018 guidance and updated user spreadsheet inputs. Per the Commission's comments, the boomer pulse duration was adjusted to 0.1 sec (100 ms). The VSP pulse duration was kept at 0.02 sec (20 ms). When speaking to the Hilcorp engineers, they indicated that the seismic pulse for VSP is generally the same as for 3D seismic survey, or generally 20 ms . The impact pipe driving was adjusted to 0.1 sec (100 ms) per the Commission's comments. It is important to note that the specific equipment for everything other than the 3D seismic survey is not known at this time because contractors have not been selected; these are estimates only, although the equipment will be required to be within the parameters outlined in the proposed rule. If peak measurements were not available, the RMS was used to calculate peak. Many of the SSV reports prior to 2016 did not include peak or SEL. They only included RMS for the 190/180/160/120 dB thresholds, such as the VSP and water jet.

The inputs used are as follows:

3D/2D seismic survey: 217 dB peak/185 dB SEL @100 m; 2.05 m/s vessel speed, pulse duration 0.02 s, repetition rate every 6 s;

  • Profiler (boomer): 212 dB peak @1 m; 2.05 m/s vessel speed, pulse duration 0.1 s, repetition rate every 6 s;
  • VSP: 227 dB rms @1 m; 4 hrs per day; pulse duration 0.02 s; repetition rate 6 s;
  • Water jet: 176 dB rms @1 m; 3 hrs per day;
  • Pipe driving: 195 dB rms @55 m; 1 pile per day; 0.100 s; 25 strikes per pile
  • Vib pile driving: 160 dB rms @10 m; 5 piles per day; 90 min per pile

Table 4 has been updated accordingly.

Comment 10: The Commission recommended that, until the behavior thresholds are updated, NMFS require Hilcorp to use the 120- dB re 1 μPa threshold rather than the 160-dB re 1 μPa threshold for intermittent, non-impulsive sources, such as chirps.

Response: Please see our Notice of Proposed Rulemaking (83 FR 37638; August 1, 2018) for the discussion related to acoustic terminology and thresholds. The Commission repeats a recommendation made in prior letters concerning proposed authorization of take incidental to the use of scientific sonars (such as echosounders). As we have described in responses to those prior comments (e.g., 83 FR 36370), our evaluation of the available information leads us to disagree with this recommendation. After review of the Commission's recommendation in this case, our assessment is unchanged. While the Commission presents certain valid points in attempting to justify their recommendation (e.g., certain sensitive species are known to respond to sound exposures at lower levels), these points do not ultimately support the recommendation.

First, we provide here some necessary background on implementation of acoustic thresholds. NMFS has historically used generalized acoustic thresholds based on received levels to predict the occurrence of behavioral disturbance rising to the level of Level B harassment, given the practical need to use a relatively simple threshold based on information that is available for most activities. Thresholds were selected largely in consideration of measured avoidance responses of mysticete whales to airgun signals and to industrial noise sources, such as drilling. The selected thresholds of 160 dB rms SPL and 120 dB rms SPL, respectively, have been extended for use for estimation of behavioral disturbance rising to the level of Level B harassment associated with noise exposure from sources associated with other common activities.

The Commission misinterpreted how NMFS characterizes scientific sonars, so we provide clarification here. Sound sources can be divided into broad categories based on various criteria or for various purposes. As discussed by Richardson et al. (1995), source characteristics include strength of signal amplitude, distribution of sound frequency and, importantly in context of these thresholds, variability over time. With regard to temporal properties, sounds are generally considered to be either continuous or transient (i.e., intermittent). Continuous sounds, which are produced by the industrial noise sources for which the 120-dB behavioral threshold was selected, are simply those for which sound pressure level remain above ambient sound during the observation period (ANSI, Start Printed Page 374532005). Intermittent sounds are defined as sounds with interrupted levels of low or no sound (NIOSH, 1998). Simply put, a continuous noise source produces a signal that continues over time, while an intermittent source produces signals of relatively short duration having an obvious start and end with predictable patterns of bursts of sound and silent periods (i.e., duty cycle) (Richardson and Malme, 1993). It is this fundamental temporal distinction that is most important for categorizing sound types in terms of their potential to cause a behavioral response. For example, Gomez et al. (2016) found a significant relationship between source type and marine mammal behavioral response when sources were split into continuous (e.g., shipping, icebreaking, drilling) versus intermittent (e.g., sonar, seismic, explosives) types. In addition, there have been various studies noting differences in responses to intermittent and continuous sound sources for other species (e.g., Neo et al., 2014; Radford et al., 2016; Nichols et al., 2015).

Sound sources may also be categorized based on their potential to cause physical damage to auditory structures and/or result in threshold shifts. In contrast to the temporal distinction discussed above, the most important factor for understanding the differing potential for these outcomes across source types is simply whether the sound is impulsive or not. Impulsive sounds, such as those produced by airguns, are defined as sounds which are typically transient, brief (< 1 sec), broadband, and which consist of a high peak pressure with rapid rise time and rapid decay (ANSI, 1986; NIOSH, 1998). These sounds are generally considered to have greater potential to cause auditory injury and/or result in threshold shifts. Non-impulsive sounds can be broadband or narrowband (i.e., tonal), brief or prolonged, and continuous or intermittent, and typically do not have the high peak pressure with rapid rise/decay time that impulsive sounds have (ANSI, 1995; NIOSH, 1998). Because the selection of the 160-dB behavioral threshold was focused largely on airgun signals, this threshold has historically been referred to as the “impulse noise” threshold (including by NMFS). However, this longstanding confusion in terminology—i.e., the erroneous impulsive/continuous dichotomy—presents a narrow view of the sound sources to which the thresholds apply and inappropriately implies a limitation in scope of applicability for the 160-dB behavioral threshold in particular.

An impulsive sound is by definition intermittent; however, not all intermittent sounds are impulsive. Many sound sources for which it is generally appropriate to consider the authorization of incidental take are in fact either impulsive (and intermittent) (e.g., impact pile driving) or continuous (and non-impulsive) (e.g., vibratory pile driving). However, scientific sonars present a less common case where the sound produced is considered intermittent but non-impulsive. Herein lies the crux of the Commission's argument, i.e., that because chirps used by Hilcorp are not impulsive sound sources, they must be assessed using the 120-dB behavioral threshold appropriate for continuous noise sources. However, given the existing paradigm—dichotomous thresholds appropriate for generic use in evaluating the potential for behavioral disturbance rising to the level of Level B harassment resulting from exposure to continuous or intermittent sound sources—the Commission does not adequately explain why potential harassment from an intermittent sound source should be evaluated using a threshold developed for use with continuous sound sources. As we have stated in prior responses to this recommendation, consideration of the preceding factors leads to a conclusion that the 160-dB threshold is more appropriate for use than the 120-dB threshold.

As noted above, the Commission first claims generically that we are using an incorrect threshold, because scientific sonars do not produce impulse noise. However, in bridging the gap from this generic assertion to their specific recommendation that the 120-dB continuous noise threshold should be used, the Commission makes several leaps of logic that we address here. The Commission's justification is in large part seemingly based on the Commission's citation to examples in the literature of the most sensitive species responding at lower received levels to sources dissimilar to those considered here. There are three critical errors in this approach.

First, the citation of examples of animals “responding to sound” does not equate to Level B harassment, as defined by the MMPA. As noted above under “Background,” the MMPA defines Level B harassment as acts with the potential to disturb a marine mammal by causing disruption of behavioral patterns. While it is possible that some animals do in fact experience Level B harassment upon exposure to intermittent sounds at received levels less than the 160-dB threshold, this is not in and of itself adequate justification for using a lower threshold. Implicit in the use of a step function for quantifying Level B harassment is the realistic assumption, due to behavioral context and other factors, that some animals exposed to received levels below the threshold will in fact experience harassment, while others exposed to levels above the threshold will not. Moreover, a brief, transient behavioral response alone should not necessarily be considered as having the potential to disturb by disrupting behavioral patterns.

We note that the Commission cites Lurton and DeRuiter (2011), which suggests 130 dB as a reasonable behavioral response threshold. Given that a “behavioral response threshold” does not equate to a Level B harassment threshold, we are unsure about the potential implications. In addition, Lurton and DeRuiter casually offered this threshold as a result of a “conservative approach” using “response thresholds of the most sensitive species studied to date.” NMFS does not agree with any suggestion that this equates to an appropriate Level B harassment threshold. Watkins and Schevill (1975) noted that when sperm whales were exposed to “temporarily interrupted” sound production in response to sound from pingers, no avoidance behavior was observed, and the authors note that “there appeared to be no startle reactions, no sudden movements, or changes in the activity of the whales.” Kastelein et al. (2006a) described the response of harbor porpoise to an experimental acoustic alarm (discussed below; averaged source level of 145 dB), while also noting that a striped dolphin showed no reaction to the alarm, despite both species being able to clearly detect the signal.

Second, unlike the studies discussed above, which relate to echosounders, many of the cited studies do not present a relevant comparison. These studies discuss sources that are not appropriately or easily compared to the sources considered here, and address responses of animals in experimental environments that are not appropriately compared to the likely exposure context here. For example, aside from the well-developed literature concerning “acoustic harassment” or “acoustic deterrent” devices—which are obviously designed for the express purpose of harassing marine mammals (usually specific species or groups)—Kastelein et al. (2006b) describe harbor seal responses to signals used as part of an underwater data communication network. In this case, seals in a pool were exposed to signals of relatively long duration (1-2 seconds) and high duty cycle for 15 minutes, with experimental signals of continuously Start Printed Page 37454varying frequency, three different sound blocks, or frequency sweeps. These seals swam away from the sound (though they did not attempt to reduce exposure by putting their heads out of the water), but this result is of questionable relevance to understanding the likely response of seals in the wild that may be exposed to a 1-ms single-frequency signal from an echosounder moving past the seal as a transient stimulus.

Some studies do not provide a relevant comparison not only because of differences in the source, but because they address sources (in some cases multiple sources) that are stationary (for extended periods of time in some cases); whereas, Hilcorp's use of sub-bottom profilers will be infrequent and transient in any given location. Morton (2000) presents only brief speculation that an observed decline in abundance of Pacific white-sided dolphin coincided with introduction of 194-dB (source level) acoustic deterrent devices—an observation that is not relevant to consideration of a single mobile source that would be transient in space and time relevant to a receiver. Morton and Symonds (2002) similarly address displacement from a specific area due to a profusion of “high-powered” deterrent devices (the same 194-dB system discussed briefly in Morton (2000)) placed in restricted passages for extended time periods (6 years).

Third, the Commission's sources tend to pertain to the most sensitive species, which does not support an argument that the 120-dB threshold should be applied to all species. NMFS has acknowledged that the scientific evidence indicates that certain species are, in general, more acoustically sensitive than others. In particular, harbor porpoise and beaked whales are considered to be behaviorally sensitive, and it may be appropriate to consider use of lower Level B harassment thresholds for these species. NMFS is considering this issue in its current work of developing new guidelines for assessing Level B harassment; however, until this work is completed and new guidelines are identified (if appropriate), the existing generic thresholds are retained. Moreover, as is discussed above for other reasons, the majority of examples cited by the Commission are of limited relevance in terms of comparison of sound sources. In support of their statement that numerous researchers have observed marine mammals responding to sound from sources claimed to be similar to those considered herein, the Commission cites numerous studies; however, the vast majority of these studies address responses of harbor porpoise or beaked whales to various types of acoustic alarms or deterrent devices.

We acknowledge that the Commission presents legitimate points in support of defining a threshold specific to non-impulsive, intermittent sources, and that, among the large number of cited studies, there are a few that show relevant results of individual animals responding to exposure at lower received levels in ways that could be considered harassment under the MMPA. As noted in a previous comment response, NMFS is currently engaged in an ongoing effort to develop updated guidance regarding the effects of anthropogenic sound on marine mammal behavior. However, prior to conclusion of this effort, NMFS will continue using the historical Level B harassment thresholds (or derivations thereof) and will appropriately evaluate behavioral disturbance rising to the level of Level B harassment due to intermittent sound sources relative to the 160-dB threshold.

Comment 11: The Commission recommended that NMFS clarify what density estimates were used to determine the numbers of takes and ensure the density estimates for marine mammals other than beluga whales are consistent with its stated method for calculating densities based on sightings from aerial surveys from 2000-2016.

Response: The densities used are detailed in Table 7 for Cook Inlet beluga whales and Table 8 for all other marine mammal species. Table 8 in the proposed rule included incorrect density estimates from a previous version of exposure calculations that included hours surveyed as part of the calculation, while also correcting for distance. The densities in Table 9 of this final rule are the correct densities based on NMFS aerial survey data, using number of animals sighted divided by distance surveyed. The values in Table 9 are the densities used to calculate exposure estimates for this final rule.

Comment 12: The Commission recommended that NMFS specify the relevant densities, ensonified areas associated with both Level A and B harassment for the various proposed activities, the number of days each activity would occur, and finally the numbers of takes prior to issuing the final rule.

Response: Based on updated durations of activities, ensonified areas and updated exposure estimates are contained in the relevant tables throughout the final rule.

Comment 13: The Commission recommended that NMFS provide the numbers of beluga whales that could be taken during the proposed activities and any assumptions made to reduce those takes.

Response: The method for estimating takes of Cook Inlet beluga whale is described in the Take Estimation section below. The number of beluga whales that could be exposed during each year is listed in Tables 12-16. There are no assumptions made to reduce authorized take from estimated exposure.

Comment 14: The Commission recommended that NMFS authorize the total estimated number of harbor seal takes in a given year for each year from 2019-2024 rather than presuming only 25 percent of the population would be taken during the course of the five years of activities.

Response: NMFS is authorizing the total number of instances of exposure resulting from the take calculation. Note that NMFS is not equating the total number of instances of exposure to the number of individual harbor seals that may be taken, as that would lead to an overestimation of harbor seal occurrence in the survey area. The explanation for why the calculation results in overestimation of individuals is described in the Take Estimation section below. Based on consideration of the factors described further in the Estimated Take section, the number of individual harbor seals that may be taken by Level A or Level B harassment will not exceed 25 percent of the population. However, NMFS agrees with this comment from the Commission, and is authorizing an annual number of harbor seal takes rather than a certain number over the five years of activities authorized by this rule.

Comment 15: The Commission recommended that, in the final rule, NMFS explicitly require Hilcorp to conduct SSVs at the beginning of the proposed activities for 3D seismic and sub-bottom profiler surveys and use those measurements to verify and adjust, if necessary, the extents of the Level A and B harassment zones.

Response: SSVs for 3D seismic and sub-bottom profiler use are required in the final rule.

Comment 16: The Commission recommended that NMFS (1) specify how Hilcorp should enumerate the numbers of animals taken when observers are only monitoring a portion of the Level B harassment zones, and (2) require Hilcorp to keep a tally of the numbers of marine mammals taken, alert NMFS when the number of authorized beluga whale takes has been reached, and follow any guidance provided.Start Printed Page 37455

Response: A description of how Hilcorp should record and report takes has been added to the Monitoring section below. The specific extrapolation method to be used by Hilcorp will be submitted to NMFS Alaska Regional Office (AKR) and the Office of Protected Resources (OPR) for approval before seismic activity may begin. Hilcorp will contact NMFS AKR and OPR when the number of takes authorized for that year has been reached.

Comment 17: The Commission recommends that NMFS prohibit Hilcorp from using power-down procedures as a mitigation measure for seismic surveys in Cook Inlet. The Center for Biological Diversity (CBD) commented that power-downs should be required for all species within the safety zone.

Response: As noted by the Commission, a power down requirement would potentially lead to the need for termination of survey lines. The need to revisit missed survey lines to reacquire data is likely to result in an overall increase in the total sound energy input to the marine environment and an increase in the total duration over which the survey is active in a given area. NMFS has removed the use of power downs as a mitigation measure for seismic surveys in this rulemaking.

Comment 18: The Commission recommends that NMFS prohibit the use of a mitigation gun to avoid implementing ramp-up procedures.

Response: Mitigation guns have been removed as a mitigation measure from the final rule. While it is possible that use of a mitigation gun could provide a “warning” sound to marine mammals in the vicinity of the seismic survey source, it is likely that the use of mitigation guns would emit sound into the water at a time that the environment would otherwise be devoid of any airgun-related sound.

Comment 19: The Commission recommends that NMFS specify in the final rule that observers be placed on the source vessel (for seismic and geohazard surveys) or on the drilling rig (for pile/pipe driving and VSP) to monitor the Level A and B harassment zones for the proposed sound-generating activities.

Response: NMFS has specified placement of at least two on-duty PSOs on the source vessel (for seismic and geohazard surveys) or one PSO on the drill rig (for pipe driving and VSP). However, for seismic surveying, at least one on-duty PSO will be required to be stationed on a mitigation vessel.

Comment 20: The Commission recommended that NMFS (1) consult with Hilcorp regarding the numerous issues raised in this letter and direct the applicant to revise the application accordingly, and (2) publish a revised proposed rule prior to issuance of a final rule.

Response: NMFS has consulted with Hilcorp, which has corrected errors contained in their Petition for regulations, and in this final rule NMFS has corrected errors that were in the proposed rule. These corrections are discussed in this final rule in the Estimated Take sections. As these corrections did not substantively change NMFS' findings, a revised proposed rule was not published.

Comment 21: The International Association of Geophysical Contractors (IAGC) commented that a 7,300 m shutdown zone for beluga whales was unnecessary and impractical.

Response: NMFS has revised the mitigation and monitoring scheme, taking into consideration comments received during the public comment period. A 7,300 m monitoring zone is not required as it is not feasible or practicable to cover that area during seismic surveying. Instead, a 1,500 m safety zone will be implemented. This 1,500 m safety zone requires observers on the source vessel and the mitigation vessel to observe to a distance of 1,500 m during seismic activity. Hilcorp plans to conduct a SSV for 3D seismic surveys during the course of the activities authorized by this rule, and mitigation and monitoring may be adjusted based on the results of the SSV. However, in light of concerns surrounding the status of Cook Inlet beluga whales, NMFS implemented a shutdown measure that requires Hilcorp to shut down active sound sources from which take could occur if a Cook Inlet beluga whale is sighted at any distance within the relevant Level B harassment isopleths.

Comment 22: The IAGC commented that the specifications for data collected by protected species observers were impractical, and that collecting data on environmental variables distracted observers from monitoring safety and exclusion zones.

Response: NMFS disagrees with the commenter about the burden of collecting the required information. Applicants are required to collect information that improves our understanding of the effects of their activity. While an applicant could propose that a separate team or project could accomplish those objectives, Hilcorp proposed that their own PSOs collect the required monitoring information simultaneously with their observation duties. Information about environmental conditions informs detectability of certain species and provides detail about potential accuracy of the reported information. The IAGC also commented that recording these details could be distracting for a PSO. However, for many activities, more than one PSO is on watch simultaneously to ensure monitoring coverage is not compromised while recording other essential pieces of information.

Comment 23: The IAGC commented that sound source verification studies are complicated and burdensome for operators, as the results are highly variable and should be removed from the final rule requirements.

Response: NMFS disagrees with the IAGC comments that the requirement for SSVs should be removed. Cook Inlet is a unique environment with characteristics that are difficult to quantify using generic sound source studies. Additionally, very few SSVs of sub-bottom profiler sounds are available to characterize potential disturbance from the use of a sub-bottom profiler, which is an increasingly used technology. While SSVs can be unusable if conducted improperly, Hilcorp has agreed to submit their SSV plans to NMFS' acousticians to ensure that the data will be collected in a format that is useful in the future. Additionally, mitigation and monitoring measures tied to acoustic zones may be adjusted based on the results of the SSV.

Comment 24: The Environmental Investigation Agency (EIA) commented that NMFS did not consider all possible sources of take by discounting take of marine mammals from echosounders and side scan sonar operating at frequencies greater than 220 kHz but producing subharmonics within hearing ranges of marine mammals.

Response: The intended operating frequencies of this equipment is at 200kHz or greater, which is outside the hearing range of marine mammals in Cook Inlet. Subharmonics produced in the 90-130kHz range are not an intended byproduct of the equipment, and when the equipment is set up correctly, subharmonics should not be produced. As stated in the Deng et al. (2015) study cited by the EIA, the subharmonics produced were at sound levels so low that they were “well below potentially harmful levels”.

Comment 25: The EIA commented that NMFS failed to reflect the full potential impact of noise sources, specifically the sensitivity of Cook Inlet beluga whales to anthropogenic noise.

Response: NMFS has considered the sensitivity of all marine mammal species in Cook Inlet to anthropogenic activity, including the sensitivity of Cook Inlet beluga whales. Literature Start Printed Page 37456indicating the responses of beluga whales to anthropogenic activity, particularly seismic activity in the Beaufort Sea, is considered in this final rule. Behavioral responses to pile driving have also been considered in the rule, as NMFS discussed avoidance behavior as a possible effect of Hilcorp's activity. The short term nature of the activity in any one location, either through the use of mobile sources or localized drill activity that continues for a short amount of time before moving to a different drill rig, allows beluga whales to return to favored areas while activity continues in other locations. Additionally, the area identified as most sensitive for Cook Inlet beluga whales, the area of the Susitna Delta between the Susitna and Beluga Rivers, has been excluded from activity during periods when beluga whales are known to occur frequently. While literature suggests that beluga whales may react to anthropogenic sounds, by requesting take Hilcorp is requesting permission to incidentally harass marine mammals by emitting anthropogenic noise. Migitation and monitoring measures required by NMFS are directed at reducing potential impact of the sound, not to completely avoid behavioral harassment.

Comment 26: The EIA commented that NMFS did not conduct an adequate assessment of cumulative effects in the draft Environmental Assessment (EA).

Response: NMFS fulfilled its requirement under NEPA to analyze potential effects of Hilcorp's activities in conjunction with other activities that may overlap spatially or temporally in the past, present, or reasonably foreseeable future, with Hilcorp's activities or the marine mammals that may be impacted by these activities. During public comment, additional activities that should be included in the cumulative impacts assessment were raised, and these activities have been included in the final Environmental Assessment.

Comment 27: The EIA expressed concern about potential renewal of the proposed incidental take authorization.

Response: NMFS does not propose to renew the incidental take regulations in this final rule. The regulations would be valid for five years from the date of issuance with a maximum of five annual Letters of Authorization requested under these regulations.

Comment 28: The Cook Inlet Regional Citizens Advisory Council (CIRCAC) commented that the dates proposed for 3D seismic activity in the proposed rule differ from the dates set forth in Hilcorp's Marine Mammal Mitigation and Monitoring Plan.

Response: During the time period encompassing the process of requesting incidental take regulations, drafting the proposed rule, and preparing this final rule, Hilcorp's proposed timelines have been delayed slightly from what was intended in their original application. To account for these delays, tables in this final rule referring to amounts of take authorized by year have been labeled using Year 1, Year 2, etc., instead of using specific calendar dates.

Comment 29: The CIRCAC expressed concern regarding the scope of the activities covered under the rulemaking and the ambiguity in dates and locations of certain components of the activities.

Response: While there is potential uncertainty associated with these activities, NFMS required and Hilcorp provided information on specified activities, as well as a specified geographic area. Hilcorp provided details about all potential activities as well as where and when they could occur. Hilcorp's application included information on the maximum possible level of activity; therefore, any changes to these planned activities in the future would result in fewer activities being carried out than initially proposed. If for example, geohazard surveys do not indicate that it is feasible to conduct exploratory drilling activities at a particular site, Hilcorp would be conducting less activity than considered in this rule, and the effects would be less, not more, impactful to marine mammals than those effects analyzed in this rule. Additionally, to ensure the activities are within the scope of this rule, NMFS is requiring Hilcorp to obtain annual Letters of Authorization, thereby requiring Hilcorp to provide specific detail about each year's activities so that NMFS can determine whether these activities comport with the regulations.

Comment 30: The CIRCAC commented on a lack of description of effects from developing the causeway inside Chinitna Bay on Cook Inlet beluga whales and their prey species. They also commented that proposed pile driving activities in Chinitna Bay overlap with time periods when beluga whales have been documented in the Chinitna Bay.

Response: NMFS analyzed the effects of potential pile driving on marine mammal species for the building of the causeway at Chinitna Bay. Potential erosion of the area due to the creation of the causeway is not likely to result in take of marine mammals, and therefore is not part of this incidental take authorization. As referenced in the comment letter, erosion of habitat for prey species, such as crangonid shrimp and polychaetes, could certainly be a possible impact resulting from the causeway construction. However, the size of the causeway and its construction area, relative to the total available habitat for crangonid shrimp or polychaetes in middle and lower Cook Inlet, is likely very small. The construction in this area will include pile driving and rock laying for construction of a causeway extending 1,200 ft into the bay. The Iniskin causeway will result in 2.65 acres of seafloor disturbance and temporary loss of habitat. The causeway itself is likely to impact local streams and the anadromous fish (including smolt) by altering the flow of water within Chinitna Bay. The turbidity resulting from pile driving and rock laying is expected to be localized and largely indistinguishable from ambient turbidity. After the causeway is no longer needed for the project, it is proposed that rock fill be removed and relocated to a landowner- approved upland fill area, exposing the natural mud flat surface. Tidal action, wave action, and currents will naturally restore the area disturbed by the causeway. Overall, seafloor disturbance and habitat alteration could have highly localized, short-term effects on marine mammals and their prey species. Potential effects from seafloor disturbance are likely to limit the foraging quality of the disturbed area temporarily, but prey species would likely navigate to suitable nearby habitat until the habitat was returned to acceptable conditions for these species. Accordingly, marine mammals would likely forage elsewhere, and any effects on their foraging would be immeasurably small, and thus insignificant.

Comment 31: Several commenters suggested that passive acoustic monitoring (PAM) should be used in addition to the proposed mitigation and monitoring. They highlight environmental differences between upper and lower Cook Inlet and suggest PAM would be successful in the lower Inlet.

Response: NMFS has required PAM in several previous incidental take authorizations in Cook Inlet, including activity in mid and lower Cook Inlet. These efforts have not resulted in successful deployment of PAM or useful detections of marine mammals to inform mitigation and monitoring during the activities. NMFS looks forward to advances in technology that could make PAM a practicable mitigation measure in these areas in the future. However, at the time of this rulemaking, NMFS has elected to require additional mitigation Start Printed Page 37457measures outside of PAM to mediate impacts of Hilcorp's activities on marine mammals, including the use of aerial surveys for spotting beluga whales in the area and the use of additional mitigation vessels to expand visual PSO coverage.

Comment 32: The CIRCAC commented that there are no monitoring requirements related to marine mammal prey species.

Response: The monitoring requirement under MMPA Section 101(a)(5)(A) is intended to provide information that helps us understand the impacts of the specified activity on the affected species and stocks. While monitoring of prey species could be included as part of a monitoring plan, if the applicant submitted it, it is not required, and Hilcorp did not propose it. Hilcorp will conduct visual observations of marine mammals before, during and after sound-producing activities that have the potential to result in take. These visual observations will help us better understand the impacts of activities on behavioral responses of marine mammals to particular types of sound. These monitoring efforts can provide valuable information on species occurrence and seasonality of occurance, more detail regarding habitat use, and information about temporary habitat abandonment and timing of animal return to the affected area.

Comment 33: The Center for Biological Diversity (CBD) commented that NMFS did not consider population-level effects of noise from the proposed activities.

Response: NMFS has carefully reviewed the best available scientific information in assessing impacts to marine mammals and recognizes that these activities have the potential to impact marine mammals through threshold shifts, behavioral effects, stress responses, and auditory masking. However, NMFS has determined that the nature of such potentially transitory exposure—any given location will be exposed to noise from these activities only relatively briefly and infrequently—means that the likelihood of any impacts to fitness from the authorized take, including from detrimental energetic effects or reproductive impacts, is low. NMFS has also prescribed a robust suite of mitigation measures, such as a beluga-specific exclusion zone and extended distance shutdown zone, that are expected to further reduce the duration and intensity of acoustic exposure, while limiting the potential severity of any possible behavioral disruption. Further characterization of these short-term, recoverable effects with respect to long-term population success are unknown. However, disruption to behaviors such as feeding, breeding, and vocalizing, which are essential functions, are analyzed within this rule.

Comment 34: The CBD commented that NMFS underestimated take of Cook Inlet beluga whales by not accounting for beluga hearing sensitivities and using densities based on seasonal aerial surveys.

Response: NMFS' take estimate for Cook Inlet belugas uses the best available science concerning hearing sensitivities, occurrence, and seasonality of the species. Regarding hearing sensitivity, the NMFS Acoustic Guidance uses the best available science, vetted through peer review, to characterize the thresholds for onset of TTS and PTS in marine mammal hearing for all underwater sounds. To best assess these onset thresholds for all marine mammals, the species were divided into functional hearing groups. The mid-frequency cetacean group includes beluga whales and was derived based on beluga whale data, as data from nine beluga whales was used in creating the composite audiogram in the NMFS Acoustic Guidance. The paper cited by CBD (Mooney et al, 2018) does not illustrate a particular portion of beluga whale hearing range that has been mischaracterized; rather, that paper highlights the amount of variation in hearing sensitivity across individuals within a population. The paper concludes that testing auditory evoked potentials of several individuals in a population is necessary to accurately describe sensitivity and variance in hearing. NMFS agrees that these pieces of information would be crucial in quantifying the sensitivity of Cook Inlet beluga whales, but currently this data does not exist. NMFS uses the best available science in the form of the Acoustic Guidance to determine potential onset of PTS and TTS. Aside from our acoustic thresholds, NMFS can only qualitatively consider the sensitivity of beluga whales to anthropogenic sounds, particularly in light of the potentially high variance in sensitivity across individuals. Because of this uncertainty and lack of data on the sensitivity for the Cook Inlet stock of beluga whales, NMFS is requiring Hilcorp to shut down activities when any beluga is sighted within the relevant Level B harassment isopleth.

Regarding density, NMFS carried two potential densities all the way through the analysis—the first based purely on the NMFS summer aerial surveys mentioned in CBD's comment letter, and the second using the aerial surveys as the basis for a model that accounts for beluga whale presence as well as beluga whale count data. While the data is collected in the summer, this is the best scientific information available. Rigorous surveys for Cook Inlet beluga whales outside of summer months are not considered feasible, largely due to safety concerns because of weather conditions. Monitoring reports of previous incidental take authorizations issued in Cook Inlet with take of Cook Inlet beluga whales reveal that sightings of Cook Inlet beluga whales are often substantially lower than the calculated exposure estimate or take authorized. This data, couple with the beluga-specific mitigation measures included in this rule, suggest that take of Cook Inlet belugas is not underestimated.

Comment 35: The CBD commented that NMFS relies on avoidance to make its negligible impact determination, while ignoring that avoidance can be a detrimental behavior.

Response: NMFS does not rely on avoidance behaviors to make its negligible impact determination. NMFS agrees that avoidance of preferred habitat may temporarily limit optimal feeding or other biologically important behaviors. However, the majority of the proposed activities will occur in habitat that is not known to be of particular significance to Cook Inlet beluga whales. For those activities that are conducted near habitat thought to be important to beluga whale behavior such as mud flats in the Susitna River Delta, a time-area closure will be implemented so beluga whales will be able to access this habitat during the summer, which is when they frequent upper Cook Inlet. In combination, the density of Cook Inlet beluga whales in the area of the activity, which inform the take estimation, coupled with mitigation and monitoring measures and knowledge of the range of Cook Inlet beluga whales during the months of operation proposed by Hilcorp, suggest a finding of negligible impact of these effects on Cook Inlet beluga whales.

Comment 36: The CBD commented that NMFS should count all exposures as separate takes, and that counting all exposures of an animal that occur within one day as one take is an underestimate.

Response: For the purposes of consistency in estimating the numbers of takes, we do not consider one individual as taken more than one time in a day, even if modeling or direct knowledge might show that an individual would likely be exposed to sound or other stressors in a manner that we would consider a take multiple separate times in one day. For the Start Printed Page 37458purposes of analyzing the impacts of these takes to the stock, it is important to understand the likely nature of these instances of take within a day (e.g., momentary exposure versus multiple hours, high level versus low level of intensity of acoustic exposure). We acknowledge that certain harbor seals are likely to swim in and out of a potentially ensonified area without remaining in the ensonified zone for the entire daily duration of an activity. Also, of note, just because activities continue for hours at a time, that does not mean that mobile marine mammals are exposed (to sometimes mobile sources) for all of those hours, as in many cases they would be expected to move away. While certain species, such as Cook Inlet beluga whales, Steller sea lions, and harbor seals, are known to exhibit site fidelity, Hilcorp's activities are not planned to occur directly in biologically important habitat for any of these marine mammal species in Cook Inlet. Therefore, site fidelity may not automatically equate to increased duration of exposure, especially given the use of mobile sources, as the habitat that animals are likely to frequent, such as important haulouts or river mouths, are near the activity, but primarily are outside of the calculated acoustic isopleths. NMFS requires that data be collected on the number of animals that are taken and the frequency of takes. While NMFS does not anticipate that multiple Level B harassments of the same animal within 2 hours would substantively alter the fitness of that animal, NMFS would request that the frequency of those takes is reported. However, in certain environments or circumstances, such as the use of a mobile source where an individual of a certain species is sighted, not sighted for a number of hours, and sighted again, it is unlikely that, without substantial uniquely identifiable markings, a PSO would know they are sighting a repeat individual. Therefore, in most instances, these sightings would be reported as separate takes during the activity.

Comment 37: The CBD commented that NMFS must consider the best available scientific information regarding noise and marine mammals, noting some sources in the proposed rule are decades old. The CBD also commented that NMFS overlooked particularly important references regarding sensitivity of marine mammals to airgun sounds, citing Miller at al. (2005) and Gomez et al. (2016).

Response: NMFS has considered the best available science in this rulemaking. Certain papers, particularly papers pertaining to basic physiolology, biology, and acoustics, formed a baseline knowledge that is expanded upon in recent publications. However, the age of certain papers does not negate their validity or quality of science. As appropriate, NMFS considers the best available science and consistently reviews recent literature to inform our analyses. While the papers cited by CBD are part of the general body of literature regarding marine mammals and anthropogenic noise, they each present shortcomings. The Miller et al (2005) paper is a case study of a marine seismic survey in Canadian waters of the Beaufort Sea. Beluga whales were recorded during this study with potential avoidance behaviors recorded at various distances. NMFS does not dispute that avoidance is a potential outcome of seismic activity, as discussed in our Effects on Marine Mammals section below. However, the conclusion of the Miller et al (2005) paper states that the mitigation measures undertaken during the survey, many of which are similar to measures required in this rulemaking, were found to be effective. Additionally, the results of the Gomez et al (2016) paper, suggest that, for the studies reviewed in this paper, received level did not explain the severity of the behavioral response to anthropogenic sound sources. For some sources, including seismic sources, it is possible that distance to the source may have a more direct relationship to a behavioral response than the received level. Gomez et al (2016) ultimately concluded there were insufficient data to identify a dose-response relationship between received level and severity of behavioral response. This supports NMFS' analysis that there is uncertainty in the severity and type of response that animals may exhibit in response to Hilcorp's activities. However, to minimize impacts to the best of our ability, NMFS is implementing mitigation measures in line with those found to be effective in Miller et al (2005). Time-area closures at areas and times of biological importance, airgun shutdowns, and ramp-up of airguns are all measures that are discussed in the paper and that are required in this rule.

Comment 38: The CBD commented that the negligible impact statement does not consider: Above-water impacts to seals and sea lions that are hauled out, risk of ship strike from non-source project vessels, entanglement from seismic survey cables, and increased risk of oil spills from the activities.

Response: NMFS does not consider above-water acoustic impacts to seals and sea lions in this rulemaking because none are expected, as described in the description of Iniskin Peninsula activities above. None of the proposed activities are likely to result in take from above-water acoustic disturbance in the vicinity of hauled out seals and sea lions, as any animals potentially exposed to those sounds above water would also be exposed to underwater sound that rises to the level of take. Additionally, takes of marine mammals due to ship strike from non-source project vessels is not considered because it is not anticipated or authorized, as described in the proposed rule section titled Ship Strike. All project vessels and non-Hilcorp project vessels are subject to maritime regulations, and take of marine mammals due to ship strike is not authorized. Oil spills are not considered because take of marine mammals due to oil spills are not anticipated or authorized. Hilcorp is required to comply with all regulations related to oil drilling and is responsible for ensuring its compliance with those regulations. An oil spill, or a violation of other federal regulations, is not authorized under this rule. Entanglements in Hilcorp's streamers are also not authorized. While seismic streamers can extend a kilometer or farther behind the source vessel, Hilcorp employs a chase vessel behind the streamers to monitor and prevent potential entanglement hazards, primarily entanglement of other vessels. No entanglement events from seismic streamer equipment have been previously reported to NMFS.

Comment 39: The CBD commented that NMFS is authorizing more than small numbers of takes of marine mammals due to Hilcorp's activity.

Response: As described in NMFS' Notice of Issuance of Final IHA (83 FR 63268; December 7, 2018), NMFS established that one-third of the individuals of the most appropriate population abundance number—as compared with the assumed number of individuals taken—is an appropriate limit with regard to “small numbers.” NMFS proposed to authorize a smaller proportion of takes than one third of the inividuals in a stock, the highest of which is 25% for the Cook Inlet stock of harbor seals. As described in the Take Estimation section below, this authorized number of instances of take is likely an overestimate of the number of individuals taken, but was used to support our small numbers finding nonetheless. For Cook Inlet beluga whales, the authorized take, by Level B harassment only, accounts for 11 percent of the population annually, which NMFS also considers small.

Comment 40: The CBD commented that NMFS' definition of small numbers is conflated with the negligible impact Start Printed Page 37459requirement by defining small numbers relative to the overall population.

Response: The small numbers finding and negligible impact determination are separate findings and must both be made for this rulemaking. NMFS disagrees that our definitions are duplicative in nature. The small numbers finding is based purely on the numbers of individuals taken relative to the stock or population abundance, whether that information is quantitative or qualitative. The negligible impact determination considers relevant biological and contextual factors, i.e., the anticipated impacts to the individuals and the stock, of the take authorized. Please see the Notice of Issuance of Final IHA (83 FR 63268), which includes a full discussion of NMFS' rationale regarding how the agency should implement the MMPA small numbers standard and, therefore, addresses the commenter's issues.

Comment 41: The CBD commented that the small numbers determination is flawed, as there are instances in which estimated exposures are higher than authorized take, particularly for Cook Inlet beluga whales and harbor seals.

Response: The small numbers finding is based on the number of individuals proposed to be taken relative to the population size. As described in the Estimated Take section below, particularly for harbor seals, NMFS expects multiple exposures of the same individuals, but does not expect 40 percent of the individuals in the entire population to be taken during activity. Based on the range and site fidelity of harbor seals, it is implausible that such a large proportion of the total population would be behaviorally disturbed to the point of Level B harassment during Hilcorp's temporally and spatially limited activities. Additionally, despite the calculations for the exposure estimate, as required in our reporting measures, once the authorized number of takes has been reached, the activity must cease. Therefore, NMFS made the small numbers finding based on the number of takes of individuals authorized. In this case, NMFS will authorize 11,784 instances of exposure of harbor seals; however, based on factors described in the Take Estimation section below, we do not expect the estimated exposures to result in take of more than 25 percent of the population. Please see the Notice of Issuance of Final IHA (83 FR 63268) for a full discussion of NMFS' rationale regarding how the agency should implement the MMPA small numbers standard.

Comment 42: The CBD commented that the proposed activities will have an unmitigable adverse impact on the availability of Cook Inlet belugas for subsistence use.

Response: NMFS disagrees with this assertion. As described in the Least Practicable Adverse Impact section below, a moratorium on subsistence hunting of Cook Inlet belugas has been in place for over 10 years. The criteria established for when subsistence hunt of Cook Inlet beluga could resume included the need for a ten year average abundance estimate to exceed 350 animals, as well as a requirement for an increasing population trajectory; therefore, there are no active subsistence uses of beluga whales that the activity could interfere with.

Comment 43: The CBD commented that NMFS failed to ensure the least practicable adverse impact. This included failing to consider alternative mitigation measures to reduce impacts of the activities, including reducing activities in all biologically important areas and utilizing PAM.

Response: In the proposed rule, NMFS described its consideration of passive acoustic monitoring and described previous attempts to use PAM in previous geophysical surveys in Cook Inlet. These attempts have not been successful, and NMFS has elected to not require further attempts of PAM at this time. Instead, NMFS has chosen to require a mitigation vessel for extended visual observation coverage, as well as aerial surveys specifically directed at searching for Cook Inlet beluga whales during seismic activity. Based on the intended purpose of Hilcorp's activities and the locations of certain project sets, it was not practicable to exclude all biologically important areas (BIAs) for Cook Inlet beluga whales from Hilcorp's action area. NMFS is required to analyze what was proposed by Hilcorp, which included oil and gas activities at specific lease sale sites that lie within Cook Inlet beluga whale BIAs. However, NMFS has continued to require a seasonal exclusion zone at the Susitna River Delta to protect essential critical habitat for Cook Inlet beluga whales. Additionally, NMFS has added an additional closure during seismic surveying at the mouth of the Kasilof River, which is also part of the Cook Inlet beluga whale BIA, from January 1 to May 31. No other BIAs for marine mammals are designated in Cook Inlet or in Hilcorp's action area. The next closest BIA, which is located south of the Kachemak Peninsula, is for fin whales.

Comment 44: The CBD commented that the purpose and need of the EA are too narrowly defined.

Response: The EA evaluates the impacts of issuing an incidental take authorization for the take of marine mammals. As described in the EA (and described in the context of the MMPA in the proposed rule) and summarized in the FONSI, the effects of the marine mammal take anticipated and authorized will not significantly impact the quality of the human environment.

Comment 45: The CBD commented that NMFS failed to consider a reasonable range of alternatives, as the alternatives considered in the EA did not contain additional monitoring beyond that considered in the proposed rule.

Response: NMFS considered several alternatives, including additional mitigation measures that are not required in this final rule. In accordance with NEPA and CEQ Regulations, NMFS, to the fullest extent possible, integrates the requirements of NEPA with other regulatory processes required by law and by agency practice, so that all procedures run concurrently, rather than consecutively. Accordingly, while the EA considered two designated alternatives (issuance or non-issuance of the rule and LOAs), additional mitigation alternatives were considered in the rule issuance process. For example, some of the potential mitigation measures, discussed further below, were included in the proposed rule with our rationale for not proposing to require these mitigation measures (i.e. multiple unsuccessful deployments of several types of PAM). Because of the limited success of certain monitoring technologies such as PAM and night vision in Cook Inlet, NMFS did not find additional reasonable alternatives to carry through the analysis in the EA. However, the requirements in this final rule include mitigation beyond what was proposed by Hilcorp and what was presented in the proposed rule, as an additional mitigation vessel with at least one on-duty PSO is now required during seismic activity.

Comment 46: The CBD commented that the EA's affected environment sections, including sections on marine mammal habitat, biological environment, and socioeconomic development, are incomplete.

Response: Further detail has been added to these sections in the final EA.

Comment 47: The CBD commented that the draft EA did not include sufficient detail on impacts to marine mammal habitat, including critical habitat for ESA-listed marine mammals.

Response: Additional detail has been added to the relevant sections in the final EA.Start Printed Page 37460

Comment 48: The CBD commented that description of potential effects of the proposed action on marine mammals in the EA is deficient, including insufficient discussion of behavioral and physiological impacts. Effects on prey species were also noted to be lacking.

Response: The discussion of potential effects to marine mammals and their prey species has been expanded in the Final EA.

Comment 49: The CBD commented that the EA does not address potential impacts to subsistence uses. The CBD stated that removal of one animal from the Cook Inlet beluga whale population has a population level effect. The CBD also noted that lack of spatial overlap between the proposed activities and subsistence hunted animals does not alleviate concerns about availability for subsistence uses.

Response: NMFS considered potential impacts to subsistence uses of marine mammals in Section 3.3.1 of the Final EA. NMFS does not solely rely on lack of spatial overlap to conclude the activities are unlikely to have effects on subsistence use. In our proposed rule, we described the history of subsistence hunting of Cook Inlet beluga whales and explained why it is unlikely that subsistence hunting for Cook Inlet beluga whales will resume over the next five years. Additionally, the number of individual harbor seals likely to be taken by Hilcorp's activities would primarily be taken by Level B harassment. While harbor seals may temporarily be displaced due to certain coastal construction such as the causeway construction, most of Hilcorp's work will not occur onshore and will not displace harbor seals from land-based haulouts where they can be hunted or prevent hunters from approaching hauled out animals. The land-based work will not occur at known harbor seal haulouts and will not prevent hunters from pursuing seals at haulouts. NMFS is not authorizing any serious injury or mortality, or any other take that could potentially be considered a removal from the population.

Comment 50: The CBD commented that certain aspects were lacking in the cumulative effects section of the EA. They commented that NMFS should include a proposed nationwide five-year leasing program and potential additional oil and gas activity in Cook Inlet. They commented that spill related-effects or effects of other disasters at Pebble Mine are not considered. They also noted discussion of Alaska LNG's proposed work and the Alaska Gasline Development Corporation's plans for a pipeline was missing from the cumulative effects section.

Response: NMFS thanks CBD for raising the Alaska LNG and pipeline development activities as projects that should be included in the Cumulative Impacts section of the EA. They have been added accordingly. The proposed leasing program was not included in the EA as activity that could directly affect marine mammals, their habitat, or their prey, as it is not expected to occur in the foreseeable future. Particularly in Cook Inlet, a lease sale does not always translate to immediate drilling or other geophysical testing in the lease blocks. It would be appropriate to consider these activities once the leases have been granted. Additionally, oil spills or other disasters stemming from man-made structures in Cook Inlet are not considered, as they are not authorized and are a breach of regulations. It is the responsibility of the applicants to comply with all additional regulations, and to work with the state to obtain approval of their Oil Discharge Prevention and Contingency Plans (ODPCP).

Comment 51: The CBD commented that the EA failed to quantify greenhouse gas emissions of drilling and production and the impacts of continued use of oil platforms beyond their intended lifespan.

Response: NMFS does not quantify greenhouse gas emissions from drilling, as this is outside the scope of our assessment. The amount and extent of drilling by Hilcorp is unknown, and the drilling activity itself is not authorized by NMFS under the MMPA. Additionally, use of drill rigs beyond their lifespan is not a practice that is authorized or condoned by NMFS, and is therefore not considered to be likely in the foreseeable future.

Description of Marine Mammals in the Area of Specified Activities

Eleven species of marine mammal have the potential to occur in the action area during the five year period of activities conducted by Hilcorp. These species are described in further detail below.

Table 2 lists all species with expected potential for occurrence in Cook Inlet and summarizes information related to the population or stock, including regulatory status under the MMPA and ESA and potential biological removal (PBR), where known. For taxonomy, we follow Committee on Taxonomy (2016). PBR is defined by the MMPA as the maximum number of animals, not including natural mortalities, that may be removed from a marine mammal stock while allowing that stock to reach or maintain its optimum sustainable population (as described in NMFS' SARs). While no mortality is anticipated or authorized here, PBR and annual serious injury and mortality from anthropogenic sources are included here as gross indicators of the status of the species and other threats.

Marine mammal abundance estimates presented in this document represent the total number of individuals that make up a given stock or the total number estimated within a particular study or survey area. NMFS' stock abundance estimates for most species represent the total estimate of individuals within the geographic area, if known, that comprises that stock. For some species, this geographic area may extend beyond U.S. waters. All managed stocks in this region are assessed in NMFS' 2017 U.S. Alaska and Pacific SARs (Muto et al, 2017; Carretta et al, 2017). All values presented in Table 2 are the most recent available at the time of publication and are available in the 2017 SARs and draft 2018 SARs (available online at: https://www.fisheries.noaa.gov/​action/​2018-draft-marine-mammal-stock-assessment-reports-available).

Table 2—Species With the Potential To Occur in Cook Inlet, Alaska

Common nameScientific nameStockESA/MMPA status; strategic (Y/N) 1Stock abundance (CV, Nmin, most recent abundance survey) 2PBRAnnual M/SI 3
Order Cetartiodactyla—Cetacea—Superfamily Mysticeti (baleen whales)
Family Eschrichtiidae:
Gray whaleEschrichtius robustusEastern Pacific-/-; N20,990 (0.05, 20,125, 2011)6244.25
Start Printed Page 37461
Family Balaenopteridae (rorquals):
Fin whaleBalaenoptera physalusNortheastern PacificE/D; Y3,168 (0.26,2,554 2013)5.10.4
Minke whaleBalaenoptera acutorostrataAlaska-/-; NN/AN/A0
Humpback whaleMegaptera novaeangliaeWestern North PacificE/D; Y1,107 (0.3, 865, 2006)33.2
Superfamily Odontoceti (toothed whales, dolphins, and porpoises)
Family Delphinidae:
Beluga whaleDelphinapterus leucasCook InletE/D; Y312 (0.1, 287, 2014)0.540.57
Killer whaleOrcinus orcaAlaska Resident-/-; N2,347 (N/A, 2,347, 2012)241
Alaska Transient-/-; N587 (N/A, 587, 2012)5.91
Family Phocoenidae (porpoises):
Harbor porpoisePhocoena phocoenaGulf of Alaska-/-; Y31,046 (0.214, N/A, 1998)Undet72
Dall's porpoisePhocoenoides dalliAlaska-/-; N83,400 (0.097, N/A, 1993)Undet38
Order Carnivora—Superfamily Pinnipedia
Family Otariidae (eared seals and sea lions):
Steller sea lionEumetopias jubatusWesternE/D; Y53,303 (N/A, 53,303, 2016)320241
California sea lionZalophus californianusU.S-/-; N296,750 (153,337, N/A, 2011)9,200331
Family Phocidae (earless seals):
Harbor sealPhoca vitulinaCook Inlet/Shelikof-/-; N27,386 (25,651, N/A, 2011)770234
1 Endangered Species Act (ESA) status: Endangered (E), Threatened (T)/MMPA status: Depleted (D). A dash (-) indicates that the species is not listed under the ESA or designated as depleted under the MMPA. Under the MMPA, a strategic stock is one for which the level of direct human-caused mortality exceeds PBR or which is determined to be declining and likely to be listed under the ESA within the foreseeable future. Any species or stock listed under the ESA is automatically designated under the MMPA as depleted and as a strategic stock.
2 NMFS marine mammal stock assessment reports online at: www.nmfs.noaa.gov/​pr/​sars/​. CV is coefficient of variation; Nmin is the minimum estimate of stock abundance. In some cases, CV is not applicable [explain if this is the case]
3 These values, found in NMFS' SARs, represent annual levels of human-caused mortality plus serious injury from all sources combined (e.g., commercial fisheries, ship strike). Annual M/SI often cannot be determined precisely and is in some cases presented as a minimum value or range. A CV associated with estimated mortality due to commercial fisheries is presented in some cases.

Fin Whales

For management purposes, three stocks of fin whales are currently recognized in U.S. Pacific waters: Alaska (Northeast Pacific), California/Washington/Oregon, and Hawaii. Recent analyses provide evidence that the population structure should be reviewed and possibly updated. However, substantially new data on the stock structure is lacking (Muto et al 2017). Fin whales, including the Northeastern Pacific stock, are listed as endangered under the ESA.

Mizroch et al. (2009) provided a comprehensive summary of fin whale sightings data, including whaling catch data and determined there could be at least six populations of fin whales. Evidence suggests two populations are migratory (eastern and western North Pacific) and two to four more are year-round residents in peripheral seas such as the Gulf of California, East China Sea, Sanriku-Hokkaido, and possibly the Sea of Japan. The two migratory stocks are likely mingling in the Bering Sea in July and August. Moore et al. (1998, 2006), Watkins et al. (2000), and Stafford et al. (2007) documented high rates of calling along the Alaska coast beginning in August/September and lasting through February. Fin whales are regularly observed in the Gulf of Alaska during the summer months, even though calls are seldom detected during this period (Stafford et al. 2007). Instruments moored in the southeast Bering Sea detected calls over the course of a year and found peaks from September to November as well as in February and March (Stafford et al. 2010). Delarue et al. (2013) detected calls in the northeastern Chukchi Sea from instruments moored from July through October from 2007 through 2010.

Fin whales are found seasonally in the Gulf of Alaska, Bering Sea, and as far north as the northern Chukchi Sea (Muto et al. 2017). Surveys conducted in coastal waters of the Aleutians and the Alaska Peninsula found that fin whales occurred primarily from the Kenai Peninsula to the Shumagin Islands and were abundant near the Semidi Islands and Kodiak Island (Zerbini et al. 2006). An opportunistic survey conducted on the shelf of the Gulf of Alaska found fin whales concentrated west of Kodiak Island in Shelikof Strait, and in the southern Cook Inlet region. Smaller numbers were also observed over the shelf east of Kodiak to Prince William Sound (AFSC, 2003). In the northeastern Chukchi Sea, visual sightings and acoustic detections have been increasing, which suggests the stock may be re-occupying habitat used prior to large-scale commercial whaling (Muto et al. 2017). Most of these areas are feeding habitat for fin whales. Fin whales are rarely observed in Cook Inlet, and most sightings occur near the entrance of the inlet. During the NMFS aerial surveys in Cook Inlet from 2000-2016, 10 sightings of 26 estimated individual fin whales in lower Cook Inlet were observed (Shelden et al. 2013, 2015, 2016).

Humpback Whales

Currently, three populations of humpback whales are recognized in the North Pacific, migrating between their respective summer/fall feeding areas and winter/spring calving and mating areas as follows (Baker et al. 1998; Calambokidis et al. 1997). Although there is considerable distributional overlap in the humpback whale stocks that use Alaska, the whales seasonally found in lower Cook Inlet are probably of the Central North Pacific stock (Muto et al. 2017). Listed as endangered under the ESA, this stock has recently been estimated at 7,890 animals (Muto et al. 2017). The Central North Pacific stock winters in Hawaii and summers from Start Printed Page 37462British Columbia to the Aleutian Islands (Calambokidis et al. 1997), including Cook Inlet.

Humpback whales in the high latitudes of the North Pacific Ocean are seasonal migrants that feed on euphausiids and small schooling fishes (Muto et al. 2017). During the spring, these animals migrate north and spend the summer feeding in the prey-rich sub-polar waters of southern Alaska, British Columbia, and the southern Chukchi Sea. Individuals from the Western North Pacific (endangered), Hawaii (not listed under the ESA), and the Mexico (threatened) DPSs migrate to areas near and potentially in the Petition region. However, most of the individuals that migrate to the Cook Inlet area are likely from the Hawaii DPS and not the Western North Pacific or Mexico DPSs (NMFS 2017).

In the summer, humpback whales are regularly present and feeding in the Cook Inlet region, including Shelikof Strait, Kodiak Island bays, and the Barren Islands, in addition to Gulf of Alaska regions adjacent to the southeast side of Kodiak Island (especially Albatross Banks), the Kenai and Alaska peninsulas, Elizabeth Island, as well as south of the Aleutian Islands. Humpbacks also may be present in some of these areas throughout autumn (Muto et al. 2017). Humpback whales have been observed during marine mammal surveys conducted in Cook Inlet. However, their presence is largely confined to lower Cook Inlet. Recent monitoring by Hilcorp in upper Cook Inlet has also included 3 humpback whale sightings near Tyonek (Sitkiewicz et al. 2018). During SAExploration's 2015 seismic program, three humpback whales were observed in Cook Inlet; two near the Forelands and one in Kachemak Bay (Kendall et al. 2015). During NMFS' Cook Inlet beluga whale aerial surveys from 2000-2016, there were 88 sightings of 191 estimated individual humpback whales in lower Cook Inlet (Shelden et al. 2017). They have been regularly seen near Kachemak Bay during the summer months (Rugh et al. 2005). There are observations of humpback whales as far north as Anchor Point, with recent summer observations extending to Cape Starichkof (Owl Ridge 2014). Although several humpback whale sightings occurred mid-inlet between Iniskin Peninsula and Kachemak Bay, most sightings occurred outside of the Petition region near Augustine, Barren, and Elizabeth Islands (Shelden et al. 2013, 2015, 2017).

Ferguson et al. (2015) has established Biologically Important Areas (BIAs) as part of the NOAA Cetacean Density and Distribution Mapping Working Group (CetMap) efforts. This information supplements the quantitative information on cetacean density, distribution, and occurrence by: (1) Identifying areas where cetacean species or populations are known to concentrate for specific behaviors, or be range-limited, but for which there is not sufficient data for their importance to be reflected in the quantitative mapping effort; and (2) providing additional context within which to examine potential interactions between cetaceans and human activities. A “Feeding Area” BIA for humpback whales in the Gulf of Alaska region encompasses the waters east of Kodiak Island (the Albatross and Portlock Banks), a target for historical commercial whalers based out of Port Hobron, Alaska (Ferguson et al. 2015; Reeves et al. 1985; Witteveen et al. 2007). This BIA also includes waters along the southeastern side of Shelikof Strait and in the bays along the northwestern shore of Kodiak Island. The highest densities of humpback whales around the Kodiak Island BIA occur from July-August (Ferguson et al. 2015).

Minke Whale

Minke whales are most abundant in the Gulf of Alaska during summer and occupy localized feeding areas (Zerbini et al. 2006). Concentrations of minke whales have occurred along the north coast of Kodiak Island (and along the south coast of the Alaska Peninsula (Zerbini et al. 2006). The current estimate for minke whales between Kenai Fjords and the Aleutian Islands is 1,233 individuals (Zerbini et al. 2006). During shipboard surveys conducted in 2003, three minke whale sightings were made, all near the eastern extent of the survey from nearshore Prince William Sound to the shelf break (NMML 2003).

Minke whales become scarce in the Gulf of Alaska in fall; most whales are thought to leave the region by October (Consiglieri et al. 1982). Minke whales are migratory in Alaska, but recently have been observed off Cape Starichkof and Anchor Point year-round (Muto et al. 2017). During Cook Inlet-wide aerial surveys conducted from 1993 to 2004, minke whales were encountered three times (1998, 1999, and 2006), both times off Anchor Point 16 miles northwest of Homer (Shelden et al. 2013, 2015, 2017). A minke whale was also reported off Cape Starichkof in 2011 (A. Holmes, pers. comm.) and 2013 (E. Fernandez and C. Hesselbach, pers. comm.), suggesting this location is regularly used by minke whales, including during the winter. Several minke whales were recorded off Cape Starichkof in early summer 2013 during exploratory drilling (Owl Ridge 2014), suggesting this location is regularly used by minke whales year-round. During Apache's 2014 survey, a total of 2 minke whale groups (3 individuals) were observed during this time period, one sighting to the southeast of Kalgin Island and another sighting near Homer (Lomac-MacNair et al. 2014). SAExploration noted one minke whale near Tuxedni Bay in 2015 (Kendall et al. 2015). This species is unlikely to be seen in upper Cook Inlet but may be encountered in the mid and lower Inlet.

Killer Whales

Two different stocks of killer whales inhabit the Cook Inlet region of Alaska: The Alaska Resident Stock and the Gulf of Alaska, Aleutian Islands, Bering Sea Transient Stock (Muto et al 2017). Seasonal and year-round occurrence has been noted for killer whales throughout Alaska (Braham and Dahlheim 1982), where whales have been labeled as “resident,” “transient,” and “offshore” type killer whales (Dahlheim et al. 2008; Ford et al. 2000). The killer whales using Cook Inlet are thought to be a mix of resident and transient individuals from two different stocks: The Alaska Resident Stock, and the Gulf of Alaska, Aleutian Islands, and Bering Sea Transient Stock (Allen and Angliss 2015). Although recent studies have documented movements of Alaska Resident killer whales from the Bering Sea into the Gulf of Alaska as far north as southern Kodiak Island, none of these whales have been photographed further north and east in the Gulf of Alaska where regular photo-identification studies have been conducted since 1984 (Muto et al. 2017).

Killer whales are occasionally observed in lower Cook Inlet, especially near Homer and Port Graham (Shelden et al. 2003; Rugh et al. 2005). The few whales that have been photographically identified in lower Cook Inlet belong to resident groups more commonly found in nearby Kenai Fjords and Prince William Sound (Shelden et al. 2003). The availability of these prey species largely determines the likeliest times for killer whales to be in the area. During aerial surveys conducted between 1993 and 2004, killer whales were observed on only three flights, all in the Kachemak and English Bay area (Rugh et al. 2005). However, anecdotal reports of killer whales feeding on belugas in upper Cook Inlet began increasing in the 1990s, possibly in response to declines in sea lion and harbor seal prey elsewhere (Shelden et al. 2003). One killer whale group of two individuals was observed during the 2015 Start Printed Page 37463SAExploration seismic program near the North Foreland (Kendall et al. 2015). During NMFS aerial surveys, killer whales were observed in 1994 (Kamishak Bay), 1997 (Kachemak Bay), 2001 (Port Graham), 2005 (Iniskin Bay), 2010 (Elizabeth and Augustine Islands), and 2012 (Kachemak Bay; Shelden et al. 2013). Eleven killer whale strandings have been reported in Turnagain Arm, six in May 1991, and five in August 1993. This species is expected to be rarely seen in upper Cook Inlet but may be encountered in the mid and lower Inlet.

Gray Whales

Gray whales have been reported feeding near Kodiak Island, in southeastern Alaska, and south along the Pacific Northwest (Allen and Angliss 2013). Because most gray whales migrating through the Gulf of Alaska region are thought to take a coastal route, BIA boundaries for the migratory corridor in this region were defined by the extent of the continental shelf (Ferguson et al. 2015).

Most gray whales calve and breed from late December to early February in protected waters along the western coast of Baja California, Mexico. In spring, the ENP stock of gray whales migrates approximately 8,000 km (5,000 mi) to feeding grounds in the Bering and Chukchi seas before returning to their wintering areas in the fall (Rice and Wolman 1971). Northward migration, primarily of individuals without calves, begins in February; some cow/calf pairs delay their departure from the calving area until well into April (Jones and Swartz 1984). An unusual mortality event (UME) has been declared for gray whales along the Pacific coast, including Alaska. As of June 6, 2019, six gray whales have stranded in Alaska in 2019. The cause of the UME is not known at the time of writing; while a subset of necropsied individuals appear to be emaciated, this observation is not consistent across all strandings in the UME.

Gray whales approach the action area in late March, April, May, and June, and leave again in November and December (Consiglieri et al. 1982; Rice and Wolman 1971) but migrate past the mouth of Cook Inlet to and from northern feeding grounds. Some gray whales do not migrate completely from Baja to the Chukchi Sea but instead feed in select coastal areas in the Pacific Northwest, including lower Cook Inlet (Moore et al. 2007). Most of the population follows the outer coast of the Kodiak Archipelago from the Kenai Peninsula in spring or the Alaska Peninsula in fall (Consiglieri et al. 1982; Rice and Wolman 1971). Though most gray whales migrate past Cook Inlet, small numbers have been noted by fishers near Kachemak Bay, and north of Anchor Point (BOEM 2015). During the NMFS aerial surveys, gray whales were observed in the month of June in 1994, 2000, 2001, 2005 and 2009 on the east side of Cook Inlet near Port Graham and Elizabeth Island but also on the west side near Kamishak Bay (Shelden et al. 2013). One gray whale was sighted as far north at the Beluga River. Additionally, summering gray whales were seen offshore of Cape Starichkof by marine mammal observers monitoring Buccaneer's Cosmopolitan drilling program in 2013 (Owl Ridge 2014). During Apache's 2012 seismic program, nine gray whales were observed in June and July (Lomac-MacNair et al. 2013). During Apache's seismic program in 2014, one gray whale was observed (Lomac-MacNair et al. 2014). During SAExploration's seismic survey in 2015, no gray whales were observed (Kendall et al. 2015). This species is unlikely to be seen in upper Cook Inlet but may be encountered in the mid and lower Inlet.

Cook Inlet Beluga Whales

The Cook Inlet beluga whale DPS is a small geographically isolated population that is separated from other beluga populations by the Alaska Peninsula. The population is genetically distinct from other Alaska populations suggesting the peninsula is an effective barrier to genetic exchange (O'Corry-Crowe et al. 1997). The Cook Inlet beluga whale population is estimated to have declined from 1,300 animals in the 1970s (Calkins 1989) to about 340 animals in 2014 (Shelden et al. 2015). The precipitous decline documented in the mid-1990s was attributed to unsustainable subsistence practices by Alaska Native hunters (harvest of >50 whales per year) (Mahoney and Shelden 2000). In 2006, a moratorium to cease hunting was agreed upon to protect the species. In April 2011, NMFS designated critical habitat for the beluga under the ESA (76 FR 20180) as shown on Figure 13 of the application. NMFS finalized the Conservation Plan for the Cook Inlet beluga in 2008 (NMFS 2008a). NMFS finalized the Recovery Plan for Cook Inlet beluga whales in 2016 (NMFS 2016a).

The Cook Inlet beluga stock remains within Cook Inlet throughout the year (Goetz et al. 2012a). Two areas, consisting of 7,809 km2 (3,016 mi2) of marine and estuarine environments considered essential for the species' survival and recovery were designated critical habitat. However, in recent years the range of the beluga whale has contracted to the upper reaches of Cook Inlet because of the decline in the population (Rugh et al. 2010). Area 1 of the Cook Inlet beluga whale critical habitat encompasses all marine waters of Cook Inlet north of a line connecting Point Possession (61.04° N, 150.37° W) and the mouth of Three Mile Creek (61.08.55° N, 151.04.40° W), including waters of the Susitna, Little Susitna, and Chickaloon Rivers below mean higher high water (MHHW). This area provides important habitat during ice-free months and is used intensively by Cook Inlet beluga between April and November (NMFS 2016a).

Since 1993, NMFS has conducted annual aerial surveys in June, July or August to document the distribution and abundance of beluga whales in Cook Inlet. The collective survey results show that beluga whales have been consistently found near or in river mouths along the northern shores of upper Cook Inlet (i.e., north of East and West Foreland). In particular, beluga whale groups are seen in the Susitna River Delta, Knik Arm, and along the shores of Chickaloon Bay. Small groups had also been recorded seen farther south in Kachemak Bay, Redoubt Bay (Big River), and Trading Bay (McArthur River) prior to 1996 but very rarely thereafter. Since the mid-1990s, most (96 to 100 percent) beluga whales in upper Cook Inlet have been concentrated in shallow areas near river mouths, no longer occurring in the central or southern portions of Cook Inlet (Hobbs et al. 2008). Based on these aerial surveys, the concentration of beluga whales in the northernmost portion of Cook Inlet appears to be consistent from June to October (Rugh et al. 2000, 2004a, 2005, 2006, 2007).

Though Cook Inlet beluga whales can be found throughout the inlet at any time of year, they spend the ice-free months generally in the upper Cook Inlet, shifting into the middle and lower Inlet in winter (Hobbs et al. 2005). In 1999, one beluga whale was tagged with a satellite transmitter, and its movements were recorded from June through September of that year. Since 1999, 18 beluga whales in upper Cook Inlet have been captured and fitted with satellite tags to provide information on their movements during late summer, fall, winter, and spring. Using location data from satellite-tagged Cook Inlet belugas, Ezer et al. (2013) found most tagged whales were in the lower to middle inlet (70 to 100 percent of tagged whales) during January through March, near the Susitna River Delta from April to July (60 to 90 percent of tagged whales) and in the Knik and Turnagain Arms from August to December.Start Printed Page 37464

During the spring and summer, beluga whales are generally concentrated near the warmer waters of river mouths where prey availability is high and predator occurrence is low (Moore et al. 2000). Beluga whales in Cook Inlet are believed to mostly calve between mid-May and mid-July, and concurrently breed between late spring and early summer (NMFS 2016a), primarily in upper Cook Inlet. Movement was correlated with the peak discharge of seven major rivers emptying into Cook Inlet. Boat-based surveys from 2005 to the present (McGuire and Stephens 2017), and initial results from passive acoustic monitoring across the entire inlet (Castellote et al. 2016) also support seasonal patterns observed with other methods. Other surveys also confirm Cook Inlet belugas near the Kenai River during summer months (McGuire and Stephens 2017).

During the summer and fall, beluga whales are concentrated near the Susitna River mouth, Knik Arm, Turnagain Arm, and Chickaloon Bay (Nemeth et al. 2007) where they feed on migrating eulachon (Thaleichthys pacificus) and salmon (Onchorhyncus spp.) (Moore et al. 2000). Data from tagged whales (14 tags between July and March 2000 through 2003) show beluga whales use upper Cook Inlet intensively between summer and late autumn (Hobbs et al. 2005). Critical Habitat Area 1 reflects this summer distribution.

As late as October, beluga whales tagged with satellite transmitters continued to use Knik Arm and Turnagain Arm and Chickaloon Bay, but some ranged into lower Cook Inlet south to Chinitna Bay, Tuxedni Bay, and Trading Bay (McArthur River) in the fall (Hobbs et al. 2005). Data from NMFS aerial surveys, opportunistic sighting reports, and satellite-tagged beluga whales confirm they are more widely dispersed throughout Cook Inlet during the winter months (November-April), with animals found between Kalgin Island and Point Possession. In November, beluga whales moved between Knik Arm, Turnagain Arm, and Chickaloon Bay, similar to patterns observed in September (Hobbs et al. 2005). By December, beluga whales were distributed throughout the upper to mid-inlet. From January into March, they moved as far south as Kalgin Island and slightly beyond in central offshore waters. Beluga whales also made occasional excursions into Knik Arm and Turnagain Arm in February and March despite ice cover greater than 90 percent (Hobbs et al. 2005).

During Apache's seismic test program in 2011 along the west coast of Redoubt Bay, lower Cook Inlet, a total of 33 beluga whales were sighted during the survey (Lomac-MacNair et al. 2013). During Apache's 2012 seismic program in mid-inlet, a total of 151 sightings of approximately 1,463 estimated individual beluga whales were observed (Lomac-MacNair et al. 2013). During SAExploration's 2015 seismic program, a total of eight sightings of approximately 33 estimated individual beluga whales were visually observed during this time period and there were two acoustic detections of beluga whales (Kendall et al. 2015). Hilcorp recently reported 143 sightings of beluga whales May-August while conducting pipeline work in upper Cook Inlet, which is not near the area that seismic surveys are proposed but near some potential well sites (Sitkiewicz et al. 2018).

Ferguson et al. (2015) delineated one “Small” and “Resident” BIA for Cook Inlet beluga whales. Small and Resident BIAs are defined as “areas and time within which small and resident populations occupy a limited geographic extent” (Ferguson et al. 2015). The Cook Inlet beluga whale BIA was delineated using the habitat model results of Goetz et al. 2012 and the critical habitat boundaries (76 FR 20180).

Harbor Porpoise

In Alaskan waters, three stocks of harbor porpoises are currently recognized for management purposes: Southeast Alaska, Gulf of Alaska, and Bering Sea Stocks (Muto et al. 2017). Porpoises found in Cook Inlet belong to the Gulf of Alaska Stock which is distributed from Cape Suckling to Unimak Pass and most recently was estimated to number 31,046 individuals (Muto et al. 2017). They are one of the three marine mammals (the other two being belugas and harbor seals) regularly seen throughout Cook Inlet (Nemeth et al. 2007), especially during spring eulachon and summer salmon runs.

Harbor porpoises primarily frequent the coastal waters of the Gulf of Alaska and Southeast Alaska (Dahlheim et al. 2000, 2008), typically occurring in waters less than 100 m deep (Hobbs and Waite 2010). The range of the Gulf of Alaska stock includes the entire Cook Inlet, Shelikof Strait, and the Gulf of Alaska. Harbor porpoises have been reported in lower Cook Inlet from Cape Douglas to the West Foreland, Kachemak Bay, and offshore (Rugh et al. 2005a). Although they have been frequently observed during aerial surveys in Cook Inlet (Shelden et al. 2014), most sightings are of single animals, and are concentrated at Chinitna and Tuxedni bays on the west side of lower Cook Inlet (Rugh et al. 2005) and in the upper inlet. The occurrence of larger numbers of porpoise in the lower Cook Inlet may be driven by greater availability of preferred prey and possibly less competition with beluga whales, as belugas move into upper inlet waters to forage on Pacific salmon during the summer months (Shelden et al. 2014).

The harbor porpoise frequently has been observed during summer aerial surveys of Cook Inlet, with most sightings of individuals concentrated at Chinitna and Tuxedni Bays on the west side of lower Cook Inlet (Figure 14 of the application; Rugh et al. 2005). Mating probably occurs from June or July to October, with peak calving in May and June (as cited in Consiglieri et al. 1982). Small numbers of harbor porpoises have been consistently reported in the upper Cook Inlet between April and October, except for a recent survey that recorded higher numbers than typical. NMFS aerial surveys have identified many harbor porpoise sightings throughout Cook Inlet. During Apache's 2012 seismic program, 137 sightings (190 individuals) were observed between May and August (Lomac-MacNair et al. 2013). Lomac-MacNair et al. 2014 identified 77 groups of harbor porpoise totaling 13 individuals during Apache's 2014 seismic survey, both from vessels and aircraft, during the month of May. During SAExploration's 2015 seismic survey, 52 sightings (65 individuals) were observed north of the Forelands (Kendall et al. 2015).

Recent passive acoustic research in Cook Inlet by Alaska Department of Fish and Game (ADF&G) and the Marine Mammal Laboratory (MML) have indicated that harbor porpoises occur more frequently than expected, particularly in the West Foreland area in the spring (Castellote et al. 2016), although overall numbers are still unknown at this time. Hilcorp recently reported 29 sightings of 44 harbor porpoises while conducting pipeline work in upper Cook Inlet (Sitkiewicz et al. 2018).

Dall's Porpoise

Dall's porpoises are widely distributed throughout the North Pacific Ocean including preferring deep offshore and shelf-slopes, and deep oceanic waters (Muto et al. 2017). The Dall's porpoise range in Alaska extends into the southern portion of the Petition region (Figure 14 of the application). Dall's porpoises are present year-round throughout their entire range in the northeast including the Gulf of Alaska, Start Printed Page 37465and occasionally the Cook Inlet area (Morejohn 1979). This porpoise also has been observed in lower Cook Inlet, around Kachemak Bay, and rarely near Anchor Point (Owl Ridge 2014; BOEM 2015).

Throughout most of the eastern North Pacific they are present during all months of the year, although there may be seasonal onshore-offshore movements along the west coast of the continental United States and winter movements of populations out of areas with ice such as Prince William Sound (Muto et al. 2017). Dall's porpoises were observed (2 groups, 3 individuals) during Apache's 2014 seismic survey which occurred in the summer months (Lomac-MacNair et al. 2014). Dall's porpoises were observed during the month of June in 1997 (Iniskin Bay), 199 (Barren Island), and 2000 (Elizabeth Island, Kamishak Bay and Barren Island) (Shelden et al. 2013). Dall's porpoises have been observed in lower Cook Inlet, including Kachemak Bay and near Anchor Point (Owl Ridge 2014). One Dall's porpoise was observed in August north of Nikiski in the middle of the Inlet during SAExploration's 2015 seismic program (Kendall et al. 2015).

Harbor Seal

Harbor seals occupy a wide variety of habitats in freshwater and saltwater in protected and exposed coastlines and range from Baja California north along the west coasts of Washington, Oregon, and California, British Columbia, and Southeast Alaska; west through the Gulf of Alaska, Prince William Sound, and the Aleutian Islands; and north in the Bering Sea to Cape Newenham and the Pribilof Islands. Harbor seals are found throughout the entire lower Cook Inlet coastline, hauling out on beaches, islands, mudflats, and at the mouths of rivers where they whelp and feed (Muto et al. 2017).

The major haul out sites for harbor seals are located in lower Cook Inlet. The presence of harbor seals in upper Cook Inlet is seasonal. In Cook Inlet, seal use of western habitats is greater than use of the eastern coastline (Boveng et al. 2012). NMFS has documented a strong seasonal pattern of more coastal and restricted spatial use during the spring and summer for breeding, pupping, and molting, and more wide-ranging seal movements within and outside of Cook Inlet during the winter months (Boveng et al. 2012). Large-scale patterns indicate a portion of harbor seals captured in Cook Inlet move out of the area in the fall, and into habitats within Shelikof Strait, Northern Kodiak Island, and coastal habitats of the Alaska Peninsula, and are most concentrated in Kachemak Bay, across Cook Inlet toward Iniskin and Iliamna Bays, and south through the Kamishak Bay, Cape Douglas and Shelikof Strait regions (Boveng et al. 2012).

A portion of the Cook Inlet seals move into the Gulf of Alaska and Shelikof Strait during the winter months (London et al. 2012). Seals move back into Cook Inlet as the breeding season approaches and their spatial use is more concentrated around haul-out areas (Boveng et al. 2012; London et al. 2012). Some seals expand their use of the northern portion of Cook Inlet. However, in general, seals that were captured and tracked in the southern portion of Cook Inlet remained south of the Forelands (Boveng et al. 2012). Important harbor seal haul-out areas occur within Kamishak and Kachemak Bays and along the coast of the Kodiak Archipelago and the Alaska Peninsula. Chinitna Bay, Clearwater and Chinitna Creeks, Tuxedni Bay, Kamishak Bay, Oil Bay, Pomeroy and Iniskin Islands, and Augustine Island are also important spring-summer breeding and molting areas and known haul-outs sites (Figure 15 of the application). Small-scale patterns of movement within Cook Inlet also occur (Boveng et al. 2012). Montgomery et al. (2007) recorded over 200 haul out sites in lower Cook Inlet alone. However, only a few dozen to a couple hundred seals seasonally occur in upper Cook Inlet (Rugh et al. 2005), mostly at the mouth of the Susitna River where their numbers vary in concert with the spring eulachon and summer salmon runs (Nemeth et al. 2007; Boveng et al. 2012).

The Cook Inlet/Shelikof Stock is distributed from Anchorage into lower Cook Inlet during summer and from lower Cook Inlet through Shelikof Strait to Unimak Pass during winter (Boveng et al. 2012). Large numbers concentrate at the river mouths and embayments of lower Cook Inlet, including the Fox River mouth in Kachemak Bay, and several haul outs have been identified on the southern end of Kalgin Island in lower Cook Inlet (Rugh et al. 2005; Boveng et al. 2012). Montgomery et al. (2007) recorded over 200 haul-out sites in lower Cook Inlet alone. During Apache's 2012 seismic program, harbor seals were observed in the project area from early May until the end of the seismic operations in late September (Lomac-MacNair et al. 2013). Also in 2012, up to 100 harbor seals were observed hauled out at the mouths of the Theodore and Lewis rivers during monitoring activity associated with Apache's 2012 Cook Inlet seismic program. During Apache's 2014 seismic program, 492 groups of harbor seals (613 individuals) were observed. This was the highest sighting rate of any marine mammal observed during the summer of 2014 (Lomac-MacNair et al. 2014). During SAExploration's 2015 seismic survey, 823 sightings (1,680 individuals) were observed north and between the Forelands (Kendall et al. 2015). Hilcorp recently reported 313 sightings of 316 harbor seals while conducting pipeline work in upper Cook Inlet (Sitkiewicz et al. 2018).

Steller Sea Lions

The western DPS (WDPS) stock of Steller sea lions most likely occurs in Cook Inlet (78 FR 66139). The center of abundance for the Western DPS is considered to extend from Kenai to Kiska Island (NMFS 2008b). The WDPS of the Steller sea lion is defined as all populations west of longitude 144° W to the western end of the Aleutian Islands. The range of the WDPS includes 38 rookeries and hundreds of haul out sites. The Hilcorp action area only considers the WDPS stock. The most recent comprehensive aerial photographic and land-based surveys of WDPS Steller sea lions in Alaska were conducted during the 2014 and 2015 breeding seasons (Fritz et al. 2015).

The WDPS of Steller sea lions is currently listed as endangered under the ESA (55 FR 49204) and designated as depleted under the MMPA. Critical habitat was designated on August 27, 1993 (58 FR 45269) south of the project area in the Cook Inlet region (Figure 16 of the application). The critical habitat designation for the WDPS of Steller sea lions was determined to include a 37 km (20 nm) buffer around all major haul outs and rookeries, and associated terrestrial, atmospheric, and aquatic zones, plus three large offshore foraging areas (Figure 16 of the application). NMFS also designated no entry zones around rookeries (50 CFR 223.202). Designated critical habitat is located outside Cook Inlet at Gore Point, Elizabeth Island, Perl Island, and Chugach Island (NMFS 2008b).

The geographic center of Steller sea lion distribution is the Aleutian Islands and the Gulf of Alaska, although as the WDPS has declined, rookeries in the west became progressively smaller (NMFS 2008b). Steller sea lion habitat includes terrestrial sites for breeding and pupping (rookeries), resting (haul outs), and marine foraging areas. Nearly all rookeries are at sites inaccessible to terrestrial predators on remote rocks, islands, and reefs. Steller sea lions inhabit lower Cook Inlet, especially near Shaw Island and Elizabeth Island (Nagahut Rocks) haul out sites (Rugh et al. 2005) but are rarely seen in upper Start Printed Page 37466Cook Inlet (Nemeth et al. 2007). Steller sea lions occur in Cook Inlet but south of Anchor Point around the offshore islands and along the west coast of the upper inlet in the bays (Chinitna Bay, Iniskin Bay, etc.) (Rugh et al. 2005). Portions of the southern reaches of the lower inlet are designated as critical habitat, including a 20-nm buffer around all major haulout sites and rookeries. Rookeries and haul out sites in lower Cook Inlet include those near the mouth of the inlet, which are far south of the project area. Steller sea lions feed largely on walleye pollock, salmon, and arrowtooth flounder during the summer, and walleye pollock and Pacific cod during the winter (Sinclair and Zeppelin 2002). Except for salmon, none of these are found in abundance in upper Cook Inlet (Nemeth et al. 2007).

Steller sea lions can travel considerable distances (Baba et al. 2000). Steller sea lions are not known to migrate annually, but individuals may widely disperse outside of the breeding season (late May to early July; Jemison et al. 2013; Allen and Angliss 2014). Most adult Steller sea lions inhabit rookeries during the breeding season (late May to early July). Some juveniles and non-breeding adults occur at or near rookeries during the breeding season, but most are on haul outs. Adult males may disperse widely after the breeding season and, during fall and winter, many sea lions increase use of haul outs, especially terrestrial sites but also on sea ice in the Bering Sea (NMFS 2008b).

Steller sea lions have been observed during marine mammal surveys conducted in Cook Inlet. In 2012, during Apache's 3D Seismic surveys, there were three sightings of approximately four individuals in upper Cook Inlet (Lomac-MacNair et al. 2013). Marine mammal observers associated with Buccaneer's drilling project off Cape Starichkof observed seven Steller sea lions during the summer of 2013 (Owl Ridge 2014). During SAExploration's 3D Seismic Program in 2015, four Steller sea lions were observed in Cook Inlet. One sighting occurred between the West and East Forelands, one near Nikiski and one northeast of the North Foreland in the center of Cook Inlet (Kendall et al. 2015). During NMFS Cook Inlet beluga whale aerial surveys from 2000-2016, there were 39 sightings of 769 estimated individual Steller sea lions in lower Cook Inlet (Shelden et al. 2017). Sightings of large congregations of Steller sea lions during NMFS aerial surveys occurred outside the Petition region, on land in the mouth of Cook Inlet (e.g., Elizabeth and Shaw Islands). Hilcorp recently reported 1 sighting of 2 Steller sea lions while conducting pipeline work in upper Cook Inlet (Sitkiewicz et al. 2018).

California Sea Lions

There is limited information on the presence of California sea lions in Alaska. From 1973 to 2003, a total of 52 California sea lions were reported in Alaska, with sightings increasing in the later years. Most sightings occurred in the spring; however, they have been observed during all seasons. California sea lion presence in Alaska was correlated with increasing population numbers within their southern breeding range (Maniscalco et al. 2004).

There have been relatively few California sea lions observed in Alaska, most are often alone or occasionally in small groups of two or more and usually associated with Steller sea lions at their haulouts and rookeries (Maniscalco et al. 2004). California sea lions are not typically observed farther north than southeast Alaska, and sightings are very rare in Cook Inlet. California sea lions have not been observed during the annual NMFS aerial surveys in Cook Inlet. However, a sighting of two California sea lions was documented during for the Apache 2012 seismic survey (Lomac-MacNair et al. 2013). Additionally, NMFS' anecdotal sighting database has four sightings in Seward and Kachemak Bay.

The California sea lion breeds from the southern Baja Peninsula north to Año Nuevo Island, California. Breeding season lasts from May to August, and most pups are born from May through July. A UME was declared in 2013 for California sea lions in southern California, primarily for pups and yearlings. However, the UME does not extend through the Pacific Northwest or to Alaska, but California sea lions have been included in this rule to cover the unlikely occurrence of lone individuals that occur in Cook Inlet every few years. Their nonbreeding range extends northward into British Columbia and occasionally farther north into Alaskan waters. California sea lions have been observed in Alaska during all four seasons; however, most of the sightings have occurred during the spring (Maniscalco et al. 2004).

Sections 3 and 4 of the application summarize available information regarding status and trends, distribution and habitat preferences, and behavior and life history, of the potentially affected species. Additional information regarding population trends and threats may be found in NMFS's Stock Assessment Reports (SAR; https://www.fisheries.noaa.gov/​national/​marine-mammal-protection/​marine-mammal-stock-assessment-reports-region), and more general information about these species (e.g., physical and behavioral descriptions) may be found on NMFS' website (https://www.fisheries.noaa.gov/​species-directory/​).

All species that could potentially occur in the survey areas are included in Table 2. As described below, all 11 species (with 12 managed stocks) temporally and spatially co-occur with the activity to the degree that take is reasonably likely to occur, and we have authorizing take of those species.

In addition, sea otters may be found in Cook Inlet. However, sea otters are managed by the U.S. Fish and Wildlife Service and are not considered further in this document.

Marine Mammal Hearing

Hearing is the most important sensory modality for marine mammals underwater, and exposure to anthropogenic sound can have deleterious effects. To appropriately assess the potential effects of exposure to sound, it is necessary to understand the frequency ranges marine mammals are able to hear. Current data indicate that not all marine mammal species have equal hearing capabilities (e.g., Richardson et al., 1995; Wartzok and Ketten, 1999; Au and Hastings, 2008). To reflect this, Southall et al. (2007) recommended that marine mammals be divided into functional hearing groups based on directly measured or estimated hearing ranges on the basis of available behavioral response data, audiograms derived using auditory evoked potential techniques, anatomical modeling, and other data. Note that no direct measurements of hearing ability have been successfully completed for mysticetes (i.e., low-frequency cetaceans). Subsequently, NMFS (2018) described generalized hearing ranges for these marine mammal hearing groups. Generalized hearing ranges were chosen based on the approximately 65 dB threshold from the normalized composite audiograms, with the exception for lower limits for low-frequency cetaceans where the lower bound was deemed to be biologically implausible and the lower bound from Southall et al. (2007) retained. The functional groups and the associated frequencies are indicated below (note that these frequency ranges correspond to the range for the composite group, with the entire range not necessarily reflecting the capabilities of every species within that group):

  • Low-frequency cetaceans (mysticetes): Generalized hearing is Start Printed Page 37467estimated to occur between approximately 7 Hz and 35 kHz;
  • Mid-frequency cetaceans (larger toothed whales, beaked whales, and most delphinids): Generalized hearing is estimated to occur between approximately 150 Hz and 160 kHz;
  • High-frequency cetaceans (porpoises, river dolphins, and members of the genera Kogia and Cephalorhynchus; including two members of the genus Lagenorhynchus, on the basis of recent echolocation data and genetic data): Generalized hearing is estimated to occur between approximately 275 Hz and 160 kHz;
  • Pinnipeds in water; Phocidae (true seals): Generalized hearing is estimated to occur between approximately 50 Hz to 86 kHz; and
  • Pinnipeds in water; Otariidae (eared seals): Generalized hearing is estimated to occur between 60 Hz and 39 kHz.

The pinniped functional hearing group was modified from Southall et al. (2007) on the basis of data indicating that phocid species have consistently demonstrated an extended frequency range of hearing compared to otariids, especially in the higher frequency range (Hemilä et al., 2006; Kastelein et al., 2009; Reichmuth and Holt, 2013).

For more detail concerning these groups and associated frequency ranges, please see NMFS (2018) for a review of available information. Eleven marine mammal species (eight cetacean and three pinniped (two otariid and one phocid) species) have the reasonable potential to co-occur with the survey activities. Please refer to Table 2. Of the cetacean species that may be present, four are classified as low-frequency cetaceans (i.e., all mysticete species), two are classified as mid-frequency cetaceans (i.e., all delphinid and ziphiid species and the sperm whale), and two are classified as high-frequency cetaceans (i.e., harbor porpoise and Kogia spp.).

Potential Effects of Specified Activities on Marine Mammals and Their Habitat

This section includes a summary and discussion of the ways that components of the specified activity may impact marine mammals and their habitat. The Estimated Take by Incidental Harassment section later in this document includes a quantitative analysis of the number of individuals that are expected to be taken by this activity. The Negligible Impact Analysis and Determination section considers the content of this section, the Estimated Take by Incidental Harassment section, and the Mitigation section, to draw conclusions regarding the likely impacts of these activities on the reproductive success or survivorship of individuals and how those impacts on individuals are likely to impact marine mammal species or stocks.

Description of Active Acoustic Sound Sources

This section contains a brief technical background on sound, the characteristics of certain sound types, and on metrics used in this rule in as much as the information is relevant to the specified activity and to a discussion of the potential effects of the specified activity on marine mammals found later in this document.

Sound travels in waves, the basic components of which are frequency, wavelength, velocity, and amplitude. Frequency is the number of pressure waves that pass by a reference point per unit of time and is measured in Hz or cycles per second. Wavelength is the distance between two peaks or corresponding points of a sound wave (length of one cycle). Higher frequency sounds have shorter wavelengths than lower frequency sounds, and typically attenuate (decrease) more rapidly, except in certain cases in shallower water. Amplitude is the height of the sound pressure wave or the “loudness” of a sound and is typically described using the relative unit of the dB. A sound pressure level (SPL) in dB is described as the ratio between a measured pressure and a reference pressure (for underwater sound, this is 1 microPascal (μPa)) and is a logarithmic unit that accounts for large variations in amplitude; therefore, a relatively small change in dB corresponds to large changes in sound pressure. The source level (SL) represents the SPL referenced at a distance of 1 m from the source (referenced to 1 μPa) while the received level is the SPL at the listener's position (referenced to 1 μPa).

Root mean square (rms) is the quadratic mean sound pressure over the duration of an impulse. Root mean square is calculated by squaring all of the sound amplitudes, averaging the squares, and then taking the square root of the average (Urick, 1983). Root mean square accounts for both positive and negative values; squaring the pressures makes all values positive so that they may be accounted for in the summation of pressure levels (Hastings and Popper, 2005). This measurement is often used in the context of discussing behavioral effects, in part because behavioral effects, which often result from auditory cues, may be better expressed through averaged units than by peak pressures.

Sound exposure level (SEL; represented as dB re 1 μPa2-s) represents the total energy contained within a pulse and considers both intensity and duration of exposure. Peak sound pressure (also referred to as zero-to-peak sound pressure or 0-p) is the maximum instantaneous sound pressure measurable in the water at a specified distance from the source and is represented in the same units as the rms sound pressure. Another common metric is peak-to-peak sound pressure (pk-pk), which is the algebraic difference between the peak positive and peak negative sound pressures. Peak-to-peak pressure is typically approximately 6 dB higher than peak pressure (Southall et al., 2007).

When underwater objects vibrate or activity occurs, sound-pressure waves are created. These waves alternately compress and decompress the water as the sound wave travels. Underwater sound waves radiate in a manner similar to ripples on the surface of a pond and may be either directed in a beam or beams or may radiate in all directions (omnidirectional sources), as is the case for pulses produced by the airgun arrays considered here. The compressions and decompressions associated with sound waves are detected as changes in pressure by aquatic life and man-made sound receptors such as hydrophones.

Even in the absence of sound from the specified activity, the underwater environment is typically loud due to ambient sound. Ambient sound is defined as environmental background sound levels lacking a single source or point (Richardson et al., 1995), and the sound level of a region is defined by the total acoustical energy being generated by known and unknown sources. These sources may include physical (e.g., wind and waves, earthquakes, ice, atmospheric sound), biological (e.g., sounds produced by marine mammals, fish, and invertebrates), and anthropogenic (e.g., vessels, dredging, construction) sound. A number of sources contribute to ambient sound, including the following (Richardson et al., 1995):

  • Wind and waves: The complex interactions between wind and water surface, including processes such as breaking waves and wave-induced bubble oscillations and cavitation, are a main source of naturally occurring ambient sound for frequencies between 200 Hz and 50 kilohertz (kHz) (Mitson, 1995). In general, ambient sound levels tend to increase with increasing wind speed and wave height. Surf sound becomes important near shore, with measurements collected at a distance of 8.5 km from shore showing an increase of 10 dB in the 100 to 700 Hz band during heavy surf conditions;Start Printed Page 37468
  • Precipitation: Sound from rain and hail impacting the water surface can become an important component of total sound at frequencies above 500 Hz, and possibly down to 100 Hz during quiet times;
  • Biological: Marine mammals can contribute significantly to ambient sound levels, as can some fish and snapping shrimp. The frequency band for biological contributions is from approximately 12 Hz to over 100 kHz; and
  • Anthropogenic: Sources of ambient sound related to human activity include transportation (surface vessels), dredging and construction, oil and gas drilling and production, seismic surveys, sonar, explosions, and ocean acoustic studies. Vessel noise typically dominates the total ambient sound for frequencies between 20 and 300 Hz. In general, the frequencies of anthropogenic sounds are below 1 kHz and, if higher frequency sound levels are created, they attenuate rapidly. Sound from identifiable anthropogenic sources other than the activity of interest (e.g., a passing vessel) is sometimes termed background sound, as opposed to ambient sound.

The sum of the various natural and anthropogenic sound sources at any given location and time—which comprise “ambient” or “background” sound—depends not only on the source levels (as determined by current weather conditions and levels of biological and human activity) but also on the ability of sound to propagate through the environment. In turn, sound propagation is dependent on the spatially and temporally varying properties of the water column and sea floor and is frequency-dependent. As a result of the dependence on a large number of varying factors, ambient sound levels can be expected to vary widely over both coarse and fine spatial and temporal scales. Sound levels at a given frequency and location can vary by 10-20 dB from day to day (Richardson et al., 1995). The result is that, depending on the source type and its intensity, sound from a given activity may be a negligible addition to the local environment or could form a distinctive signal that may affect marine mammals. Details of source types are described in the following text.

Sounds are often considered to fall into one of two general types: Pulsed and non-pulsed (defined in the following). The distinction between these two sound types is important because they have differing potential to cause physical effects, particularly with regard to hearing (e.g., Ward, 1997 in Southall et al., 2007). Please see Southall et al. (2007) for an in-depth discussion of these concepts.

Pulsed sound sources (e.g., airguns, explosions, gunshots, sonic booms, impact pile driving) produce signals that are brief (typically considered to be less than one second), broadband, atonal transients (ANSI, 1986, 2005; Harris, 1998; NIOSH, 1998; ISO, 2003) and occur either as isolated events or repeated in some succession. Pulsed sounds are all characterized by a relatively rapid rise from ambient pressure to a maximal pressure value followed by a rapid decay period that may include a period of diminishing, oscillating maximal and minimal pressures and generally have an increased capacity to induce physical injury as compared with sounds that lack these features.

Non-pulsed sounds can be tonal, narrowband, or broadband, brief or prolonged, and may be either continuous or non-continuous (ANSI, 1995; NIOSH, 1998). Some of these non-pulsed sounds can be transient signals of short duration but without the essential properties of pulses (e.g., rapid rise time). Examples of non-pulsed sounds include those produced by vessels, aircraft, machinery operations such as drilling or dredging, vibratory pile driving, and active sonar systems (such as those used by the U.S. Navy). The duration of such sounds, as received at a distance, can be greatly extended in a highly reverberant environment.

Airgun arrays produce pulsed signals with energy in a frequency range from about 10-2,000 Hz, with most energy radiated at frequencies below 200 Hz. The amplitude of the acoustic wave emitted from the source is equal in all directions (i.e., omnidirectional), but airgun arrays do possess some directionality due to different phase delays between guns in different directions. Airgun arrays are typically tuned to maximize functionality for data acquisition purposes, meaning that sound transmitted in horizontal directions and at higher frequencies is minimized to the extent possible.

As described above, two types of sub-bottom profiler will also be used by Hilcorp during the geotechnical and geohazard surveys: A low resolution unit (1-4 kHz) and a high resolution unit (2-24 kHz).

Potential Effects of Underwater Sound—Please refer to the information given previously (“Description of Active Acoustic Sound Sources”) regarding sound, characteristics of sound types, and metrics used in this document. Note that, in the following discussion, we refer in many cases to a recent review article concerning studies of noise-induced hearing loss conducted from 1996-2015 (i.e., Finneran, 2015). For study-specific citations, please see that work. Anthropogenic sounds cover a broad range of frequencies and sound levels and can have a range of highly variable impacts on marine life, from none or minor to potentially severe responses, depending on received levels, duration of exposure, behavioral context, and various other factors. The potential effects of underwater sound from active acoustic sources can potentially result in one or more of the following: Temporary or permanent hearing impairment, non-auditory physical or physiological effects, behavioral disturbance, stress, and masking (Richardson et al., 1995; Gordon et al., 2004; Nowacek et al., 2007; Southall et al., 2007; Götz et al., 2009). The degree of effect is intrinsically related to the signal characteristics, received level, distance from the source, and duration of the sound exposure. In general, sudden, high level sounds can cause hearing loss, as can longer exposures to lower level sounds. Temporary or permanent loss of hearing will occur almost exclusively for noise within an animal's hearing range. We first describe specific manifestations of acoustic effects before providing discussion specific to the use of airguns.

Richardson et al. (1995) described zones of increasing intensity of effect that might be expected to occur, in relation to distance from a source and assuming that the signal is within an animal's hearing range. First is the area within which the acoustic signal would be audible (potentially perceived) to the animal but not strong enough to elicit any overt behavioral or physiological response. The next zone corresponds with the area where the signal is audible to the animal and of sufficient intensity to elicit behavioral or physiological responsiveness. Third is a zone within which, for signals of high intensity, the received level is sufficient to potentially cause discomfort or tissue damage to auditory or other systems. Overlaying these zones to a certain extent is the area within which masking (i.e., when a sound interferes with or masks the ability of an animal to detect a signal of interest that is above the absolute hearing threshold) may occur; the masking zone may be highly variable in size.

We describe the more severe effects certain non-auditory physical or physiological effects only briefly as we do not expect that use of airgun arrays, sub-bottom profilers, drill rig construction, or sheet pile driving are Start Printed Page 37469reasonably likely to result in such effects (see below for further discussion). Potential effects from impulsive sound sources can range in severity from effects such as behavioral disturbance or tactile perception to physical discomfort, slight injury of the internal organs and the auditory system, or mortality (Yelverton et al., 1973). Non-auditory physiological effects or injuries that theoretically might occur in marine mammals exposed to high level underwater sound or as a secondary effect of extreme behavioral reactions (e.g., change in dive profile as a result of an avoidance reaction) caused by exposure to sound include neurological effects, bubble formation, resonance effects, and other types of organ or tissue damage (Cox et al., 2006; Southall et al., 2007; Zimmer and Tyack, 2007; Tal et al., 2015). The suite of activities considered here do not involve the use of devices such as explosives or mid-frequency tactical sonar that are associated with these types of effects.

1. Threshold Shift—Marine mammals exposed to high-intensity sound, or to lower-intensity sound for prolonged periods, can experience hearing threshold shift (TS), which is the loss of hearing sensitivity at certain frequency ranges (Finneran, 2015). TS can be permanent (PTS), in which case the loss of hearing sensitivity is not fully recoverable, or temporary (TTS), in which case the animal's hearing threshold would recover over time (Southall et al., 2007). Repeated sound exposure that leads to TTS could cause PTS. In severe cases of PTS, there can be total or partial deafness, while in most cases the animal has an impaired ability to hear sounds in specific frequency ranges (Kryter, 1985).

When PTS occurs, there is physical damage to the sound receptors in the ear (i.e., tissue damage), whereas TTS represents primarily tissue fatigue and is reversible (Southall et al., 2007). In addition, other investigators have suggested that TTS is within the normal bounds of physiological variability and tolerance and does not represent physical injury (e.g., Ward, 1997). Therefore, NMFS does not consider TTS to constitute auditory injury.

Relationships between TTS and PTS thresholds have not been studied in marine mammals. There is no PTS data for cetaceans, but such relationships are assumed to be similar to those in humans and other terrestrial mammals. PTS typically occurs at exposure levels at least several decibels above (a 40-dB threshold shift approximates PTS onset; e.g., Kryter et al., 1966; Miller, 1974) which would induce mild TTS (a 6-dB threshold shift approximates TTS onset; e.g., Southall et al., 2007). Based on data from terrestrial mammals, a precautionary assumption is that the PTS thresholds for impulse sounds (such as airgun pulses as received close to the source) are at least 6 dB higher than the TTS threshold on a peak-pressure basis, and PTS cumulative sound exposure level (SELcum) thresholds are 15 to 20 dB higher than TTS SELcum thresholds (Southall et al., 2007). Given the higher level of sound combined with longer exposure duration necessary to cause PTS, it is expected that limited PTS could occur from the activities. For mid-frequency cetaceans in particular, potential protective mechanisms may help limit onset of TTS or prevent onset of PTS. Such mechanisms include dampening of hearing, auditory adaptation, or behavioral amelioration (e.g., Nachtigall and Supin, 2013; Miller et al., 2012; Finneran et al., 2015; Popov et al., 2016). Given the higher level of sound, longer durations of exposure necessary to cause PTS, it is possible but unlikely PTS would occur during the seismic surveys, geotechnical surveys, or other exploratory drilling activities.

TTS is the mildest form of hearing impairment that can occur during exposure to sound (Kryter, 1985). While experiencing TTS, the hearing threshold rises, and a sound must be at a higher level in order to be heard. In terrestrial and marine mammals, TTS can last from minutes or hours to days (in cases of strong TTS). In many cases, hearing sensitivity recovers rapidly after exposure to the sound ends. Few data on sound levels and durations necessary to elicit mild TTS have been obtained for marine mammals.

Marine mammal hearing plays a critical role in communication with conspecifics, and interpretation of environmental cues for purposes such as predator avoidance and prey capture. Depending on the degree (elevation of threshold in dB), duration (i.e., recovery time), and frequency range of TTS, and the context in which it is experienced, TTS can have effects on marine mammals ranging from discountable to serious. For example, a marine mammal may be able to readily compensate for a brief, relatively small amount of TTS in a non-critical frequency range that occurs during a time where ambient noise is lower and there are not as many competing sounds present. Alternatively, a larger amount and longer duration of TTS sustained during time when communication is critical for successful mother/calf interactions could have more serious impacts.

Finneran et al. (2015) measured hearing thresholds in three captive bottlenose dolphins before and after exposure to ten pulses produced by a seismic airgun in order to study TTS induced after exposure to multiple pulses. Exposures began at relatively low levels and gradually increased over a period of several months, with the highest exposures at peak SPLs from 196 to 210 dB and cumulative (unweighted) SELs from 193-195 dB. No substantial TTS was observed. In addition, behavioral reactions were observed that indicated that animals can learn behaviors that effectively mitigate noise exposures (although exposure patterns must be learned, which is less likely in wild animals than for the captive animals considered in this study). The authors note that the failure to induce more significant auditory effects is likely due to the intermittent nature of exposure, the relatively low peak pressure produced by the acoustic source, and the low-frequency energy in airgun pulses as compared with the frequency range of best sensitivity for dolphins and other mid-frequency cetaceans.

Currently, TTS data only exist for four species of cetaceans (bottlenose dolphin (Tursiops truncatus), beluga whale (Delphinapterus leucas), harbor porpoise, and Yangtze finless porpoise (Neophocoena asiaeorientalis)) and five species of pinnipeds (northern elephant seal, harbor seal, and California sea lion) exposed to a limited number of sound sources (i.e., mostly tones and octave-band noise) in laboratory settings (Finneran, 2015). TTS was not observed in trained spotted (Phoca largha) and ringed (Pusa hispida) seals exposed to impulsive noise at levels matching previous predictions of TTS onset (Reichmuth et al., 2016). In general, harbor seals and harbor porpoises have a lower TTS onset than other measured pinniped or cetacean species (Finneran, 2015). Additionally, the existing marine mammal TTS data come from a limited number of individuals within these species. There are no data available on noise-induced hearing loss for mysticetes. For summaries of data on TTS in marine mammals or for further discussion of TTS onset thresholds, please see Southall et al. (2007), Finneran and Jenkins (2012), Finneran (2015), and Table 5 in NMFS (2018).

Critical questions remain regarding the rate of TTS growth and recovery after exposure to intermittent noise and the effects of single and multiple pulses. Data at present are also insufficient to construct generalized models for recovery and determine the time necessary to treat subsequent exposures as independent events. More information is needed on the Start Printed Page 37470relationship between auditory evoked potential and behavioral measures of TTS for various stimuli. For summaries of data on TTS in marine mammals or for further discussion of TTS onset thresholds, please see Southall et al. (2007), Finneran and Jenkins (2012), Finneran (2015), and NMFS (2016).

Marine mammals in the action area during the activities are less likely to incur TTS hearing impairment from some of the sources to be used due to the characteristics of the sound sources, particularly sources such as the water jets, which include lower source levels (176 dB @1m) and generally very short pulses and duration of the sound. Even for high-frequency cetacean species (e.g., harbor porpoises), which may have increased sensitivity to TTS (Lucke et al., 2009; Kastelein et al., 2012b), individuals would have to make a very close approach and also remain very close to vessels operating these sources in order to receive multiple exposures at relatively high levels, as would be necessary to cause TTS. Intermittent exposures—as would occur due to the brief, transient signals produced by these sources—require a higher cumulative SEL to induce TTS than would continuous exposures of the same duration (i.e., intermittent exposure results in lower levels of TTS) (Mooney et al., 2009a; Finneran et al., 2010).

Moreover, most marine mammals would more likely avoid a loud sound source rather than swim in such close proximity as to result in TTS (much less PTS). Kremser et al. (2005) noted that the probability of a cetacean swimming through the area of exposure when a sub-bottom profiler emits a pulse is small—because if the animal was in the area, it would have to pass the transducer at close range in order to be subjected to sound levels that could cause temporary threshold shift and will likely exhibit avoidance behavior to the area near the transducer rather than swim through at such a close range. Further, the restricted beam shape of the sub-bottom profiler and other geophysical survey equipment makes it unlikely that an animal would be exposed more than briefly during the passage of the vessel. Boebel et al. (2005) concluded similarly for single and multibeam echosounders, and more recently, Lurton (2016) conducted a modeling exercise and concluded similarly that likely potential for acoustic injury from these types of systems is negligible, but that behavioral response cannot be ruled out. Animals may avoid the area around the survey vessels, thereby reducing exposure. Effects of non-pulsed sound on marine mammals, such as vibratory pile driving, are less studied. In a study by Malme et al. (1986) on gray whales as well as Richardson et al. (1997) on beluga whales, the only reactions documented in response to drilling sound playbacks were behavioral reactions. Any disturbance to marine mammals is likely to be in the form of temporary avoidance or alteration of opportunistic foraging behavior near the survey location.

2. Behavioral Effects—Behavioral disturbance may include a variety of effects, including subtle changes in behavior (e.g., minor or brief avoidance of an area or changes in vocalizations), more conspicuous changes in similar behavioral activities, and more sustained and/or potentially severe reactions, such as displacement from or abandonment of high-quality habitat. Behavioral responses to sound are highly variable and context-specific and any reactions depend on numerous intrinsic and extrinsic factors (e.g., species, state of maturity, experience, current activity, reproductive state, auditory sensitivity, time of day), as well as the interplay between factors (e.g., Richardson et al., 1995; Wartzok et al., 2003; Southall et al., 2007; Weilgart, 2007; Archer et al., 2010). Behavioral reactions can vary not only among individuals but also within an individual, depending on previous experience with a sound source, context, and numerous other factors (Ellison et al., 2012), and can vary depending on characteristics associated with the sound source (e.g., whether it is moving or stationary, number of sources, distance from the source). Please see Appendices B-C of Southall et al. (2007) for a review of studies involving marine mammal behavioral responses to sound.

Habituation can occur when an animal's response to a stimulus wanes with repeated exposure, usually in the absence of unpleasant associated events (Wartzok et al., 2003). Animals are most likely to habituate to sounds that are predictable and unvarying. It is important to note that habituation is appropriately considered as a “progressive reduction in response to stimuli that are perceived as neither aversive nor beneficial,” rather than as, more generally, moderation in response to human disturbance (Bejder et al., 2009). The opposite process is sensitization, when an unpleasant experience leads to subsequent responses, often in the form of avoidance, at a lower level of exposure. As noted, behavioral state may affect the type of response. For example, animals that are resting may show greater behavioral change in response to disturbing sound levels than animals that are highly motivated to remain in an area for feeding (Richardson et al., 1995; NRC, 2003; Wartzok et al., 2003). Controlled experiments with captive marine mammals have showed pronounced behavioral reactions, including avoidance of loud sound sources (Ridgway et al., 1997). Observed responses of wild marine mammals to loud pulsed sound sources (typically seismic airguns or acoustic harassment devices) have been varied but often consist of avoidance behavior or other behavioral changes suggesting discomfort (Morton and Symonds, 2002; see also Richardson et al., 1995; Nowacek et al., 2007). However, many delphinids approach acoustic source vessels with no apparent discomfort or obvious behavioral change (e.g., Barkaszi et al., 2012).

Available studies show wide variation in response to underwater sound; therefore, it is difficult to predict specifically how any given sound in a particular instance might affect marine mammals perceiving the signal. If a marine mammal does react briefly to an underwater sound by changing its behavior or moving a small distance, the impacts of the change are unlikely to be significant to the individual, let alone the stock or population. However, if a sound source displaces marine mammals from an important feeding or breeding area for a prolonged period, impacts on individuals and populations could be significant (e.g., Lusseau and Bejder, 2007; Weilgart, 2007; NRC, 2005). However, there are broad categories of potential response, which we describe in greater detail here, that include alteration of dive behavior, alteration of foraging behavior, effects to breathing, interference with or alteration of vocalization, avoidance, and flight.

Changes in dive behavior can vary widely, and may consist of increased or decreased dive times and surface intervals as well as changes in the rates of ascent and descent during a dive (e.g., Frankel and Clark 2000; Ng and Leung 2003; Nowacek et al. 2004; Goldbogen et al. 2013). Variations in dive behavior may reflect interruptions in biologically significant activities (e.g., foraging) or they may be of little biological significance. The impact of an alteration to dive behavior resulting from an acoustic exposure depends on what the animal is doing at the time of the exposure and the type and magnitude of the response.

Disruption of feeding behavior can be difficult to correlate with anthropogenic sound exposure, so it is usually inferred by observed displacement from known Start Printed Page 37471foraging areas, the appearance of secondary indicators (e.g., bubble nets or sediment plumes), or changes in dive behavior. As for other types of behavioral response, the frequency, duration, and temporal pattern of signal presentation, as well as differences in species sensitivity, are likely contributing factors to differences in response in any given circumstance (e.g., Croll et al. 2001; Nowacek et al. 2004; Madsen et al. 2006; Yazvenko et al. 2007). A determination of whether foraging disruptions incur fitness consequences requires information on or estimates of the energetic requirements of the affected individuals and the relationship between prey availability, foraging effort and success, and the life history stage of the animal.

Visual tracking, passive acoustic monitoring, and movement recording tags were used to quantify sperm whale behavior prior to, during, and following exposure to airgun arrays at received levels in the range 140-160 dB at distances of 7-13 km, following a phase-in of sound intensity and full array exposures at 1-13 km (Madsen et al., 2006; Miller et al., 2009). Sperm whales did not exhibit horizontal avoidance behavior at the surface. However, foraging behavior may have been affected. The sperm whales exhibited 19 percent less vocal (buzz) rate during full exposure relative to post exposure, and the whale that was approached most closely had an extended resting period and did not resume foraging until the airguns had ceased firing. The remaining whales continued to execute foraging dives throughout exposure; however, swimming movements during foraging dives were six percent lower during exposure than control periods (Miller et al., 2009). These data raise concerns that seismic surveys may impact foraging behavior in sperm whales, although more data are required to understand whether the differences were due to exposure or natural variation in sperm whale behavior (Miller et al., 2009). Variations in respiration naturally vary with different behaviors and alterations to breathing rate as a function of acoustic exposure can be expected to co-occur with other behavioral reactions, such as a flight response or an alteration in diving. However, respiration rates in and of themselves may be representative of annoyance or an acute stress response. Various studies have shown that respiration rates may either be unaffected or could increase, depending on the species and signal characteristics, again highlighting the importance in understanding species differences in the tolerance of underwater noise when determining the potential for impacts resulting from anthropogenic sound exposure (e.g., Kastelein et al., 2001, 2005, 2006; Gailey et al., 2007).

Marine mammals vocalize for different purposes and across multiple modes, such as whistling, echolocation click production, calling, and singing. Changes in vocalization behavior in response to anthropogenic noise can occur for any of these modes and may result from a need to compete with an increase in background noise or may reflect increased vigilance or a startle response. For example, in the presence of potentially masking signals, humpback whales and killer whales have been observed to increase the length of their songs (Miller et al., 2000; Fristrup et al., 2003; Foote et al., 2004), while right whales have been observed to shift the frequency content of their calls upward while reducing the rate of calling in areas of increased anthropogenic noise (Parks et al., 2007). In some cases, animals may cease sound production during production of aversive signals (Bowles et al., 1994).

Cerchio et al. (2014) used passive acoustic monitoring to document the presence of singing humpback whales off the coast of northern Angola and to opportunistically test for the effect of seismic survey activity on the number of singing whales. Two recording units were deployed between March and December 2008 in the offshore environment, and the numbers of singers were counted every hour. Generalized Additive Mixed Models were used to assess the effect of survey day (seasonality), hour (diel variation), moon phase, and received levels of noise (measured from a single pulse during each ten minute sampled period) on singer number. The number of singers significantly decreased with increasing received level of noise, suggesting that humpback whale breeding activity was disrupted to some extent by the survey activity.

Castellote et al. (2012) reported acoustic and behavioral changes by fin whales in response to shipping and airgun noise. Acoustic features of fin whale song notes recorded in the Mediterranean Sea and northeast Atlantic Ocean were compared for areas with different shipping noise levels and traffic intensities and during a seismic airgun survey. During the first 72 hours of the survey, a steady decrease in song received levels and bearings to singers indicated that whales moved away from the acoustic source and out of the study area. This displacement persisted for a time period well beyond the 10-day duration of seismic airgun activity, providing evidence that fin whales may avoid an area for an extended period in the presence of increased noise. The authors hypothesize that fin whale acoustic communication is modified to compensate for increased background noise and that a sensitization process may play a role in the observed temporary displacement.

Seismic pulses at average received levels of 131 dB re 1 µPa2-s caused blue whales to increase call production (Di Iorio and Clark, 2010). In contrast, McDonald et al. (1995) tracked a blue whale with seafloor seismometers and reported that it stopped vocalizing and changed its travel direction at a range of 10 km from the acoustic source vessel (estimated received level 143 dB pk-pk). Blackwell et al. (2013) found that bowhead whale call rates dropped significantly at onset of airgun use at sites with a median distance of 41-45 km from the survey. Blackwell et al. (2015) expanded this analysis to show that whales actually increased calling rates as soon as airgun signals were detectable before ultimately decreasing calling rates at higher received levels (i.e., 10-minute SELcum of ~127 dB). Overall, these results suggest that bowhead whales may adjust their vocal output in an effort to compensate for noise before ceasing vocalization effort and ultimately deflecting from the acoustic source (Blackwell et al., 2013, 2015). These studies demonstrate that even low levels of noise received far from the source can induce changes in vocalization and/or behavior for mysticetes.

Avoidance is the displacement of an individual from an area or migration path as a result of the presence of a sound or other stressors, and is one of the most obvious manifestations of disturbance in marine mammals (Richardson et al., 1995). For example, gray whales are known to change direction—deflecting from customary migratory paths—in order to avoid noise from seismic surveys (Malme et al., 1984). Humpback whales showed avoidance behavior in the presence of an active seismic array during observational studies and controlled exposure experiments in western Australia (McCauley et al., 2000). Avoidance may be short-term, with animals returning to the area once the noise has ceased (e.g., Bowles et al., 1994; Stone et al., 2000; Morton and Symonds, 2002; Gailey et al., 2007). Longer-term displacement is possible, however, which may lead to changes in abundance or distribution patterns of the affected species in the affected region if habituation to the presence of Start Printed Page 37472the sound does not occur (e.g., Bejder et al., 2006; Teilmann et al., 2006).

A flight response is a dramatic change in normal movement to a directed and rapid movement away from the perceived location of a sound source. The flight response differs from other avoidance responses in the intensity of the response (e.g., directed movement, rate of travel). Relatively little information on flight responses of marine mammals to anthropogenic signals exist, although observations of flight responses to the presence of predators have occurred (Connor and Heithaus, 1996). The result of a flight response could range from brief, temporary exertion and displacement from the area where the signal provokes flight to, in extreme cases, marine mammal strandings (Evans and England, 2001). However, it should be noted that response to a perceived predator does not necessarily invoke flight (Ford and Reeves, 2008), and whether individuals are solitary or in groups may influence the response.

Behavioral disturbance can also impact marine mammals in more subtle ways. Increased vigilance may result in costs related to diversion of focus and attention (i.e., when a response consists of increased vigilance, it may come at the cost of decreased attention to other critical behaviors such as foraging or resting). These effects have generally not been demonstrated for marine mammals, but studies involving fish and terrestrial animals have shown that increased vigilance may substantially reduce feeding rates (e.g., Beauchamp and Livoreil 1997; Purser and Radford 2011). In addition, chronic disturbance can cause population declines through reduction of fitness (e.g., decline in body condition) and subsequent reduction in reproductive success, survival, or both (e.g., Harrington and Veitch 1992; Daan et al. 1996; Bradshaw et al. 1998). However, Ridgway et al. (2006) reported that increased vigilance in bottlenose dolphins exposed to sound over a five-day period did not cause any sleep deprivation or stress effects.

Many animals perform vital functions, such as feeding, resting, traveling, and socializing, on a diel cycle (24-hour cycle). Disruption of such functions resulting from reactions to stressors such as sound exposure are more likely to be significant if they last more than one diel cycle or recur on subsequent days (Southall et al., 2007). Consequently, a behavioral response lasting less than one day and not recurring on subsequent days is not considered particularly severe unless it could directly affect reproduction or survival (Southall et al., 2007). Note that there is a difference between multi-day substantive behavioral reactions and multi-day anthropogenic activities. For example, just because an activity lasts for multiple days does not necessarily mean that individual animals are either exposed to activity-related stressors for multiple days or, further, exposed in a manner resulting in sustained multi-day substantive behavioral responses.

Stone (2015) reported data from at-sea observations during 1,196 seismic surveys from 1994 to 2010. When large arrays of airguns (considered to be 500 in3 or more) were firing, lateral displacement, more localized avoidance, or other changes in behavior were evident for most odontocetes. However, significant responses to large arrays were found only for the minke whale and fin whale. Behavioral responses observed included changes in swimming or surfacing behavior, with indications that cetaceans remained near the water surface at these times. Cetaceans were recorded as feeding less often when large arrays were active. Behavioral observations of gray whales during a seismic survey monitored whale movements and respirations pre-, during and post-seismic survey (Gailey et al., 2016). Behavioral state and water depth were the best `natural' predictors of whale movements and respiration and, after considering natural variation, none of the response variables were significantly associated with seismic survey or vessel sounds.

Marine mammals are likely to avoid the activities, especially harbor porpoises, while the harbor seals might be attracted to them out of curiosity. However, because the sub-bottom profilers and seismic equipment operate from moving vessels, the area (relative to the available habitat in Cook Inlet) and time that this equipment will be affecting a given location is very small. Further, for mobile sources, once an area has been surveyed, it is not likely that it will be surveyed again, therefore reducing the likelihood of repeated geophysical and geotechnical survey impacts within the survey area. The isopleths for harassment for the stationary sources considered in this document are small relative to those for mobile sources. Therefore, while the sound is concentrated in the same area for the duration of the activity (duration of pile driving, VSP, etc), the amount of area affected by noise levels which we expect may cause harassment are small relative to the mobile sources. Additionally, animals may more predictably avoid the area of the disturbance as the source is stationary. Overall duration of these sound sources is still short and unlikely to cause more than temporary disturbance.

We have also considered the potential for severe behavioral responses such as stranding and associated indirect injury or mortality from Hilcorp's use of high resolution geophysical survey equipment, on the basis of a 2008 mass stranding of approximately one hundred melon-headed whales in a Madagascar lagoon system. An investigation of the event indicated that use of a high-frequency mapping system (12-kHz multibeam echosounder) was the most plausible and likely initial behavioral trigger of the event, while providing the caveat that there is no unequivocal and easily identifiable single cause (Southall et al., 2013). The investigatory panel's conclusion was based on (1) very close temporal and spatial association and directed movement of the survey with the stranding event; (2) the unusual nature of such an event coupled with previously documented apparent behavioral sensitivity of the species to other sound types (Southall et al., 2006; Brownell et al., 2009); and (3) the fact that all other possible factors considered were determined to be unlikely causes. Specifically, regarding survey patterns prior to the event and in relation to bathymetry, the vessel transited in a north-south direction on the shelf break parallel to the shore, ensonifying large areas of deep-water habitat prior to operating intermittently in a concentrated area offshore from the stranding site. This may have trapped the animals between the sound source and the shore, thus driving them towards the lagoon system. The investigatory panel systematically excluded or deemed highly unlikely nearly all potential reasons for these animals leaving their typical pelagic habitat for an area extremely atypical for the species (i.e., a shallow lagoon system). Notably, this was the first time that such a system has been associated with a stranding event. The panel also noted several site- and situation-specific secondary factors that may have contributed to the avoidance responses that led to the eventual entrapment and mortality of the whales. Specifically, shoreward-directed surface currents and elevated chlorophyll levels in the area preceding the event may have played a role (Southall et al., 2013). The report also notes that prior use of a similar system in the general area may have sensitized the animals and also concluded that, for odontocete cetaceans that hear well in higher frequency ranges where ambient noise is typically quite low, high-power active sonars operating in this range may be Start Printed Page 37473more easily audible and have potential effects over larger areas than low frequency systems that have more typically been considered in terms of anthropogenic noise impacts. It is, however, important to note that the relatively lower output frequency, higher output power, and complex nature of the system implicated in this event, in context of the other factors noted here, likely produced a fairly unusual set of circumstances that indicate that such events likely remain rare and are not necessarily relevant to use of lower-power, higher-frequency systems more commonly used for high resolution geophysical (HRG) survey applications. The risk of similar events recurring may be very low, given the extensive use of active acoustic systems used for scientific and navigational purposes worldwide on a daily basis and the lack of direct evidence of such responses previously reported.

3. Stress Responses—An animal's perception of a threat may be sufficient to trigger stress responses consisting of some combination of behavioral responses, autonomic nervous system responses, neuroendocrine responses, or immune responses (e.g., Seyle, 1950; Moberg 2000). In many cases, an animal's first and sometimes most economical (in terms of energetic costs) response is behavioral avoidance of the potential stressor. Autonomic nervous system responses to stress typically involve changes in heart rate, blood pressure, and gastrointestinal activity. These responses have a relatively short duration and may or may not have a significant long-term effect on an animal's fitness.

Neuroendocrine stress responses often involve the hypothalamus-pituitary-adrenal system. Virtually all neuroendocrine functions that are affected by stress—including immune competence, reproduction, metabolism, and behavior—are regulated by pituitary hormones. Stress-induced changes in the secretion of pituitary hormones have been implicated in failed reproduction, altered metabolism, reduced immune competence, and behavioral disturbance (e.g., Moberg 1987; Blecha 2000). Increases in the circulation of glucocorticoids are also equated with stress (Romano et al. 2004).

The primary distinction between stress (which is adaptive and does not normally place an animal at risk) and “distress” is the cost of the response. During a stress response, an animal uses glycogen stores that can be quickly replenished once the stress is alleviated. In such circumstances, the cost of the stress response will not pose serious fitness consequences. However, when an animal does not have sufficient energy reserves to satisfy the energetic costs of a stress response, energy resources must be diverted from other functions. This state of distress will last until the animal replenishes its energetic reserves sufficiently to restore normal function.

Relationships between these physiological mechanisms, animal behavior, and the costs of stress responses are well-studied through controlled experiments and for both laboratory and free-ranging animals (e.g., Holberton et al., 1996; Hood et al., 1998; Jessop et al., 2003; Lankford et al., 2005). Stress responses due to exposure to anthropogenic sounds or other stressors and their effects on marine mammals have also been reviewed (Fair and Becker, 2000; Romano et al., 2002) and, more rarely, studied in wild populations (e.g., Romano et al., 2002). For example, Rolland et al. (2012) found that noise reduction from reduced ship traffic in the Bay of Fundy was associated with decreased stress in North Atlantic right whales. These and other studies lead to a reasonable expectation that some marine mammals will experience physiological stress responses upon exposure to acoustic stressors and that it is possible that some of these would be classified as “distress.” In addition, any animal experiencing TTS would likely also experience stress responses (NRC, 2003).

In general, there are few data on the potential for strong, anthropogenic underwater sounds to cause non-auditory physical effects in marine mammals. Such effects, if they occur at all, will presumably be limited to short distances and to activities that extend over a prolonged period. The available data do not allow identification of a specific exposure level above which non-auditory effects can be expected (Southall et al., 2007). There is no definitive evidence that any of these effects occur even for marine mammals in close proximity to an anthropogenic sound source. In addition, marine mammals that show behavioral avoidance of survey vessels and related sound sources, are unlikely to incur non-auditory impairment or other physical effects. NMFS does not expect that the generally short-term, intermittent, and transitory seismic and geophysical surveys creates conditions of long-term, continuous noise and chronic acoustic exposure leading to long-term physiological stress responses in marine mammals. While the noise from drilling related activities are more continuous and longer term, those sounds are generated at a much lower level than the mobile sources discussed earlier.

4. Auditory Masking—Sound can disrupt behavior through masking, or interfering with, an animal's ability to detect, recognize, or discriminate between acoustic signals of interest (e.g., those used for intraspecific communication and social interactions, prey detection, predator avoidance, navigation) (Richardson et al., 1995; Erbe et al., 2016). Masking occurs when the receipt of a sound is interfered with by another coincident sound at similar frequencies and at similar or higher intensity, and may occur whether the sound is natural (e.g., snapping shrimp, wind, waves, precipitation) or anthropogenic (e.g., shipping, sonar, seismic exploration) in origin. The ability of a noise source to mask biologically important sounds depends on the characteristics of both the noise source and the signal of interest (e.g., signal-to-noise ratio, temporal variability, direction), in relation to each other and to an animal's hearing abilities (e.g., sensitivity, frequency range, critical ratios, frequency discrimination, directional discrimination, age or TTS hearing loss), and existing ambient noise and propagation conditions.

Under certain circumstances, marine mammals experiencing significant masking could also be impaired from maximizing their performance fitness in survival and reproduction. Therefore, when the coincident (masking) sound is man-made, it may be considered harassment when disrupting or altering critical behaviors. It is important to distinguish TTS and PTS, which persist after the sound exposure, from masking, which occurs during the sound exposure. Because masking (without resulting in TS) is not associated with abnormal physiological function, it is not considered a physiological effect, but rather a potential behavioral effect.

The frequency range of the potentially masking sound is important in determining any potential behavioral impacts. For example, low-frequency signals may have less effect on high-frequency echolocation sounds produced by odontocetes but are more likely to affect detection of mysticete communication calls and other potentially important natural sounds, such as those produced by surf and some prey species. The masking of communication signals by anthropogenic noise may be considered as a reduction in the communication space of animals (e.g., Clark et al., 2009) and may result in energetic or other costs as animals change their vocalization behavior (e.g., Miller et al. Start Printed Page 374742000; Foote et al. 2004; Parks et al. 2007; Holt et al. 2009). Masking can be reduced in situations where the signal and noise come from different directions (Richardson et al. 1995), through amplitude modulation of the signal, or through other compensatory behaviors (Houser and Moore 2014). Masking can be tested directly in captive species (e.g., Erbe 2008) but, in wild populations, it must be either modeled or inferred from evidence of masking compensation. There are few studies addressing real-world masking sounds likely to be experienced by marine mammals in the wild (e.g., Branstetter et al. 2013).

Masking affects both senders and receivers of acoustic signals and can potentially have long-term chronic effects on marine mammals at the population level as well as at the individual level. Low-frequency ambient sound levels have increased by as much as 20 dB (more than three times in terms of SPL) in the world's ocean from pre-industrial periods, with most of the increase from distant commercial shipping (Hildebrand 2009). All anthropogenic sound sources, but especially chronic and lower-frequency signals (e.g., from vessel traffic), contribute to elevated ambient sound levels, thus intensifying masking.

Marine mammal communications are not likely masked appreciably by the sub-profiler or seismic survey's signals given the directionality of the signal and the brief period when an individual mammal is likely to be within its beam. The probability for conductor pipe driving masking acoustic signals important to the behavior and survival of marine mammal species is low. Vibratory pile driving is also relatively short-term, with rapid oscillations occurring for short durations. It is possible that vibratory pile driving resulting from this action may mask acoustic signals important to the behavior and survival of marine mammal species, but the short-term duration and limited affected area will result in insignificant impacts from masking. Any masking event that could possibly rise to Level B harassment under the MMPA will occur concurrently within the zones of behavioral harassment already estimated for vibratory pile and conductor pipe driving, and which have already been taken into account in the exposure analysis. Pile driving will occur for limited durations across multiple widely dispersed sites, thus we do not anticipate masking to significantly affect marine mammals.

Ship Strike

Vessel collisions with marine mammals, or ship strikes, can result in death or serious injury of the animal. Wounds resulting from ship strike may include massive trauma, hemorrhaging, broken bones, or propeller lacerations (Knowlton and Kraus 2001). An animal at the surface may be struck directly by a vessel, a surfacing animal may hit the bottom of a vessel, or an animal just below the surface may be cut by a vessel's propeller. Superficial strikes may not kill or result in the death of the animal. These interactions are typically associated with large whales (e.g., fin whales), which are occasionally found draped across the bulbous bow of large commercial ships upon arrival in port. Although smaller cetaceans are more maneuverable in relation to large vessels than are large whales, they may also be susceptible to strike. The severity of injuries typically depends on the size and speed of the vessel, with the probability of death or serious injury increasing as vessel speed increases (Knowlton and Kraus 2001; Laist et al. 2001; Vanderlaan and Taggart 2007; Conn and Silber 2013). Impact forces increase with speed, as does the probability of a strike at a given distance (Silber et al. 2010; Gende et al. 2011).

Pace and Silber (2005) also found that the probability of death or serious injury increased rapidly with increasing vessel speed. Specifically, the predicted probability of serious injury or death increased from 45 to 75 percent as vessel speed increased from 10 to 14 kn, and exceeded 90 percent at 17 kn. Higher speeds during collisions result in greater force of impact, but higher speeds also appear to increase the chance of severe injuries or death through increased likelihood of collision by pulling whales toward the vessel (Clyne and Kennedy, 1999;). In a separate study, Vanderlaan and Taggart (2007) analyzed the probability of lethal mortality of large whales at a given speed, showing that the greatest rate of change in the probability of a lethal injury to a large whale as a function of vessel speed occurs between 8.6 and 15 kt. The chances of a lethal injury decline from approximately 80 percent at 15 kt to approximately 20 percent at 8.6 kt. At speeds below 11.8 kt, the chances of lethal injury drop below 50 percent, while the probability asymptotically increases toward one hundred percent above 15 kt.

Hilcorp's seismic vessels will travel at approximately 4 knots (7.41 km/hour) while towing seismic survey gear and a maximum of 4.5 knots (8.3 km/hr) while conducting geotechnical and geohazard surveys (Faithweather, 2018). At these speeds, both the possibility of striking a marine mammal and the possibility of a strike resulting in serious injury or mortality are discountable. At average transit speed, the probability of serious injury or mortality resulting from a strike is less than 50 percent. However, the likelihood of a strike actually happening is again discountable. Ship strikes, as analyzed in the studies cited above, generally involve commercial shipping, which is much more common in both space and time than is geophysical survey activity. Jensen and Silber (2004) summarized ship strikes of large whales worldwide from 1975-2003 and found that most collisions occurred in the open ocean and involved large vessels (e.g., commercial shipping). Commercial fishing vessels were responsible for three percent of recorded collisions, while no such incidents were reported for geophysical survey vessels during that time period.

It is possible for ship strikes to occur while traveling at slow speeds. For example, a hydrographic survey vessel traveling at low speed (5.5 kt) while conducting mapping surveys off the central California coast struck and killed a blue whale in 2009. The State of California determined that the whale had suddenly and unexpectedly surfaced beneath the hull, with the result that the propeller severed the whale's vertebrae, and that this was an unavoidable event. This strike represents the only such incident in approximately 540,000 hours of similar coastal mapping activity (p = 1.9 × 10-6; 95% CI = 0-5.5 × 10-6; NMFS, 2013b). In addition, a research vessel reported a fatal strike in 2011 of a dolphin in the Atlantic, demonstrating that it is possible for strikes involving smaller cetaceans to occur. In that case, the incident report indicated that an animal apparently was struck by the vessel's propeller as it was intentionally swimming near the vessel. While indicative of the type of unusual events that cannot be ruled out, neither of these instances represents a circumstance that would be considered reasonably foreseeable or that would be considered preventable.

Although the likelihood of the vessel striking a marine mammal is low, we require a robust ship strike avoidance protocol (see “Mitigation”), which we believe eliminates any foreseeable risk of ship strike. We anticipate that vessel collisions involving a seismic data acquisition vessel towing gear, while not impossible, represent unlikely, unpredictable events for which there are no preventive measures. Given the required mitigation measures, the Start Printed Page 37475relatively slow speed of the vessel towing gear, the presence of marine mammal observers, and the short duration of the survey, we believe that the possibility of ship strike is discountable. Further, were a strike of a large whale to occur, it is unlikely to result in serious injury or mortality. No incidental take resulting from ship strike is anticipated, and this potential effect of the specified activity will not be discussed further in the following analysis.

Stranding

When a living or dead marine mammal swims or floats onto shore and becomes “beached” or incapable of returning to sea, the event is a “stranding” (Geraci et al. 1999; Perrin and Geraci 2002; Geraci and Lounsbury 2005). The legal definition for a stranding under the MMPA is (A) a marine mammal is dead and is (i) on a beach or shore of the United States; or (ii) in waters under the jurisdiction of the United States (including any navigable waters); or (B) a marine mammal is alive and is (i) on a beach or shore of the United States and is unable to return to the water; (ii) on a beach or shore of the United States and, although able to return to the water, is in need of apparent medical attention; or (iii) in the waters under the jurisdiction of the United States (including any navigable waters), but is unable to return to its natural habitat under its own power or without assistance.

Marine mammals strand for a variety of reasons, such as infectious agents, biotoxicosis, starvation, fishery interaction, ship strike, unusual oceanographic or weather events, sound exposure, or combinations of these stressors sustained concurrently or in series. However, the cause or causes of most strandings are unknown (Eaton, 1979; Best 1982). Numerous studies suggest that the physiology, behavior, habitat relationships, age, or condition of cetaceans may cause them to strand or might pre-dispose them to strand when exposed to another phenomenon. These suggestions are consistent with the conclusions of numerous other studies that have demonstrated that combinations of dissimilar stressors commonly combine to kill an animal or dramatically reduce its fitness, even though one exposure without the other does not produce the same result (Fair and Becker 2000; Moberg, 2000; Romero 2004; Sih et al. 2004).

Use of military tactical sonar has been implicated in several stranding events (in specific circumstances), although one stranding event was associated with the use of seismic airguns. This event occurred in the Gulf of California, coincident with seismic reflection profiling by the R/V Maurice Ewing operated by Lamont-Doherty Earth Observatory (LDEO) of Columbia University and involved two Cuvier's beaked whales (Hildebrand 2004). The vessel had been firing an array of 20 airguns with a total volume of 8,500 in3 (Hildebrand 2004). Most known stranding events have involved beaked whales, though a small number have involved deep-diving delphinids or sperm whales (e.g., Southall et al. 2013). In general, long duration (~1 second) and high-intensity sounds (>235 dB SPL) have been implicated in stranding events (Hildebrand 2004). With regard to beaked whales, mid-frequency sound has been implicated in a few specific cases (when causation can be determined) (Hildebrand 2004). Although seismic airguns create predominantly low-frequency energy, the signal does include a mid-frequency component. Based on the information presented above, we have considered the potential for the survey to result in marine mammal stranding and have concluded that, based on the best available information, stranding is not expected to occur.

Other Potential Impacts

Here, we briefly address the potential risks due to entanglement and contaminant spills. We are not aware of any records of marine mammal entanglement in towed arrays such as those considered here. The discharge of trash and debris is prohibited (33 CFR 151.51-77) unless it is passed through a machine that breaks up solids such that they can pass through a 25-mm mesh screen. All other trash and debris must be returned to shore for proper disposal with municipal and solid waste. Some personal items may be accidentally lost overboard. However, U.S. Coast Guard and Environmental Protection Act regulations require operators to become proactive in avoiding accidental loss of solid waste items by developing waste management plans, posting informational placards, manifesting trash sent to shore, and using special precautions such as covering outside trash bins to prevent accidental loss of solid waste. There are no meaningful entanglement risks posed by the described activity, and entanglement risks are not discussed further in this document.

Marine mammals could be affected by accidentally spilled diesel fuel from a vessel associated with survey activities. Quantities of diesel fuel on the sea surface may affect marine mammals through various pathways: Surface contact of the fuel with skin and other mucous membranes, inhalation of concentrated petroleum vapors, or ingestion of the fuel (direct ingestion or by the ingestion of oiled prey) (e.g., Geraci and St. Aubin, 1980, 1990). However, the likelihood of a fuel spill during any particular geophysical survey is considered to be remote, and the potential for impacts to marine mammals would depend greatly on the size and location of a spill and meteorological conditions at the time of the spill. Spilled fuel would rapidly spread to a layer of varying thickness and break up into narrow bands or windows parallel to the wind direction. The rate at which the fuel spreads would be determined by the prevailing conditions such as temperature, water currents, tidal streams, and wind speeds. Lighter, volatile components of the fuel would evaporate to the atmosphere almost completely in a few days. Evaporation rate may increase as the fuel spreads because of the increased surface area of the slick. Rougher seas, high wind speeds, and high temperatures also tend to increase the rate of evaporation and the proportion of fuel lost by this process (Scholz et al., 1999). We do not anticipate potentially meaningful effects to marine mammals as a result of any contaminant spill resulting from the survey activities, and contaminant spills are not discussed further in this document.

Similarly, marine mammals could be affected by spilled hazardous materials generated by the drilling process. Large and small quantities of hazardous materials, including diesel fuel and gasoline, will be handled, transported, and stored following the rules and procedures described in the Spill Prevention, Control, and Countermeasure (SPCC) Plan. Spills and leaks of oil or wastewater arising from the activities that reach marine waters could result in direct impacts to the health of exposed marine mammals. Individual marine mammals could show acute irritation or damage to their eyes, blowhole or nares, and skin; fouling of baleen, which could reduce feeding efficiency; and respiratory distress from the inhalation of vapors (Geraci and St. Aubin 1990). Long-term impacts from exposure to contaminants to the endocrine system could impair health and reproduction (Geraci and St. Aubin 1990). Ingestion of contaminants could cause acute irritation to the digestive tract, including vomiting and aspiration into the lungs, which could result in pneumonia or death (Geraci and St. Start Printed Page 37476Aubin 1990). However, the measures outlined in Hilcorp's spill plan minimize the risk of a spill such that we do not anticipate potentially meaningful effects to marine mammals as a result of oil spills from this activity nor is take from spills authorized and oil spills are not discussed further in this document.

Anticipated Effects on Marine Mammal Habitat

Effects to Prey—Marine mammal prey varies by species, season, and location and, for some, is not well documented. Fish react to sounds which are especially strong and/or intermittent low-frequency sounds. Short duration, sharp sounds can cause overt or subtle changes in fish behavior and local distribution. Hastings and Popper (2005) identified several studies that suggest fish may relocate to avoid certain areas of sound energy. Additional studies have documented effects of pulsed sound on fish, although several are based on studies in support of construction projects (e.g., Scholik and Yan 2001, 2002; Popper and Hastings 2009). Sound pulses at received levels of 160 dB may cause subtle changes in fish behavior, although the behavioral threshold currently observed is <150 dB RMA re 1 μPa. SPLs of 180 dB may cause noticeable changes in behavior (Pearson et al. 1992; Skalski et al. 1992). SPLs of sufficient strength have been known to cause injury to fish and fish mortality. The most likely impact to fish from survey activities at the project area will be temporary avoidance of the area. The duration of fish avoidance of a given area after survey effort stops is unknown, but a rapid return to normal recruitment, distribution and behavior is anticipated.

Information on seismic airgun impacts to zooplankton, which represent an important prey type for mysticetes, is limited. However, McCauley et al. (2017) reported that experimental exposure to a pulse from a 150 in3 airgun decreased zooplankton abundance when compared with controls, as measured by sonar and net tows, and caused a two- to threefold increase in dead adult and larval zooplankton. Although no adult krill were present, the study found that all larval krill were killed after air gun passage. Impacts were observed out to the maximum 1.2 km range sampled. The reaction of fish to airguns depends on the physiological state of the fish, past exposures, motivation (e.g., feeding, spawning, migration), and other environmental factors. While we agree that some studies have demonstrated that airgun sounds might affect the distribution and behavior of some fishes, potentially impacting foraging opportunities or increasing energetic costs (e.g., Fewtrell and McCauley, 2012; Pearson et al., 1992; Skalski et al., 1992; Santulli et al., 1999; Paxton et al., 2017), other studies have shown no or slight reaction to airgun sounds (e.g., Pena et al., 2013; Wardle et al., 2001; Jorgenson and Gyselman, 2009; Cott et al., 2012).

In general, impacts to marine mammal prey are expected to be limited due to the relatively small temporal and spatial overlap between the survey and any areas used by marine mammal prey species. The activities will occur over a relatively short time period in a given area and will occur over a very small area relative to the area available as marine mammal habitat in Cook Inlet. We do not have any information to suggest the survey area represents a significant feeding area for any marine mammal, and we believe any impacts to marine mammals due to adverse effects to their prey will be insignificant due to the limited spatial and temporal impact of the activities. However, adverse impacts may occur to a few species of fish and to zooplankton. Packard et al. (1990) showed that cephalopods were sensitive to particle motion, not sound pressure, and Mooney et al. (2010) demonstrated that squid statocysts act as an accelerometer through which particle motion of the sound field can be detected. Auditory injuries (lesions occurring on the statocyst sensory hair cells) have been reported upon controlled exposure to low-frequency sounds, suggesting that cephalopods are particularly sensitive to low-frequency sound (Andre et al., 2011; Sole et al., 2013). However, these controlled exposures involved long exposure to sounds dissimilar to airgun pulses (i.e., 2 hours of continuous exposure to 1-second sweeps, 50-400 Hz). Behavioral responses, such as inking and jetting, have also been reported upon exposure to low-frequency sound (McCauley et al., 2000b; Samson et al., 2014).

Indirect impacts from spills or leaks could occur through the contamination of lower-trophic-level prey, which could reduce the quality and/or quantity of marine mammal prey. In addition, individuals that consume contaminated prey could experience long-term effects to health (Geraci and St. Aubin 1990). However, the likelihood of spills and leaks, as described above, is low. This likelihood, in combination with Hilcorp's spill plan to reduce the risk of hazardous material spills, is such that its effect on prey is not considered further in this document.

Acoustic Habitat—Acoustic habitat is the soundscape—which encompasses all of the sound present in a particular location and time, as a whole—when considered from the perspective of the animals experiencing it. Animals produce sound for, or listen for sounds produced by, conspecifics (communication during feeding, mating, and other social activities), other animals (finding prey or avoiding predators) and the physical environment (finding suitable habitats, navigating). Together, sounds made by animals and the geophysical environment (e.g., produced by earthquakes, lightning, wind, rain, waves) make up the natural contributions to the total acoustics of a place. These acoustic conditions, termed acoustic habitat, are one attribute of an animal's total habitat.

Soundscapes are also defined by, and acoustic habitat influenced by, the total contribution of anthropogenic sound. This may include incidental emissions from sources such as vessel traffic or may be intentionally introduced to the marine environment for data acquisition purposes (as in the use of airgun arrays or other sources). Anthropogenic noise varies widely in its frequency content, duration, and loudness and these characteristics greatly influence the potential habitat-mediated effects to marine mammals (please see also the previous discussion on masking under “Acoustic Effects”), which may range from local effects for brief periods of time to chronic effects over large areas and for long durations. Depending on the extent of effects to habitat, animals may alter their communications signals (thereby potentially expending additional energy) or miss acoustic cues (either conspecific or adventitious). For more detail on these concepts see, e.g., Barber et al., 2010; Pijanowski et al. 2011; Francis and Barber 2013; Lillis et al. 2014.

Problems arising from a failure to detect cues are more likely to occur when noise stimuli are chronic and overlap with biologically relevant cues used for communication, orientation, and predator/prey detection (Francis and Barber 2013). Although the signals emitted by seismic airgun arrays are generally low frequency, they will also likely be of short duration and transient in any given area due to the nature of these surveys. Sub-bottom profiler use is also expected to be short term and not concentrated in one location for an extended period of time. The activities related to exploratory drilling, while less transitory in nature, are anticipated to have less severe effects due to lower source levels and therefore smaller disturbance zones than the mobile sources considered here. Nonetheless, Start Printed Page 37477we acknowledge the general addition of multiple sound source types into the area, which are expected to have intermittent impacts on the soundscape, typically of relatively short duration in any given area.

In summary, activities associated with the action are not likely to have a permanent, adverse effect on any fish habitat or populations of fish species or on the quality of acoustic habitat. Thus, any impacts to marine mammal habitat are not expected to cause significant or long-term consequences for individual marine mammals or their populations.

Estimated Take

This section provides an estimate of the number of incidental takes authorized through this rule, which will inform both NMFS' consideration of “small numbers” and the negligible impact determination. The methodology used to calculate estimated take has not changed from the proposed rule. Errors in NFMS User Spreadsheet input values have been corrected and are reflected in bold font in Table 4. Correcting these errors has resulted in different exposure estimates for most species than those presented in the proposed rule. The correct densities for non-beluga species are now reflected in Table 9. These are the densities that were used for the take analysis in the proposed rule but were not the values presented in Table 9 in the proposed rule.

Harassment is the only type of take expected to result from these activities. Except with respect to certain activities not pertinent here, section 3(18) of the MMPA defines “harassment” as: Any act of pursuit, torment, or annoyance which (i) has the potential to injure a marine mammal or marine mammal stock in the wild (Level A harassment); or (ii) has the potential to disturb a marine mammal or marine mammal stock in the wild by causing disruption of behavioral patterns, including, but not limited to, migration, breathing, nursing, breeding, feeding, or sheltering (Level B harassment).

Authorized takes will primarily be by Level B harassment, as use of seismic survey and construction equipment has the potential to result in disruption of behavioral patterns for individual marine mammals. There is also some potential for auditory injury (Level A harassment) to result from equipment such as seismic airguns, primarily for mysticetes and high frequency species, because predicted auditory injury zones are larger than for mid-frequency species and otariids. Auditory injury is unlikely to occur for mid-frequency cetaceans. The required mitigation and monitoring measures are expected to minimize the severity of such taking to the extent practicable.

As described previously, no mortality is anticipated or authorized for this activity. Below we describe how the take is estimated.

Generally speaking, we estimate take by considering: (1) Acoustic thresholds above which NMFS believes the best available science indicates marine mammals will be behaviorally harassed or incur some degree of permanent hearing impairment; (2) the area or volume of water that will be ensonified above these levels in a day; (3) the density or occurrence of marine mammals within these ensonified areas; and, (4) and the number of days of activities. We note that while these basic factors can contribute to a basic calculation to provide an initial prediction of takes, additional information that can qualitatively inform take estimates is also sometimes available (e.g., previous monitoring results or average group size). Below, we describe the factors considered here in more detail and present the take estimate.

Acoustic Thresholds

Using the best available science, NMFS has developed acoustic thresholds that identify the received level of underwater sound above which exposed marine mammals will be reasonably expected to experience behavioral disturbance (equated to Level B harassment) or to incur PTS of some degree (equated to Level A harassment).

Level B Harassment for non-explosive sources—Though significantly driven by received level, the onset of behavioral disturbance from anthropogenic noise exposure is also informed to varying degrees by other factors related to the source (e.g., frequency, predictability, duty cycle), the environment (e.g., bathymetry), and the receiving animals (hearing, motivation, experience, demography, behavioral context) and can be difficult to predict (Southall et al., 2007, Ellison et al., 2012). Based on the available science and the practical need to use a threshold based on a factor that is both predictable and measurable for most activities, NMFS uses a generalized acoustic threshold based on received level to estimate the onset of behavioral disturbance rising to the level of Level B Harassment. NMFS predicts that marine mammals are likely to experience behavioral disturbance sufficient to constitute Level B harassment when exposed to underwater anthropogenic noise above received levels of 120 dB re 1 μPa (rms) for continuous (e.g., vibratory pile-driving, drilling) and above 160 dB re 1 μPa (rms) for non-explosive impulsive (e.g., seismic airguns) or intermittent (e.g., scientific sonar) sources.

Hilcorp's activity includes the use of continuous (vibratory pile driving, water jet) and impulsive (seismic airguns, sub-bottom profiler, conductor pipe driving, VSP) sources, and therefore the 120 and 160 dB re 1 μPa (rms) are applicable.

Level A harassment for non-explosive sources—NMFS' Technical Guidance for Assessing the Effects of Anthropogenic Sound on Marine Mammal Hearing (Version 2.0) (Technical Guidance, 2018) identifies dual criteria to assess auditory injury (Level A harassment) to five different marine mammal groups (based on hearing sensitivity) as a result of exposure to noise from two different types of sources (impulsive or non-impulsive). Hilcorp's activity includes the use of impulsive (seismic airguns, sub-bottom profiler, conductor pipe driving, VSP) and non-impulsive (vibratory pile driving, water jet) sources.

These thresholds for PTS are provided in the table below. The references, analysis, and methodology used in the development of the thresholds are described in NMFS 2018 Technical Guidance, which may be accessed at: http://www.nmfs.noaa.gov/​pr/​acoustics/​guidelines.htm.

Table 3—Thresholds Identifying the Onset of Permanent Threshold Shift

Hearing groupPTS onset acoustic thresholds *
ImpulsiveNon-impulsive
Low-Frequency (LF) CetaceansCell 1: L pk,flat: 219 dB; L E,LF,24h: 183 dBCell 2: L E,LF,24h: 199 dB.
Mid-Frequency (MF) CetaceansCell 3: L pk,flat: 230 dB; L E,MF,24h: 185 dBCell 4: L E,MF,24h: 198 dB.
Start Printed Page 37478
High-Frequency (HF) CetaceansCell 5: L pk,flat: 202 dB; L E,HF,24h: 155 dBCell 6: L E,HF,24h: 173 dB.
Phocid Pinnipeds (PW) (Underwater)Cell 7: L pk,flat: 218 dB; L E,PW,24h: 185 dBCell 8: L E,PW,24h: 201 dB.
Otariid Pinnipeds (OW) (Underwater)Cell 9: L pk,flat: 232 dB; L E,OW,24h: 203 dBCell 10: L E,OW,24h: 219 dB.
* Dual metric acoustic thresholds for impulsive sounds: Use whichever results in the largest isopeth for calculating PTS onset. If a non-impulsive sounds has the potential of exceeding the peak sound pressure level thresholds associated with impulsive sounds, these thresholds should also be considered.
Note: Peak sound pressure (Lpk) has a reference value of 1 μPa, and cumulative sounds exposure level (LE) has a reference value of 1μPa2 s. in this Table thresholds are abbreviated to reflect American National Standards Institute standards (ANSI 2013). However, peak sound pressure is defined by ANSI as incorporating frequency weighting, which is not the intent for the Technical Guidance. Hence, the subscript “flat” is being included to indicate peak sound pressure should be flat weighted or unweighted within the generalized hearing range. The subscript associated with cumulative sound exposure level thresholds indicates the designated marine mammal auditory weighting function (LF, MF, HF cetaceans, and PW and OW pinnipeds) and that the recommended accumulation period is 24 hours. The cumulative sound exposure level thresholds could be exceeded in a multitude of ways (i.e., varying exposure levels and durations, duty cycle). When possible, is it valuable for action proponents to indicate the conditions under which these acoustic thresholds will be exceeded.

Ensonified Area

Here, we describe operational and environmental parameters of the activity that will feed into identifying the area ensonified above the acoustic thresholds, which include source levels and transmission loss coefficient.

2D Seismic Survey—The area of ensonification for the 2D seismic survey was calculated using the NMFS user spreadsheet tab for mobile sources. The in-water source line is 6 km in length and only one line will be surveyed each day. Therefore, the line length surveyed each day for the 2D seismic survey is 6 km.

3D Seismic Survey—The area of ensonification for the 3D seismic survey was calculated using the NMFS user spreadsheet tab for mobile sources. The line length is approximately 27.78 km (15 nm), which will take approximately 3.75 hrs to survey at a vessel speed of 4 knots (7.5 km/hr) with a turn of 1.5 hrs. In a 24-hr period, assuming no delays, the survey team will be able to collect data on 4.5 lines or approximately 127 km. The distance in between line lengths is 3.7 km (2 nm), so there will be overlap of the area of Level B harassment ensonification, resulting in an overestimation of exposures. Instead, the total daily area of ensonification was calculated using GIS. The Level B harassment radii were added to each track line estimated to be traveled in a 24-hour period, and when there was overlapping areas, the resulting polygons were merged to one large polygon to eliminate the chance that the areas could be summed multiple times over the same area. The results of the overall area are summarized in Table 6 below and shown on Figure 19 in the application (only showing Level B harassment).

Geohazard Sub-bottom Profiler for Well Sites—The area of ensonification for the sub-bottom profiler used during the geohazard surveys for the well sites was calculated by multiplying the distances (in km) to the NMFS thresholds by the distance of the line (in km) to be surveyed each day. The maximum required monitoring distance from the well site per BOEM is 2,400 m (or a total length of 4,800 m in diameter) and the minimum transect width is 150 m, so the total maximum number of transects to be surveyed is 32 (4,800 m/150 m). The total distance to be surveyed is 153.60 km (4.8 km × 32 transects). Assuming a vessel speed of 4 knots (7.41 km/hr), it will take approximately 0.65 hrs (38 minutes) to survey a single transect of 4.8 km (time = distance/rate). Assuming the team is surveying for 50 percent of the day (or 12 hrs), the total number of days it will take to survey the total survey grid is 7.77 days (0.65 hr × 12 hr). Similar to the 3D seismic survey, there will be overlap in the Level B harassment ensonification of the sound because of the distance in between the transects. However, because the area and grid to be surveyed depends on the results of the 3D survey and the specific location, NMFS used this overestimate for purposes of this rulemaking. The total line length to be surveyed per day is 19.76 km (total distance to be surveyed 153.6 km/total days 7.77).

Geohazard Sub-bottom Profiler for Pipeline Maintenance—The area of ensonification for the sub-bottom profiler used during geohazard surveys for the pipeline maintenance was calculated by multiplying the distances (in km) to the NMFS thresholds by the distance of the line (in km) to be surveyed each day. The assumed transect grid is 300 m by 300 m with 150 m transect widths, so the total to be surveyed is 2,400 m (2.4 km). Assuming a vessel speed of 4 knots (7.41 km/hr), it will take approximately 0.08 hrs (4.86 min) to survey a single transect. The total number of days it will take to survey the grid is 1 day. Similar to the 3D seismic survey, there will be overlap of the Level B harassment ensonification area because of the distance in between the transects. However, because the area and grid to be surveyed depends on the results of the 3D survey and the specific location, NMFS uses this overestimate for purposes of this rule. The total line length to be surveyed per day is 2.4 km.

Other sources—For stationary sources, area of a circle to the relevant Level A or Level B harassment isopleths was used to determine ensonified area. These sources include: conductor pipe driving, VSP, vibratory sheet pile driving, and water jets. Take estimates for conductor pipe driving and vibratory sheet pile driving were recalculated from the proposed to the final rule using the most updated version of the NMFS User spreadsheet (2018) as minor changes were made in the relevant calculations in the spreadsheet from the 2016 version originally used by Hilcorp.

When the NMFS Technical Guidance (2016) was published, in recognition of the fact that ensonified area/volume could be more technically challenging to predict because of the duration component in the new thresholds, we developed a User Spreadsheet (updated in NMFS, 2018) that includes tools to help predict a simple isopleth that can be used in conjunction with marine mammal density or occurrence to help predict takes by Level A harassment. We note that because of some of the assumptions included in the methods Start Printed Page 37479used for these tools, we anticipate that isopleths produced are typically going to be overestimates of some degree, which may result in some degree of overestimate of Level A harassment take. However, these tools offer the best way to predict appropriate isopleths when more sophisticated 3D modeling methods are not available; and NMFS continues to develop ways to quantitatively refine these tools and will qualitatively address the output where appropriate. For stationary sources such as conductor pipe driving or vibratory pile driving, NMFS User Spreadsheet predicts the closest distance at which, if a marine mammal remained at that distance the whole duration of the activity, it will not incur PTS. For mobile sources such as seismic airguns or sub-bottom profilers, the User Spreadsheet predicts the closest distance at which a stationary animal will not incur PTS if the sound source traveled by the animal in a straight line at a constant speed. Some changes to duration (number of days of activity) were made in response to comments that highlighted some errors in calculation methodology. In the proposed rule, exposures on partial days of work were summed in error. If work may occur for a half day in one location and a different half day in another—two days should be used as the number of days of activity, not one. The amount of work proposed has not changed, but the characterization of the work as far as number of days required to complete has changed. The changes in durations used in the User Spreadsheet are outlined below.

For 2D seismic surveying, 10 days of seismic activity will consist of in-water work (remaining 20 days are on land). For 3D seismic surveying, duration has been reduced from 90 days to 60 days. VSP consists of two days of activity per well, resulting in eight days of activity for the OCS wells and four days of activity for the Trading Bay wells. Pipe driving lasts three days per well, resulting in 12 days of pipe driving for the OCS well and 6 days of pipe driving for the Trading Bay wells.

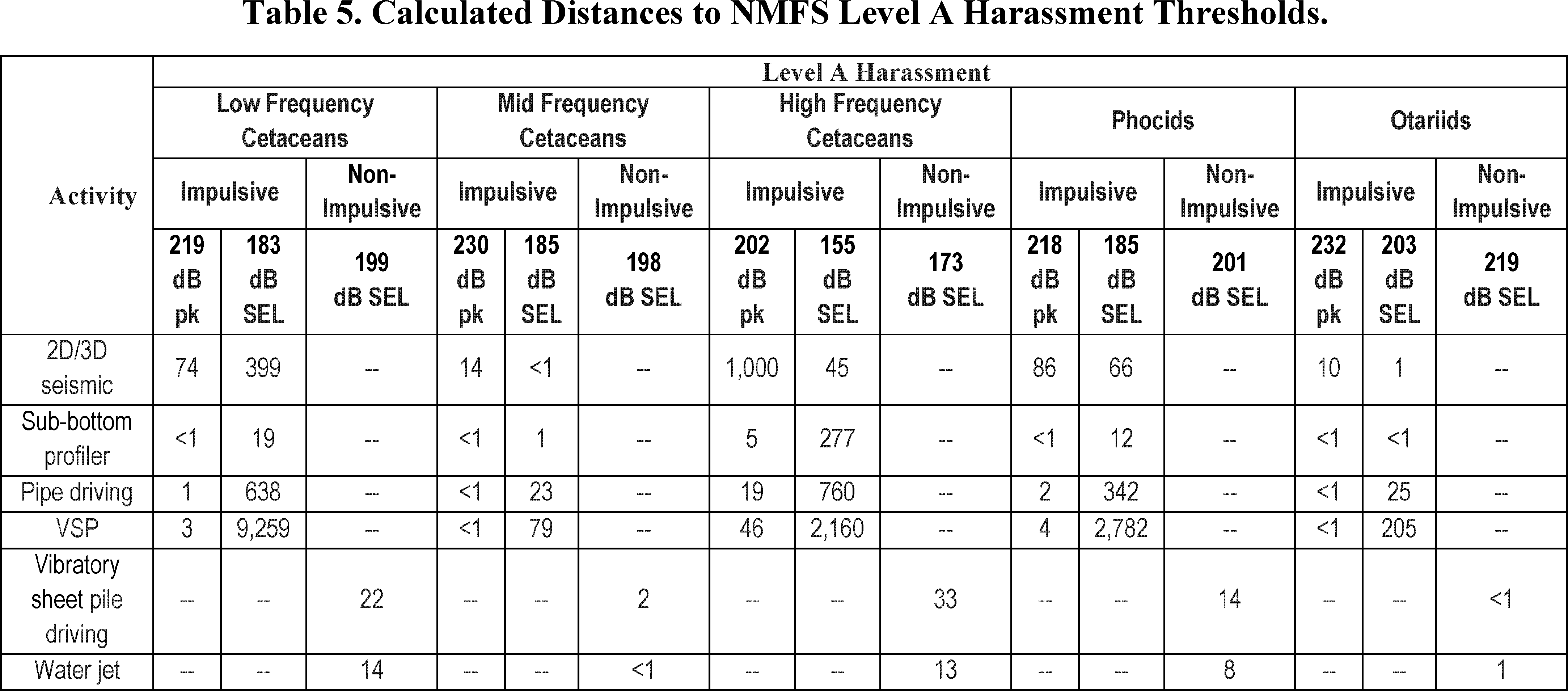

Inputs used in the User Spreadsheet, and the resulting isopleths are reported below (Tables 4, 5, and 6). Transmission loss used for all calculation was practical spreading (15 LogR).

Start Printed Page 37480

Table 6—Calculated Distances to NMFS Level B Thresholds

Activity  Level B harassment
ImpulsiveNon-impulsive
160 dB rms120 dB rms
2D/3D seismic7,330
Sub-bottom profiler2,929
Pipe driving1,630
VSP2,470
Vibratory sheet pile driving4,642
Water jet860

Marine Mammal Occurrence

In this section we provide the information about the presence, density, or group dynamics of marine mammals that will inform the take calculations.

Beluga whale—Historically, beluga whales were observed in both upper and lower Cook Inlet in June and July (Rugh et al. 2000). However, between 1993 and 1995, less than 3 percent of all of the annual sightings were in the lower inlet, south of the East and West Forelands, hardly any (one whale in Tuxedni Bay in 1997 and two in Kachemak Bay in 2001) have been seen in the lower inlet during these surveys 1996-2016 (Rugh et al. 2005; Shelden et al. 2013, 2015, 2017). Because of the extremely low sighting rates, it is difficult to provide an accurate estimate of density for beluga whales in the mid and lower Cook Inlet region.

Goetz et al. (2012b) developed a habitat-based model to estimate Cook Inlet beluga density based on seasonally collected data. The model was based on sightings, depth soundings, coastal substrate type, environmental sensitivity index, anthropogenic disturbance, and anadromous fish streams to predict densities throughout Cook Inlet. The result of this work is a beluga density map of Cook Inlet, which predicts spatially explicit density estimates for Cook Inlet belugas. Using data from the GIS files provided by NMFS and the different project locations, the resulting estimated density is shown in Table 7. The water jets will be used on pipelines throughout the middle Cook Inlet region, so the higher density for the Trading Bay area was used. Densities resulting from this model are summarized in Table 7 below.

Table 7—Cook Inlet Beluga Whale Density Based on Goetz Habitat Model

Project locationProject activityBeluga whale density (ind/km2)
Lower Cook Inlet (OCS)3D seismic, geohazard, pipe driving0.00
Lower Cook Inlet (east side)2D seismic0.00-0.011106
Iniskin Bay areaSheet pile driving0.024362
North Cook Inlet UnitGeohazard, pipe driving0.001664
Trading Bay areaGeohazard, pipe driving, water jets0.004453-0.015053
Start Printed Page 37481

Other Marine Mammals—Density estimates of species other than beluga whales were estimated from the NMFS June aerial surveys conducted for beluga whales between 2000 and 2016 (Rugh et al. 2005; Shelden et al. 2013, 2015, 2017). Although these surveys are only flown for a few days in one month, they represent the best available relatively long-term dataset for marine mammal sightings in Cook Inlet. Table 8 below summarizes the maximum marine mammals observed for each year for the survey and area covered. To estimate density, the total number of individuals per species sighted during surveys was divided by the distance flown on the surveys. The total number of animals observed accounts for both lower and upper Cook Inlet, so this density estimate is higher than what is anticipated for the lower Cook Inlet area. There are no density estimates available for California sea lions for Cook Inlet so largest potential group size was used.

Table 8—Density Estimates for Cook Inlet Beluga Whales in Action Area

Area/activityNMFS density1Goetz density 2
Lower Cook Inlet OCS (3D seismic, geohazard, pipe driving, VSP)0.0005930.0000
Lower Cook Inlet—east side (2D seismic)0.0005930.011106
Lower Cook Inlet—west side Iniskin (vibratory sheet pile driving)0.0005930.024362
Trading Bay Unit (pipe driving, VSP, geohazard)0.0005930.015053
Middle Cook Inlet (routine maintenance: geohazard, water jet)0.0005930.001664-0.015053

Table 9—Density Estimates for Other Marine Mammals in Action Area

SpeciesEstimated density (# marine mammals/km2)
Beluga whale:
Lower and Middle Cook Inlet 10.00006
Lower Cook Inlet 20.01111
North Cook Inlet Unit 20.00166
Trading Bay area 20.01505
Iniskin Peninsula 20.02436
Humpback whale0.00189
Minke whale0.00001
Gray whale0.0008
Fin whale0.00031
Killer whale0.00064
Dall's porpoise0.00016
Harbor porpoise0.00468
Harbor seal0.24871
Steller sea lion0.00811
1 NMFS aerial survey combined lower and middle Cook Inlet density.
2 Goetz et al. 2012(b) habitat-based model density. No density available for California sea lions in Cook Inlet.

Duration

The duration was estimated for each activity and location. For some projects, like the 3D seismic survey, the design of the project is well developed; therefore, the duration is well-defined. However, for some projects, the duration is not well developed, such as activities around the lower Cook Inlet well sites, because the duration depends on the results of previous studies and equipment availability. Our assumptions regarding these activities, which were used to estimate duration, are discussed below.

2D Seismic—A single vessel is capable of acquiring a source line in approximately 1-2 hrs and only one source line will be collected in one day to allow for all the node deployments and retrievals, and intertidal and land zone shot holes drilling. There are up to 10 source lines, so assuming all operations run smoothly, there will only be 2 hrs per day over 10 days of airgun activity. The duration that was used to assess exposures from the 2D seismic survey is 10 days.

3D Seismic—The total anticipated duration of the survey is 45-60 days, including delays due to equipment, weather, tides, and marine mammal shut downs. The duration that was used to assess exposures from the 3D seismic survey is 60 days.

Geohazard Surveys (Sub-bottom profiler)—Assuming surveying occurs 50 percent of the day (or 12 hrs), the total number of days it will take to survey the total geohazard survey grid for a single well is 7.77 days. This duration was multiplied by the number of wells per site resulting in 31.1 days for the four Lower Cook Inlet OCS wells, 7.7 days for the North Cook Inlet Unit well, and 15.5 days for the two Trading Bay area wells.

The total number of days it will take to survey the geohazard survey grid for a pipeline maintenance is 1 day. This duration was multiplied by the number of anticipated surveys per year (high estimate of three per year), for a total of three days.

Drive Pipe—It takes approximately three days to install the drive pipe per well with only 25 percent of the day necessary for actual pipe driving. This duration was multiplied by the number of wells per site resulting in three days for each of the four lower Cook Inlet wells for a total of 12 days and a total of six days for the two Trading Bay area wells. Drive pipe installation is not part of the activities planned at the North Cook Inlet site.

VSP—It takes approximately two days to perform the VSP per well with only 25 percent of the day necessary for actual seismic work. VSP is not part of the plugging and abandonment (P&A) activities at the North Cook Inlet site. This duration was multiplied by the number of wells per site, resulting in Start Printed Page 37482two days for each of the four lower Cook Inlet wells for a total of eight days and four day for the two Trading Bay area wells.

Vibratory Sheet Pile Driving—The total number of days expected to install the sheet pile dock face using vibratory hammers on the rock causeway is 14-20 days with only 25 percent of the day for actual pile driving. 20 days was used as the duration for the calculation.

Water jets—Water jets are only used when needed for maintenance; therefore, the annual duration was estimated to evaluate exposures. Each water jet event was estimated to be 30 minutes or less in duration. We acknowledge that due to the short duration of this activity, it is possible that take will not occur—however, we are including consideration of potential take to conservatively ensure coverage for the applicant. It was estimated that a water jet event occurs three times a month, resulting in only 1.5 hrs per month of water jet operation. Water jets are used during ice- free months, so this duration was multiplied by 7 months (May-November) resulting in 21 days.

Take Calculation and Estimation

Here we describe how the information provided above is brought together to produce a quantitative take estimate. The numbers of each marine mammal species that could potentially be exposed to sounds associated with the activities that exceed NMFS' acoustic Level A and B harassment criteria were estimated per type of activity and per location. The specific years when these activities might occur are not known at this time, so this method of per activity per location allows for flexibility in operations and provides NMFS with appropriate information for assessing potential exposures. Individual animals may be exposed to received levels above our harassment thresholds more than once per day, but NMFS considers animals only “taken” once per day. Exposures refer to any instance in which an animal is exposed to sound sources above NMFS' Level A or Level B harassment thresholds. The estimated exposures (without any mitigation) per activity per location were calculated by multiplying the density of marine mammals (# of marine mammals/km2) by the area of ensonification (km2) and the duration (days per year). These results of these calculations are presented in Tables 10 and 11 below.

Start Printed Page 37483

Start Printed Page 37484

The take estimates by activity and location outlined in Tables 10 and 11 above indicate the takes that are anticipated from all of the activities for Start Printed Page 37485which take will be authorized across the five-year period covered by the rule. It is challenging to specify the activities that will definitively occur in a specific year because many of the activities are progressive (i.e., they depend on results and/or completion of the previous activity). The best estimate of the breakdown of activities and their associated takes, by year, are provided in Tables 13-17. The maximum number of takes that could be authorized in a particular year are specified below in Table 18, based on the largest grouping of activities Hilcorp could potentially conduct within a year. The scenario in Table 18 is accordingly used to conservatively ensure that NMFS can make the necessary annual findings.The most realistic scenario over the 5-year period includes 3D seismic surveys in the first season, activities for one well in the second season in lower Cook Inlet, as well as the plugging and abandonment activities in North Cook Inlet Unit and the two wells in the Trading Bay area. For the third season, we have included activities for drilling two wells in lower Cook Inlet and the final well in the fourth season. Each year, the applicant will submit an application for an LOA with the specific details of the planned work for that year with estimated take numbers.

Table 12—Summary of Activities Considered by Year

YearActivityArea
Year 1OCS 3D seismicLCI.
OCS geohazard of 2 wellsLCI.
Pipeline maintenance (geohazard, water jet)MCI.
Year 2Pile driving at IniskinLCI (Iniskin).
OCS drilling activities (geohazard, pipe driving, VSP) at up to 2 wellsLCI.
Trading Bay drilling activities (geohazard, pipe driving, VSP) at 2 wellsTB.
P&A activities (geohazard) at 1 wellNCI.
Pipeline maintenance (geohazard, water jet)MCI.
Year 3OCS drilling activities (geohazard, pipe driving, VSP) at 1 wellLCI.
2D seismicLCI.
Pipeline maintenance (geohazard, water jet)MCI.
Year 4OCS drilling activities (geohazard, pipe driving, VSP) at 1 wellLCI.
Pipeline maintenance (geohazard, water jet)MCI.
Year 5Pipeline maintenance (geohazard, water jet)MCI.
LCI—Lower Cook Inlet Wells, NCI—North Cook Inlet Unit well, TB = Trading Bay wells, MCI—Middle Cook Inlet Pipeline Maintenance.

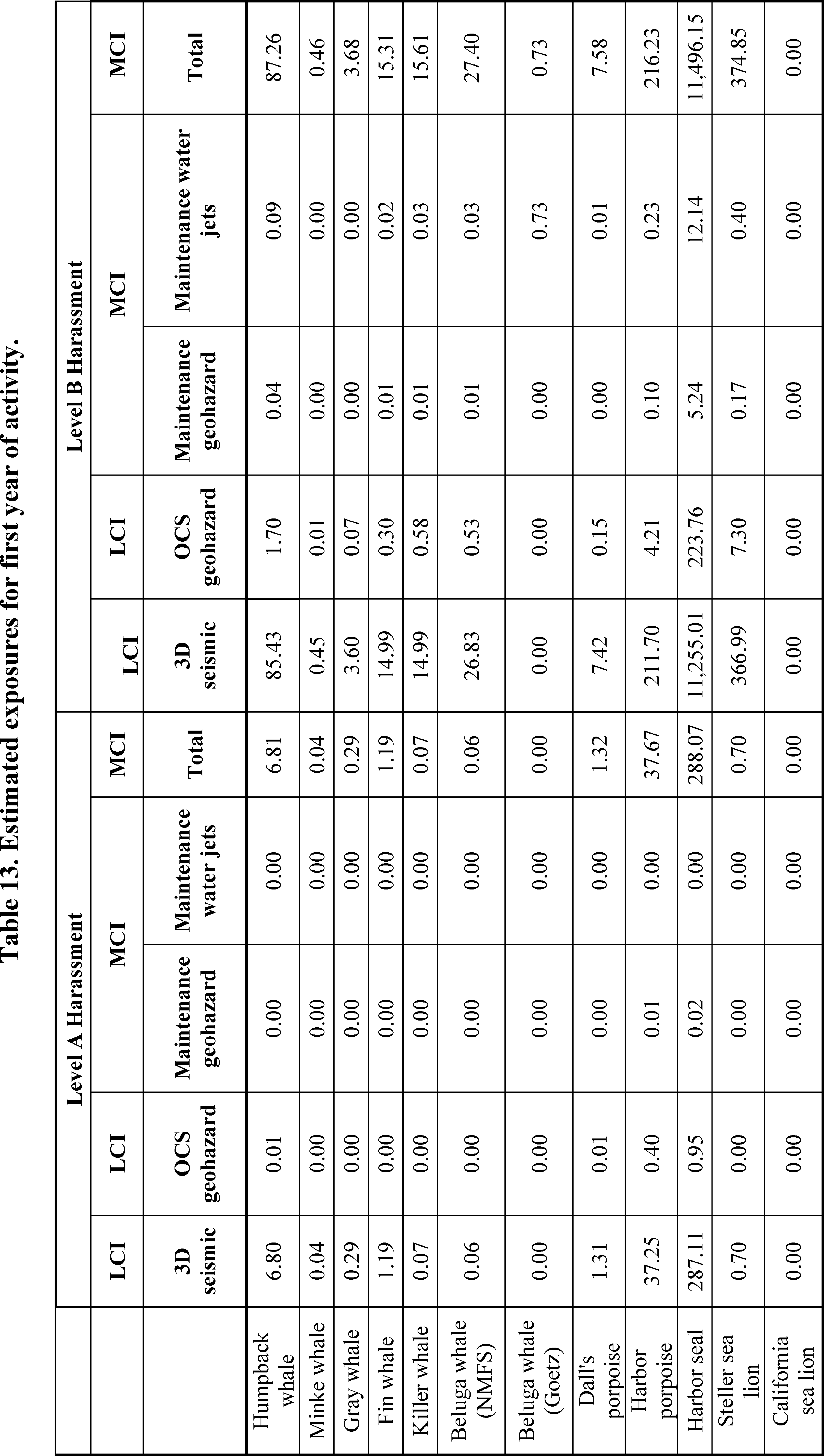

Start Printed Page 37486

Start Printed Page 37487

Start Printed Page 37488

Start Printed Page 37489

Start Printed Page 37490

Start Printed Page 37491

Table 17—Estimated Exposures for Fifth Year of Activity

Level A harassmentLevel B harassment
MCI maintenance geohazardMCI maintenance water jetsTotalMCI maintenance geohazardMCI maintenance water jetsTotal
Humpback whale0.000.000.000.040.090.13
Minke whale0.000.000.000.000.000.00
Gray whale0.000.000.000.000.000.01
Fin whale0.000.000.000.010.020.02
Killer whale0.000.000.000.010.030.04
Beluga whale (NMFS)0.000.000.000.010.030.04
Beluga whale (Goetz)0.000.000.000.000.730.73
Dall's porpoise0.000.000.000.000.010.01
Harbor porpoise0.010.000.010.100.230.33
Harbor seal0.020.000.025.2412.1417.38
Steller sea lion0.000.000.000.170.400.57
California sea lion0.000.000.000.000.000.00

Table 18—Estimated Maximum Exposures That May Be Authorized for Each Species in a Single Year

SpeciesLevel A harassmentLevel B harassmentTotal maximum annual takes *
Annual estimated exposuresAnnual takes authorizedAnnual estimated exposuresAnnual takes authorizedAnnual takes authorizedPercent of population
Humpback whale6.81787.26909711.21
Minke whale0.0400.46550.41
Gray whale0.2903.68550.02
Fin whale1.19115.3115160.51
Killer whale (resident)0.07015.6120200.85
Killer whale (transient0.07015.6120203.41
Beluga whale (NMFS)0.06027.40353510.67
Beluga whale (Goetz)0.02033.71353510.67
Dall's porpoise1.3217.5810110.01
Harbor porpoise37.6738216.232162540.82
Harbor seal288.0728811,496.1511,49611,784** 25
Steller sea lion0.701374.853753760.74
California sea lion000.00550.00
* Total takes across five years for Level A harassment and Level B harassment can be found in Tables 10 and 11 respectively.
** The number of exposures authorized does not equal the number of individuals from the population that may be taken for reasons discussed below.

Based on the results of the acoustic harassment analysis, Hilcorp Alaska is requesting a small number of takes by Level A harassment for humpback whales, Dall's porpoises, harbor porpoises, Steller sea lions, and harbor seals. Neither Hilcorp nor NMFS anticipate that any of the activities will result in mortality or serious injury to marine mammals, but these species may be exposed to levels exceeding the Level A harassment thresholds. Seals are highly curious and exhibit high tolerance for anthropogenic activity, so they are likely to enter within the larger Level A harassment isopleths. Porpoises are difficult to observe at greater distances and usually only remain in an area for a short period of time. The total maximum takes authorized by Level A harassment annually are for 7 humpback whales, 1 fin whale, 1 Dall's porpoises, 38 harbor porpoises, and 288 harbor seals, and 1 Steller sea lion.

The maximum annual authorized takes by Level B harassment for minke and gray whale are rounded up to 5 animals, to account for any anomalies of multiple sightings within a year. The maximum annual authorized takes by Level B harassment for humpback whales is 90 animals, although it is not expected to approach this number as humpbacks are easily observable during monitoring efforts. The maximum annual authorized takes by Level B harassment for killer whales are rounded up to 20 animals to allow for multiple sightings of small groups. The maximum annual authorized takes by Level B harassment for Dall's and harbor porpoise are rounded up to 10 and 216 animals, respectively, due to the inconspicuous nature of porpoises. Take estimates for Cook Inlet beluga whales were calculated using densities from both the Goetz model and NMFS aerial surveys, which result in similar exposure estimates. To account for the potential for unseen take of Cook Inlet beluga whales, the maximum annual takes authorized by Level B harassment at 35 animals.

The maximum annual authorized takes by Level B harassment for harbor seals is 11,496 exposures. The estimated number of instances of takes by Level B harassment of 11,496 resulting from the calculations outlined above is an overestimate due to the inclusion of haul out sites numbers in the underlying density estimate used to calculate take. Using the daily ensonified area × number of survey days × density method results in a reasonable estimate of the instances of take, but likely significantly overestimates the number of individual animals expected to be taken. With most species, even this overestimated number is still very small, and additional analysis is not really necessary to ensure minor impacts. However, because of the number and density of harbor seals in Start Printed Page 37492the area, a more accurate understanding of the number of individuals likely taken is necessary to fully analyze the impacts and ensure that the total number of harbor seals taken is small.

As described below, based on monitoring results from the area, it is likely that the modeled number of estimated instances of harbor seal take referenced above is overestimated. The density estimate from NMFS aerial surveys includes harbor seal haulouts far south of the action area that may never move to an ensonified area. Further, we believe that we can reasonably estimate the comparative number of individual harbor seals that will likely be taken, based both on monitoring data, operational information, and a general understanding of harbor seal habitat use.

Using the daily ensonified area × number of survey days × density, the number of instances of exposure above the 160-dB threshold estimated for Hilcorp's activity in Cook Inlet is large. However, when we examine monitoring data from previous activities, it is clear this number is an overestimate—compared to both aerial and vessel based observation efforts. Apache's monitoring report from 2012 details that they saw 2,474 harbor seals from 29 aerial flights (over 29 days) in the vicinity of the survey during the month of June, which is the peak month for harbor seal haulout. In surveying the literature, correction factors to account for harbor seals in water based on land counts vary from 1.2 to 1.65 (Harvey & Goley, 2011). Using the most conservative factor of 1.65 (allowing us to consider that some of the other individuals on land may have entered the water at other points in day), if Apache saw 2,474 seals hauled out then there were an estimated 1,500 seals in the water during those 29 days. To account for the limited number of surveys (29 surveys), NMFS conservatively multiplied the number of seals by 5.5 to estimate the number of seals that might have been seen if the aerial surveys were conducted for 160 days. This yields an estimate of 8,250 instances of seal exposure in the water, which is far less than the exposure estimate resulting from Hilcorp's calculations. NMFS further reduced the estimate given the context of the activity. The activity with the highest potential take of harbor seal according to calculations is 3D seismic surveying, primarily due to the high source levels. However, the 3D seismic surveying is occurring primarily offshore, which is also the area where they are least likely to encounter harbor seals. The calculated exposures from 3D seismic surveying account for 92 percent of the total calculated harbor seal exposures across the five years of the project, accounting for a high proportion of the takes allocated to deeper water seismic activity which is less likely to spatially overlap with harbor seals. That the number of potential instances of exposure is likely less than calculated is also supported by the visual observations from Protected Species Observers (PSOs) on board vessels. PSOs in Cook Inlet sighted a total of 285 seals in water over 147 days of activity, which rises to about 310 if adjusted to reflect 160 days of effort. Given the size of the disturbance zone for these activities, it is likely that not all harbor seals that were exposed were seen by PSOs. However 310 is still far less than the estimate given by the density calculations.

Further, based on the residential nature of harbor seals and the number of offshore locations included in Hilcorp's project, where harbor seals are unlikely to reside, NMFS estimated the number of individual harbor seals exposed, given the instances of exposures. Given these multiple methods, as well as the behavioral preferences of harbor seals for haulouts in certain parts of the Inlet (Montgomery et al, 2007), and high concentrations at haulouts in the lower Inlet, it is unreasonable to expect that more than 25 percent of the population, or 6,847 individuals, will be taken by Level B harassment during Hilcorp's activity. Therefore, we estimate that 6,847 individuals may be taken, which equates to 25 percent of the estimated abundance in NMFS stock assessment report.

Effects of Specified Activities on Subsistence Uses of Marine Mammals

The availability of the affected marine mammal stocks or species for subsistence uses may be impacted by this activity. The subsistence uses that may be affected and the potential impacts of the activity on those uses are described below. Measures included in this rule to reduce the impacts of the activity on subsistence uses are described in the Mitigation section. Last, the information from this section and the Mitigation section is analyzed to determine whether the necessary findings may be made in the Unmitigable Adverse Impact Analysis and Determination section.

The ADF&G conducted studies to document the harvest and use of wild resources by residents of communities on the east and west sides of Cook Inlet (Jones and Kostick 2016). Data on wild resource harvest and use were collected, including basic information about who, what, when, where, how, and how much wild resources are being used to develop fishing and hunting opportunities for Alaska residents. Tyonek was surveyed in 2013 (Jones et al., 2015), and Nanwalek, Port Graham, and Seldovia were surveyed in 2014 (Jones and Kostick 2016). Marine mammals were harvested by three (Seldovia, Nanwalek, Port Graham) of the four communities but at relatively low rates. The harvests consisted of harbor seals, Steller sea lions, and northern sea otters (Enhydra lutris), the latter of which is managed by the U.S. Fish and Wildlife Service and not mentioned further.

Table 19—Marine Mammal Harvest by Tyonek in 2013 and Nikiski, Port Graham, Seldovia, and Nanwalek in 2014

VillageHarvest (pounds per capita)Households attempting harvest number (% of residents)Number of marine mammals harvested
Harbor sealSteller sea lionNorthern sea otterBeluga Whale
Tyonek26 (6%)6000
Seldovia12 (1%)5030
Nanwalek1117 (7%)22610
Port Graham827 (18%)161240
Start Printed Page 37493

In Tyonek, harbor seals were harvested between June and September by 6 percent of the households (Jones et al. 2015). Seals were harvested in several areas, encompassing an area stretching 20 miles along the Cook Inlet coastline from the McArthur River Flats north to the Beluga River. Seals were searched for or harvested in the Trading Bay areas as well as from the beach adjacent to Tyonek (Jones et al. 2015). In Seldovia, the harvest of harbor seals (5 total) occurred exclusively in December (Jones and Kostick 2016).

In Nanwalek, 22 harbor seals were harvested in 2014 between March and October, the majority of which occur in April. Nanwalek residents typically hunt harbor seals and Steller sea lions at Bear Cove, China Poot Bay, Tutka Bay, Seldovia Bay, Koyuktolik Bay, Port Chatam, in waters south of Yukon Island, and along the shorelines close to Nanwalek, all south of the Petition region (Jones and Kosick 2016).

According to the results presented in Jones and Kostick (2016) in Port Graham, harbor seals were the most frequently used marine mammal; tribal members harvested 16 in the survey year. Harbor seals were harvested in January, February, July, August, September, November, and December. Steller sea lions were used noticeably less and harvested in November and December.

The Cook Inlet beluga whale has traditionally been hunted by Alaska Natives for subsistence purposes. For several decades prior to the 1980s, the Native Village of Tyonek residents were the primary subsistence hunters of Cook Inlet beluga whales. During the 1980s and 1990s, Alaska Natives from villages in the western, northwestern, and North Slope regions of Alaska either moved to or visited the south-central region and participated in the yearly subsistence harvest (Stanek 1994). From 1994 to 1998, NMFS estimated 65 whales per year were taken in this harvest, including those successfully taken for food, and those struck and lost. NMFS has concluded that this number is high enough to account for the estimated 14 percent annual decline in population during this time (Hobbs et al. 2008). Actual mortality may have been higher, given the difficulty of estimating the number of whales struck and lost during the hunts. In 1999, a moratorium was enacted (Pub. L. 106-31) prohibiting the subsistence take of Cook Inlet beluga whales except through a cooperative agreement between NMFS and the affected Alaska Native organizations.

Since the Cook Inlet beluga whale harvest was regulated in 1999 requiring cooperative agreements, five beluga whales have been struck and harvested. Those beluga whales were harvested in 2001 (one animal), 2002 (one animal), 2003 (one animal), and 2005 (two animals). The Native Village of Tyonek agreed not to hunt or request a hunt in 2007, when no co-management agreement was to be signed (NMFS 2008). On October 15, 2008, NMFS published a final rule that established long-term harvest limits on the Cook Inlet beluga whales that may be taken by Alaska Natives for subsistence purposes (73 FR 60976). That rule prohibited harvest for a 5-year period (2008-2012), if the average abundance for the Cook Inlet beluga whales from the prior five years (2003-2007) is below 350 whales. The 2008 Cook Inlet Beluga Whale Subsistence Harvest Final Supplemental Environmental Impact Statement (NMFS 2008a) authorizes how many beluga whales can be taken during a 5-year interval based on the 5-year population estimates and 10-year measure of the population growth rate. Based on the 2008-2012 5-year abundance estimates, no hunt occurred between 2008 and 2012 (NMFS 2008a). The previous 5-year period that could have allowed for a harvest (2013-2017) required the previous five-year average (2008-2012) to be above 350 whales, which it was not and therefore no harvest occurred. Based on the current trajectory of the population and annual abundance estimates, Cook Inlet beluga whale population abundance is not expected to exceed 350 animals for a five year average during the duration of these regulations. The Cook Inlet Marine Mammal Council, which managed the Alaska Native Subsistence fishery with NMFS, was disbanded by a unanimous vote of the Tribes' representatives on June 20, 2012. No harvest has occurred since then and no harvest is likely in 2019 or within the duration of the regulations.

Residents of the Native Village of Tyonek are the primary subsistence users in Knik Arm area (73 FR 60976). No households hunted beluga whale locally in Cook Inlet due to conservation concerns (Jones et al. 2015). The project should not have any effect because no beluga harvest has taken place since 2005, and beluga hunts are not expected during the duration of the regulations, based on the abundance estimate average requirements discussed above.

Mitigation

Several changes have been made to mitigation requirements since publication of the proposed rule. As discussed in our Comment and Response section above, we received public comments raising questions about the effectiveness of mitigation guns and power downs at minimizing the impacts of seismic surveys on marine mammals. After consideration of this evidence, and in maintaining consistency with mitigation requirements of other ITAs issued incidental to seismic surveys (83 FR 63268), we have removed the requirements for mitigation guns and power downs during seismic surveys. A mitigation vessel with at least one on-duty PSO will also be required, in addition to PSOs aboard the source vessel. Lastly, an additional exclusion zone during seismic activity has been added spanning the distance of the Level B harassment isopleth at the mouth of the Kasilof River between January 1 and May 31. Hilcorp is required to abide by all mitigation measures described in the Biological Opinion for Hilcorp Alaska and Harvest Alaska Oil and Gas Activities, Cook Inlet, Alaska (NMFS, 2019).

In order to issue an LOA under section 101(a)(5)(A) of the MMPA, NMFS must set forth the permissible methods of taking pursuant to such activity, and other means of effecting the least practicable impact on such species or stock and its habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance, and on the availability of such species or stock for taking for certain subsistence uses. NMFS regulations require applicants for incidental take authorizations to include information about the availability and feasibility (economic and technological) of equipment, methods, and manner of conducting such activity or other means of effecting the least practicable adverse impact upon the affected species or stocks and their habitat (50 CFR 216.104(a)(11)).

In evaluating how mitigation may or may not be appropriate to ensure the least practicable adverse impact on species or stocks and their habitat, as well as subsistence uses where applicable, we carefully consider two primary factors:

(1) the manner in which, and the degree to which, the successful implementation of the measure(s) is expected to reduce impacts to marine mammals, marine mammal species or stocks, and their habitat, as well as subsistence uses. This considers the nature of the potential adverse impact being mitigated (likelihood, scope, range). It further considers the likelihood that the measure will be effective if implemented (probability of accomplishing the mitigating result if implemented as planned), the likelihood of effective implementation Start Printed Page 37494(probability implemented as planned); and

(2) the practicability of the measures for applicant implementation, which may consider such things as cost, impact on operations, and, in the case of a military readiness activity, personnel safety, practicality of implementation, and impact on the effectiveness of the military readiness activity.

Mitigation for Marine Mammals and Their Habitat

In their application, Hilcorp proposed and NMFS is requiring mitigation measures employed during seismic research surveys authorized by NMFS under previous incidental harassment authorizations, as well as recommended best practices in Richardson et al. (1995), Pierson et al. (1998), Weir and Dolman (2007), Nowacek et al. (2013), Wright (2014), and Wright and Cosentino (2015), and has incorporated a suite of required mitigation measures into their project description based on the above sources. Additional mitigation measures required by NMFS are discussed below.

To reduce the potential for disturbance from acoustic stimuli associated with the activities, Hilcorp is required to implement the following mitigation measures for marine mammals:

(1) Vessel-based and shore-based visual mitigation monitoring;

(2) Establishment of a marine mammal exclusion zone (EZ) and safety zone (SZ);

(3) Shutdown procedures;

(4) Ramp-up procedures; and

(5) Vessel strike avoidance measures.

In addition to the measures proposed by Hilcorp, NMFS requires the following mitigation measures: Use of a mitigation vessel to extend coverage of PSO monitoring distance, aerial overflights for pre-clearance before seismic surveys, seasonal closure of the Kasilof River during seismic, and seasonal closure of the Susitna River Delta.

Exclusion and safety zones—The EZ is defined as the area in which all operations are shut down in the event a marine mammal enters or is about to enter this zone based on distances to the Level A harassment threshold or what can be effectively monitored for the species. The SZ is an area larger than the EZ and is defined as a focal area beyond the standard exclusion zone to be monitored for the presence of protected species, and may be considered a Level B harassment. For all activities, if a marine mammal for which take is not authorized is seen within or entering the SZ, operations will shut down. Any time a beluga is sighted during the use of the equipment outlined in Table 20 below, activities will shut down. A minimum 10-meter shutdown zone will be observed for all in-water construction and heavy machinery.

The distances for the EZ and SZ for the activities are summarized in Table 20 below:

Table 20—Radii of Exclusion Zone (EZ) and Safety Zone (SZ) for Hilcorp's Activities

ActivityExclusion zone (EZ) radiusSafety zone (SZ) radius
2D/3D seismic survey500 m1,500 m
Sub-bottom profilers100 m1,500 m
Pipe driving100 m1,500 m
VSP500 m1,500 m
Sheet pile driving100 m1,500 m
Water jet15 m1,000 m
Hydraulic grinder*N/A500
Pinger*N/A500
Drilling*N/A500
Well construction activities*N/A500
Tug towing rigN/A1,500
Dynamic Positioning thrusters*N/A1,500
Aircraft in route*N/A500
Aircraft at rig*N/A500
* Indicates activities which we do not think results in take and therefore take is not proposed to be authorized. These mitigation measures are required under the Biological Opinion and have been included in this table for clarity of the applicant.

The distances described in Table 20 are generally smaller than the Level B harassment zones from various sources. Level B harassment exposures will be recorded and extrapolated based upon the number of observed take and the percentage of the Level B harassment zone that was not visible. If a PSO is monitoring the EZ and SZ and sees a marine mammal outside of those zones but within the Level B harassment isopleth, take will be recorded.

PSO Placement—For the 2D survey, PSOs will be stationed on the source vessel during all seismic operations and geohazard surveys when the sub-bottom profilers are used. Because of the proximity to land, PSOs may also be stationed on land to augment the viewing area. For the 3D survey, PSOs will be stationed on at least two of the project vessels, the source vessel and the chase vessel. For the VSP, PSOs will be stationed on the drilling rig. For geohazard surveys, PSOs will be stationed on the survey vessel. The viewing area may be augmented by placing PSOs on a vessel specifically for mitigation purposes. During seismic, at least one PSO must be on duty aboard the mitigation vessel in addition to the PSOs on the source vessel.

Seismic Survey Mitigation

Aircraft—NMFS requires aerial overflights to clear the intended area of seismic survey activity of beluga whales on a daily basis. Hilcorp will fly over the action area searching for belugas prior to ramp up of seismic airguns at the start of daylight hours of each day of seismic shooting and ramp up will not commence until the flights have confirmed the area appears free of beluga whales. Aerial flights are required before starting daylight seismic each day unless weather conditions make flying unsafe for aerial personnel. In these cases, Hilcorp may ramp up and begin seismic according to the other required protocols and the flights must be flown at the earliest safe window. This measure only applies to 2D and 3D seismic surveying, not to other sound Start Printed Page 37495sources related to geohazard survey or well construction.

Clearing the Exclusion Zone—Prior to the start of daily activities for which take has been authorized or if activities have been stopped for longer than a 30-minute period, the PSOs will ensure the EZ is clear of marine mammals for a period of 30 minutes. Clearing the EZ means no marine mammals have been observed within the EZ for that 30-minute period. If any marine mammals have been observed within the EZ, ramp up cannot start until the marine mammal has left the EZ or has not been observed for a 30-minute period prior to the start of the survey.

Shutdowns—A shutdown is defined as suspending all airgun activities. The operating airguns will be shut down completely if a marine mammal is within or enters the EZ. The operations will shut down completely if a beluga whale is sighted. The shutdown procedure must be accomplished within several seconds (of a “one shot” period) of the determination that a marine mammal is within or enters the EZ. Airguns must be shutdown for turning between transect lines.

Following a shutdown, airgun activity may be reactivated only after the protected species has been observed exiting the applicable EZ. The animal will be considered to have cleared the EZ if it:

  • Is visually observed to have left the EZ, or
  • Has not been seen within the EZ for 15 min in the case of pinnipeds and porpoises
  • Has not been seen within the EZ for 30 min in the case of cetaceans (except for beluga whales which cannot not be seen in the EZ or SZ).

Ramp up—A “ramp up” procedure gradually increases airgun volume at a specified rate. Ramp up is used at the start of airgun operations, including after a shutdown, and after any period greater than 30 minutes in duration without airgun operations. The rate of ramp up will be no more than 6 dB per 5-minute period. Ramp up will begin with the smallest gun in the array that is being used for all airgun array configurations. During the ramp up, the EZ for the full airgun array will be maintained.

If the complete EZ has not been visible for at least 30 minutes prior to the start of operations, ramp up will not commence. This means that it will not be permissible to ramp up the 24-gun source from a complete shut down in thick fog or at other times when the outer part of the EZ is not visible. Ramp up of the airguns will not be initiated if a marine mammal is sighted within or entering the EZ at any time.

Speed or Course Alteration—If a marine mammal is detected outside the EZ and, based on its position and relative motion, is likely to enter the EZ, the vessel's speed and/or direct course may, when practical and safe, be changed. This technique also minimizes the effect on the seismic program. The marine mammal activities and movements relative to the seismic and support vessels will be closely monitored to ensure that the marine mammal does not enter the EZ. If the mammal appears likely to enter the EZ, further mitigation actions must be taken, i.e., either further course alterations or shutdown of the airguns.

Power downs—In response to public comments on this and other seismic incidental take authorizations, it has come to our attention that use of power downs may not be effective at reducing impacts to marine mammals and may result in more total noise emitted into the water. Therefore power downs are not included.

Geohazard Survey Mitigation

Clearing the Exclusion Zone—Prior to the start of daily activities for which take has been authorized or if activities have been stopped for longer than a 30-minute period, the PSOs will ensure the EZ is clear of marine mammals for a period of 30 minutes. Clearing the EZ means no marine mammals have been observed within the EZ for that 30-minute period. If any marine mammals have been observed within the EZ, ramp up cannot start until the marine mammal has left the EZ or has not been observed for a 30-minute period prior to the start of the survey.

Shutdowns—A shutdown is defined as suspending all sub-bottom profiler activities. The operating profiler will be shut down completely if a marine mammal is within or enters the EZ. The operations will shut down completely if a beluga whale is sighted. The shutdown procedure must be accomplished within several seconds (of a “one shot” period) of the determination that a marine mammal is within or enters the EZ.

Following a shutdown, sub-bottom profiler activity may be reactivated only after the protected species has been observed exiting the applicable EZ. The animal will be considered to have cleared the EZ if the animal:

  • Is visually observed to have left the EZ,
  • Has not been seen within the EZ for 15 min in the case of pinnipeds and porpoises, or
  • Has not been seen within the EZ for 30 min in the case of cetaceans (except for beluga whales which cannot not be seen in the EZ or SZ).

Speed or Course Alteration—If a marine mammal is detected outside the EZ and, based on its position and relative motion, is likely to enter the EZ, the vessel's speed and/or direct course may, when practical and safe, be altered. This technique also minimizes the effect on the survey program. The marine mammal activities and movements relative to the seismic and support vessels will be closely monitored to ensure that the marine mammal does not enter the EZ. If the mammal appears likely to enter the EZ, further mitigation actions must be taken, i.e., either further course alterations or shutdown of the airguns.

Power downs—In response to public comments on this and other seismic incidental take authorizations, it has come to our attention that use of power downs may not be effective at reducing impacts to marine mammals and may result in more total noise emitted into the water. Therefore power downs have been removed are not included.

Pipe and Sheet Pile Driving Mitigation

Soon after the drill rig is positioned on the well head, the conductor pipe will be driven as the first stage of the drilling operation. Two PSOs (one operating at a time) will be stationed aboard the rig during this two to three day operation monitoring the EZ and the SZ. The impact hammer operator will be notified to shut down hammering operations if a marine mammal is sighted within or enters the EZ. A soft start of the hammering will begin at the start of each hammering session. The soft start procedure involves initially starting with three soft strikes, 30 seconds apart. This delayed-strike start alerts marine mammals of the pending hammering activity and provides them time to vacate the area. Monitoring will occur during all hammering sessions.

A dock face will be constructed on the rock causeway in Iniskin Bay. Two PSOs will be stationed either on a vessel or on land during the 14-21 day operation observing an EZ of 4.6 km for beluga whales. PSOs will implement similar monitoring and mitigation strategies as for the pipe installation.

For impact hammering, “soft-start” technique must be used at the beginning of each day's pipe/pile driving activities to allow any marine mammal that may be in the immediate area to leave before pile driving reaches full energy.Start Printed Page 37496

  • Clear the EZ 30 minutes prior to a soft-start to ensure no marine mammals are within or entering the EZ.
  • Begin impact hammering soft-start with an initial set of three strikes from the impact hammer at 40 percent energy, followed by a one minute waiting period, then two subsequent 3-strike sets.
  • Immediately shut down all hammers at any time a marine mammal is detected entering or within the EZ.
  • Initial hammering starts will not begin during periods of poor visibility (e.g., night, fog, wind).
  • Any shutdown due to a marine mammal sighting within the EZ must be followed by a 30-minute all-clear period and then a standard, full ramp-up.
  • Any shutdown for other reasons resulting in the cessation of the sound source for a period greater than 30 minutes, must also be followed by full ramp-up procedures.

Water Jet Mitigation

A PSO will be present on the dive support vessel when divers are using the water jet. Prior to in-water use of the water jet, the EZ around the DSV will be established. The water jet will be shut down if marine mammals are observed within the EZ.

Beluga Critical Habitat Mitigation

Hilcorp must not operate noise producing activities within 10 miles (16 km) of the mean higher high water (MHHW) line of the Susitna Delta (Beluga River to the Little Susitna River) between April 15 and October 15. The purpose of this mitigation measure is to protect beluga whales in the designated critical habitat in this area that is important for beluga whale feeding and calving during the spring and fall months. The range of the setback required by NMFS was designated to protect this important habitat area and also to create an effective buffer where sound does not encroach on this habitat. This seasonal exclusion is in effect from April 15-October 15. Activities can occur within this area from October 16-April 14.

Mitigation for Subsistence Uses of Marine Mammals or Plan of Cooperation

Regulations at 50 CFR 216.104(a)(12) further require Incidental Take Authorization applicants conducting activities that take place in Arctic waters to provide a Plan of Cooperation or information that identifies what measures have been taken and/or will be taken to minimize adverse effects on the availability of marine mammals for subsistence purposes. A plan must include the following:

  • A statement that the applicant has notified and provided the affected subsistence community with a draft plan of cooperation;
  • A schedule for meeting with the affected subsistence communities to discuss planned activities and to resolve potential conflicts regarding any aspects of either the operation or the plan of cooperation;
  • A description of what measures the applicant has taken and/or will take to ensure that activities will not interfere with subsistence whaling or sealing; and
  • What plans the applicant has to continue to meet with the affected communities, both prior to and while conducting the activity, to resolve conflicts and to notify the communities of any changes in the operation.

Hilcorp Alaska has developed a Stakeholder Engagement Plan (SEP) and will implement this plan throughout the duration of the Petition. The SEP will help coordinate activities with local stakeholders and thus subsistence users, minimize the risk of interfering with subsistence hunting activities, and keep current as to the timing and status of the subsistence hunts. The Plan is provided in Appendix B of Hilcorp's application.

Hilcorp developed a list of relevant stakeholders who they needed to notify of their planned activities. This list included: Commercial and sport fishing groups/associations, various Native fisheries and entities as it pertains to subsistence fishing and/or hunting, marine mammal co-management groups, Cook Inlet Regional Citizens Advisory Council, local landowners, government and community organizations, and environmental NGOs. Hilcorp contacted the identified stakeholders and provided them a summary of their actions and discussed any potential concerns and mitigation. The list of contacts, dates of contact, and summaries of any concerns raised are available in a spreadsheet available on our website at: https://www.fisheries.noaa.gov/​action/​incidental-take-authorization-hilcorp-alaska-llc-oil-and-gas-activities-cook-inlet-alaska. Hilcorp will be required to abide by their stakeholder engagement plan, which will be updated each time Hilcorp applies for a LOA, and continue to engage stakeholders throughout the five years of activity.

Based on our evaluation of the applicant's measures, as well as other measures considered by NMFS, NMFS has determined that the required mitigation measures provide the means effecting the least practicable impact on the affected species or stocks and their habitat, paying particular attention to rookeries, mating grounds, and areas of similar significance, and on the availability of such species or stock for subsistence uses.

Monitoring and Reporting

In order to issue an LOA for an activity, section 101(a)(5)(A) of the MMPA states that NMFS must set forth, requirements pertaining to the monitoring and reporting of such taking. The MMPA implementing regulations at 50 CFR 216.104 (a)(13) indicate that requests for authorizations must include the suggested means of accomplishing the necessary monitoring and reporting that will result in increased knowledge of the species and of the level of taking or impacts on populations of marine mammals that are expected to be present in the action area. Effective reporting is critical both to compliance as well as ensuring that the most value is obtained from the required monitoring.

Monitoring and reporting requirements prescribed by NMFS should contribute to improved understanding of one or more of the following:

  • Occurrence of marine mammal species or stocks in the area in which take is anticipated (e.g., presence, abundance, distribution, density);
  • Nature, scope, or context of likely marine mammal exposure to potential stressors/impacts (individual or cumulative, acute or chronic), through better understanding of: (1) Action or environment (e.g., source characterization, propagation, ambient noise); (2) affected species (e.g., life history, dive patterns); (3) co-occurrence of marine mammal species with the action; or (4) biological or behavioral context of exposure (e.g., age, calving or feeding areas);
  • Individual marine mammal responses (behavioral or physiological) to acoustic stressors (acute, chronic, or cumulative), other stressors, or cumulative impacts from multiple stressors;
  • How anticipated responses to stressors impact either: (1) Long-term fitness and survival of individual marine mammals; or (2) populations, species, or stocks;
  • Effects on marine mammal habitat (e.g., marine mammal prey species, acoustic habitat, or other important physical components of marine mammal habitat); and
  • Mitigation and monitoring effectiveness.

The PSOs will observe and collect data on marine mammals in and around Start Printed Page 37497the project area for 15 (well activity) or 30 minutes (seismic activity) before, during, and for 30 minutes after all of Hilcorp's activities for which take has been authorized.

Protected Species Observer Qualifications

NMFS-approved PSOs must meet the following requirements:

1. Independent observers (i.e., not construction personnel) are required;

2. At least one observer must have prior experience working as an observer;

3. Other observers may substitute education (undergraduate degree in biological science or related field) or training for experience;

4. Where a team of three or more observers are required, one observer should be designated as lead observer or monitoring coordinator. The lead observer must have prior experience working as an observer; and

5. NMFS will require submission and approval of observer CVs.

Monitoring Measures

Sound Source Verification—When site-specific measurements are not available for noise sources of concern for acoustic exposure, NMFS often requires a sound source verification (SSV) to characterize the sound levels, propagation, and to verify the monitoring zones (EZ and SZ). Hilcorp Alaska will conduct an SSV for the 3D seismic survey and sub-bottom profiler use in lower Cook Inlet. Hilcorp Alaska will work with NMFS to ensure the SSV is conducted properly and will provide the results to NMFS for review.

Mitigation vessel—During seismic surveying, Hilcorp will place an additional PSO aboard a mitigation vessel. This vessel will be 3,000 m (twice the safety zone distance) removed from the source vessel but not directly behind the airgun array. This PSO will monitor for the occurrence of marine mammals using the same safety zone distances as PSOs aboard the source vessel.

Hilcorp will implement a robust monitoring and mitigation program for marine mammals using NMFS-approved PSOs for Petition activities. Much of the activities will use vessel-based PSOs, but land- or platform-based PSOs may also be used to augment project-specific activities. Some details of the monitoring and mitigation program may change upon receipt of the individual LOAs issued by NMFS each year.

The main purposes of PSOs are: To conduct visual watches for marine mammals; to serve as the basis for implementation of mitigation measures; to document numbers of marine mammals present; to record any reactions of marine mammals to Hilcorp's activities; and, to identify whether there was any possible effect on accessibility of marine mammals to subsistence hunters in Cook Inlet. These observations will provide the real-time data needed to implement some of the key measures.

PSOs will be on watch during all daylight periods for project-specific activities. Generally, work is conducted 24-hrs a day, depending on the specific activity.

  • For 2D seismic surveys, the airgun operations will be conducted during daylight hours.
  • For 3D seismic surveys, airgun operations will continue during the waning nighttime hours (ranges from 2230-0600 in early April to 0100-0300 in mid-May) as long as the full array is operating prior to nightfall. Night vision and infrared have been suggested for low visibility conditions, but these have not been useful in Cook Inlet or other Alaska-based programs. Passive acoustic monitoring has also been used in Cook Inlet and is typically required for seismic surveys but has not shown to be an effective solution in Cook Inlet's specific environmental conditions. A further discussion of previous passive acoustic monitoring efforts by several entities in Cook Inlet is provided in Section 13 of Hilcorp's application.
  • For the sub-bottom profiler, operations will generally be conducted during daylight hours but may continue into the low visibility period as long as the profiler is operating prior to nightfall. Sub-bottom profiler operations may not begin under low visibility conditions.
  • For pipe driving, VSP, and sheet pile driving, operations will generally be conducted during daylight hours.
  • Water jet and hydraulic grinder are operated over a 24-hour period as they are limited to low tide conditions. Activities will not start during nighttime but will continue if already started.

Pre-Activity Monitoring—The exclusion zone will be monitored for 30 minutes prior to in-water construction/demolition activities. If a marine mammal is present within the exclusion zone, the activity will be delayed until the animal(s) leave the exclusion zone. Activity will resume only after the PSO has determined that, through sighting or by waiting (15 minutes for pinnipeds and porpoises, 30 minutes for cetaceans) without re-sighting, the animal(s) has moved outside the exclusion zone. If a marine mammal is observed within or entering the exclusion zone, the PSO who sighted that animal will notify all other PSOs and Hilcorp of its presence.

Post-Activity Monitoring—Monitoring of all zones will continue for 30 minutes following the completion of the activity.

For all activities, the PSOs will watch for marine mammals from the best available vantage point on the vessel or station. Ideally this vantage point is an elevated stable platform from which the PSO has an unobstructed 360° view of the water. The PSOs will scan systematically with the naked eye and with binoculars. When a mammal sighting is made, the following information about the sighting will be carefully and accurately recorded:

  • Species, group size, age/size/sex categories (if determinable), behavior when first sighted and after initial sighting, heading (if consistent), bearing and distance from the PSO, apparent reaction to activities (e.g., none, avoidance, approach, paralleling), closest point of approach, and behavioral pace;
  • Time, location, speed, activity of the vessel, sea state, ice cover, visibility, and sun glare;
  • The positions of other vessel(s) in the vicinity of the PSO location; and
  • The vessel's position, speed, water depth, sea state, ice cover, visibility, and sun glare will also be recorded at the start and end of each observation watch, every 30 minutes during a watch, and whenever there is a change in any of those variables.

An electronic database or paper form will be used to record and collate data obtained from visual observations.

The results of the PSO monitoring, including estimates of exposure to key sound levels, will be presented in monthly, annual, and final reports. Reporting will address the requirements established by NMFS in the LOAs. The technical report(s) will include the list below.

  • Summaries of monitoring effort: Total hours, total distances, and distribution of marine mammals throughout the study period compared to sea state, and other factors affecting visibility and detectability of marine mammals;
  • Analyses of the effects of various factors influencing detectability of marine mammals: Sea state, number of observers, and fog/glare;
  • Species composition, occurrence, and distribution of marine mammal sightings including date, water depth, numbers, age/size/gender categories (when discernable), group sizes, and ice cover; and
  • Analyses of the effects of seismic program:
  • Sighting rates of marine mammals during periods with and without project Start Printed Page 37498activities (and other variables that could affect detectability);
  • Initial sighting distances versus project activity;
  • Closest point of approach versus project activity;
  • Observed behaviors and types of movements versus project activity;
  • Numbers of sightings/individuals seen versus project activity;
  • Distribution around the vessels versus project activity;
  • Summary of implemented mitigation measures; and
  • Estimates of “take by harassment.”

Reporting Measures

Immediate reports will be submitted to NMFS if 30 or more belugas are detected over the course of annual operations in the safety and exclusion zones during operation of sound sources to evaluate and make necessary adjustments to monitoring and mitigation. If the number of detected takes for any marine mammal species is met or exceeded, Hilcorp will immediately cease survey operations involving the use of active sound sources (e.g., airguns and pingers) and notify NMFS Office of Protected Resources (OPR).

1. Monthly Reports—Monthly reports will be submitted to NMFS for all months during which in-water seismic activities take place. The monthly report will contain and summarize the following information:

  • Dates, times, locations, heading, speed, weather, sea conditions (including Beaufort sea state and wind force), and associated activities during all seismic operations and marine mammal sightings.
  • Species, number, location, distance from the vessel, and behavior of any sighted marine mammals, as well as associated seismic activity (number of power-downs and shutdowns), observed throughout all monitoring activities.
  • An estimate of the number (by species) exposed to the seismic activity (based on visual observation) at received levels greater than or equal to the NMFS thresholds discussed above with a discussion of any specific behaviors those individuals exhibited.
  • A description of the implementation and effectiveness of the: (i) Terms and conditions of the Biological Opinion's Incidental Take Statement (ITS); and (ii) mitigation measures of the LOA. For the Biological Opinion, the report must confirm the implementation of each Term and Condition, as well as any conservation recommendations, and describe their effectiveness for minimizing the adverse effects of the action on ESA-listed marine mammals.

2. Annual Reports—Hilcorp must submit an annual report within 90 days after each activity year, starting from the date when the LOA is issued (for the first annual report) or from the date when the previous annual report ended. The annual report will include:

  • Summaries of monitoring effort (e.g., total hours, total distances, and marine mammal distribution through the study period, accounting for sea state and other factors affecting visibility and detectability of marine mammals).
  • Analyses of the effects of various factors influencing detectability of marine mammals (e.g., sea state, number of observers, and fog/glare).
  • Species composition, occurrence, and distribution of marine mammal sightings, including date, water depth, numbers, age/size/gender categories (if determinable), group sizes, and ice cover.
  • Analyses of the effects of survey operations.
  • Sighting rates of marine mammals during periods with and without seismic survey activities (and other variables that could affect detectability), such as: (i) Initial sighting distances versus survey activity state; (ii) closest point of approach versus survey activity state; (iii) observed behaviors and types of movements versus survey activity state; (iv) numbers of sightings/individuals seen versus survey activity state; (v) distribution around the source vessels versus survey activity state; and (vi) numbers of animals detected in the harassment/safety zone.
  • NMFS will review the draft annual reports. Hilcorp must then submit a final annual report to the Chief, Permits and Conservation Division, Office of Protected Resources, NMFS, within 30 days after receiving comments from NMFS on the draft annual report. If NMFS decides that the draft annual report needs no comments, the draft report will be considered to be the final report.

3. Final Report—Hilcorp will submit a final report, within 90 days of project completion at the end of the five-year period. This report will:

  • Summarize the activities undertaken and the results reported in all previous reports;
  • Assess the impacts to marine mammals and their habitat;
  • Assess the cumulative impacts on marine mammals from the activities specified in in this rule; and
  • State the date(s), location(s), and findings of any research activities related to monitoring the effects on noise-producing oil and gas activities on marine mammal populations.

4. Discovery of Injured or Dead Marine Mammals—In the event that personnel involved in the survey activities covered by the authorization discover an injured or dead marine mammal, Hilcorp must report the incident to the Office of Protected Resources (OPR), NMFS and to the Alaska Regional stranding coordinator as soon as feasible. The report must include the following information:

  • Time, date, and location (latitude/longitude) of the first discovery (and updated location information if known and applicable);
  • Species identification (if known) or description of the animal(s) involved;
  • Condition of the animal(s) (including carcass condition if the animal is dead);
  • Observed behaviors of the animal(s), if alive;
  • If available, photographs or video footage of the animal(s); and
  • General circumstances under which the animal was discovered.

Vessel Strike—In the event of a ship strike of a marine mammal by any vessel involved in the activities covered by the authorization, Hilcorp must report the incident to OPR, NMFS and to regional stranding coordinator as soon as feasible. The report must include the following information:

  • Time, date, and location (latitude/longitude) of the incident;
  • Species identification (if known) or description of the animal(s) involved;
  • Vessel's speed during and leading up to the incident;
  • Vessel's course/heading and what operations were being conducted (if applicable);
  • Status of all sound sources in use;
  • Description of avoidance measures/requirements that were in place at the time of the strike and what additional measures were taken, if any, to avoid strike;
  • Environmental conditions (e.g., wind speed and direction, Beaufort sea state, cloud cover, visibility) immediately preceding the strike;
  • Estimated size and length of animal that was struck;
  • Description of the behavior of the marine mammal immediately preceding and following the strike;
  • If available, description of the presence and behavior of any other marine mammals immediately preceding the strike;
  • Estimated fate of the animal (e.g., dead, injured but alive, injured and moving, blood or tissue observed in the water, status unknown, disappeared); andStart Printed Page 37499
  • To the extent practicable, photographs or video footage of the animal(s).

Actions to Minimize Additional Harm to Live-Stranded (or Milling) Marine Mammals—In the event of a live stranding (or near-shore atypical milling) event within 50 km of the survey operations, where the NMFS stranding network is engaged in herding or other interventions to return animals to the water, the Director of OPR, NMFS (or designee) will advise the Hilcorp of the need to implement shutdown procedures for all active acoustic sources operating within 50 km of the stranding. Shutdown procedures for live stranding or milling marine mammals include the following:

  • If at any time, the marine mammals die or are euthanized, or if herding/intervention efforts are stopped, the Director of OPR, NMFS (or designee) will advise Hilcorp that the shutdown around the animals' location is no longer needed.
  • Otherwise, shutdown procedures will remain in effect until the Director of OPR, NMFS (or designee) determines and advises Hilcorp that all live animals involved have left the area (either of their own volition or following an intervention).
  • If further observations of the marine mammals indicate the potential for re-stranding, additional coordination with Hilcorp will be required to determine what measures are necessary to minimize that likelihood (e.g., extending the shutdown or moving operations farther away) and to implement those measures as appropriate.

Shutdown procedures are not related to the investigation of the cause of the stranding and their implementation is not intended to imply that the specified activity is the cause of the stranding. Rather, shutdown procedures are intended to protect marine mammals exhibiting indicators of distress by minimizing their exposure to possible additional stressors, regardless of the factors that contributed to the stranding.

Negligible Impact Analysis and Determination

NMFS has defined negligible impact as an impact resulting from the specified activity that cannot be reasonably expected to, and is not reasonably likely to, adversely affect the species or stock through effects on annual rates of recruitment or survival (50 CFR 216.103). A negligible impact finding is based on the lack of likely adverse effects on annual rates of recruitment or survival (i.e., population-level effects). An estimate of the number of takes alone is not enough information on which to base an impact determination. In addition to considering estimates of the number of marine mammals that might be “taken” through harassment, NMFS considers other factors, such as the likely nature of any responses (e.g., intensity, duration), the context of any responses (e.g., critical reproductive time or location, migration), as well as effects on habitat, and the likely effectiveness of the mitigation. We also assess the number, intensity, and context of estimated takes by evaluating this information relative to population status. Consistent with the 1989 preamble for NMFS's implementing regulations (54 FR 40338; September 29, 1989), the impacts from other past and ongoing anthropogenic activities are incorporated into this analysis via their impacts on the environmental baseline (e.g., as reflected in the regulatory status of the species, population size and growth rate where known, ongoing sources of human-caused mortality, or ambient noise levels).

Given the nature of activities, required mitigation and related monitoring, no serious injuries or mortalities are anticipated to occur as a result of Hilcorp's oil and gas activities in Cook Inlet, and none are authorized. The number of takes that are anticipated and authorized are expected to be limited mostly to short-term Level B harassment, although some PTS may occur. The seismic airguns and other sound sources do not operate continuously over a 24-hour period. Rather the airguns are operational for a few hours at a time with breaks in between, as surveys can only be conducted during slack tides, totaling a maximum of 12 hours a day for the most frequently used equipment. Sources other than airguns are likely to be used for much shorter durations daily than the 12 potential hours of airgun use.

Cook Inlet beluga whales, the Mexico DPS of humpback whales, fin whales, and the western stock of Steller sea lions are listed as endangered under the ESA. These stocks are also considered depleted under the MMPA. Beluga-specific mitigation measures, such as shutting down whenever beluga whales are sighted by PSOs and an exclusion zone at the Susitna River Delta months of high beluga concentrations, aim to minimize the effects of this activity on the population. Zerbini et al. (2006) estimated rates of increase of fin whales in coastal waters south of the Alaska, and data from Calambokidis et al. (2008) suggest the population of humpback whales by also be increasing. Steller sea lion trends for the western stock are variable throughout the region with some decreasing and others remaining stable or even indicating slight increases. The other species that may be taken by harassment during Hilcorp's oil and gas program are not listed as threatened or endangered under the ESA nor as depleted under the MMPA.

Odontocete (including Cook Inlet beluga whales, killer whales, and harbor porpoises) reactions to seismic energy pulses are usually assumed to be limited to shorter distances from the airgun(s) than are those of mysticetes, in part because odontocete low-frequency hearing is assumed to be less sensitive than that of mysticetes. When in the Canadian Beaufort Sea in summer, belugas appear to be fairly responsive to seismic energy, with few being sighted within 10-20 km (6-12 mi) of seismic vessels during aerial surveys (Miller et al., 2005). However, as noted above, Cook Inlet belugas are more accustomed to anthropogenic sound than beluga whales in the Beaufort Sea. Therefore, the results from the Beaufort Sea surveys may be less applicable to potential reactions of Cook Inlet beluga whales. Also, due to the dispersed distribution of beluga whales in Cook Inlet during winter and the concentration of beluga whales in upper Cook Inlet from late April through early fall (i.e., far north of the seismic surveys), belugas will likely occur in small numbers in the majority of Hilcorp's survey area during the majority of Hilcorp's annual operational timeframe.

Taking into account the mitigation measures that are planned, effects on cetaceans are generally expected to be restricted to avoidance of a limited area around the survey operation and short-term changes in behavior, such as changes in direction of travel, temporary avoidance, or alteration of behaviors such as breeding or feeding, falling within the MMPA definition of “Level B harassment.” It is possible that Level A harassment take of marine mammals from sound sources such as seismic airguns may also occur. The duration of exposure from acoustic sources that we think have the potential to result in PTS are relatively short term and spatially limited, as compared to the extent of the Level B harassment zone. These relatively small PTS zones, combined with the short duration of potential exposure and the transitory nature of marine mammals most likely to be in the vicinity of the seismic vessel, indicate that the degree of PTS to any particular individual marine mammal would be small. Due to the short term duration of activities in any given area and the small geographic area in which Start Printed Page 37500Hilcorp's activities will be occurring at any one time, it is unlikely that these activities will affect reproduction or survival of cetaceans in Cook Inlet. Animals are not expected to permanently abandon any area that is surveyed, and any behaviors that are interrupted during the activity are expected to resume once the activity ceases. Only a small portion of marine mammal habitat will be affected at any time, and other areas within Cook Inlet will be available for necessary biological functions including breeding, foraging, and mating. In addition, NMFS seasonally restricts seismic survey operations in locations known to be important for beluga whale feeding, calving, or nursing. One of the primary locations for these biological life functions occur in the Susitna Delta region of upper Cook Inlet. NMFS will implement a 16 km (10 mi) seasonal exclusion from activities for which take has been authorized in this region from April 15 to October 15 annually. The highest concentrations of belugas are typically found in this area from early May through September each year. NMFS has incorporated a 2-week buffer on each end of this seasonal use timeframe to account for any anomalies in distribution and marine mammal usage. Additionally, NMFS has included a seasonal closure from January through May at the mouth of the Kasilof River, where belugas have been reported to aggregate primarily in the month of April.

Mitigation measures, such as dedicated marine mammal observers, and shutdowns when marine mammals are seen within defined ranges, are designed both to further reduce short-term reactions and minimize any effects on hearing sensitivity. In cases of PTS, for the reasons outlined above including limited duration of exposure and the transitory nature of marine mammals likely to occur close to the seismic vessel, the severity of PTS expected to occur in a few individual marine mammals would be low. In cases of Level B harassment, the effects of these activities are expected to be short-term, with no lasting biological consequence. Therefore, the exposure of cetaceans to sounds produced by Hilcorp's oil and gas activities is not anticipated to have an effect on annual rates of recruitment or survival of the affected species or stocks.

Some individual pinnipeds may be exposed to sound from the activities more than once during the timeframe of the project. Taking into account the mitigation measures that are planned, effects on pinnipeds are generally expected to be restricted to avoidance of a limited area around the survey operation and short-term changes in behavior, falling within the MMPA definition of “Level B harassment,” although some pinnipeds may approach close enough to sound sources undetected and incur PTS. Due to the solitary nature of pinnipeds in water, this is expected to be a small number of individuals and the calculated distances to the PTS thresholds incorporate a relatively long duration, making them conservative; however, the impacts of the authorized Level A harassment takes have been analyzed and, as indicated previously, due to the anticipated relatively shorter duration of exposure, any take by PTS would be expected to be of a lower degree. Animals are not expected to permanently abandon any area that is surveyed, and any behaviors that are interrupted during the activity are expected to resume once the activity ceases. Only a small portion of pinniped habitat will be affected at any time, and other areas within Cook Inlet will be available for necessary biological functions. In addition, the areas where the activities will take place are largely offshore and not known to be biologically important areas for pinniped populations. Therefore, the exposure of pinnipeds to sounds produced by this phase of Hilcorp's activity is not anticipated to have an effect on annual rates of recruitment or survival on those species or stocks.

The addition of multiple source and supply vessels, and noise due to vessel operations associated with the activities, will not be outside the present experience of marine mammals in Cook Inlet, although levels may increase locally. Given the large number of vessels in Cook Inlet and the apparent habituation to vessels by Cook Inlet beluga whales and the other marine mammals that may occur in the area, the aggregate vessel activity and its associated noise is not expected to have effects that could cause significant or long-term consequences for individual marine mammals or their populations.

Potential impacts to marine mammal habitat were discussed previously in this document (see the “Anticipated Effects on Habitat” section). As noted above, only one year of activity should reach the maximum annual authorized takes, which are the numbers used to make our findings in this rulemaking. Although some disturbance is possible to food sources of marine mammals, the impacts are anticipated to be minor enough as to not affect the fitness of individuals in a manner that would accrue to impacts on annual rates of recruitment or survival of marine mammals in the area. Based on the size of Cook Inlet where feeding by marine mammals occurs versus the localized area of the marine survey activities, any missed feeding opportunities in the direct project area will be minor based on the fact that other feeding areas exist elsewhere. Additionally, operations will not occur in the primary beluga feeding and calving habitat during times of high use by those animals. The mitigation measure of limiting activities around the Susitna Delta will also protect beluga whale prey and their foraging habitat.

In summary and as described above, the following factors primarily support our determination that the impacts resulting from this activity are not expected to adversely affect the species or stock through effects on annual rates of recruitment or survival:

  • No mortality is anticipated or authorized;
  • Any small number of PTS takes incurred would be expected to be of a lower degree of hearing sensitivity loss;
  • A majority of the impacts to marine mammals would be in the form of short-term, Level B harassment;
  • Mitigation for beluga whales is extensive, including shutdowns at any distance and exclusion zones and avoiding exposure during critical foraging periods around the Susitna Delta;
  • Location of activities is offshore which minimizes effects of activity on resident pinnipeds at haulouts,
  • A large concentration of seismic surveying in the lower portions of Cook Inlet will extend into open water where densities of marine mammals are less than other parts of the Inlet; and
  • Comprehensive land, sea, and aerial-based monitoring will maximizing marine mammal detection rates as well as acoustic SSV to verify exposure levels.

Based on the analysis contained herein of the likely effects of the specified activity on marine mammals and their habitat, and taking into consideration the implementation of the required monitoring and mitigation measures, NMFS finds that the total marine mammal take from the activity will have a negligible impact on all affected marine mammal species or stocks.

Small Numbers

As noted above, only small numbers of incidental take may be authorized under section 101(a)(5)(A) of the MMPA for specified activities other than military readiness activities. The MMPA does not define small numbers and so, in practice, NMFS compares the number of individuals taken within a year to the most appropriate estimation of Start Printed Page 37501abundance of the relevant species or stock in our determination of whether an authorization is limited to small numbers of marine mammals. Additionally, other qualitative factors may be considered in the analysis, such as the temporal or spatial scale of the activities.

As described above in Table 18, the takes authorized represent less than 25 percent of any stock of population in the year of maximum activity. The authorized takes represent less than 10 percent of the stock abundance for nine species of marine mammals known to occur in Cook Inlet, Alaska. For the North Pacific stock of humpback whales, the authorized take of 97 individuals represents 11.21 percent of the stock. For Cook Inlet beluga whales, authorized take of 35 individuals annually represent 10.67 percent of the stock.

The exposures above the harassment threshold calculated for harbor seals would represent 43 percent of the Cook Inlet/Shelikof stock of approximately 27,386 animals if each instance of exposure represented a unique individual; however, that is not the case. The mathematical calculation that resulted in 11,496 Level B harassment exposures does not account for other factors that, when considered appropriately, suggest that far fewer individuals will be taken. The species' coastal nature, affinity for haulout sites in other portions of the Inlet, and absence during previous seismic surveys suggests that the number of individuals seals exposed to noise at or above the Level B harassment threshold, which likely represent repeated exposures of the same individual, is at a low enough level for NMFS to consider small.

In our Take Estimation section above, we describe the qualitative factors that suggest calculated exposure, specifically for seismic airgun use or drilling activities located offshore, is an overestimate of the number of individuals likely to occur within the Level A or Level B harassment zones.

Previous monitoring reports also help to provide context for the number of individual harbor seals likely to be taken. In 2012, SAExploration Inc. observers detected fewer than 300 seals during 116 days of operations, with 100 seals the most seen at once, at a river mouth, hauled out, not in the water or exposed to seismic activity. In 2014, Apache observers saw an estimated 613 individuals in 82 days of operation, mostly during non-seismic periods. Most harbor seals were recorded from the land station, not source vessels. Of the 492 groups of harbor seals seen, 441 were seen during non-seismic operations. The number of harbor seals observed and reported within the take zone in previous surveys suggests that the predicted instances of take of harbor seals for Apache's surveys may be overestimates. Further, the known distribution of this harbor seal stock, including the known preference for haulouts at river mouths, suggest that the number of exposures calculated through the daily ensonified method is a notable overestimate of the number of individual seals likely to be taken. When the previously described factors regarding the spatiotemporal distribution of this harbor seal stock throughout its range are considered, we believe that it is a reasonable prediction that not more than 25% of the individuals in the population will be taken by Level A or Level B harassment.

Based on the analysis contained herein of the activity (including the required mitigation and monitoring measures) and the anticipated take of marine mammals, NMFS finds that small numbers of marine mammals will be taken relative to the population size of the affected species or stocks.

Unmitigable Adverse Impact Analysis and Determination

In order to issue an ITA, NMFS must find that the specified activity will not have an “unmitigable adverse impact” on the subsistence uses of the affected marine mammal species or stocks by Alaskan Natives. NMFS has defined “unmitigable adverse impact” in 50 CFR 216.103 as an impact resulting from the specified activity: (1) That is likely to reduce the availability of the species to a level insufficient for a harvest to meet subsistence needs by: (i) Causing the marine mammals to abandon or avoid hunting areas; (ii) Directly displacing subsistence users; or (iii) placing physical barriers between the marine mammals and the subsistence hunters; and (2) that cannot be sufficiently mitigated by other measures to increase the availability of marine mammals to allow subsistence needs to be met.

The project is unlikely to affect beluga whale harvests because no beluga harvest will take place in 2019, nor is one likely to occur in the other years that covered by the 5-year regulations and associated LOAs. This assumption is largely based on the lack of increased abundance of Cook Inlet beluga whales such that a 5-year population estimate average would exceed 350 individuals. Additionally, the action area is not an important native subsistence site for other subsistence species of marine mammals. Because of the relatively small number of marine mammals harvested in Cook Inlet, the number affected by the action is expected to be extremely low. To further minimize any potential effects of their action on subsistence activities, Hilcorp is required to detail how they have engaged with stakeholders to discuss potential concerns regarding their planned activities, as well as how they will continue to engage with stakeholder during the course of their project. Hilcorp has outlined their communication plan for engaging with subsistence users in their Stakeholder Engagement Plan. Hilcorp will be required to abide by this plan and the plan will be updated every time Hilcorp applies for a LOA. Therefore, because the action will result in only temporary disturbances, the action will not impact the availability of these other marine mammal species for subsistence uses.

The timing and location of subsistence harvest of Cook Inlet harbor seals may coincide with Hilcorp's project but, because this subsistence hunt is conducted opportunistically and at such a low level (NMFS, 2013c), Hilcorp's program is not expected to have an impact on the subsistence use of harbor seals. Hilcorp's list of contacts who were notified about their activities includes communities and individuals who participate in subsistence hunting of harbor seals. Hilcorp will continue to coordinate with the identified stakeholders to ensure there are no conflicts between their activities and harbor seal subsistence hunts throughout the duration of these regulations, as required in the regulations and described in Hilcorp's Stakeholder Engagement Plan.

NMFS anticipates that any effects from Hilcorp's activities on marine mammals, especially harbor seals and Cook Inlet beluga whales, which are or have been taken for subsistence uses, will be short-term, site specific, and limited to inconsequential changes in behavior and mild stress responses. NMFS does not anticipate that the authorized taking of affected species or stocks will reduce the availability of the species to a level insufficient for a harvest to meet subsistence needs by: (1) Causing the marine mammals to abandon or avoid hunting areas; (2) directly displacing subsistence users; or (3) placing physical barriers between the marine mammals and the subsistence hunters. And any such potential reductions could be sufficiently mitigated by other measures to increase the availability of marine mammals to allow subsistence needs to be met. Based on the description of the specified activity, the measures described to minimize adverse effects Start Printed Page 37502on the availability of marine mammals for subsistence purposes, and the required mitigation and monitoring measures, NMFS has determined that there will not be an unmitigable adverse impact on subsistence uses from Hilcorp's activities.

Adaptive Management

The regulations governing the take of marine mammals incidental to Hilcorp's oil and gas activities will contain an adaptive management component.

The reporting requirements associated with this rule are designed to provide NMFS with monitoring data from the previous year to allow consideration of whether any changes are appropriate. The use of adaptive management allows NMFS to consider new information from different sources to determine (with input from Hilcorp regarding practicability) on an annual basis if mitigation or monitoring measures should be modified (including additions or deletions). Mitigation or monitoring measures could be modified if new data suggests that such modifications will have a reasonable likelihood more effectively achieving the goals of the mitigation and monitoring and if the measures are practicable.

The following are some of the possible sources of applicable data to be considered through the adaptive management process: (1) Results from monitoring reports, as required by MMPA authorizations; (2) results from general marine mammal and sound research; and (3) any information which reveals that marine mammals may have been taken in a manner, extent, or number not authorized by these regulations or subsequent LOAs.

Endangered Species Act (ESA)

Section 7(a)(2) of the Endangered Species Act of 1973 (ESA: 16 U.S.C. 1531 et seq.) requires that each Federal agency insure that any action it authorizes, funds, or carries out is not likely to jeopardize the continued existence of any endangered or threatened species or result in the destruction or adverse modification of designated critical habitat. To ensure ESA compliance for the issuance of ITAs, NMFS consults internally, in this case with the Alaska Protected Resources Division Office, whenever we propose to authorize take for endangered or threatened species. NMFS is authorizing take of Cook Inlet beluga whale, Northeastern Pacific stock of fin whales, Western North Pacific, Hawaii, and Mexico DPS of humpback whales, and western DPS of Steller sea lions, which are listed under the ESA. The Permit and Conservation Division requested initiation of section 7 consultation with the Alaska Region for the promulgation of 5-year regulations and the subsequent issuance of annual LOAs. The Alaska Region issued a Biological Opinion concluding that NMFS' action is not likely to adversely affect the listed species named above or adversely modify their critical habitat.

Classification

Pursuant to the procedures established to implement Executive Order 12866, the Office of Management and Budget has determined that this rule is not significant.

Pursuant to section 605(b) of the Regulatory Flexibility Act (RFA), the Chief Counsel for Regulation of the Department of Commerce has certified to the Chief Counsel for Advocacy of the Small Business Administration that this rule will not have a significant economic impact on a substantial number of small entities. Hilcorp Alaska LLC is the only entity that is subject to the requirements in these regulations. Hilcorp employs thousands of people worldwide, and has a market value in the billions of dollars. Therefore, Hilcorp is not a small governmental jurisdiction, small organization, or small business, as defined by the RFA. Because of this certification, a regulatory flexibility analysis is not required and none has been prepared.

Notwithstanding any other provision of law, no person is required to respond to nor shall a person be subject to a penalty for failure to comply with a collection of information subject to the requirements of the Paperwork Reduction Act (PRA) unless that collection of information displays a currently valid OMB control number. This rule contains collection-of-information requirements subject to the provisions of the PRA. These requirements have been approved by OMB under control number 0648-0151 and include applications for regulations, subsequent LOAs, and reports.

Waiver of Delay in Effective Date

The Assistant Administrator for NMFS has determined that there is good cause under the Administrative Procedure Act (5 U.S.C 553(d)(3)) to waive the 30-day delay in the effective date of this final rule. No individual or entity other than Hilcorp is affected by the provisions of these regulations. Hilcorp has informed NMFS that it requests that this final rule take effect as soon as is possible so as to avoid the potential for disruption in Hilcorp's planned activities. NMFS was unable to accommodate the 30-day delay of effectiveness period due to the need for additional time to address public comment and carry out required review, which was delayed by the lapse in federal appropriations in December 2018 and January 2019. The waiver of the 30-day delay of the effective date of the final rule will ensure that the MMPA final rule and LOA are finalized as soon as is possible to avoid the potential for disruption in the Hilcorp's planned activities. In addition, the LOA allows for authorization of incidental take of marine mammals that would otherwise be prohibited under the statute. Therefore the rule is also granting an exception to Hilcorp and relieving restrictions under the MMPA. For these reasons, NMFS finds good cause to waive the 30-day delay in the effective date.

Start List of Subjects

List of Subjects in 50 CFR Part 217

  • Penalties
  • Reporting and recordkeeping requirements
  • Seafood
  • Transportation
End List of Subjects Start Signature

Dated: July 22, 2019.

Samuel D. Rauch III,

Deputy Assistant Administrator for Regulatory Programs, National Marine Fisheries Service.

End Signature

For reasons set forth in the preamble, 50 CFR part 217 is amended as follows:

Start Part

PART 217—REGULATIONS GOVERNING THE TAKING AND IMPORTING OF MARINE MAMMALS

End Part Start Amendment Part

1. The authority citation for part 217 continues to read as follows:

End Amendment Part Start Authority

Authority: 16 U.S.C. 1361 et seq.

End Authority Start Amendment Part

2. Add subpart Q to part 217 to read as follows:

End Amendment Part
Subpart Q—Taking and Importing Marine Mammals; Taking Marine Mammals Incidental to Oil and Gas Activities in Cook Inlet, Alaska.
217.160
Specified activity and specified geographical region.
217.161
Effective dates.
217.162
Permissible methods of taking.
217.163
Prohibitions.
217.164
Mitigation requirements.
217.165
Requirements for monitoring and reporting.
217.166
Letters of Authorization.
217.167
Renewals and modifications of Letters of Authorization and adaptive management.
217.168-217.169
[Reserved]

Subpart Q—Taking and Importing Marine Mammals; Taking Marine Mammals Incidental to Oil and Gas Activities in Cook Inlet, Alaska.

Specified activity and specified geographical region.

(a) Regulations in this subpart apply only to Hilcorp Alaska LLC (Hilcorp) Start Printed Page 37503and those persons it authorizes or funds to conduct activities on its behalf for the taking of marine mammals that occurs in the area outlined in paragraph (b) of this section and that occurs incidental to the activities described in paragraph (c) of this section.

(b) The taking of marine mammals by Hilcorp may be authorized in Letters of Authorization (LOAs) only if it occurs within the action area defined in Cook Inlet, Alaska.

(c) The taking of marine mammals by Hilcorp is only authorized if it occurs incidental to Hilcorp's oil and gas activities including use of seismic airguns, sub-bottom profiler, vertical seismic profiling, pile driving, conductor pipe driving, and water jets.

Effective dates.

Regulations in this subpart are effective July 30, 2019, through July 30, 2024.

Permissible methods of taking.

Under LOAs issued pursuant to §§ 216.106 of this chapter and 217.166, the Holder of the LOAs (hereinafter “Hilcorp”) may incidentally, but not intentionally, take marine mammals within the area described in § 217.160(b) by Level A harassment and Level B harassment associated with oil and gas activities, provided the activity is in compliance with all terms, conditions, and requirements of the regulations in this subpart and the applicable LOAs.

Prohibitions.

Notwithstanding takings contemplated in § 217.162 and authorized by LOAs issued under §§ 216.106 of this chapter and 217.166, no person in connection with the activities described in § 217.160 may:

(a) Violate, or fail to comply with, the terms, conditions, and requirements of this subpart or a LOA issued under §§ 216.106 of this chapter and 217.166;

(b) Take any marine mammal not specified in such LOAs;

(c) Take any marine mammal specified in such LOAs in any manner other than as specified;

(d) Take a marine mammal specified in such LOAs if NMFS determines such taking results in more than a negligible impact on the species or stocks of such marine mammal; or

(e) Take a marine mammal specified in such LOAs if NMFS determines such taking results in an unmitigable adverse impact on the availability of such species or stock of marine mammal for taking for subsistence uses.

Mitigation requirements.

When conducting the activities identified in § 217.160(c), the mitigation measures contained in any LOAs issued under §§ 216.106 of this chapter and 217.166 must be implemented. These mitigation measures must include but are not limited to:

(a) Hilcorp must conduct a sound source verification (SSV) for 3D seismic and sub-bottom profiler use. Results of this SSV must be sent to NMFS and mitigation and monitoring zones may be adjusted based on the results of the SSV.

(b) If any marine mammal species for which take is not authorized are sighted within or entering the relevant zones within which they are be exposed to sound above the 120 dB re 1 µPa (rms) threshold for continuous (e.g., vibratory pile-driving, drilling) sources or the 160 dB re 1 µPa (rms) threshold for non-explosive impulsive (e.g., seismic airguns) or intermittent (e.g., scientific sonar) sources, Hilcorp must take appropriate action to avoid such exposure (e.g., by altering speed or course or by shutdown of the sound source).

(c) If the allowable number of takes in an LOA listed for any marine mammal species is met or exceeded, Hilcorp must immediately cease survey operations involving the use of active sound source(s), record the observation, and notify NMFS Office of Protected Resources.

(d) Hilcorp must notify NMFS Office of Protected Resources at least 48 hours prior to the start of oil and gas activities each year.

(e) Hilcorp must conduct briefings as necessary between vessel crews, marine mammal monitoring team, and other relevant personnel prior to the start of all survey activity, and when new personnel join the work, in order to explain responsibilities, communication procedures, marine mammal monitoring protocol, and operational procedures.

(f) Hilcorp must establish monitoring and exclusion zones.

(1) For all relevant in-water activity, Hilcorp must implement shutdown zones/exclusion zones (EZs) with radial distances as identified in any LOA issued under §§ 216.106 of this chapter and 217.166. If a marine mammal is sighted within or entering the EZ, such operations must cease.

(2) For all relevant in-water activity, Hilcorp must designate safety zones for monitoring (SZ) with radial distances as identified in any LOA issued under §§ 216.106 of this chapter and 217.166 and record and report occurrence of marine mammals within these zones.

(3) For all relevant in-water activity, Hilcorp must implement a minimum EZ of a 10 m radius around the source.

(g) Hilcorp must implement shutdown measures.

(1) Hilcorp must deploy protected species observers (PSO) and PSOs must be posted to monitor marine mammals within the monitoring zones during use of active acoustic sources and pile driving in water.

(2) Monitoring must begin 15 minutes prior to initiation of stationary source activity and 30 minutes prior to initiation of mobile source activity, occur throughout the time required to complete the activity, and continue through 30 minutes post-completion of the activity. Pre-activity monitoring must be conducted to ensure that the EZ is clear of marine mammals, and activities may only commence once observers have declared the EZ clear of marine mammals. In the event of a delay or shutdown of activity resulting from marine mammals in the EZ, the marine mammals' behavior must be monitored and documented.

(3) A determination that the EZ is clear must be made during a period of good visibility (i.e., the entire EZ must be visible to the naked eye).

(4) If a marine mammal is observed within or entering the EZ, Hilcorp must halt all noise producing activities for which take is authorized at that location. If activity is delayed due to the presence of a marine mammal, the activity may not commence or resume until either the animal has voluntarily left and been visually confirmed outside the EZ or the required amount of time (15 for porpoises and pinnipeds, 30 minutes for cetaceans) have passed without re-detection of the animal.

(5) Monitoring must be conducted by trained observers, who must have no other assigned tasks during monitoring periods. Trained observers must be placed at the best vantage point(s) practicable to monitor for marine mammals and implement shutdown or delay procedures when applicable through communication with the equipment operator. Hilcorp must adhere to the following additional observer qualifications:

(i) Hilcorp must use independent, dedicated, trained visual PSOs, meaning that the PSOs must be employed by a third-party observer provider, must not have tasks other than to conduct observational effort, collect data, and communicate with and instruct relevant vessel crew with regard to the presence of protected species and mitigation requirements (including brief alerts regarding maritime hazards), and must have successfully completed an Start Printed Page 37504approved PSO training course appropriate for their designated task.

(ii) Hilcorp must submit PSO resumes for NMFS review and approval. Resumes must be accompanied by a relevant training course information packet that includes the name and qualifications (i.e., experience, training completed, or educational background) of the instructor(s), the course outline or syllabus, and course reference material as well as a document stating successful completion of the course. NMFS will approve or disapprove PSOs within one week from the time that the necessary information is received by NMFS, after which PSOs meeting the minimum requirements will automatically be considered approved.

(iii) To the maximum extent practicable, the lead PSO must devise the duty schedule such that experienced PSOs are on duty with those PSOs with appropriate training but who have not yet gained relevant experience.

(6) Operations must shut down completely if a beluga whale is sighted within the relevant Level B harassment isopleth.

(h) Hilcorp must implement soft start techniques for impact pile driving.

(1) Hilcorp must conduct an initial set of three strikes from the impact hammer 30 seconds apart, at 40 percent energy, followed by a 1-minute waiting period, then two subsequent three strike sets.

(2) Soft start is required for any impact driving, including at the beginning of the day, after 30 minutes of pre-activity monitoring, and at any time following a cessation of impact pile driving of 30 minutes or longer.

(i) Hilcorp must implement ramp ups for seismic airgun use.

(1) Ramp up must be used at the start of airgun operations, including after a shutdown, and after any period greater than 30 minutes in duration without airgun operations.

(2) The rate of ramp up must be no more than 6 dB per 5-minute period.

(3) Ramp up must begin with the smallest gun in the array that is being used for all airgun array configurations.

(4) During the ramp up, the EZ for the full airgun array must be implemented.

(5) If the complete EZ has not been visible for at least 30 minutes prior to the start of operations, ramp up must not commence.

(6) Ramp up of the airguns must not be initiated if a marine mammal is sighted within or entering the EZ at any time.

(j) Hilcorp must use aircraft for mitigation.

(1) Hilcorp must use aircraft daily to survey the planned seismic survey area prior to the start of seismic surveying. Surveying must not begin unless the aerial flights confirm the planned survey area for that day is clear of beluga whales. If weather conditions make flying before the start of seismic in daylight unsafe, Hilcorp may delay the aerial survey until weather conditions improve and it is safe to fly.

(2) If beluga whales are sighted during flights, start of seismic surveying must be delayed until it is confirmed the area is free of beluga whales.

(k) Hilcorp must implement exclusion zones for beluga whales.

(1) Hilcorp must not operate with noise producing activity within 10 miles (16 km) of the mean higher high water (MHHW) line of the Susitna Delta (Beluga River to the Little Susitna River) between April 15 and October 15. Hilcorp must not conduct seismic activity within the Level B isopleth distance of the mouth of the Kasilof River between January 1 and May 31.

(m) Hilcorp must abide by all mitigation measures described in the Biological Opinion for Hilcorp Alaska and Harvest Alaska Oil and Gas Activities, Cook Inlet, Alaska.

Requirements for monitoring and reporting.

(a) Marine mammal monitoring protocols. Hilcorp must conduct briefings between construction supervisors and crews and the observer team prior to the start of all pile driving and removal activities, and when new personnel join the work. Trained observers must receive a general environmental awareness briefing conducted by Hilcorp staff. At minimum, training must include identification of marine mammals that may occur in the project vicinity and relevant mitigation and monitoring requirements. All observers must have no other construction-related tasks while conducting monitoring.

(b) Visibility. Activities must only commence when the entire exclusion zone (EZ) is visible to the naked eye and can be adequately monitored. If conditions (e.g., fog) prevent the visual detection of marine mammals, activities must not be initiated. For activities other than seismic surveying, activity must be halted in low visibility but vibratory pile driving or removal will be allowed to continue if started in good visibility.

(c) Monitoring periods. Monitoring must begin 15 minutes prior to initiation of stationary source activity and 30 minutes prior to initiation of mobile source activity, occur throughout the time required to complete the activity, and continue through 30 minutes post-completion of the activity. Pre-activity monitoring must be conducted to ensure that the EZ is clear of marine mammals, and activities may only commence once observers have declared the EZ clear of marine mammals. In the event of a delay or shutdown of activity resulting from marine mammals in the EZ, the animals' behavior must be monitored and documented.

(d) Placement of PSOs. (1) At least one on-duty PSO must be placed on the source vessel (for seismic and geohazard surveys) or drill rig (for pipe driving and VSP).

(2) During seismic surveys a mitigation vessel must be used with at least one on-duty PSO aboard the vessel monitoring for marine mammal occurrence.

(e) Reporting measures—(1) Take limits. Hilcorp must contact NMFS when they have reached the limit of authorized takes of beluga whale within a year.

(2) Monthly reports. Monthly reports must be submitted to NMFS for all months during which in-water seismic activities take place. The monthly report must contain and summarize the following information: Dates, times, locations, heading, speed, weather, sea conditions (including Beaufort sea state and wind force), and associated activities during all seismic operations and marine mammal sightings; Species, number, location, distance from the vessel, and behavior of any sighted marine mammals, as well as associated seismic activity (number of power-downs and shutdowns), observed throughout all monitoring activities; An estimate of the number (by species) exposed to the seismic activity (based on visual observation) at received levels greater than or equal to the NMFS thresholds discussed above with a discussion of any specific behaviors those individuals exhibited; A description of the implementation and effectiveness of the terms and conditions of the Biological Opinion's Incidental Take Statement (ITS) and mitigation measures of the LOA.

(3) Annual report s. (i) Hilcorp must submit an annual report within 90 days after each activity year, starting from the date when the LOA is issued (for the first annual report) or from the date when the previous annual report ended.

(ii) Annual reports will detail the monitoring protocol, summarize the data recorded during monitoring, and estimate the number of marine mammals that may have been harassed during the period of the report.

(iii) NMFS will provide comments within 30 days after receiving annual reports, and Hilcorp must address the Start Printed Page 37505comments and submit revisions within 30 days after receiving NMFS comments. If no comment is received from the NMFS within 30 days, the annual report will be considered completed.

(4) Final report. (i) Hilcorp must submit a comprehensive summary report to NMFS not later than 90 days following the conclusion of marine mammal monitoring efforts described in this subpart.

(ii) The final report must synthesize all data recorded during marine mammal monitoring, and estimate the number of marine mammals that may have been harassed through the entire project.

(iii) NMFS will provide comments within 30 days after receiving this report, and Hilcorp must address the comments and submit revisions within 30 days after receiving NMFS comments. If no comment is received from the NMFS within 30 days, the final report will be considered as final.

(5) Reporting of injured or dead marine mammals. (i) In the event that personnel involved in the survey activities discover an injured or dead marine mammal, Hilcorp must report the incident to the Office of Protected Resources (OPR), NMFS (301-427-8401) and to regional stranding network (877- 925-7773) as soon as feasible. The report must include the following information:

(A) Time, date, and location (latitude/longitude) of the first discovery (and updated location information if known and applicable);

(B) Species identification (if known) or description of the animal(s) involved;

(C) Condition of the animal(s) (including carcass condition if the animal is dead);

(D) Observed behaviors of the animal(s), if alive;

(E) If available, photographs or video footage of the animal(s); and

(F) General circumstances under which the animal was discovered.

(ii) In the event of a ship strike of a marine mammal by any vessel involved in the survey activities, Hilcorp must report the incident to OPR, NMFS and to regional stranding networks as soon as feasible. The report must include the following information:

(A) Time, date, and location (latitude/longitude) of the incident;

(B) Species identification (if known) or description of the animal(s) involved;

(C) Vessel's speed during and leading up to the incident;

(D) Vessel's course/heading and what operations were being conducted (if applicable);

(E) Status of all sound sources in use;

(F) Description of avoidance measures/requirements that were in place at the time of the strike and what additional measures were taken, if any, to avoid strike;

(G) Environmental conditions (e.g., wind speed and direction, Beaufort sea state, cloud cover, visibility) immediately preceding the strike;

(H) Estimated size and length of animal that was struck;

(I) Description of the behavior of the marine mammal immediately preceding and following the strike;

(J) If available, description of the presence and behavior of any other marine mammals immediately preceding the strike;

(K) Estimated fate of the animal (e.g., dead, injured but alive, injured and moving, blood or tissue observed in the water, status unknown, disappeared); and

(L) To the extent practicable, photographs or video footage of the animal(s).

(iii) In the event of a live stranding (or near-shore atypical milling) event within 50 km of the survey operations, where the NMFS stranding network is engaged in herding or other interventions to return animals to the water, the Director of OPR, NMFS (or designee) will advise Hilcorp of the need to implement shutdown procedures for all active acoustic sources operating within 50 km of the stranding. Shutdown procedures for live stranding or milling marine mammals include the following:

(A) If at any time, the marine mammal(s) die or are euthanized, or if herding/intervention efforts are stopped, the Director of OPR, NMFS (or designee) will advise Hilcorp that the shutdown around the animals' location is no longer needed.

(B) Otherwise, shutdown procedures must remain in effect until the Director of OPR, NMFS (or designee) determines and advises Hilcorp that all live animals involved have left the area (either of their own volition or following an intervention).

(C) If further observations of the marine mammals indicate the potential for re-stranding, additional coordination with Hilcorp must occur to determine what measures are necessary to minimize that likelihood (e.g., extending the shutdown or moving operations farther away) and Hilcorp must implement those measures as appropriate.

(iv) If NMFS determines that the circumstances of any marine mammal stranding found in the vicinity of the activity suggest investigation of the association with survey activities is warranted, and an investigation into the stranding is being pursued, NMFS will submit a written request to Hilcorp indicating that the following initial available information must be provided as soon as possible, but no later than 7 business days after the request for information.

(A) Status of all sound source use in the 48 hours preceding the estimated time of stranding and within 50 km of the discovery/notification of the stranding by NMFS; and

(B) If available, description of the behavior of any marine mammal(s) observed preceding (i.e., within 48 hours and 50 km) and immediately after the discovery of the stranding.

(C) In the event that the investigation is still inconclusive, the investigation of the association of the survey activities is still warranted, and the investigation is still being pursued, NMFS may provide additional information requests, in writing, regarding the nature and location of survey operations prior to the time period above.

Letters of Authorization.

(a) To incidentally take marine mammals pursuant to these regulations, Hilcorp must apply for and obtain (LOAs) in accordance with § 216.106 of this chapter for conducting the activity identified in § 217.160(c).

(b) LOAs, unless suspended or revoked, may be effective for a period of time not to extend beyond the expiration date of these regulations.

(c) An LOA application must be submitted to the Director, Office of Protected Resources, NMFS, by March 1st of the year preceding the desired start date.

(d) An LOA application must include the following information:

(1) \The date(s), duration, and the area(s) where the activity will occur;

(2) The species and/or stock(s) of marine mammals likely to be found within each area;

(3) The estimated number of takes for each marine mammal stock potentially affected in each area for the period of effectiveness of the Letter of Authorization.

(4) An updated Stakeholder Engagement Plan detailing Hilcorp's meetings with stakeholders and any concerns raised that relate to marine mammals or subsistence activities.

(e) In the event of projected changes to the activity or to mitigation, monitoring, reporting (excluding changes made pursuant to the adaptive management provision of § 217.97(c)(1)) required by an LOA, Hilcorp must apply for and obtain a modification of LOAs as described in § 217.167.Start Printed Page 37506

(f) Each LOA must set forth:

(1) Permissible methods of incidental taking;

(2) Means of effecting the least practicable adverse impact (i.e., mitigation) on the species, their habitat, and the availability of the species for subsistence uses; and

(3) Requirements for monitoring and reporting.

(g) Issuance of the LOA(s) must be based on a determination that the level of taking must be consistent with the findings made for the total taking allowable under these regulations.

(h) If NMFS determines that the level of taking is resulting or may result in more than a negligible impact on the species or stocks of such marine mammal, the LOA may be modified or suspended after notice and a public comment period.

(i) Notice of issuance or denial of the LOA(s) must be published in the Federal Register within 30 days of a determination.

Renewals and modifications of Letters of Authorization and adaptive management.

(a) An LOA issued under §§ 216.106 of this chapter and 217.166 for the activity identified in § 217.160(c) may be renewed or modified upon request by the applicant, provided that the following are met:

(1) Notification to NMFS that the activity described in the application submitted under § 217.160(a) will be undertaken and that there will not be a substantial modification to the described work, mitigation or monitoring undertaken during the upcoming or remaining LOA period;

(2) Timely receipt (by the dates indicated) of monitoring reports, as required under § 217.165(C)(3);

(3) A determination by the NMFS that the mitigation, monitoring and reporting measures required under § 217.165(c) and the LOA issued under §§ 216.106 of this chapter and 217.166, were undertaken and are expected to be undertaken during the period of validity of the LOA.

(b) If a request for a renewal of a Letter of Authorization indicates that a substantial modification, as determined by NMFS, to the described work, mitigation or monitoring undertaken during the upcoming season will occur, NMFS will provide the public a period of 30 days for review and comment on the request as well as the proposed modification to the LOA. Review and comment on renewals of Letters of Authorization are restricted to:

(1) New cited information and data indicating that the original determinations made for the regulations are in need of reconsideration; and

(2) Proposed changes to the mitigation and monitoring requirements contained in these regulations or in the current Letter of Authorization.

(c) A notice of issuance or denial of a renewal of a Letter of Authorization will be published in the Federal Register within 30 days of a determination.

(d) An LOA issued under §§ 216.16 of this chapter and 217.166 for the activity identified in § 217.160 may be modified by NMFS under the following circumstances:

(1) Adaptive management. NMFS, in response to new information and in consultation with Hilcorp, may modify the mitigation or monitoring measures in subsequent LOAs if doing so creates a reasonable likelihood of more effectively accomplishing the goals of mitigation and monitoring set forth in the preamble of these regulations.

(i) Possible sources of new data that could contribute to the decision to modify the mitigation or monitoring measures include:

(A) Results from Hilcorp's monitoring from the previous year(s).

(B) Results from marine mammal and/or sound research or studies.

(C) Any information that reveals marine mammals may have been taken in a manner, extent or number not authorized by these regulations or subsequent LOAs.

(ii) If, through adaptive management, the modifications to the mitigation, monitoring, or reporting measures are substantial, NMFS will publish a notice of proposed LOA in the Federal Register and solicit public comment.

(2) Withdrawal or suspension. NMFS will withdraw or suspend an LOA if, after notice and opportunity for public comment, NMFS determines these regulations are not being substantially complied with or that the taking allowed is or may be having more than a negligible impact on an affected species or stock specified in § 217.162(b) or an unmitigable adverse impact on the availability of the species or stock for subsistence uses. The requirement for notice and comment will not apply if NMFS determines that an emergency exists that poses a significant risk to the well-being of the species or stocks of marine mammals. Notice will be published in the Federal Register within 30 days of such action.

End Supplemental Information

BILLING CODE 3510-22-P

BILLING CODE 3510-22-C

BILLING CODE 3510-22-P

BILLING CODE 3510-22-C

BILLING CODE 3510-22-P

BILLING CODE 3510-22-C

[FR Doc. 2019-15867 Filed 7-30-19; 8:45 am]

BILLING CODE 3510-22-P
