Airworthiness Directives; Sikorsky Aircraft Corporation Helicopters

Comments on this document are being accepted at Regulations.gov. Submit a formal comment

Document Details

Information about this document as published in the Federal Register.

Document Statistics
Document page views are updated periodically throughout the day and are cumulative counts for this document including its time on Public Inspection. Counts are subject to sampling, reprocessing and revision (up or down) throughout the day.
Enhanced Content

Relevant information about this document from Regulations.gov provides additional context. This information is not part of the official Federal Register document.

Published Document

This document has been published in the Federal Register. Use the PDF linked in the document sidebar for the official electronic format.

Start Preamble

AGENCY:

Federal Aviation Administration (FAA), DOT.

ACTION:

Final rule.

SUMMARY:

The FAA is adopting a new airworthiness directive (AD) for certain Sikorsky Aircraft Corporation (Sikorsky) Model S-92A helicopters. This AD was prompted by fatigue analysis indicating stress concentrations, as well as the discovery of a helicopter with a crack in the station (STA) 362 frame and skin. This AD requires inspecting the main transmission forward and aft frame assemblies and adjacent skins for a crack and loose fasteners, and establishing life limits for certain frame assemblies. The FAA is issuing this AD to address the unsafe condition on these products.

DATES:

This AD is effective August 29, 2019.

ADDRESSES:

For service information identified in this final rule, contact Sikorsky Aircraft Corporation, Customer Service Engineering, 124 Quarry Road, Trumbull, CT 06611; telephone 1-800-Winged-S or 203-416-4299; email: wcs_cust_service_eng.gr-sik@lmco.com. You may view this service information at the FAA, Office of the Regional Counsel, Southwest Region, 10101 Hillwood Pkwy., Room 6N-321, Fort Worth, TX 76177.

Examining the AD Docket

You may examine the AD docket on the internet at http://www.regulations.gov by searching for and locating Docket No. FAA-2016-8501; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this final rule, the regulatory evaluation, any comments received, and other information. The address for Docket Operations is U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue SE, Washington, DC 20590.

Start Further Info

FOR FURTHER INFORMATION CONTACT:

Kristopher Greer, Aviation Safety Engineer, Boston ACO Branch, Compliance and Airworthiness Start Printed Page 35815Division, 1200 District Avenue, Burlington, Massachusetts 01803; telephone (781) 238-7799; email Kristopher.Greer@faa.gov.

End Further Info End Preamble Start Supplemental Information

SUPPLEMENTARY INFORMATION:

Discussion

The FAA issued a notice of proposed rulemaking (NPRM) to amend 14 CFR part 39 by adding an AD that would apply to certain Sikorsky Model S-92A helicopters. The NPRM published in the Federal Register on July 15, 2016 (81 FR 46002). The NPRM was prompted by a fatigue analysis that indicates stress concentrations may develop at the steel doublers on the main transmission airframe support structure top deck, adjacent to the transmission feet. Additionally, a helicopter was discovered with a crack in the STA 362 frame and skin. The NPRM proposed to require inspecting the main transmission forward and aft frame assemblies and adjacent skins for a crack and loose fasteners, and replacing or repairing any cracked part or loose fastener. The NPRM also proposed to require establishing life limits for certain frame assemblies.

The FAA issued a supplemental NPRM (SNPRM) (83 FR 66167, December 26, 2018) that proposed to revise the NPRM by increasing the estimated costs of compliance and removing the daily inspection requirements.

The FAA is issuing this AD to detect a crack in a main transmission airframe support structure, which could result in failure of a main transmission frame and subsequent loss of control of the helicopter.

Comments

The FAA gave the public the opportunity to participate in developing this final rule. The following presents the comments received on the SNPRM and the FAA's response to each comment.

Request To Reference the Latest Service Information

Sikorsky requested that the FAA reference the latest revision of Sikorsky S-92A-AMM-000 Maintenance Manual, Chapter 53-20-00, Task 53-20-00-210-003, “Inspection of Main Transmission Airframe Support Structure.”

The FAA agrees. The FAA has revised this final rule to reference Sikorsky S-92A-AMM-000 Maintenance Manual, Chapter 53-20-00, Task 53-20-00-210-003, “Inspection of Main Transmission Airframe Support Structure,” dated November 30, 2018.

Request To Revise Certain Terminology in the SNPRM

Sikorsky requested that all instances of “life limits” be changed to “replacement intervals.” Sikorsky stated that this terminology is consistent with 14 CFR Appendix A to part 29 and the approved airworthiness limitations section of the maintenance manual.

The FAA disagrees. The term “life limit” has been used in previous ADs applicable to Sikorsky aircraft and is well understood by the aviation industry. In addition, the use of life limit conveys the mandatory nature of the replacement intervals. The FAA has not changed this final rule in this regard.

Request To Revise the Life Limit Hours Time-In-Service (TIS) in the SNPRM

Sikorsky requested that the FAA revise the values for the life limit hours TIS. Sikorsky stated that the replacement intervals for the frame assembly part numbers shown in table 1 to paragraph (e)(1) of the SNPRM (which is referred to as figure 1 to paragraphs (a) and (e) in this final rule) increased since issuance of the NPRM. Sikorsky also stated that a recent certification effort for these parts increased the replacement intervals by a minimum of 7,900 hours, to as much as 17,400 hours, above the limits proposed in the SNPRM. Sikorsky commented that incorporation of these new replacement intervals (ranging from 18,300 life limit hours TIS to 29,400 life limit hours TIS, as applicable) will avoid unnecessary removal from service of frame assemblies and avoid the need for issuance of alternate methods of compliance to address differences between the life limits proposed by the SNPRM and those subsequently approved by the FAA.

The FAA agrees. The FAA has revised the life limits in this final rule for the reasons provided by the commenter because these longer life limits have been approved by the FAA.

Sikorsky further commented that with approval of recent certification work, Forward STA 328 frame assemblies that are altered and changed to P/N 92070-20124-064, 92070-20124-067, 92070-20127-045, 92070-20124-065, 92070-20124-047, or 92070-20127-046 are no longer counted from TIS of alternation. They are only counted from the original frame part number initial service date instead. These part-numbered assemblies were proposed in the SNPRM for removal from service upon accumulating 12,000 hours TIS from the alteration or 28,500 hours TIS total (regardless of part number) from the total original frame part number initial service date, whichever occurs first.

The FAA agrees and has omitted “remove from service of upon accumulating 12,000 hours TIS from the alteration” in this final rule.

Additional Changes Made in This Final Rule

The four tables in the SNPRM have been re-identified as figures in this AD. The FAA has also relocated these figures to all follow paragraph (a) of this AD.

FAA's Determination

The FAA has reviewed the relevant information, considered the comments received, and determined that an unsafe condition exists and is likely to exist or develop on other helicopters of the same type design and that air safety and the public interest require adopting the AD requirements as proposed with the changes described previously. These changes are consistent with the intent of the proposals in the SNPRM and do not add any additional burden upon the public than was already proposed in the SNPRM. Additionally, these changes will not increase the economic burden on any operator or increase the scope of the AD.

Related Service Information

Sikorsky issued Alert Service Bulletin (ASB) 92-53-008, Basic Issue, dated June 13, 2012 (ASB 92-53-008); ASB 92-53-009, Basic Issue, dated December 6, 2012 (ASB 92-53-009); ASB 92-53-012, Basic Issue, dated February 10, 2014 (ASB 92-53-012); and S-92A-AMM-000 Maintenance Manual, Chapter 53-20-00, Task 53-20-00-210-003, “Inspection of Main Transmission Airframe Support Structure,” dated November 30, 2018 (Task 53-20-00-210-003).

ASB 92-53-008 provides procedures for a one-time inspection of the main transmission frames and beams for a crack, missing or loose fastener or collar, damage, deformation, and corrosion. ASB 92-53-009 specifies, among other actions, a recurring 150-hour inspection of the interior and exterior surfaces of the upper flanges and beams. ASB 92-53-012 specifies altering the forward and aft transmission support frames by removing steel doublers, cold-working the holes, oversizing the holes, trimming skin panels, and reassembling the parts with interference fit fasteners in accordance with Special Service Instructions 92-074-E. After this alteration, the parts are re-identified with a new part number. Sikorsky refers to this alteration as a service life Start Printed Page 35816extension program modification. Task 53-20-00-210-003 describes procedures for an inspection of the main transmission airframe support structure.

Differences Between This AD and the Service Information

The service information recommends providing certain information to Sikorsky, and this AD does not. The service information specifies performing a fluorescent penetrant inspection if there is a suspected crack and contacting Sikorsky if there is a crack, while this AD only requires repairing or replacing any cracked part. Contacting Sikorsky is not required by this AD.

Costs of Compliance

The FAA estimates that this AD affects 50 helicopters of U.S. Registry. The FAA estimates that operators may incur the following costs to comply with this AD. Labor costs are estimated at $85 per work-hour.

The FAA estimates a minimal cost to establish and revise the life limit of the frame assembly. The FAA estimates it takes 1 work-hour to inspect STA 328 and 362 frames. No parts are needed for a total cost of $4,250 for the U.S. fleet for each inspection per inspection cycle. If a fastener is replaced, the FAA estimates the cost to be minimal. If a frame is replaced, it takes 5,000 work-hours and required parts cost $296,000 for a total cost of $721,000 per helicopter.

Authority for This Rulemaking

Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation Programs describes in more detail the scope of the Agency's authority.

The FAA is issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701: “General requirements.” Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.

Regulatory Findings

This AD will not have federalism implications under Executive Order 13132. This AD will not have a substantial direct effect on the States, on the relationship between the national Government and the States, or on the distribution of power and responsibilities among the various levels of government.

For the reasons discussed above, I certify that this AD:

(1) Is not a “significant regulatory action” under Executive Order 12866,

(2) Will not affect intrastate aviation in Alaska, and

(3) Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.

Start List of Subjects

List of Subjects in 14 CFR Part 39

  • Air transportation
  • Aircraft
  • Aviation safety
  • Incorporation by reference
  • Safety
End List of Subjects

Adoption of the Amendment

Accordingly, under the authority delegated to me by the Administrator, the FAA amends 14 CFR part 39 as follows:

Start Part

PART 39—AIRWORTHINESS DIRECTIVES

End Part Start Amendment Part

1. The authority citation for part 39 continues to read as follows:

End Amendment Part Start Authority

Authority: 49 U.S.C. 106(g), 40113, 44701.

End Authority
[Amended]
Start Amendment Part

2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD):

End Amendment Part

2019-13-05 Sikorsky Aircraft Corporation: Amendment 39-19678; Docket No. FAA-2016-8501; Product Identifier 2014-SW-042-AD.

(a) Applicability

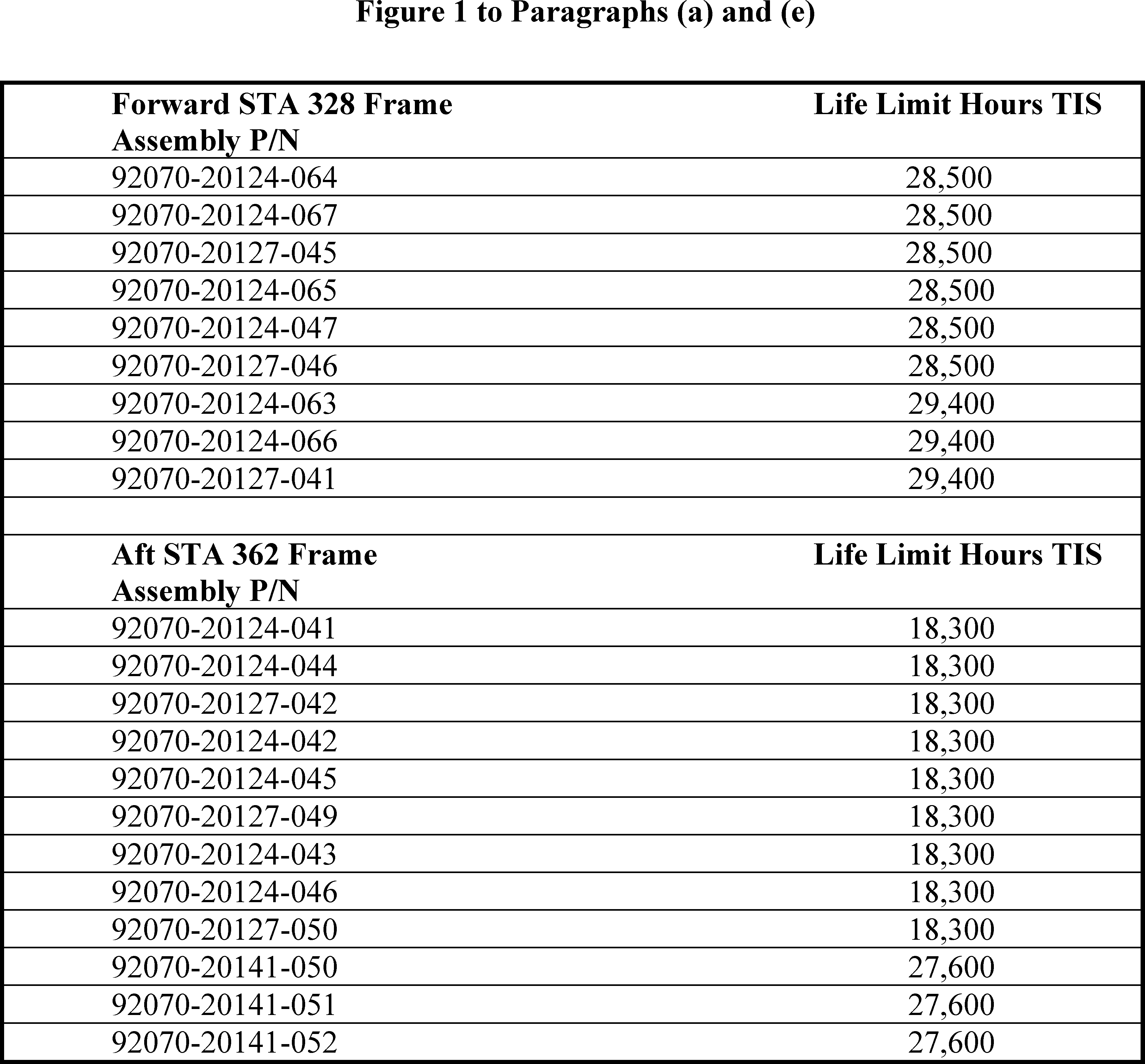

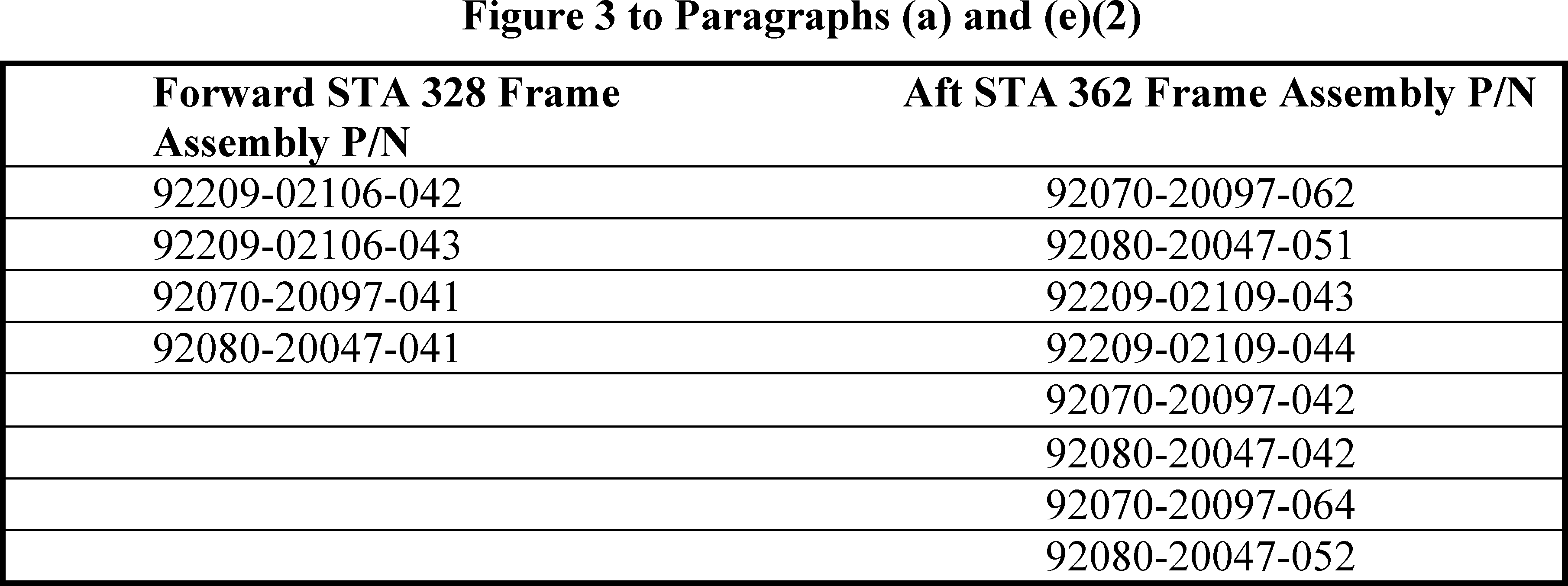

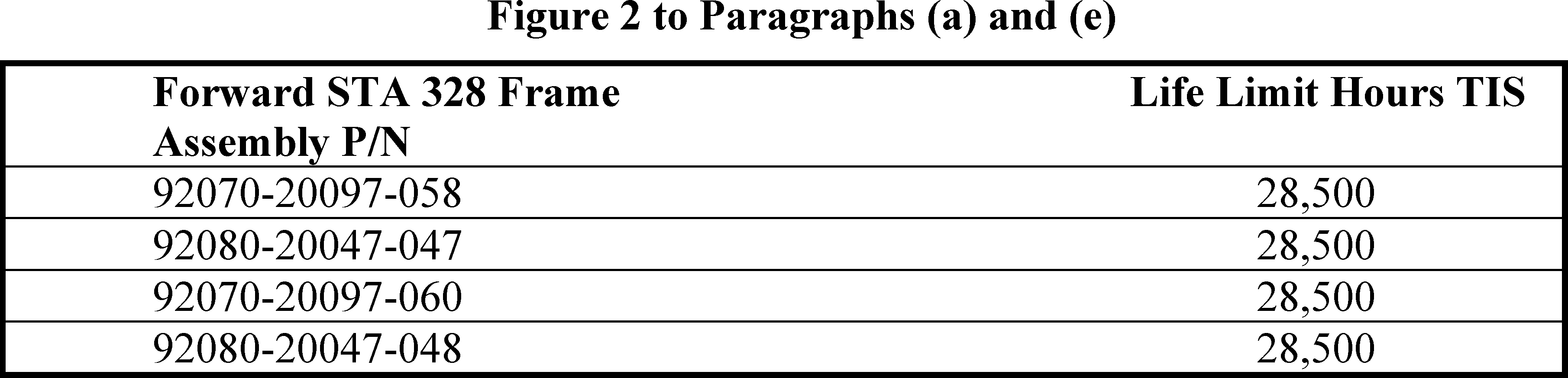

This AD applies to Sikorsky Aircraft Corporation Model S-92A helicopters, certificated in any category, with a forward station (STA) 328 or aft STA 362 frame assembly with a part number (P/N) as shown in Figure 1 to paragraphs (a) and (e) of this AD, Figure 2 to paragraphs (a) and (e) of this AD, Figure 3 to paragraphs (a) and (e)(2) of this AD, or Figure 4 to paragraphs (a) and (e)(2) of this AD.
