Start Preamble

AGENCY:

Federal Aviation Administration (FAA), DOT.

ACTION:

Notice of proposed rulemaking (NPRM).

SUMMARY:

The FAA proposes to adopt a new airworthiness directive (AD) for certain Bombardier, Inc., Model BD-100-1A10 airplanes. This proposed AD was prompted by reports of the loss of all air data system information provided to the flightcrew, which was caused by icing at high altitudes. This proposed AD would require revising the existing airplane flight manual (AFM) to provide the flightcrew with procedures to stabilize the airplane's airspeed and attitude. The FAA is proposing this AD to address the unsafe condition on these products.

DATES:

The FAA must receive comments on this proposed AD by March 12, 2020.

ADDRESSES:

You may send comments, using the procedures found in 14 CFR 11.43 and 11.45, by any of the following methods:

  • Federal eRulemaking Portal: Go to https://www.regulations.gov. Follow the instructions for submitting comments.
  • Fax: 202-493-2251.
  • Mail: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue SE, Washington, DC 20590.
  • Hand Delivery: Deliver to Mail address above between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays.

For service information identified in this NPRM, contact Bombardier, Inc., 200 Côte-Vertu Road West, Dorval, Québec H4S 2A3, Canada; North America toll-free telephone 1-866-538-1247 or direct-dial telephone 1-514-855-2999; email ac.yul@aero.bombardier.com; internet https://www.bombardier.com. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.

Examining the AD Docket

You may examine the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2019-1081; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this NPRM, the regulatory evaluation, any comments received, and other information. The street address for Docket Operations is listed above. Comments will be available in the AD docket shortly after receipt.

Start Further Info

FOR FURTHER INFORMATION CONTACT:

Darren Gassetto, Aerospace Engineer, Start Printed Page 4615Mechanical Systems and Admin Services Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7323; fax 516-794-5531; email 9-avs-nyaco-cos@faa.gov.

End Further Info End Preamble Start Supplemental Information

SUPPLEMENTARY INFORMATION:

Comments Invited

The FAA invites you to send any written relevant data, views, or arguments about this proposal. Send your comments to an address listed under the ADDRESSES section. Include “Docket No. FAA-2019-1081; Product Identifier 2019-NM-153-AD” at the beginning of your comments. The FAA specifically invite comments on the overall regulatory, economic, environmental, and energy aspects of this NPRM. The FAA will consider all comments received by the closing date and may amend this NPRM because of those comments.

The FAA will post all comments, without change, to https://www.regulations.gov, including any personal information you provide. The FAA will also post a report summarizing each substantive verbal contact the agency receives about this NPRM.

Discussion

Transport Canada Civil Aviation (TCCA), which is the aviation authority for Canada, has issued Canadian AD CF-2019-24, dated July 5, 2019 (referred to after this as the Mandatory Continuing Airworthiness Information, or “the MCAI”), to correct an unsafe condition for certain Bombardier, Inc., Model BD-100-1A10 airplanes. You may examine the MCAI in the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2019-1081.

This proposed AD was prompted by reports of the loss of all air data system information provided to the flightcrew, which was caused by icing at high altitudes. The FAA is proposing this AD to address the loss of all air data system information provided to the flightcrew. If not addressed, this condition may adversely affect continued safe flight and landing. See the MCAI for additional background information.

Related Service Information Under 1 CFR Part 51

Bombardier has issued the following service information, which provides a procedure for “Unreliable Airspeed” in the Emergency Procedures section, and also provides a procedure for “Go-Around” in the Normal Procedures section of the applicable AFM. These documents are distinct since they apply to different airplane models.

  • Bombardier Challenger 300 AFM, Publication No. CSP 100-1, Revision 56, dated July 8, 2019.
  • Bombardier Challenger 350 AFM, Publication No. CH 350 AFM, Revision 22, dated July 8, 2019.

This service information is reasonably available because the interested parties have access to it through their normal course of business or by the means identified in the ADDRESSES section.

FAA's Determination

This product has been approved by the aviation authority of another country, and is approved for operation in the United States. Pursuant to the FAA's bilateral agreement with the State of Design Authority, the FAA has been notified of the unsafe condition described in the MCAI and service information referenced above. The FAA is proposing this AD because the FAA evaluated all the relevant information and determined the unsafe condition described previously is likely to exist or develop on other products of the same type design.

Proposed Requirements of This NPRM

This proposed AD would require revising the existing AFM with procedures for “Unreliable Airspeed” in the Emergency Procedures section of the applicable AFM and with procedures for “Go-Around” in the Normal Procedures section of the applicable AFM, as described previously.

Costs of Compliance

The FAA estimates that this proposed AD affects 560 airplanes of U.S. registry. The FAA estimates the following costs to comply with this proposed AD:

Estimated Costs for Required Actions

Labor costParts costCost per productCost on U.S. operators
1 work-hour × $85 per hour = $85$0$85$47,600

Authority for This Rulemaking

Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation Programs, describes in more detail the scope of the Agency's authority.

The FAA is issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701: “General requirements.” Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.

Regulatory Findings

The FAA determined that this proposed AD would not have federalism implications under Executive Order 13132. This proposed AD would not have a substantial direct effect on the States, on the relationship between the national Government and the States, or on the distribution of power and responsibilities among the various levels of government.

For the reasons discussed above, I certify this proposed regulation:

(1) Is not a “significant regulatory action” under Executive Order 12866,

(2) Will not affect intrastate aviation in Alaska, and

(3) Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.

Start List of Subjects

List of Subjects in 14 CFR Part 39

  • Air transportation
  • Aircraft
  • Aviation safety
  • Incorporation by reference
  • Safety
End List of Subjects

The Proposed Amendment

Accordingly, under the authority delegated to me by the Administrator, the FAA proposes to amend 14 CFR part 39 as follows:

Start Part

PART 39—AIRWORTHINESS DIRECTIVES

End Part Start Amendment Part

1. The authority citation for part 39 continues to read as follows:

End Amendment Part Start Authority

Start Printed Page 4616 Authority: 49 U.S.C. 106(g), 40113, 44701.

End Authority
[Amended]
Start Amendment Part

2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD):

End Amendment Part

Bombardier, Inc.: Docket No. FAA-2019-1081; Product Identifier 2019-NM-153-AD.

(a) Comments Due Date

The FAA must receive comments by March 12, 2020.

(b) Affected ADs

None.

(c) Applicability

This AD applies to Bombardier, Inc., Model BD-100-1A10 airplanes, certificated in any category, serial numbers 20001 through 20688 inclusive.

(d) Subject

Air Transport Association (ATA) of America Code 34, Navigation.

(e) Reason

This AD was prompted by reports of the loss of all air data system information provided to the flightcrew, which was caused by icing at high altitudes. The FAA is issuing this AD to address the loss of all air data system information provided to the flightcrew. If not addressed, this condition may adversely affect continued safe flight and landing.

(f) Compliance

Comply with this AD within the compliance times specified, unless already done.

(g) Revision of the Airplane Flight Manual (AFM)

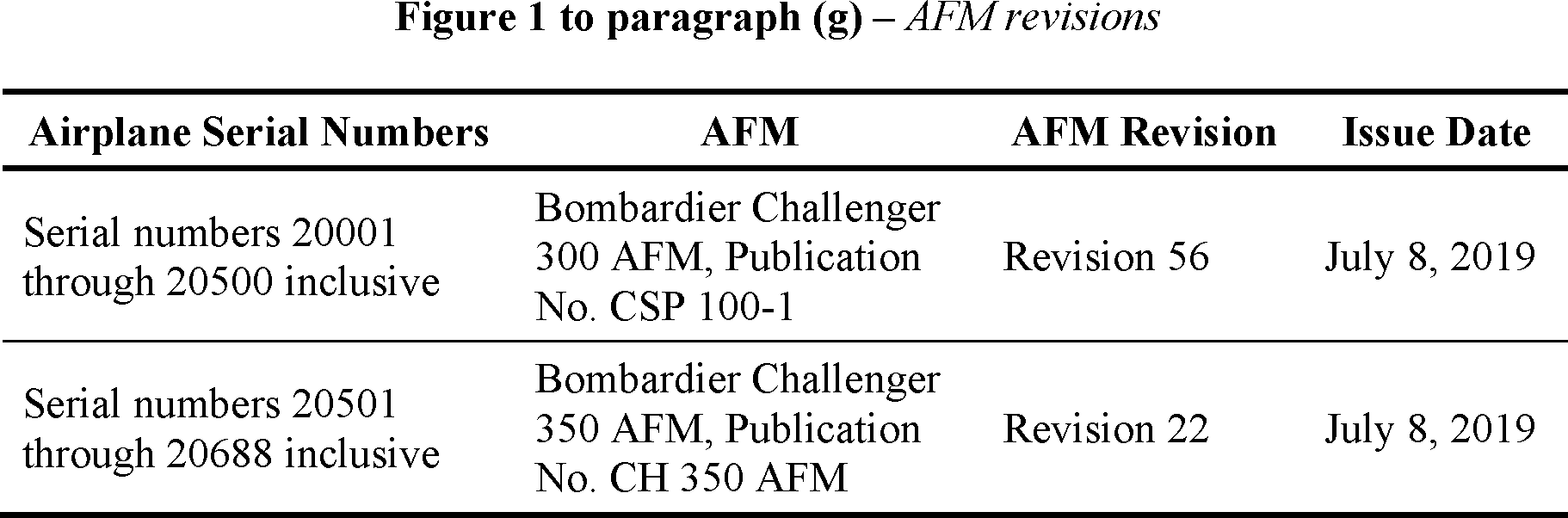

Within 30 days after the effective date of this AD: Revise the Emergency Procedures—Avionics (section 03-17) of the existing AFM to include the information in the “Unreliable Airspeed” procedure of the applicable AFM specified in figure 1 to paragraph (g) of this AD, and revise the Normal Procedures—After Take-off (section 04-04) of the existing AFM to include the information in the “Go-Around” procedure of the applicable AFM specified in figure 1 to paragraph (g) of this AD.

(h) Other FAA AD Provisions

The following provisions also apply to this AD:

(1) Alternative Methods of Compliance (AMOCs): The Manager, New York ACO Branch, FAA, has the authority to approve AMOCs for this AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send your request to your principal inspector or local Flight Standards District Office, as appropriate. If sending information directly to the manager of the certification office, send it to ATTN: Program Manager, Continuing Operational Safety, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7300; fax 516-794-5531. Before using any approved AMOC, notify your appropriate principal inspector, or lacking a principal inspector, the manager of the local flight standards district office/certificate holding district office.

(2) Contacting the Manufacturer: For any requirement in this AD to obtain instructions from a manufacturer, the instructions must be accomplished using a method approved by the Manager, New York ACO Branch, FAA; or Transport Canada Civil Aviation (TCCA); or Bombardier Inc.'s TCCA Design Approval Organization (DAO). If approved by the DAO, the approval must include the DAO-authorized signature.

(i) Related Information

(1) Refer to Mandatory Continuing Airworthiness Information (MCAI) Canadian AD CF-2019-24, dated July 5, 2019, for related information. This MCAI may be found in the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2019-1081.

(2) For more information about this AD, contact Darren Gassetto, Aerospace Engineer, Mechanical Systems and Admin Services Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7323; fax 516-794-5531; email 9-avs-nyaco-cos@faa.gov.

(3) For service information identified in this AD, contact Bombardier, Inc., 200 Côte-Vertu Road West, Dorval, Québec H4S 2A3, Canada; North America toll-free telephone 1-866-538-1247 or direct-dial telephone 1-514-855-2999; email ac.yul@aero.bombardier.com; internet https://www.bombardier.com. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.

Start Signature

Issued on January 21, 2020.

Gaetano A. Sciortino,

Deputy Director for Strategic Initiatives, Compliance & Airworthiness Division, Aircraft Certification Service.

End Signature End Supplemental Information

[FR Doc. 2020-01235 Filed 1-24-20; 8:45 am]

BILLING CODE 4910-13-P
