Start Preamble Start Printed Page 17036

AGENCY:

Federal Aviation Administration (FAA), DOT.

ACTION:

Notice of proposed rulemaking (NPRM).

SUMMARY:

The FAA proposes to adopt a new airworthiness directive (AD) for all Bombardier, Inc., Model CL-600-2B19 (Regional Jet Series 100 & 440), CL-600-2C10 (Regional Jet Series 700, 701 & 702), CL-600-2C11 (Regional Jet Series 550), CL-600-2D15 (Regional Jet Series 705), CL-600-2D24 (Regional Jet Series 900), and CL-600-2E25 (Regional Jet Series 1000) airplanes. This proposed AD was prompted by a determination that certain airplanes have outdated magnetic variation (MV) tables inside navigation systems. This proposed AD would require revising the existing airplane flight manual (AFM) to update the Flight Management System (FMS), Inertial Reference System (IRS), and Attitude and Heading Reference System (AHRS) limitations. The FAA is proposing this AD to address the unsafe condition on these products.

DATES:

The FAA must receive comments on this proposed AD by May 11, 2020.

ADDRESSES:

You may send comments, using the procedures found in 14 CFR 11.43 and 11.45, by any of the following methods:

  • Federal eRulemaking Portal: Go to https://www.regulations.gov. Follow the instructions for submitting comments.
  • Fax: 202-493-2251.
  • Mail: U.S. Department of Transportation, Docket Operations, M-30, West Building Ground Floor, Room W12-140, 1200 New Jersey Avenue SE, Washington, DC 20590.
  • Hand Delivery: Deliver to Mail address above between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays.

For service information identified in this NPRM, contact Bombardier, Inc., 400 Côte-Vertu Road West, Dorval, Québec H4S 1Y9, Canada; Widebody Customer Response Center North America toll-free telephone 1-866-538-1247 or direct-dial telephone 1-514-855-2999; fax 514-855-7401; email ac.yul@aero.bombardier.com; internet https://www.bombardier.com. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.

Examining the AD Docket

You may examine the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2020-0206; or in person at Docket Operations between 9 a.m. and 5 p.m., Monday through Friday, except Federal holidays. The AD docket contains this NPRM, the regulatory evaluation, any comments received, and other information. The street address for Docket Operations is listed above. Comments will be available in the AD docket shortly after receipt.

Start Further Info

FOR FURTHER INFORMATION CONTACT:

Siddeeq Bacchus, Aerospace Engineer, Mechanical Systems and Administrative Services Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7362; fax 516-794-5531; email 9-avs-nyaco-cos@faa.gov.

End Further Info End Preamble Start Supplemental Information

SUPPLEMENTARY INFORMATION:

Comments Invited

The FAA invites you to send any written relevant data, views, or arguments about this proposal. Send your comments to an address listed under the ADDRESSES section. Include “Docket No. FAA-2020-0206; Product Identifier 2019-NM-202-AD” at the beginning of your comments. The FAA specifically invites comments on the overall regulatory, economic, environmental, and energy aspects of this NPRM. The FAA will consider all comments received by the closing date and may amend this NPRM because of those comments.

The FAA will post all comments received, without change, to https://www.regulations.gov, including any personal information you provide. The FAA will also post a report summarizing each substantive verbal contact received about this NPRM.

Discussion

Transport Canada Civil Aviation (TCCA), which is the aviation authority for Canada, has issued Canadian AD CF-2019-40, dated November 1, 2019 (referred to after this as the Mandatory Continuing Airworthiness Information, or “the MCAI”), to correct an unsafe condition for all Bombardier, Inc., Model CL-600-2B19 (Regional Jet Series 100 & 440), CL-600-2C10 (Regional Jet Series 700, 701 & 702), CL-600-2C11 (Regional Jet Series 550), CL-600-2D15 (Regional Jet Series 705), CL-600-2D24 (Regional Jet Series 900), and CL-600-2E25 (Regional Jet Series 1000) airplanes. You may examine the MCAI in the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2020-0206.

This proposed AD was prompted by a determination that certain airplanes have outdated MV tables inside navigation systems. The FAA is proposing this AD to address outdated MV tables inside navigation systems, which can affect the performance of the navigation systems and result in the presentation of misleading magnetic heading references on the Primary Flight Displays (PFDs) and Multi-Function Displays (MFDs), positioning the airplane outside of the terrain and obstacle protection provided by instrument flight procedures and flight route designs (e.g., outdated MV tables can lead to significantly inaccurate heading, course, and bearing calculations). See the MCAI for additional background information.

Related Service Information Under 1 CFR Part 51

The FAA reviewed the following service information, which describes procedures for updating, among other systems, the FMS, IRS, and AHRS. These documents are distinct since they apply to different airplane models.

  • Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the Bombardier CRJ Series Regional Jet Model CL-600-2B19 Airplane Flight Manual, CSP A-012, Start Printed Page 17037Volume 1, Revision 71A, dated April 26, 2019.
  • Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the Bombardier CRJ Series Regional Jet Model CL-600-2C10 Airplane Flight Manual, CSP B-012, Revision 26, dated March 1, 2019.
  • Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the Bombardier CRJ Series Regional Jet Model CL-600-2C10 and CL-600-2C11 Airplane Flight Manual, CSP B-012, Revision 28, dated September 18, 2019.
  • Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the Bombardier CRJ Series Regional Jet Model CL-600-2D15 and CL-600-2D24 Airplane Flight Manual, CSP C-012, Volume 1, Revision 21, dated March 29, 2019.
  • Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the Bombardier CRJ Series Regional Jet Model CL-600-2E25 Airplane Flight Manual, CSP D-012, Revision 21, dated February 15, 2019.

This service information is reasonably available because the interested parties have access to it through their normal course of business or by the means identified in the ADDRESSES section.

FAA's Determination

This product has been approved by the aviation authority of another country, and is approved for operation in the United States. Pursuant to a bilateral agreement with the State of Design Authority, the FAA has been notified of the unsafe condition described in the MCAI and service information referenced above. The FAA is proposing this AD because the agency evaluated all the relevant information and determined the unsafe condition described previously is likely to exist or develop on other products of the same type design.

Proposed Requirements of This NPRM

This proposed AD would require revising the existing AFM to update the FMS, IRS, and AHRS limitations.

Costs of Compliance

The FAA estimates that this proposed AD affects 1,072 airplanes of U.S. registry. The FAA estimates the following costs to comply with this proposed AD:

Estimated Costs for Required Actions

Labor costParts costCost per productCost on U.S. operators
1 work-hour × $85 per hour = $85$0$85$91,120

Authority for This Rulemaking

Title 49 of the United States Code specifies the FAA's authority to issue rules on aviation safety. Subtitle I, section 106, describes the authority of the FAA Administrator. Subtitle VII: Aviation Programs, describes in more detail the scope of the Agency's authority.

The FAA is issuing this rulemaking under the authority described in Subtitle VII, Part A, Subpart III, Section 44701: “General requirements.” Under that section, Congress charges the FAA with promoting safe flight of civil aircraft in air commerce by prescribing regulations for practices, methods, and procedures the Administrator finds necessary for safety in air commerce. This regulation is within the scope of that authority because it addresses an unsafe condition that is likely to exist or develop on products identified in this rulemaking action.

Regulatory Findings

The FAA determined that this proposed AD would not have federalism implications under Executive Order 13132. This proposed AD would not have a substantial direct effect on the States, on the relationship between the national Government and the States, or on the distribution of power and responsibilities among the various levels of government.

For the reasons discussed above, I certify this proposed regulation:

(1) Is not a “significant regulatory action” under Executive Order 12866,

(2) Will not affect intrastate aviation in Alaska, and

(3) Will not have a significant economic impact, positive or negative, on a substantial number of small entities under the criteria of the Regulatory Flexibility Act.

Start List of Subjects

List of Subjects in 14 CFR Part 39

  • Air transportation
  • Aircraft
  • Aviation safety
  • Incorporation by reference
  • Safety
End List of Subjects

The Proposed Amendment

Accordingly, under the authority delegated to me by the Administrator, the FAA proposes to amend 14 CFR part 39 as follows:

Start Part

PART 39—AIRWORTHINESS DIRECTIVES

End Part Start Amendment Part

1. The authority citation for part 39 continues to read as follows:

End Amendment Part Start Authority

Authority: 49 U.S.C. 106(g), 40113, 44701.

End Authority
[Amended]
Start Amendment Part

2. The FAA amends § 39.13 by adding the following new airworthiness directive (AD):

End Amendment Part

Bombardier, Inc.: Docket No. FAA-2020-0206; Product Identifier 2019-NM-202-AD.

(a) Comments Due Date

The FAA must receive comments by May 11, 2020.

(b) Affected ADs

None.

(c) Applicability

This AD applies to Bombardier, Inc., Model CL-600-2B19 (Regional Jet Series 100 & 440), CL-600-2C10 (Regional Jet Series 700, 701 & 702), CL-600-2C11 (Regional Jet Series 550), CL-600-2D15 (Regional Jet Series 705), CL-600-2D24 (Regional Jet Series 900), and CL-600-2E25 (Regional Jet Series 1000) airplanes, certificated in any category, all serial numbers.

(d) Subject

Air Transport Association (ATA) of America Code 34, Navigation.

(e) Reason

This AD was prompted by a determination that certain airplanes have outdated magnetic variation (MV) tables inside navigation systems. The FAA is issuing this AD to address outdated MV tables inside navigation systems, which can affect the performance of the navigation systems and result in the presentation of misleading magnetic heading references on the Primary Flight Displays (PFDs) and Multi-Function Displays (MFDs), positioning the airplane outside of the terrain and obstacle protection provided by instrument flight procedures and flight route designs (e.g., outdated MV tables can lead to significantly inaccurate heading, course, and bearing calculations).

(f) Compliance

Comply with this AD within the compliance times specified, unless already done.

(g) Airplane Flight Manual (AFM) Revision

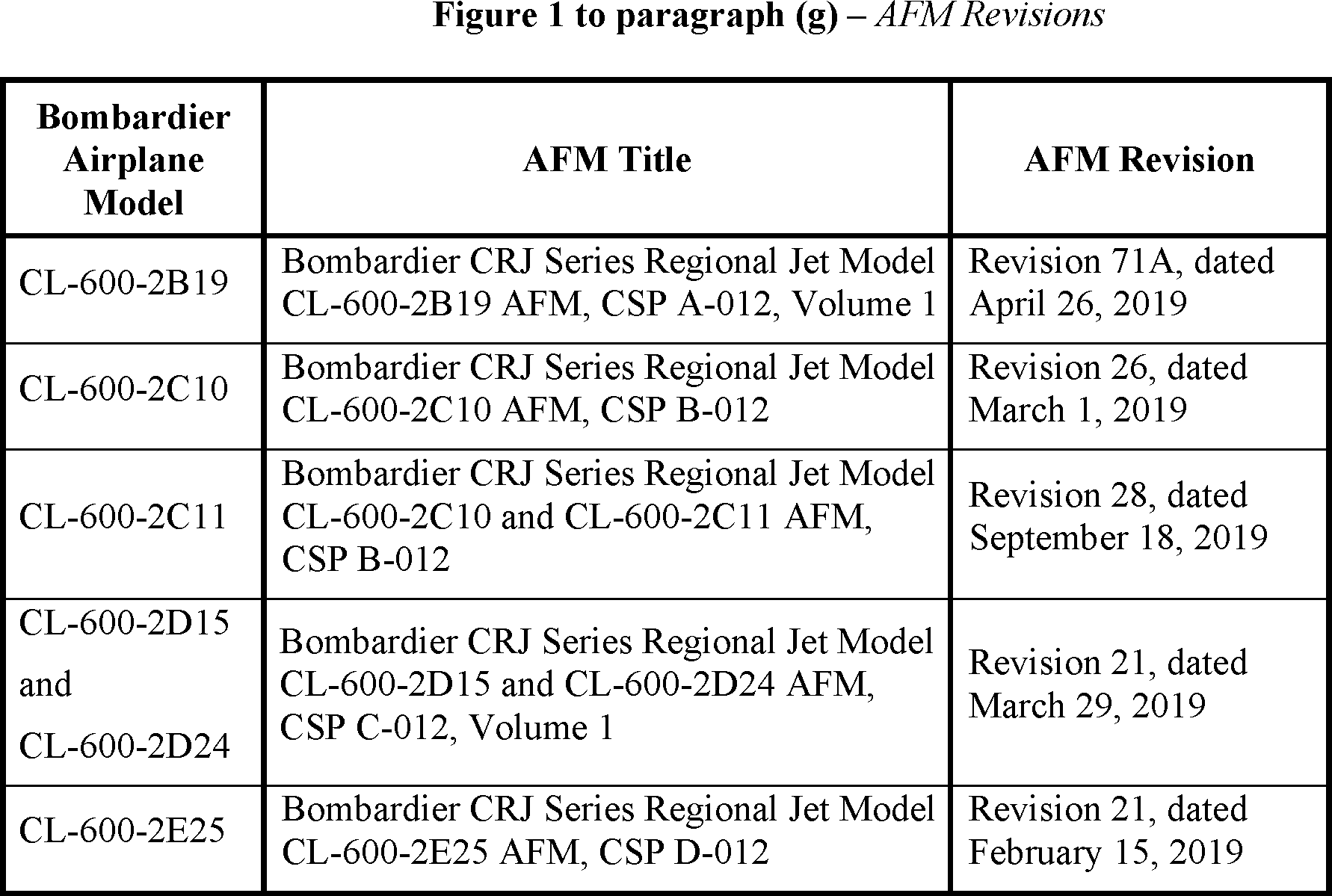

Within 30 days after the effective date of this AD, revise the existing AFM to Start Printed Page 17038incorporate the information specified in Section 02-09—Navigation System Limitations, of Chapter 2—LIMITATIONS, of the applicable Bombardier CRJ Series Regional Jet AFM specified in figure 1 to paragraph (g) of this AD.

(h) Other FAA AD Provisions

The following provisions also apply to this AD:

(1) Alternative Methods of Compliance (AMOCs): The Manager, New York ACO Branch, FAA, has the authority to approve AMOCs for this AD, if requested using the procedures found in 14 CFR 39.19. In accordance with 14 CFR 39.19, send your request to your principal inspector or local Flight Standards District Office, as appropriate. If sending information directly to the manager of the certification office, send it to ATTN: Program Manager, Continuing Operational Safety, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7300; fax 516-794-5531. Before using any approved AMOC, notify your appropriate principal inspector, or lacking a principal inspector, the manager of the local flight standards district office/certificate holding district office.

(2) Contacting the Manufacturer: For any requirement in this AD to obtain instructions from a manufacturer, the instructions must be accomplished using a method approved by the Manager, New York ACO Branch, FAA; or Transport Canada Civil Aviation (TCCA); or Bombardier, Inc.'s TCCA Design Approval Organization (DAO). If approved by the DAO, the approval must include the DAO-authorized signature.

(i) Related Information

(1) Refer to Mandatory Continuing Airworthiness Information (MCAI) Canadian AD CF-2019-40, dated November 1, 2019, for related information. This MCAI may be found in the AD docket on the internet at https://www.regulations.gov by searching for and locating Docket No. FAA-2020-0206.

(2) For more information about this AD, contact Siddeeq Bacchus, Aerospace Engineer, Mechanical Systems and Administrative Services Section, FAA, New York ACO Branch, 1600 Stewart Avenue, Suite 410, Westbury, NY 11590; telephone 516-228-7362; fax 516-794-5531; email 9-avs-nyaco-cos@faa.gov.

(3) For service information identified in this AD, contact Bombardier, Inc., 400 Côte-Vertu Road West, Dorval, Québec H4S 1Y9, Canada; Widebody Customer Response Center North America toll-free telephone 1-866-538-1247 or direct-dial telephone 1-514-855-2999; fax 514-855-7401; email ac.yul@aero.bombardier.com; internet https://www.bombardier.com. You may view this service information at the FAA, Transport Standards Branch, 2200 South 216th St., Des Moines, WA. For information on the availability of this material at the FAA, call 206-231-3195.

Start Signature

Issued on March 20, 2020.

Lance T. Gant,

Director, Compliance & Airworthiness Division, Aircraft Certification Service.

End Signature End Supplemental Information

[FR Doc. 2020-06294 Filed 3-25-20; 8:45 am]

BILLING CODE 4910-13-P
